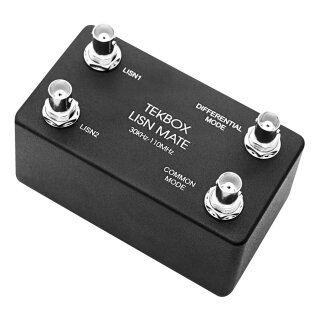

TekBox TBLM01 LISN Mate
Description
The TBLM1 is a companion device for LISNs, which splits the conducted noise signal into its common mode and differential mode components. The LISN Mate is connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the negative supply line. The conducted noise signal at the output of a LISN is the sum of common mode and differential mode noise. The LISN mate splits it into the common mode and differential mode components, with each signal component available at a separate BNC port.
Specifications
- Frequency range: 30 kHz - 110 MHz
- Maximum RF level at any BNC port: 27dBm
- Maximum DC current at any BNC port: 30 mA
| Shipping weight: | 0.50 Kg |
