Waveshare 10.1HP-CAPQLED

Artnr.: WS3-019905-P
Hersteller: Waveshare

10,1 Zoll QLED Quantum Dot Display, kapazitiver Touch, 1280×720, G+G gehärtetes Glaspanel, Unterstützung verschiedener Geräte und Systeme

Variante: 145 €mit EU Netzteil

139 €ohne Netzteil

139,00 €

inkl. 19% MwSt.

(116,81 € exkl. MwSt.)

ab Lager lieferbar

Bitte gewünschtes Modell auswählen.

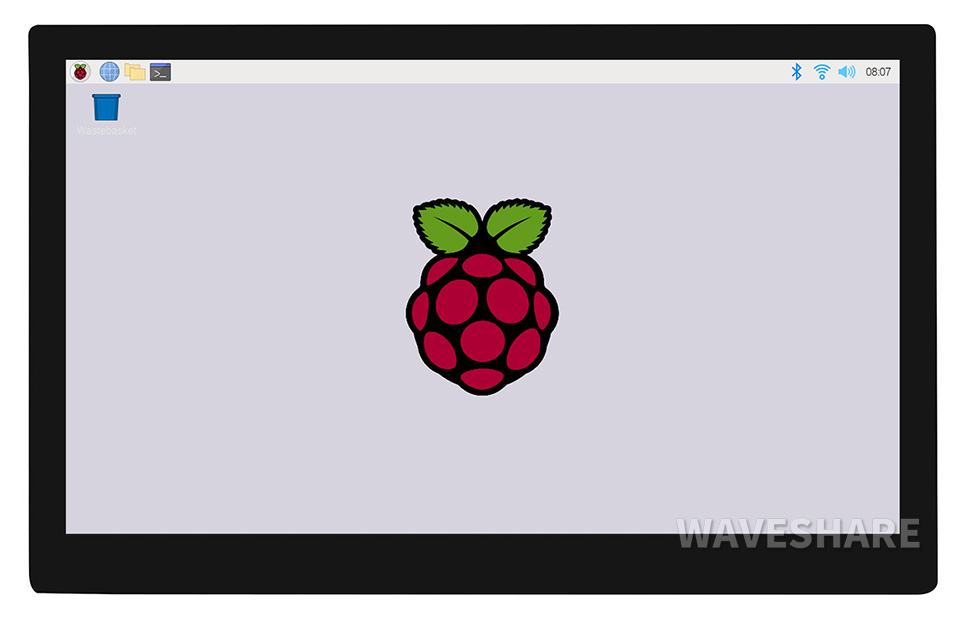

10.1" QLED Quantum Dot Display

Size10.1"
Resolution1280×720
Display PortHDMI
Display PanelIPS

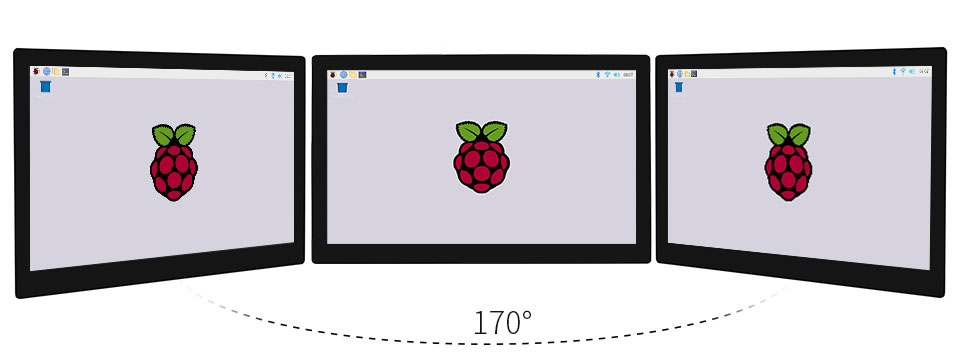

Viewing Angle170°
BacklightQLED Quantum Dot
Brightness500cd/m²
Touch TypeCapacitive
Touch Points10-Points
Touch PortUSB
Touch PanelG+G Toughened Glass
OSD MenuBrightness/Contrast
Audio Output13.5mm Jack
Audio Output24PIN Header
GamingXbox360/PS4/Switch

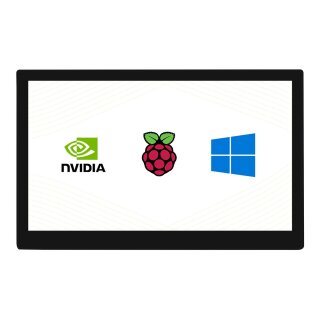

Device & System Support

Raspberry Pi

Supports Raspbian, 10-points touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

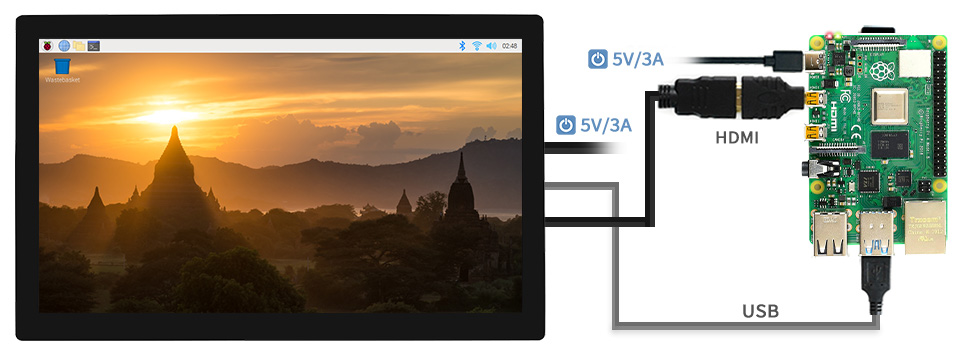

Working with Raspberry Pi 4

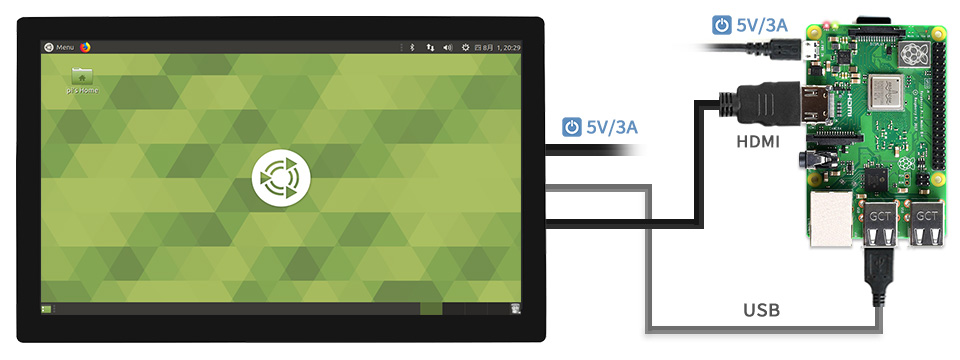

Working with Raspberry Pi 3B+

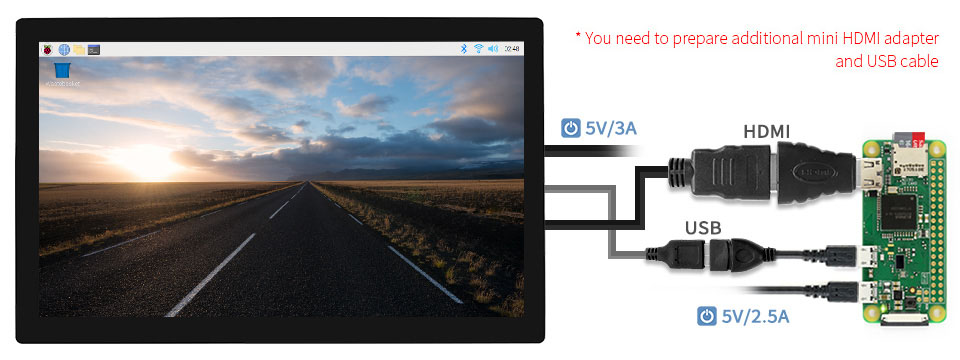

Working with Raspberry Pi Zero W

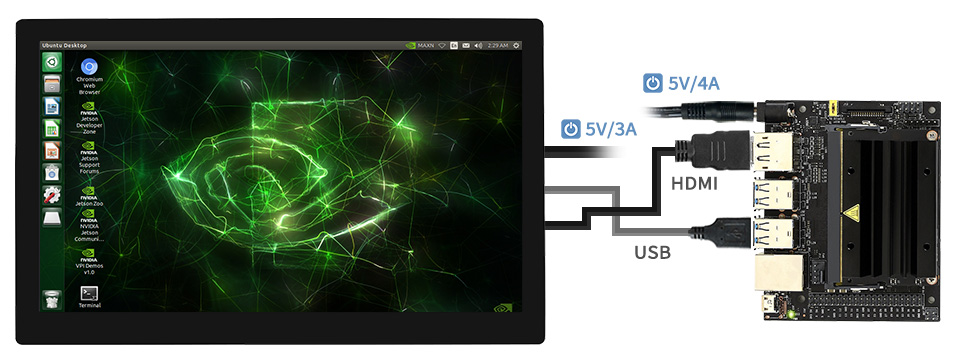

Working with AI Computer Jetson Nano

Working with mini PC

Display

QLED Panel

QLED Quantum Dot Technology

Wider color gamut

color gamut of this QLED display is up to: NTSC 96%, sRGB 100%

More pure chroma

chroma of QLED increases 58.3%, makes the color more pure, more vivid

Longer lifetime

due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation

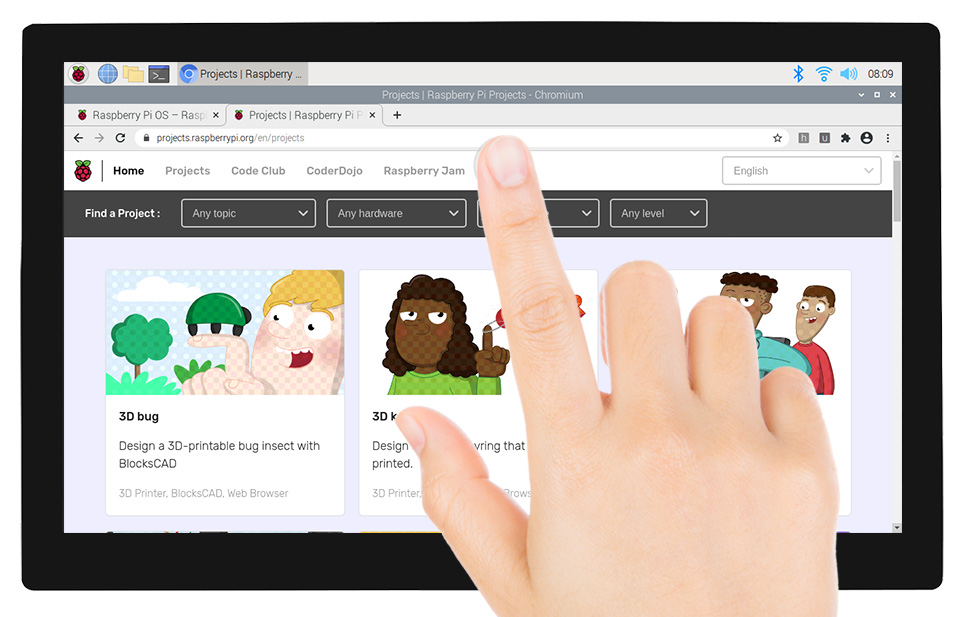

Touch Control

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness G-G toughened glass panel.

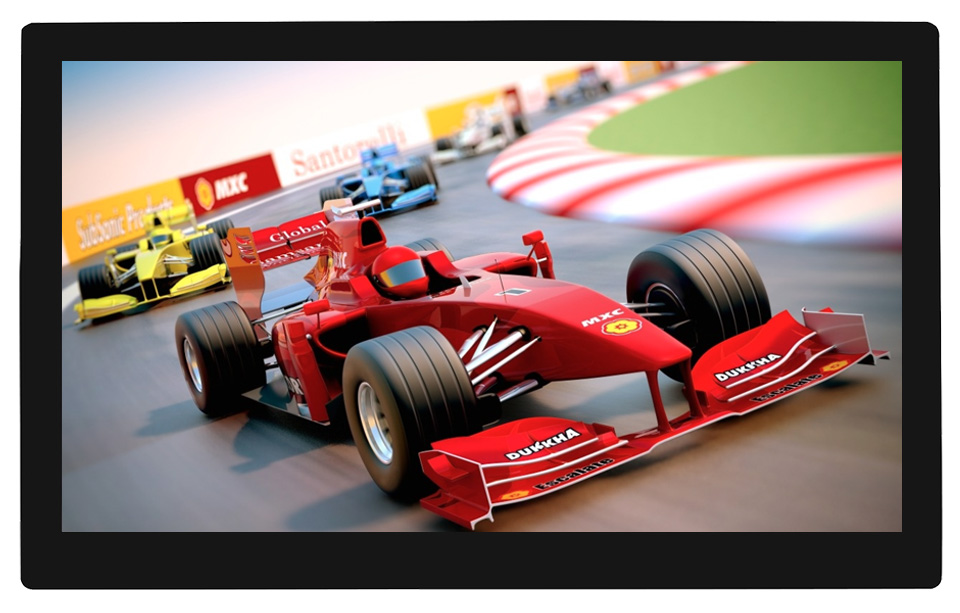

Enjoy Gaming

* audio output via earphone/speaker port.

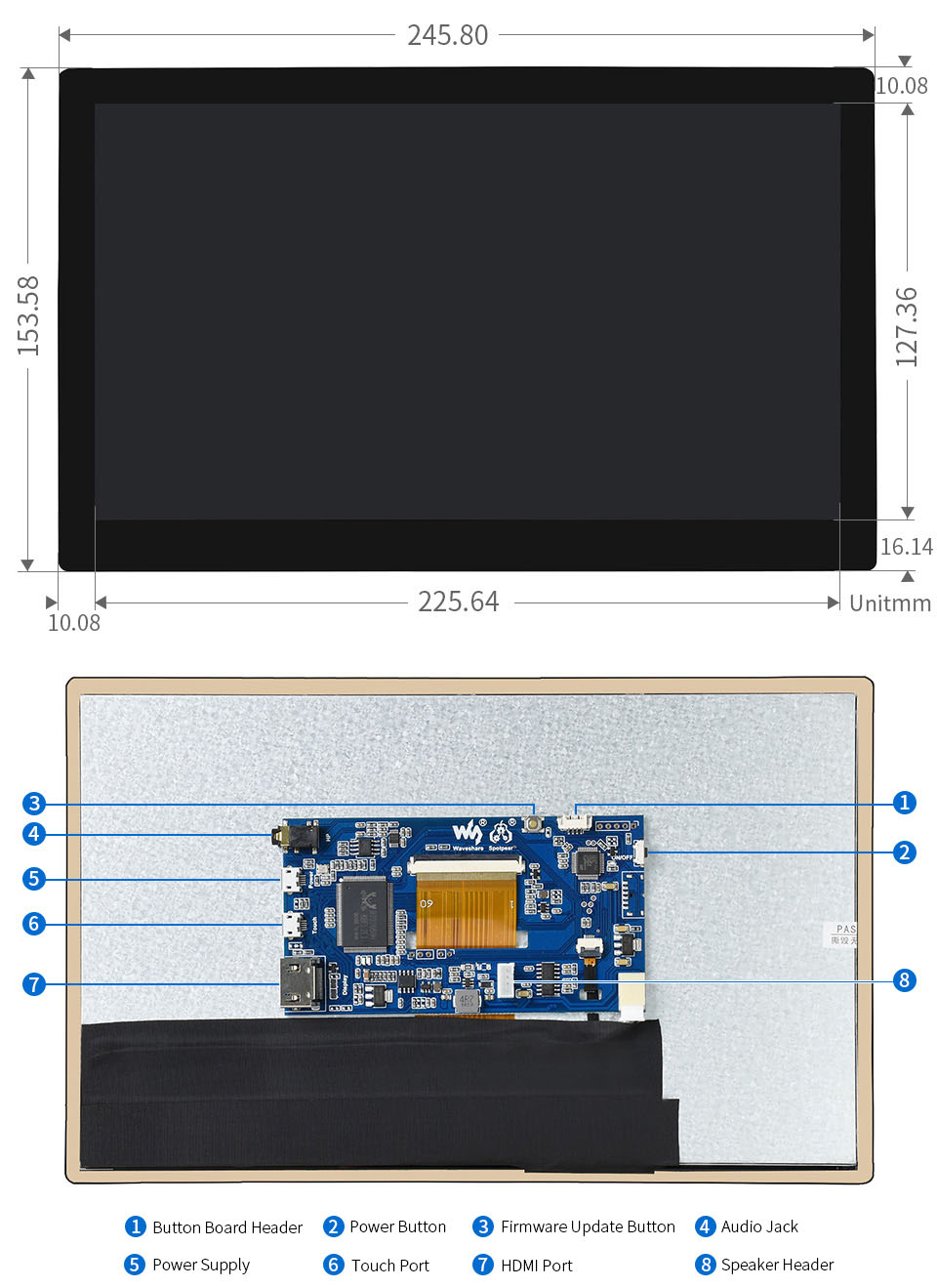

Appearance and Dimensions

Resources & Services

Wiki: 10.1HP-CAPQLED

Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.

Over a decade: Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Fully Laminated	Spe-aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C)	320×240	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (B)	480×800	DPI	IPS	170°	Capacitive	I2C	√	×	√	√	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	×	×	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	×	×	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	×	×
5.5inch HDMI AMOLED (with case B)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	USB	√	√	√	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
9HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
9inch 2560x1600 Monitor	2560×1600	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
12.5inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
