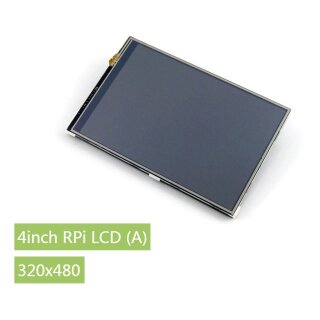

Waveshare 10207 4inch RPi LCD (A)

Artnr.: WS3-010207
Hersteller: Waveshare

480x320, 4-Zoll-Touchscreen-TFT-LCD, entwickelt für Raspberry Pi

29,90 €

inkl. 19% MwSt.

(25,13 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

Features

480x320 hardware resolution
Resistive touch control
Supports any revision of Raspberry Pi (directly-pluggable)
Drivers provided (works with your own Raspbian/Ubuntu/Kali)
Supports FBCP software driver as well, allows to config software resolution and set up dual-display
Combined with the Raspberry Pi, allows you to:
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)

Key Parameters

LCD Type	TFT
LCD Interface	SPI
Touch Screen Type	Resistive
Touch Screen Controller	XPT2046
Colors	65536
Backlight	LED
Resolution	320*480 (Pixel)
Aspect Ratio	8:5
Power Consumption	TBD
Backlight Current	TBD
Operating Temp. (?)	TBD

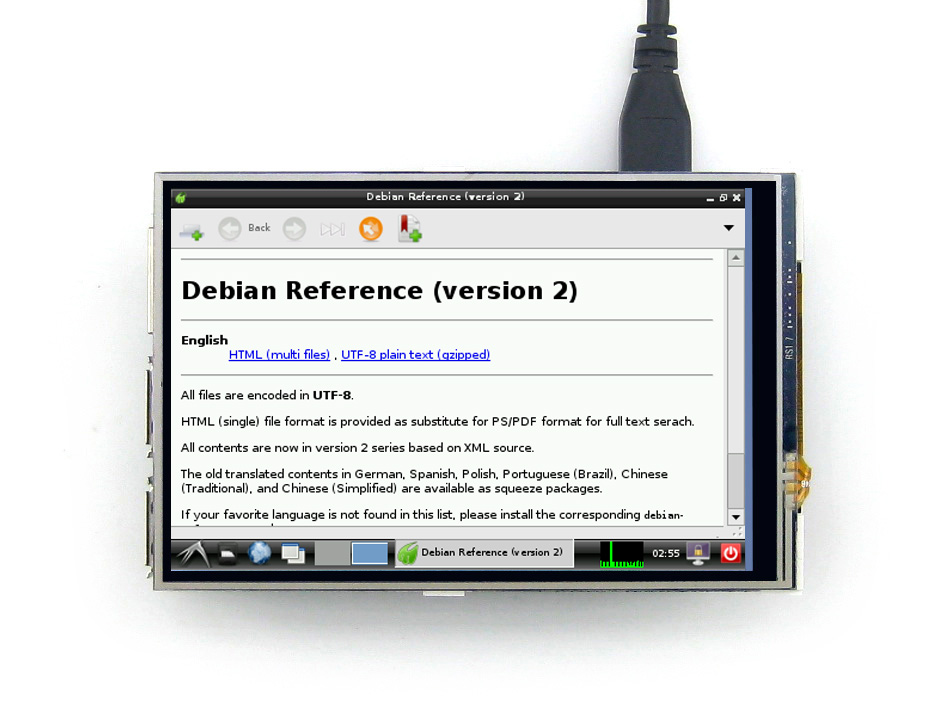

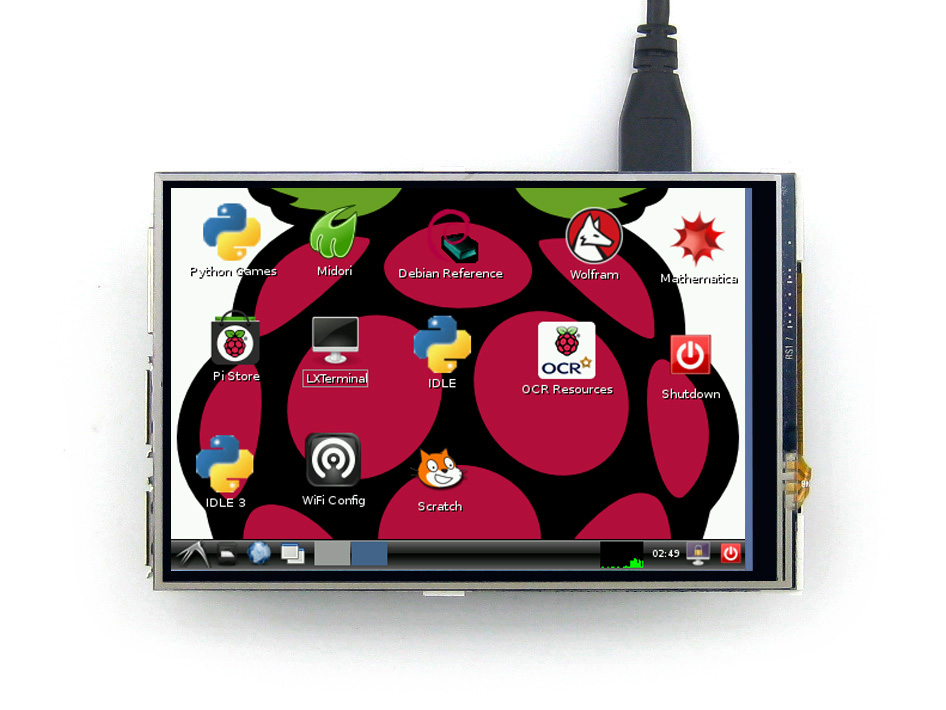

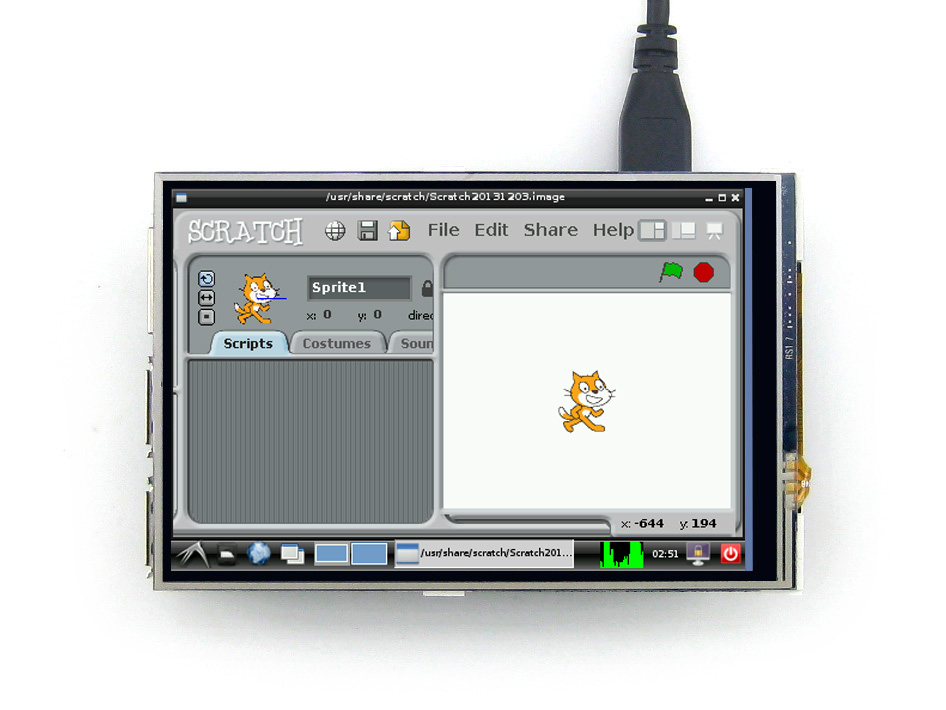

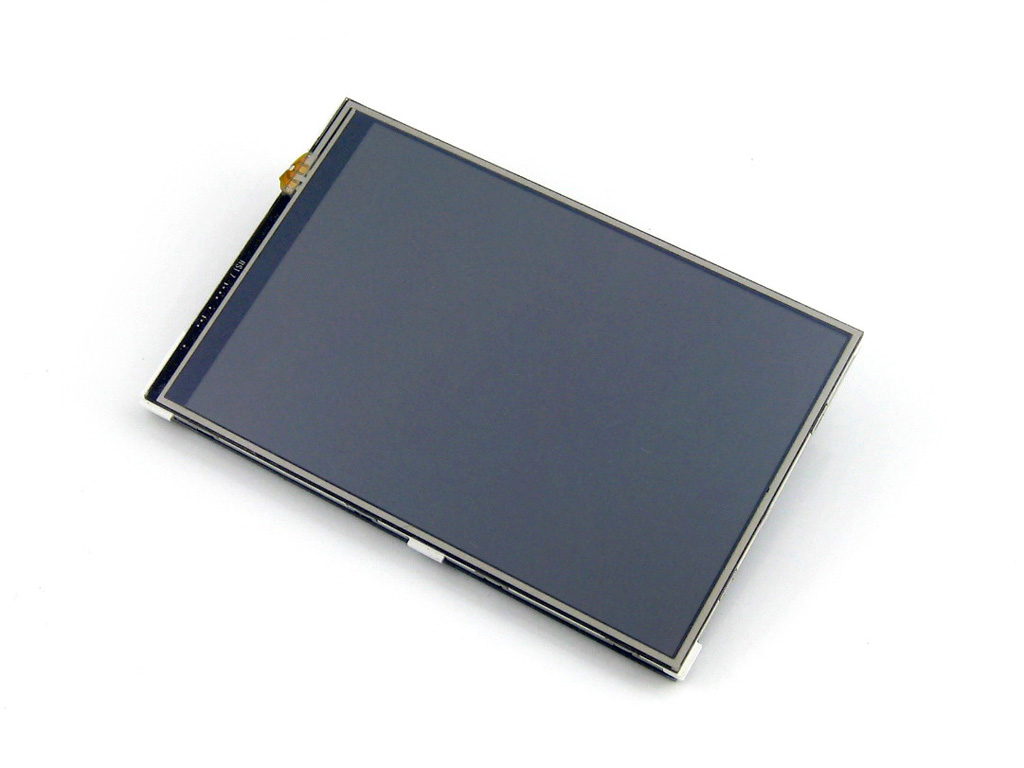

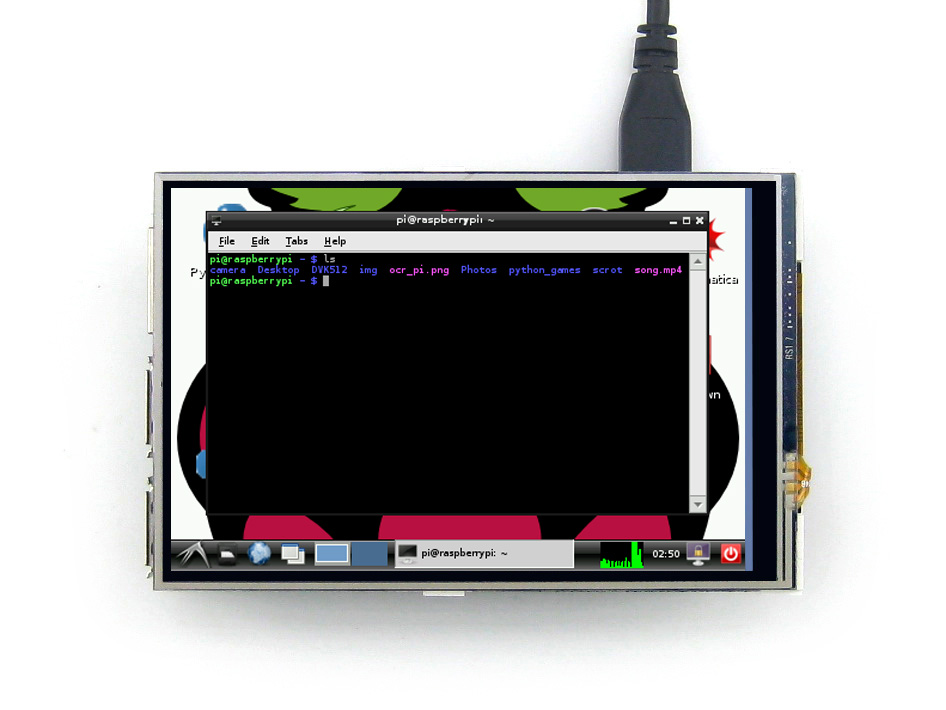

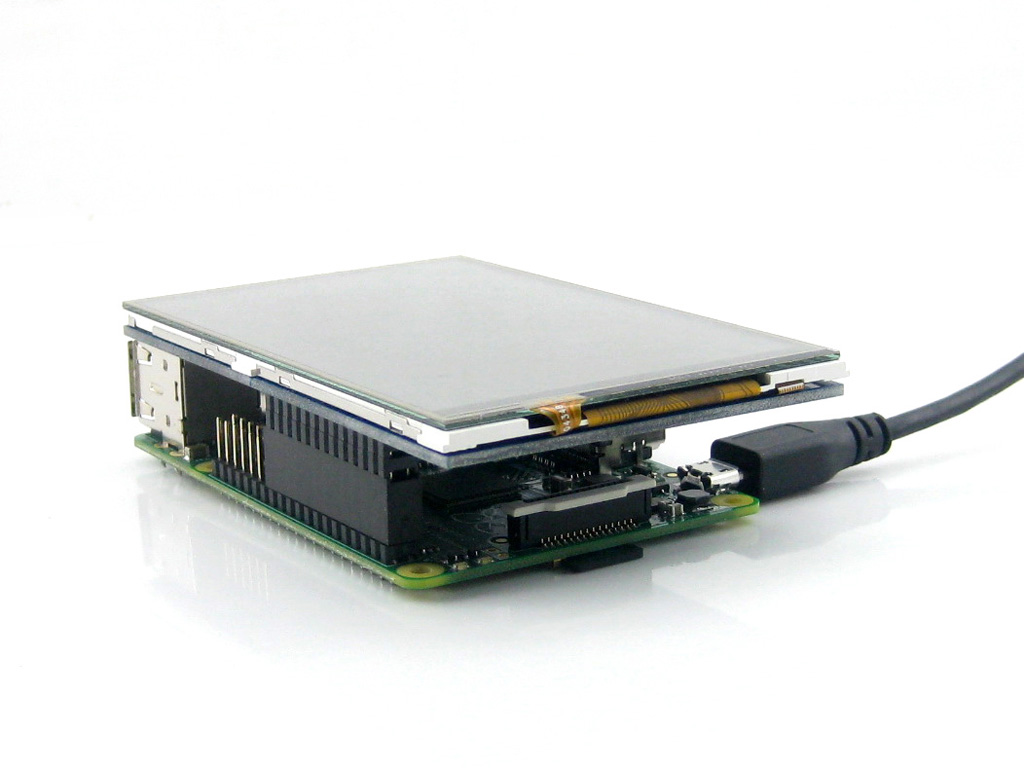

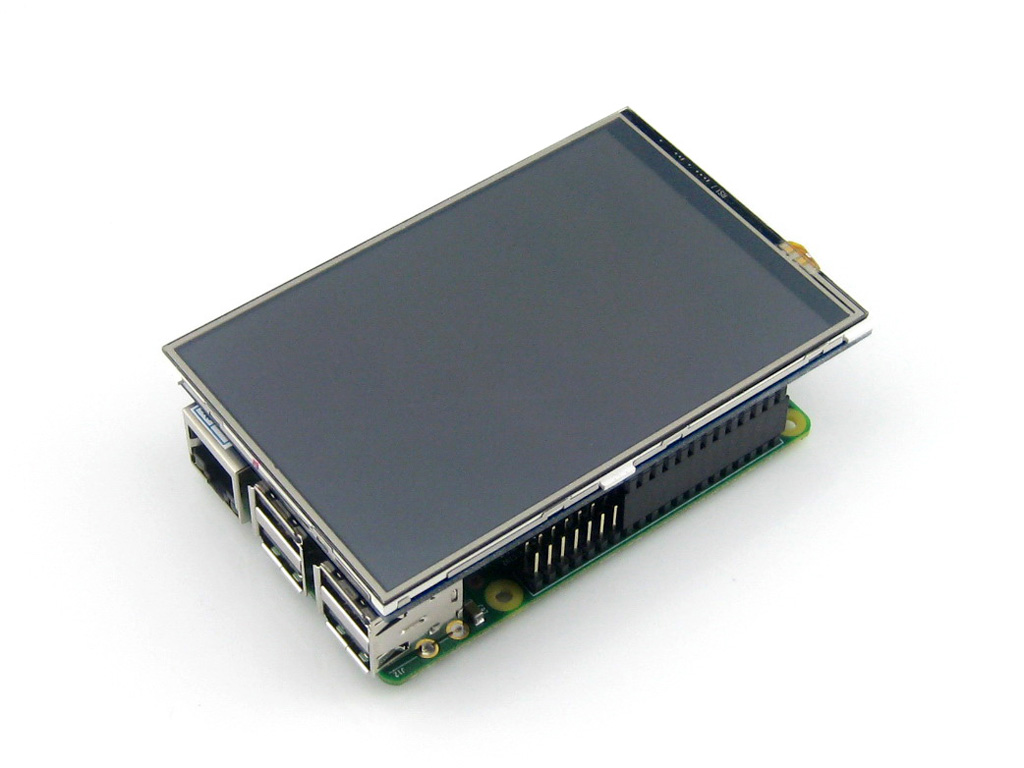

Photos

Interface

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

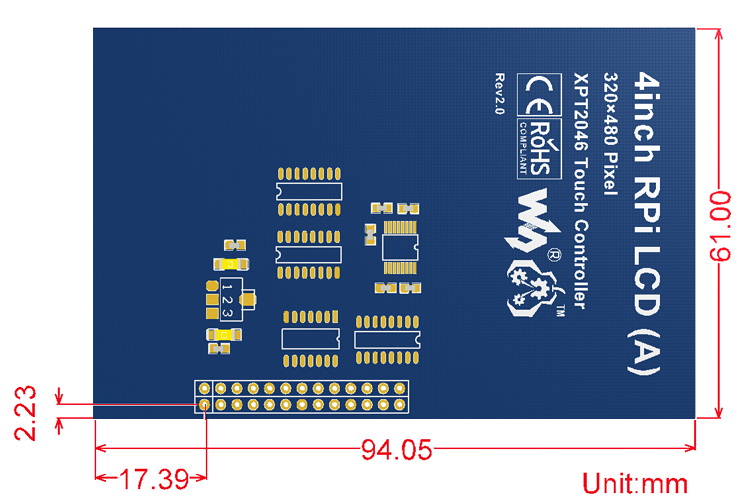

External Dimension

Downloads

Development resources: Image, schematic, dimension, software, etc. Download: www.waveshare.com/wiki/4inch_RPi_LCD_(A)

FAQ

Why the LCD doesn't work with my Raspbian?: To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual. However, for the first testing, you may want to use our image directly (if provided).
Why the LCD still doesn't work with the Waveshare provided image?: Make sure the hardware connection is correct and connects fine. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?: It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

Anti-Piracy

CAUTION: This product is protected by patent, anyone making copies/knock-offs SHOULD be held liable pursuant to law.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

RPi LCD Anti-Piracy (Click to enlarge)

Package Contents

4inch RPi LCD (A) x 1
Touch pen x 1
RPi screws pack (2pcs) x 1

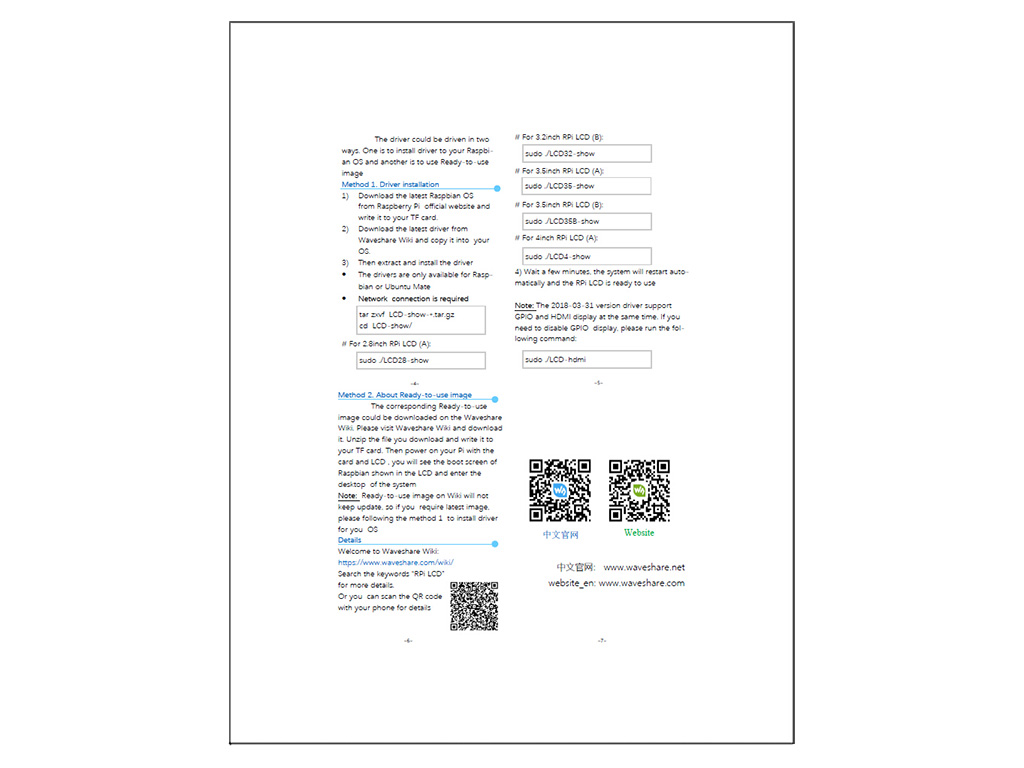

Quick start sheet x1
