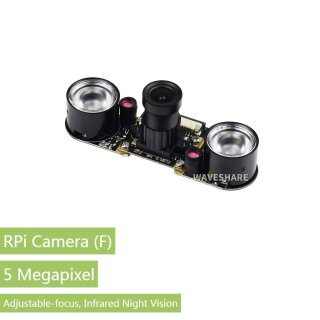

Waveshare 10299 RPi Camera (F)
Artnr.: WS2-010299
Raspberry Pi Kameramodul, unterstützt Nachtsicht

20,90 € inkl. 19% MwSt.
17,56 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Features

  • Raspberry Pi Night Vision Camera, supports all revisions of the Pi
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 1.8
    • Focal Length : 3.6mm
    • Angle of View (diagonal) : 50 degree
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension : 25mm x 24mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Downloads

Development resources: user manual, etc. Download: www.waveshare.com/wiki/RPi_Camera_(F)



Selection Guide

Partnumber Pixels Sensor Adjustable Focus Distance Infrared Night Vision Angle of View (diagonal) (degree) Manufacturer Dimensions (mm) Recommendation1
RPi Camera V2 8 Mega IMX219 × × 62.2 element14 25x24x9 ????
RPi NoIR Camera V2 8 Mega IMX219 × 62.2 element14 25x24x9 ????
RPi Camera (B) 5 Mega OV5647 × 60.6 Waveshare 32x32 ???
RPi Camera (D) 5 Mega OV5647 × × 66 Waveshare 25x24x9 ??
RPi Camera (E) 5 Mega OV5647 × 69.1 Waveshare 25x24x6 ??
RPi Camera (F) 5 Mega OV5647 75 Waveshare 25x24 ????
RPi Camera (G) 5 Mega OV5647 × 160 Waveshare 25x24 ????
RPi Camera (H) 5 Mega OV5647 160 Waveshare 25x24 ????
RPi Camera (I) 5 Mega OV5647 × 170 Waveshare 32x32 ???
RPi Camera (M) 5 Mega OV5647 × 200 Waveshare 25x24 ????
RPi IR-CUT Camera2 5 Mega OV5647 75.7 Waveshare 31x32 ????
RPi IR-CUT Camera (B)2 5 Mega OV5647 40 Waveshare 31x32 ????
RPi Zero V1.3 Camera3 5 Mega OV5647 × × 69.1 Waveshare 60x11.5x5 ???
RPi FPC Camera 5 Mega OV5647 × × 72 Waveshare 300x16x5 ???
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
  3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH



Package Contents

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

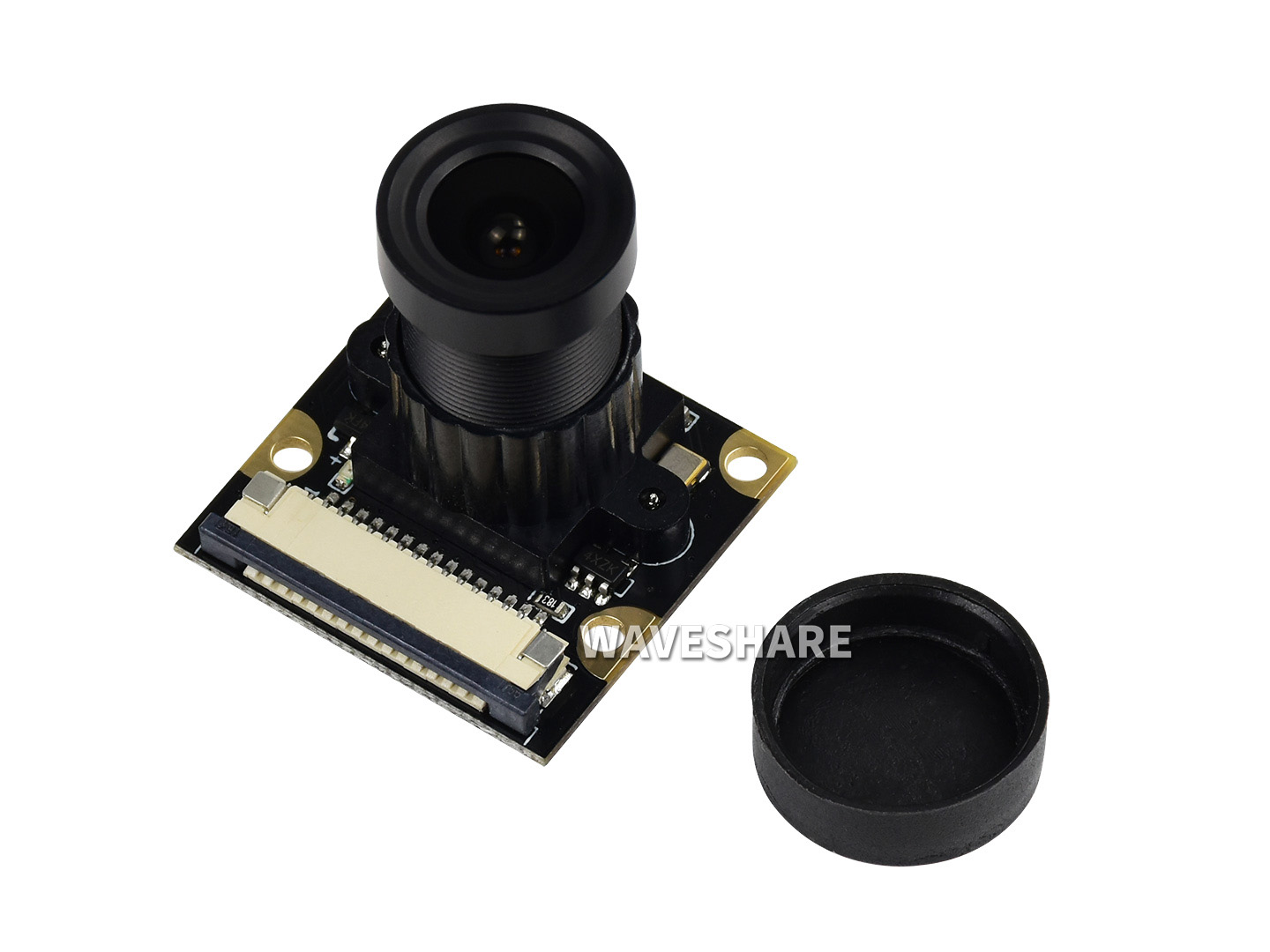

  1. RPi Camera (F) x1
  2. Infrared LED Board (B) x2
  3. 15-pin FFC (opposite sides contact) x1
1
2
3

Versandgewicht: 0,06 Kg
