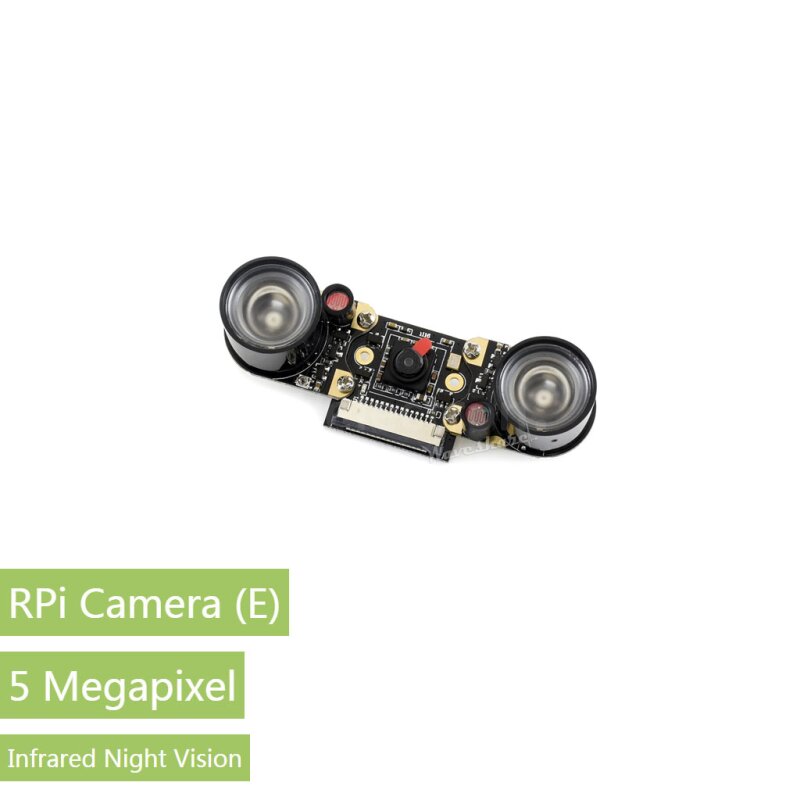

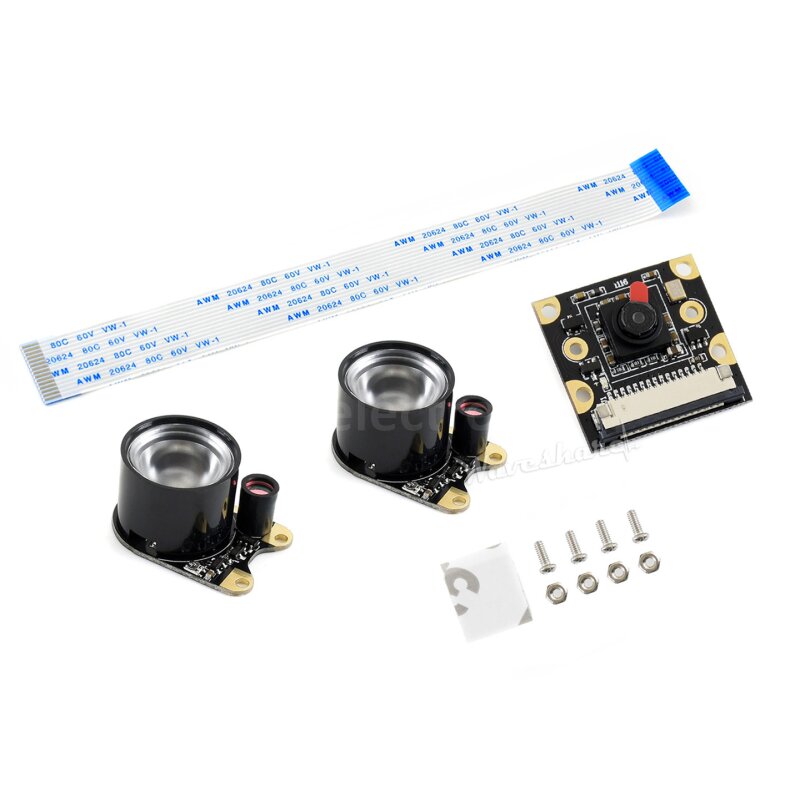

Waveshare 10300 RPi Camera (E)

Raspberry Pi Kameramodul, unterstützt Nachtsicht

19,90 €

inkl. 19% MwSt.

(16,72 € exkl. MwSt.)

zzgl.

Features

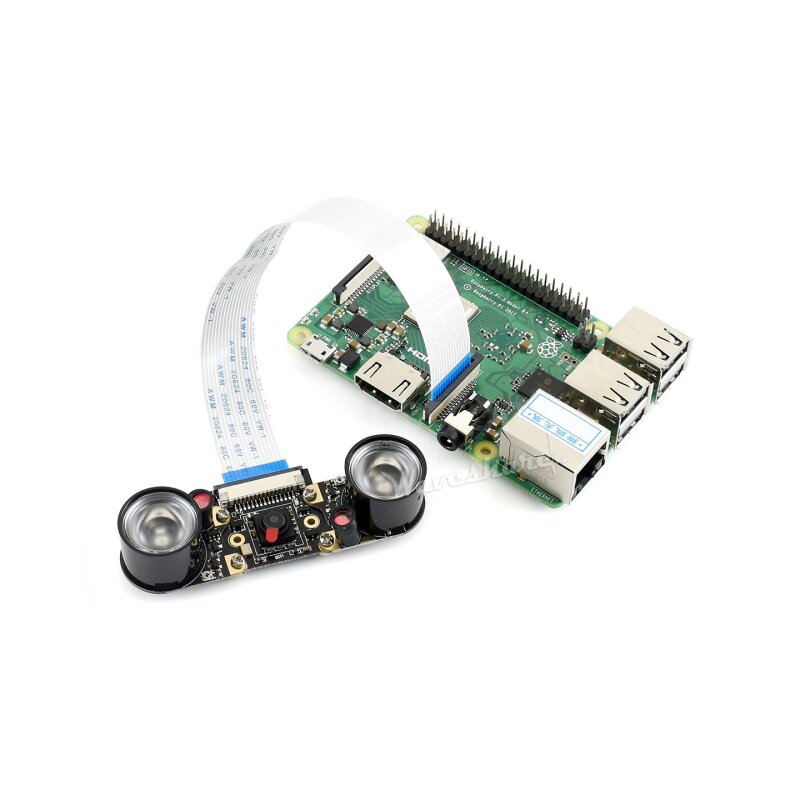

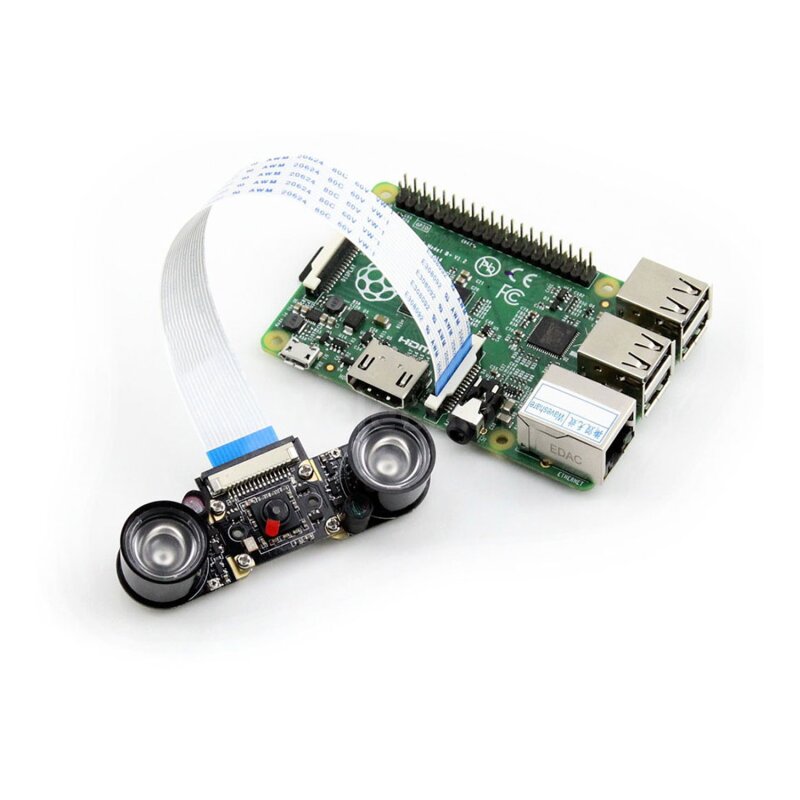

Raspberry Pi Night Vision Camera, supports all revisions of the Pi

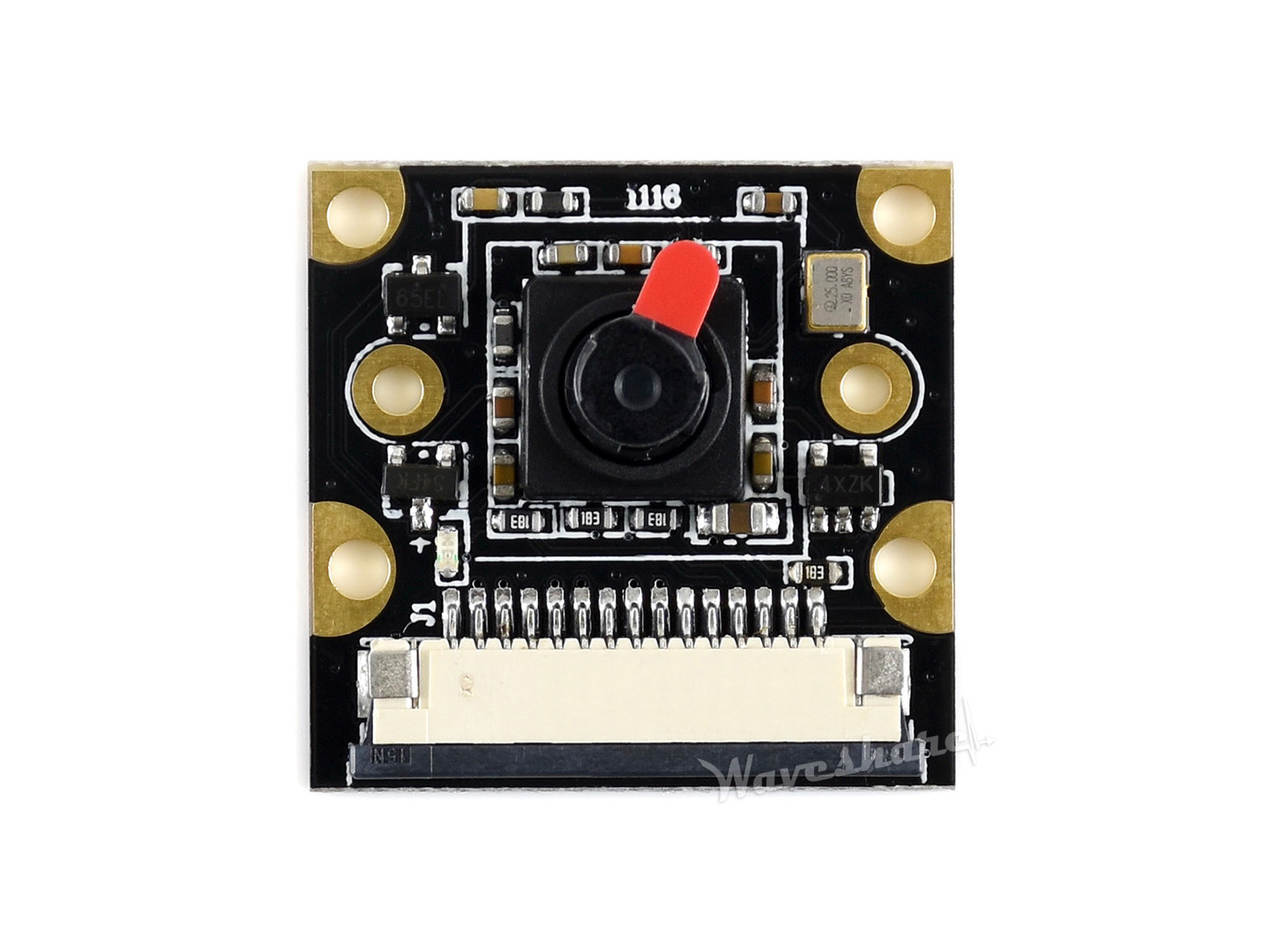

5 megapixel OV5647 sensor
Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.9
- Focal Length : 3.51mm
- Angle of View (diagonal) : 69.1 degree
- Sensor best resolution : 1080p

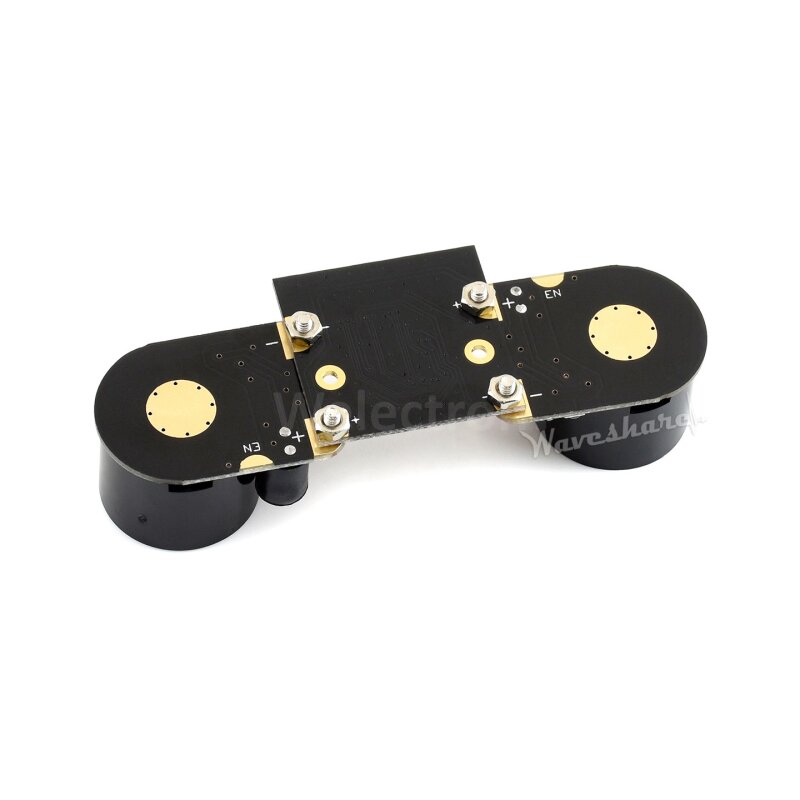

4 screw holes
- Used for attachment
- Provides 3.3V power output

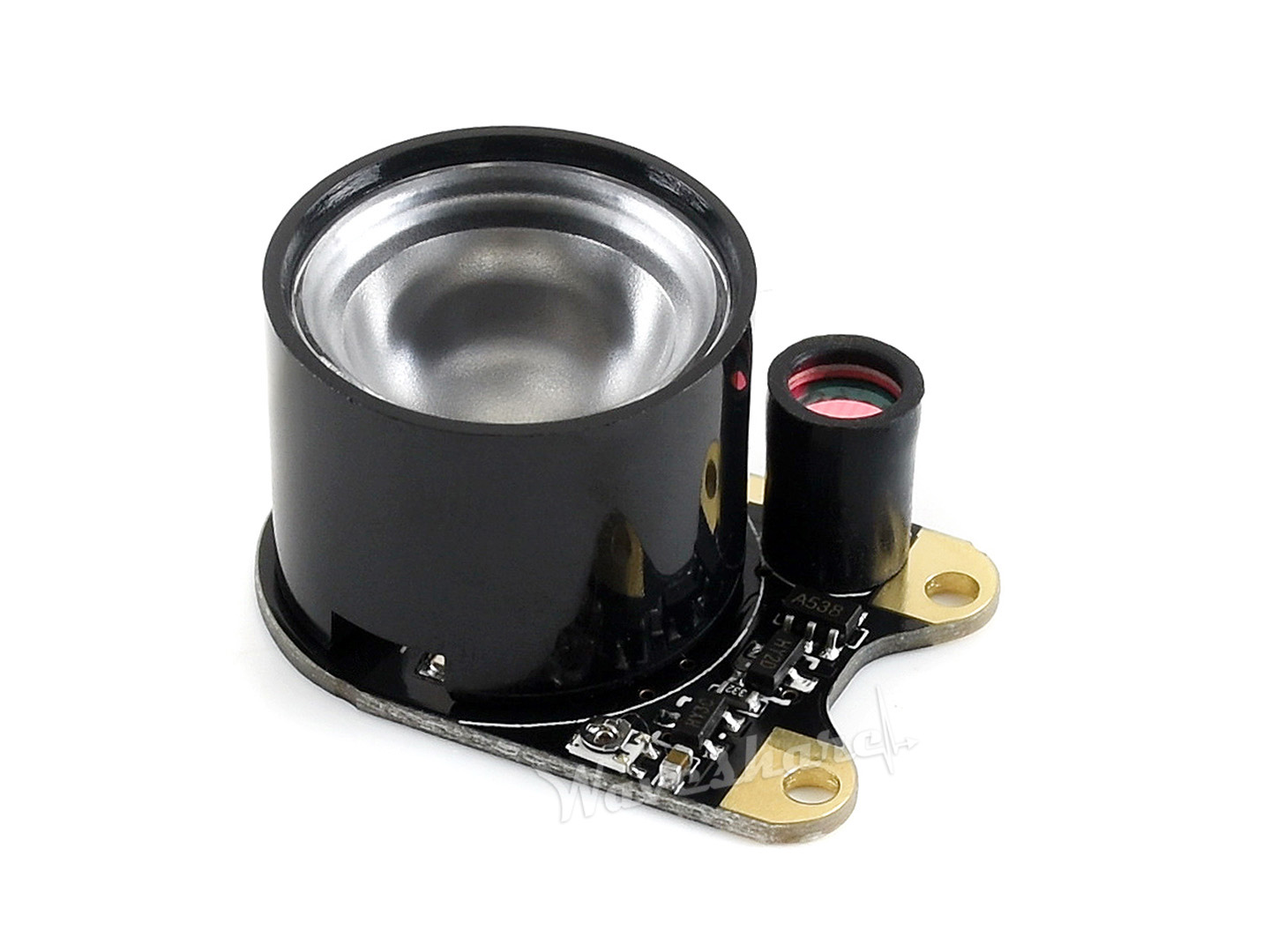

- Supports connecting infrared LED and/or fill flash LED
Dimension : 25mm x 24mm x 6mm

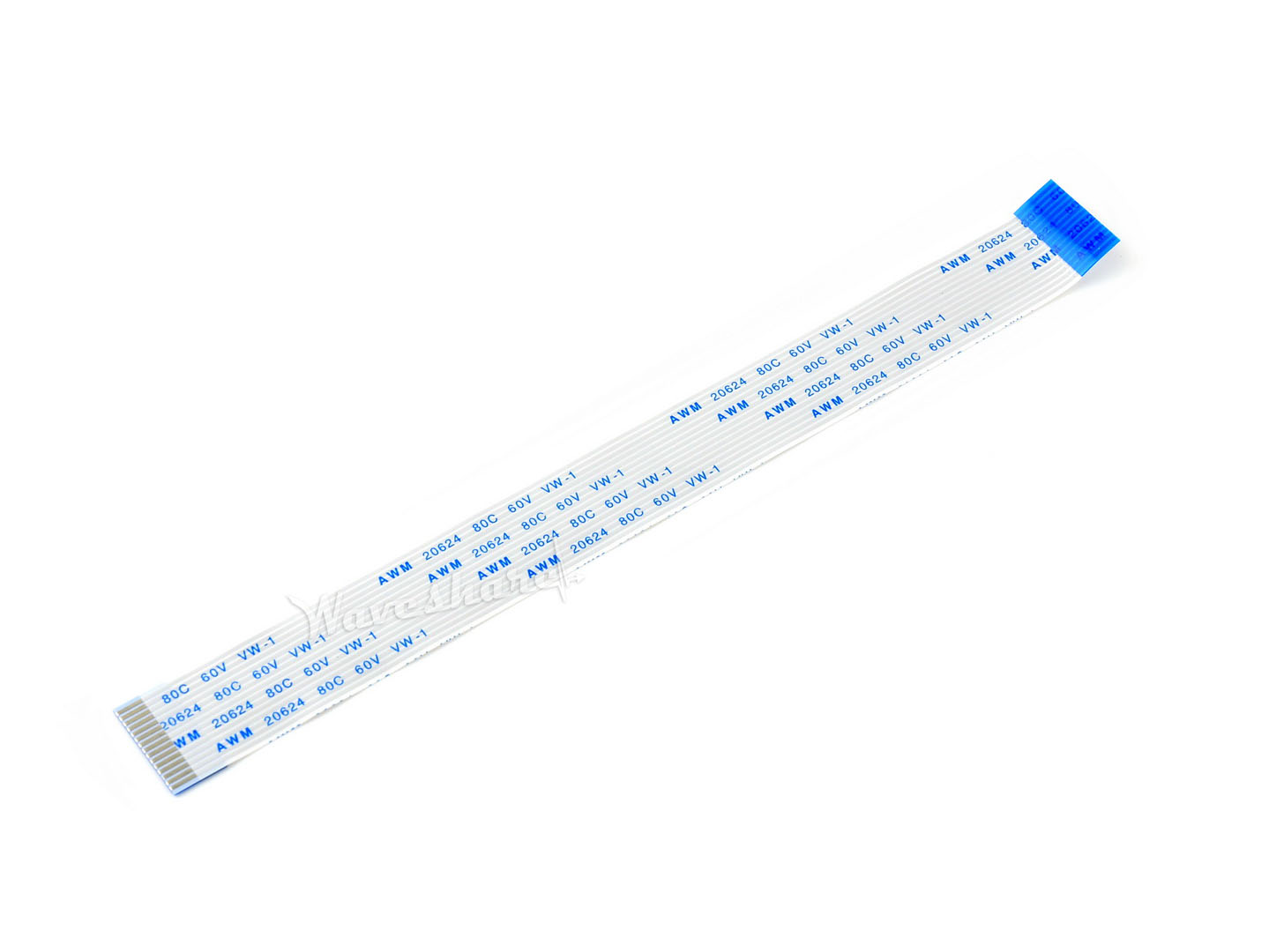

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development resources: user manual, etc. Download: www.waveshare.com/wiki/RPi_Camera_(E)

Partnumber	Pixels	Sensor	Adjustable Focus Distance	Infrared Night Vision	Angle of View (diagonal) (degree)	Manufacturer	Dimensions (mm)	Recommendation¹
RPi Camera V2	8 Mega	IMX219	×	×	62.2	element14	25x24x9	★★★☆
RPi NoIR Camera V2	8 Mega	IMX219	×	√	62.2	element14	25x24x9	★★★☆
RPi Camera (B)	5 Mega	OV5647	√	×	60.6	Waveshare	32x32	★★★
RPi Camera (D)	5 Mega	OV5647	×	×	66	Waveshare	25x24x9	★★
RPi Camera (E)	5 Mega	OV5647	×	√	69.1	Waveshare	25x24x6	★★
RPi Camera (F)	5 Mega	OV5647	√	√	75	Waveshare	25x24	★★★★
RPi Camera (G)	5 Mega	OV5647	√	×	160	Waveshare	25x24	★★★★
RPi Camera (H)	5 Mega	OV5647	√	√	160	Waveshare	25x24	★★★★
RPi Camera (I)	5 Mega	OV5647	√	×	170	Waveshare	32x32	★★★
RPi Camera (M)	5 Mega	OV5647	√	×	200	Waveshare	25x24	★★★☆
RPi IR-CUT Camera²	5 Mega	OV5647	√	√	75.7	Waveshare	31x32	★★★★
RPi IR-CUT Camera (B)²	5 Mega	OV5647	√	√	40	Waveshare	31x32	★★★★
RPi Zero V1.3 Camera³	5 Mega	OV5647	×	×	69.1	Waveshare	60x11.5x5	★★★
RPi FPC Camera	5 Mega	OV5647	×	×	72	Waveshare	300x16x5	★★★

The recommendation is considered from sales report and cost performance.
While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH
