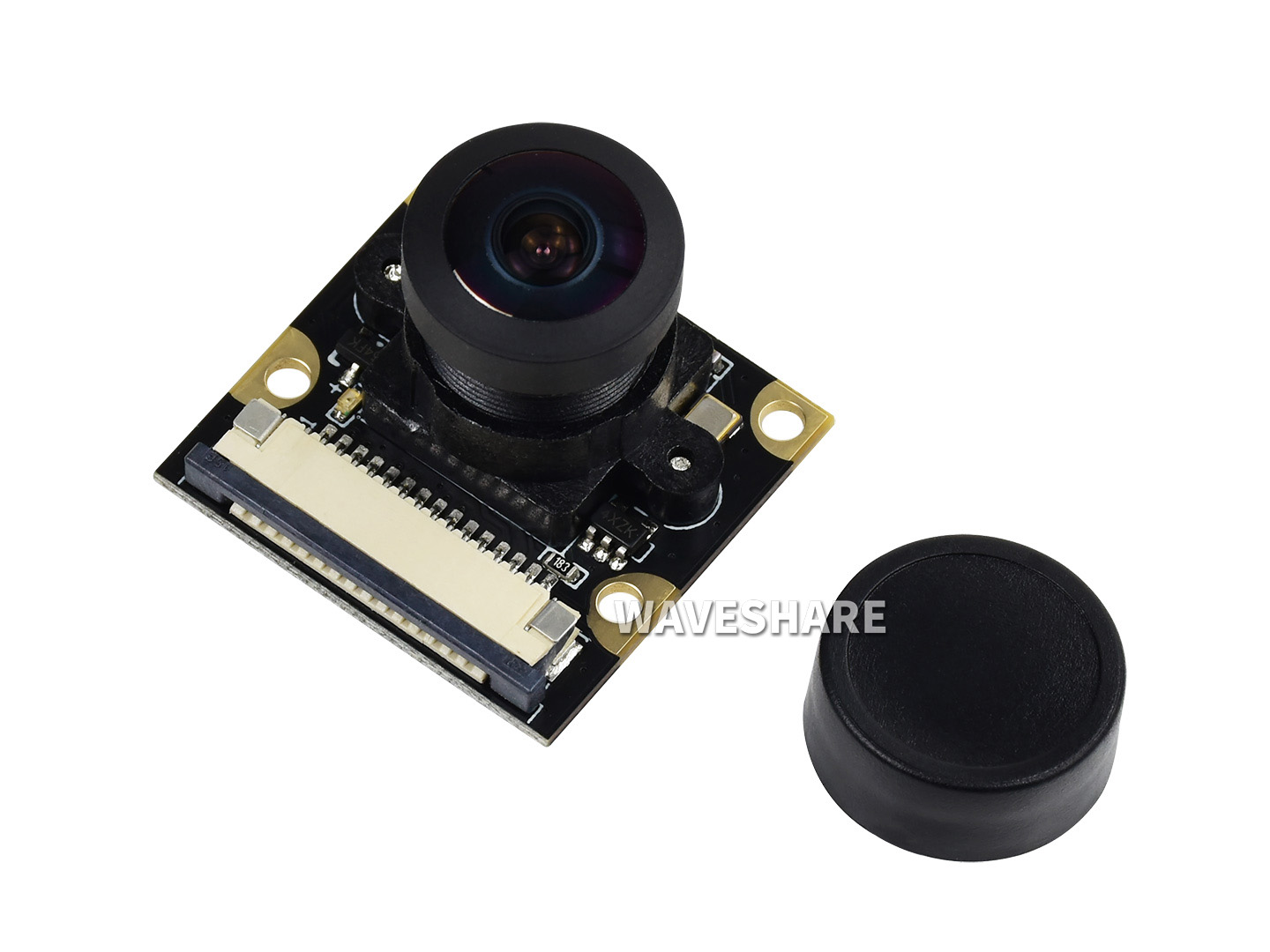

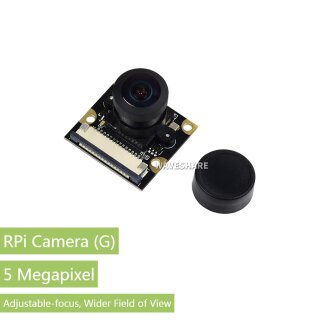

Waveshare 10344 RPi Camera (G)
Description
Features
- Raspberry Pi Camera, supports all revisions of the Pi
- Fisheye Lens, offers wider field of view
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting fill flash LED
- Dimension: 25mm x 24mm
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Downloads
Development resources: user manual, etc. Download: www.waveshare.com/wiki/RPi_Camera_(G)
Selection Guide
| Partnumber | Pixels | Sensor | Adjustable Focus Distance | Infrared Night Vision | Angle of View (diagonal) (degree) | Manufacturer | Dimensions (mm) | Recommendation1 |
|---|---|---|---|---|---|---|---|---|
| RPi Camera V2 | 8 Mega | IMX219 | × | × | 62.2 | element14 | 25x24x9 | ★★★☆ |
| RPi NoIR Camera V2 | 8 Mega | IMX219 | × | √ | 62.2 | element14 | 25x24x9 | ★★★☆ |
| RPi Camera (B) | 5 Mega | OV5647 | √ | × | 60.6 | Waveshare | 32x32 | ★★★ |
| RPi Camera (D) | 5 Mega | OV5647 | × | × | 66 | Waveshare | 25x24x9 | ★★ |
| RPi Camera (E) | 5 Mega | OV5647 | × | √ | 69.1 | Waveshare | 25x24x6 | ★★ |
| RPi Camera (F) | 5 Mega | OV5647 | √ | √ | 75 | Waveshare | 25x24 | ★★★★ |
| RPi Camera (G) | 5 Mega | OV5647 | √ | × | 160 | Waveshare | 25x24 | ★★★★ |
| RPi Camera (H) | 5 Mega | OV5647 | √ | √ | 160 | Waveshare | 25x24 | ★★★★ |
| RPi Camera (I) | 5 Mega | OV5647 | √ | × | 170 | Waveshare | 32x32 | ★★★ |
| RPi Camera (M) | 5 Mega | OV5647 | √ | × | 200 | Waveshare | 25x24 | ★★★☆ |
| RPi IR-CUT Camera2 | 5 Mega | OV5647 | √ | √ | 75.7 | Waveshare | 31x32 | ★★★★ |
| RPi IR-CUT Camera (B)2 | 5 Mega | OV5647 | √ | √ | 40 | Waveshare | 31x32 | ★★★★ |
| RPi Zero V1.3 Camera3 | 5 Mega | OV5647 | × | × | 69.1 | Waveshare | 60x11.5x5 | ★★★ |
| RPi FPC Camera | 5 Mega | OV5647 | × | × | 72 | Waveshare | 300x16x5 | ★★★ |
- The recommendation is considered from sales report and cost performance.
- While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
- RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH
Package Contents
The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- RPi Camera (G) x1
- 15-pin FFC (opposite sides contact) x1
1
2
| Shipping weight: | 0.02 Kg |
