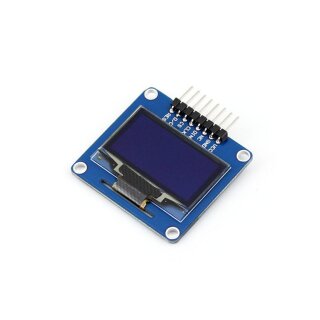

Waveshare 10444 1.3inch OLED (A)

Artnr.: WS3-010444
GTIN: 0799632837732
Hersteller: Waveshare

1,3-Zoll-OLED, SPI/I2C-Schnittstellen, gebogene/horizontale Stiftleiste

7,90 €

inkl. 19% MwSt.

(6,64 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

Key Parameters

Driver Chip	SH1106
Interface	3-wire SPI, 4-wire SPI, I2C
Resolution	128*64
Display Size	1.3inch
Colors	Blue
Visible Angle	>160°
Operating Temp. (?)	-30~70
Storage Temp. (?)	-30~80
Operating Voltage	3.3V / 5V
Applicability	Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Interface

PIN NO.	SYMBOL	DESCRIPTION
1	VCC	Power positive (3.3~5V power input)
2	GND	Ground
3	NC	NC
4	DIN	Data input
5	CLK	Clock signal input
6	CS	Chip selection, low active
7	D/C	Command signal, low level for command, high level for data
8	RES	Reset signal, low active

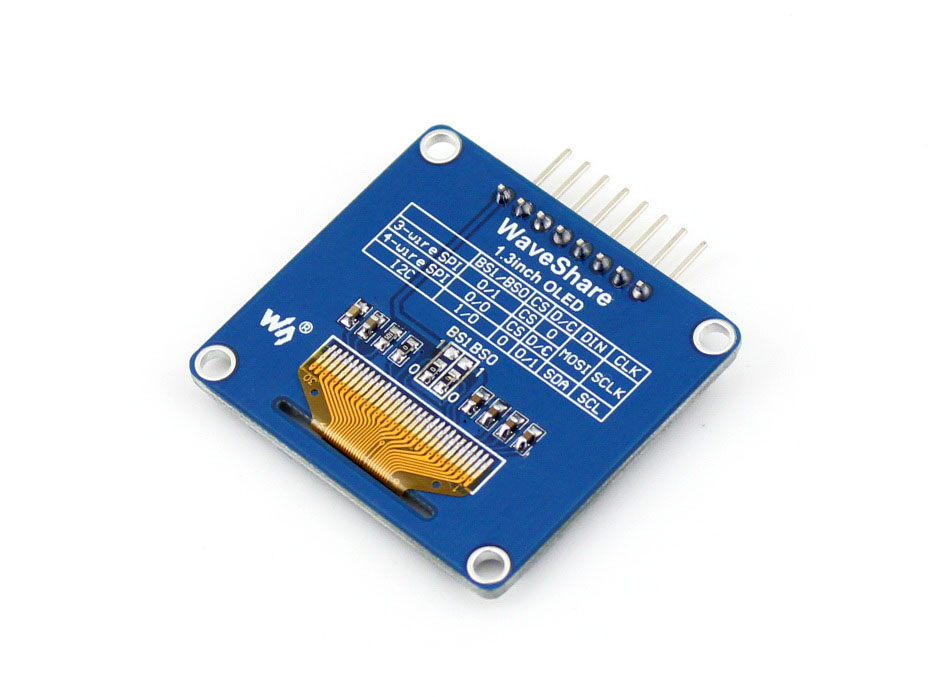

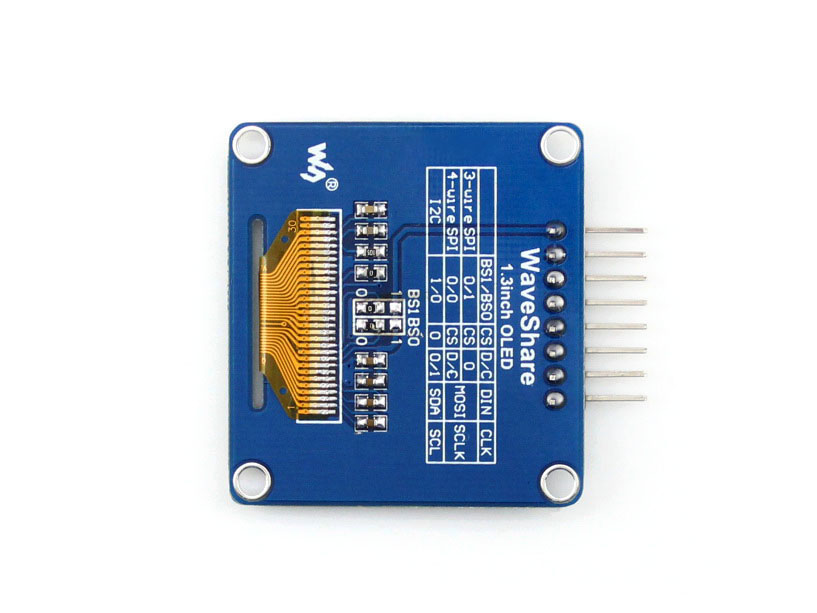

Hardware Config

Mode/Interface	BS0/BS1	DIN	SCK
3-wire SPI	1/0	MOSI	SCLK
4-wire SPI	0/0	MOSI	SCLK
I2C	0/1	SDA	SCL

Ordering Info

The 1.3inch OLED provides 2 options for the onboard pinheader:

1.3inch OLED (A): curved/horizontal pinheader
1.3inch OLED (B): straight/vertical pinheader

Downloads

Development resources: demo codes, schematic, datasheets, etc. Wiki: www.waveshare.com/wiki/1.3inch_OLED_(A)

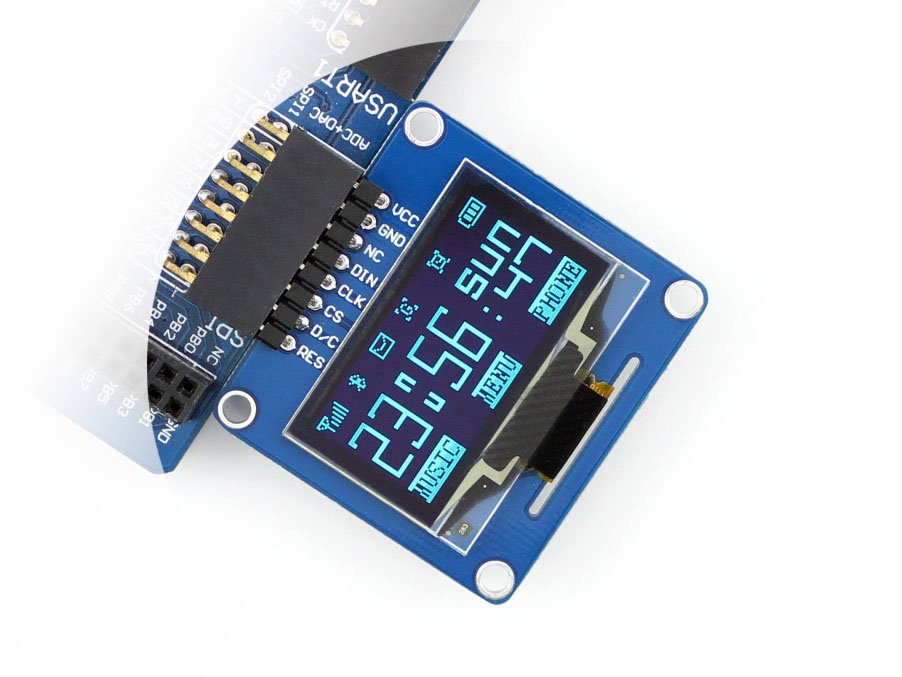

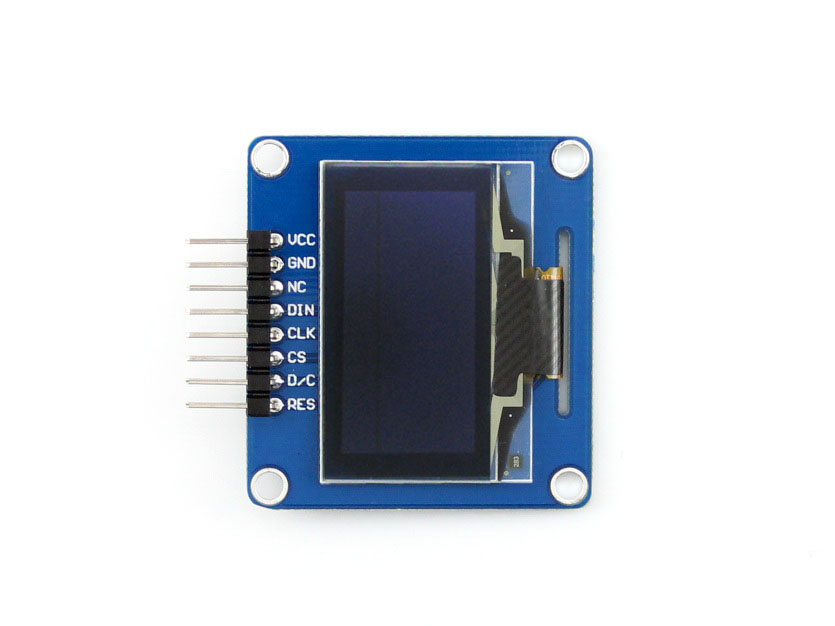

Photos

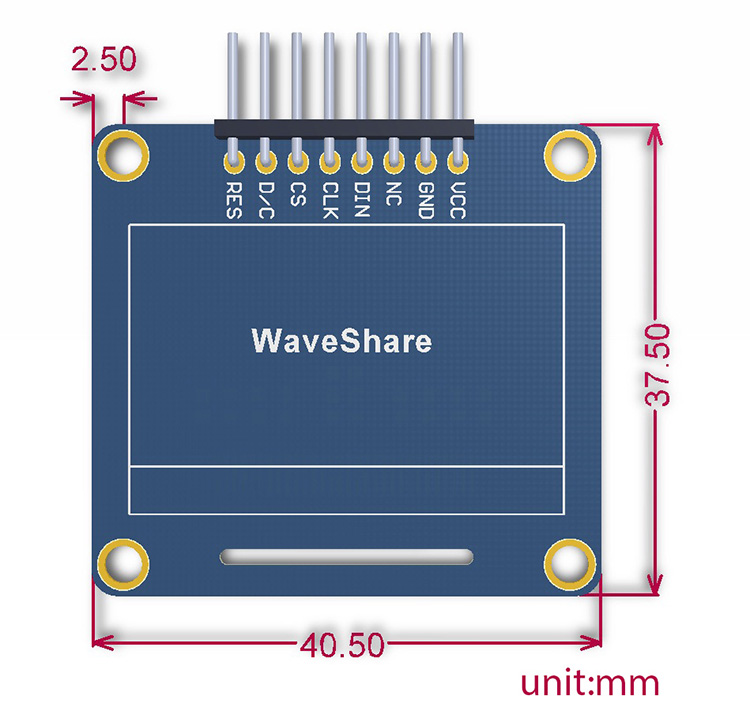

Dimension

Selection Guide

Part Number	Type	Color	Resolution	Display Size (mm×mm)	Interfaces	Driver	Dimension (mm×mm)	Pinheader
0.91inch OLED Module	OLED	White	128×32	22.38×5.58	I2C	SSD1306	36.0×12.5	PH2.0 connector
0.95inch RGB OLED (A)	OLED	65K colorful	96×64	20.14×13.42	SPI(4-wire SPI)	SSD1331	31.7×37.0	angled/horizontal
0.95inch RGB OLED (B)	OLED	65K colorful	96×64	20.14×13.42	SPI(4-wire SPI)	SSD1331	31.7×37.0	straight/vertical
0.96inch LCD Module	IPS	65K colorful	160×80	21.70×10.80	4-wire SPI	ST7735S	32.5×26.0	PH2.0 connector
0.96inch OLED (A)	OLED	1/4 yellow section, 3/4 blue section	128×64	21.7×11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0×33.5	angled/horizontal
0.96inch OLED (B)	OLED	1/4 yellow section, 3/4 blue section	128×64	21.7×11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0×33.5	straight/vertical
1.14inch LCD Module	IPS	65K colorful	240×135	24.91×14.86	4-wire SPI	ST7789	35.0×32.0	PH2.0 connector
1.28inch LCD Module	IPS	65K colorful	240×240	Φ32.4mm	4-wire SPI	GC9A01	40.4×37.5 Φ37.5	PH2.0 connector
1.3inch LCD Module	IPS	65K colorful	240×240	23.40×23.40	4-wire SPI	ST7789	45.0×31.0	PH2.0 connector
1.3inch OLED (A)	OLED	Blue	128×64	29.42×14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5×37.5	angled/horizontal
1.3inch OLED (B)	OLED	Blue	128×64	29.42×14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5×37.5	straight/vertical
1.3inch OLED Module (C)	OLED	White	64×128	14.70×29.42	4-wire SPI, I2C	SH1107	30.0×39.5	PH2.0 connector
1.5inch OLED Module	OLED	White (16 gray scale)	128×128	26.86×26.86	4-wire SPI, I2C	SSD1327	44.5×37.0	PH2.0 connector
1.5inch RGB OLED Module	OLED	65K colorful	128×128	26.86×26.86	3-wire SPI, 4-wire SPI	SSD1351	44.5×37.0	PH2.0 connector
1.54inch LCD Module	IPS	65K colorful	240×240	27.72×27.72	4-wire SPI	ST7789	50.0×35.0	PH2.0 connector
1.8inch LCD Module	TFT	65K colorful	128×160	34.50×28.30	4-wire SPI	ST7735S	56.5×34.0	PH2.0 connector
2inch LCD Module	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI	ST7789	58.0×35.0	PH2.0 connector
2.4inch LCD Module	TFT	65K colorful	240×320	36.72×48.96	4-wire SPI	ILI9341	70.5×43.3	PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Package Contents

1.3inch OLED (A) x 1

Versandgewicht:	0,01 kg
