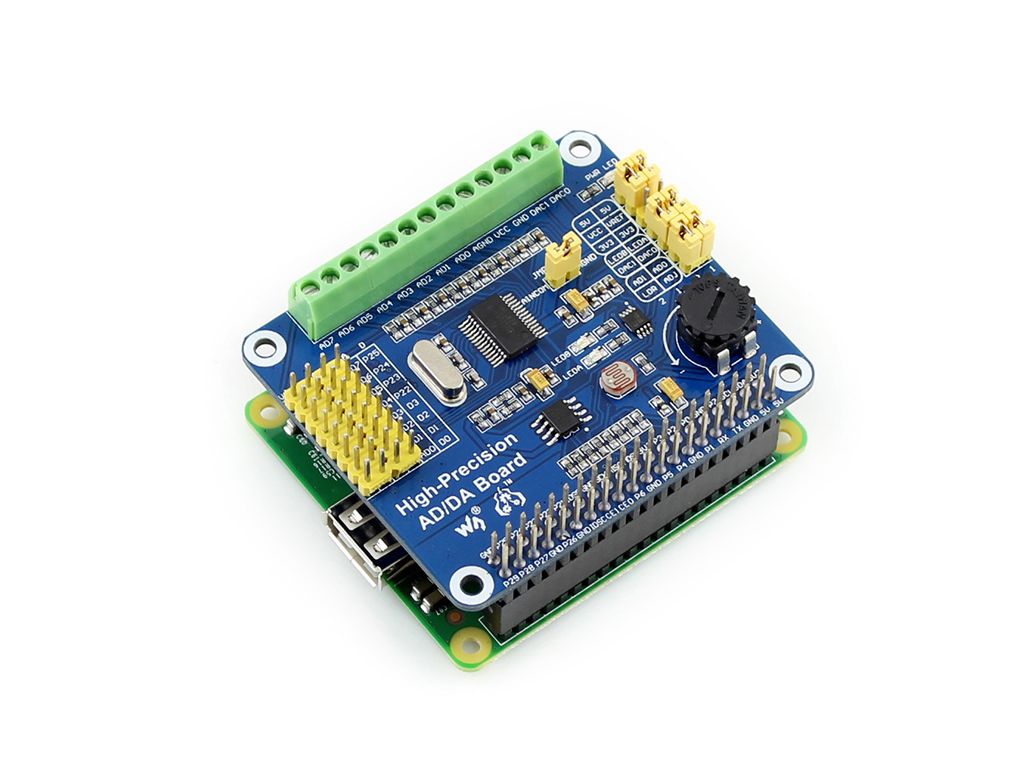

There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi.

Features

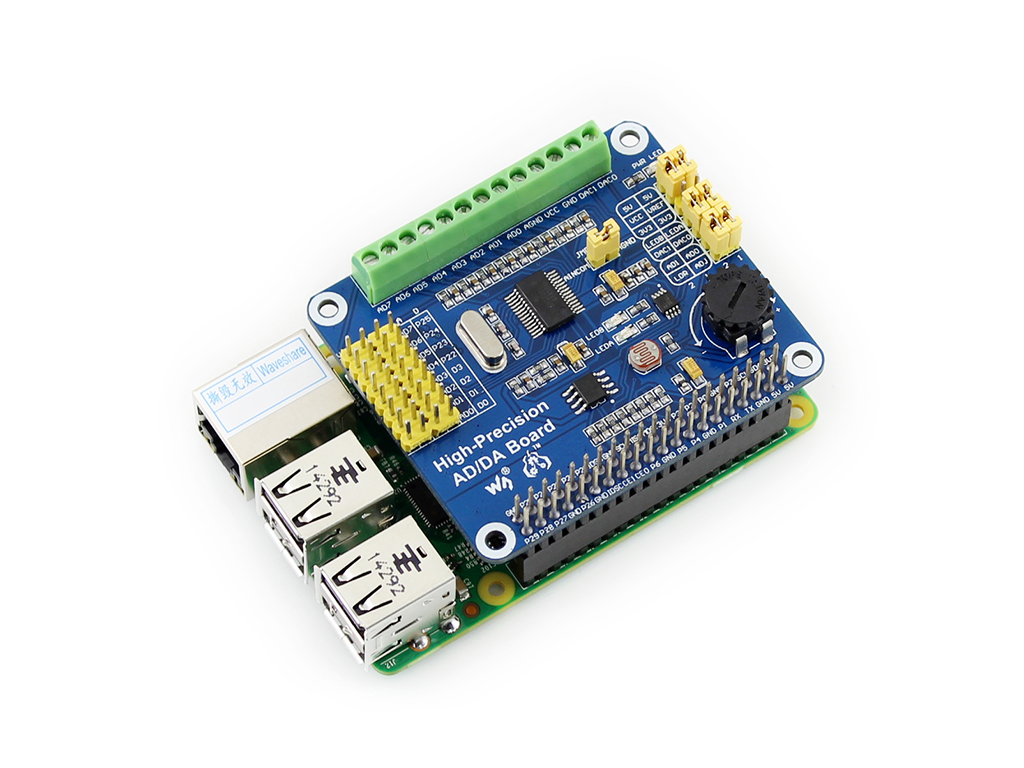

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate
Onboard DAC8552, 2ch 16bit high-precision DAC

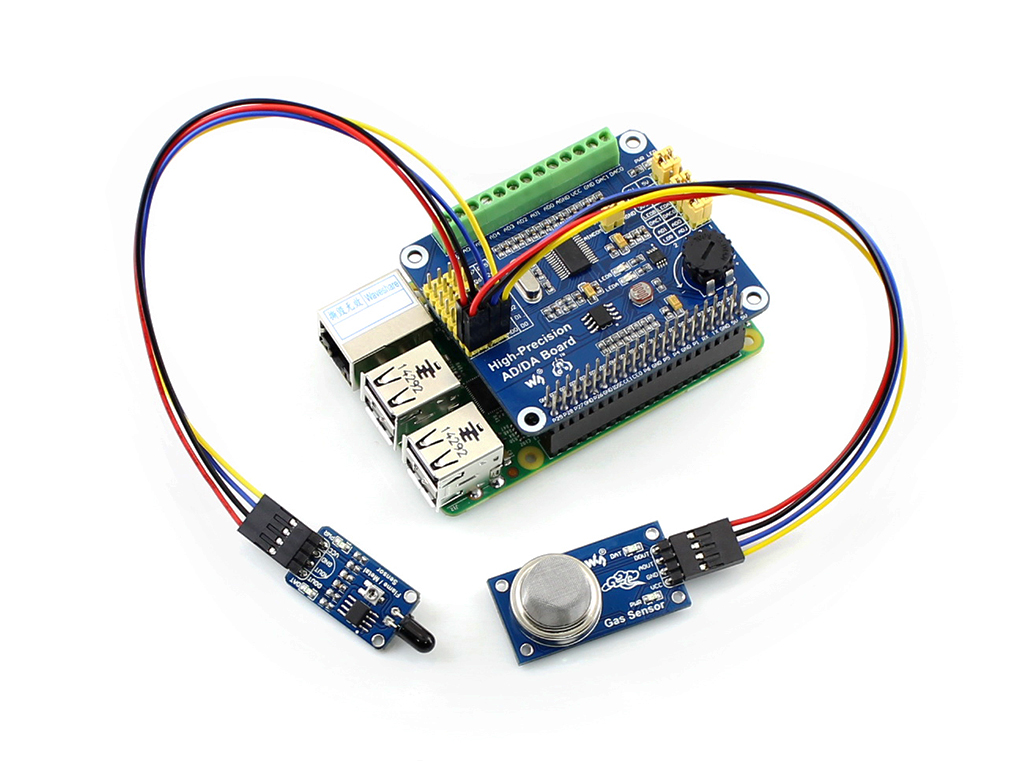

Onboard input interface via pinheaders, for connecting analog signal
- the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
Onboard input/output interface via screw terminals, for connecting analog/digital signal
Features AD/DA detect circuit, easy for signal demonstration

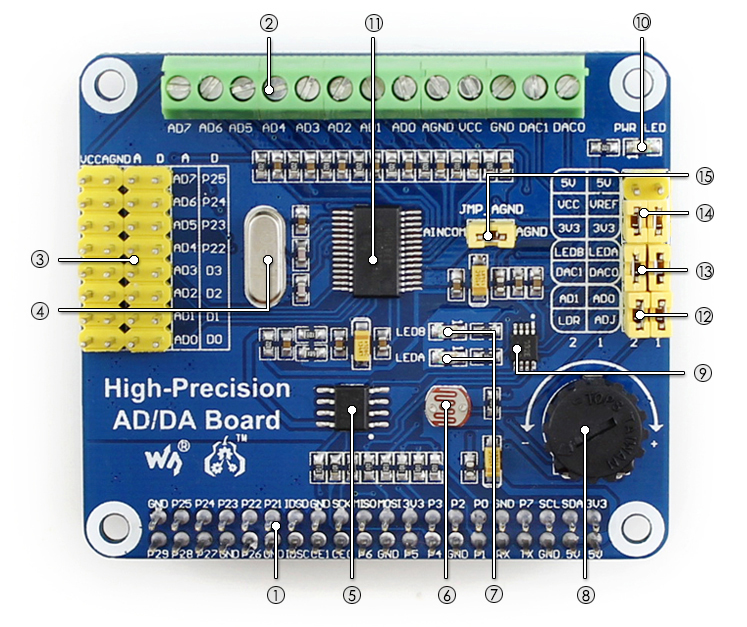

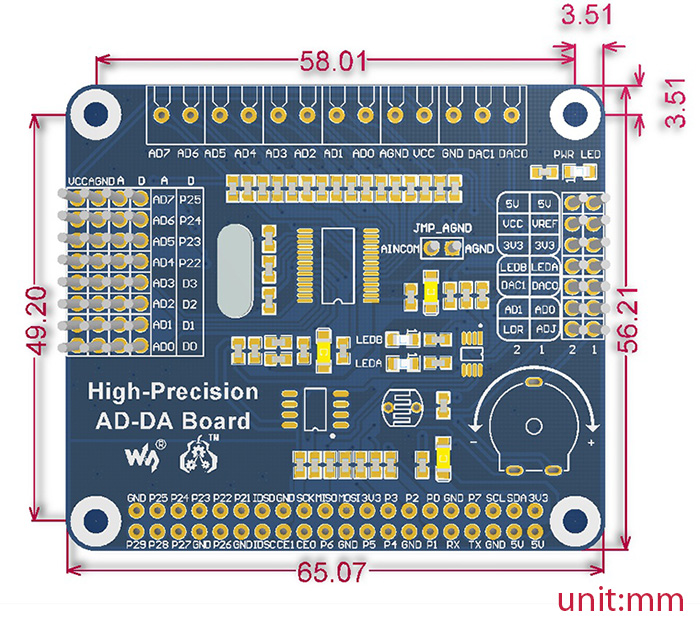

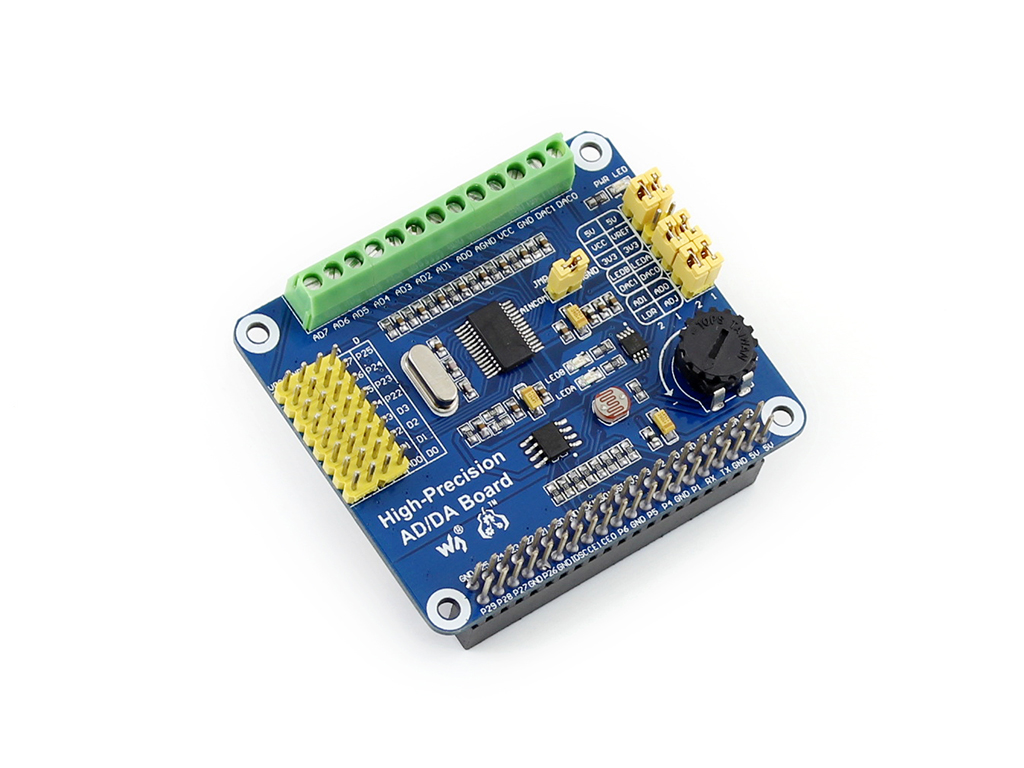

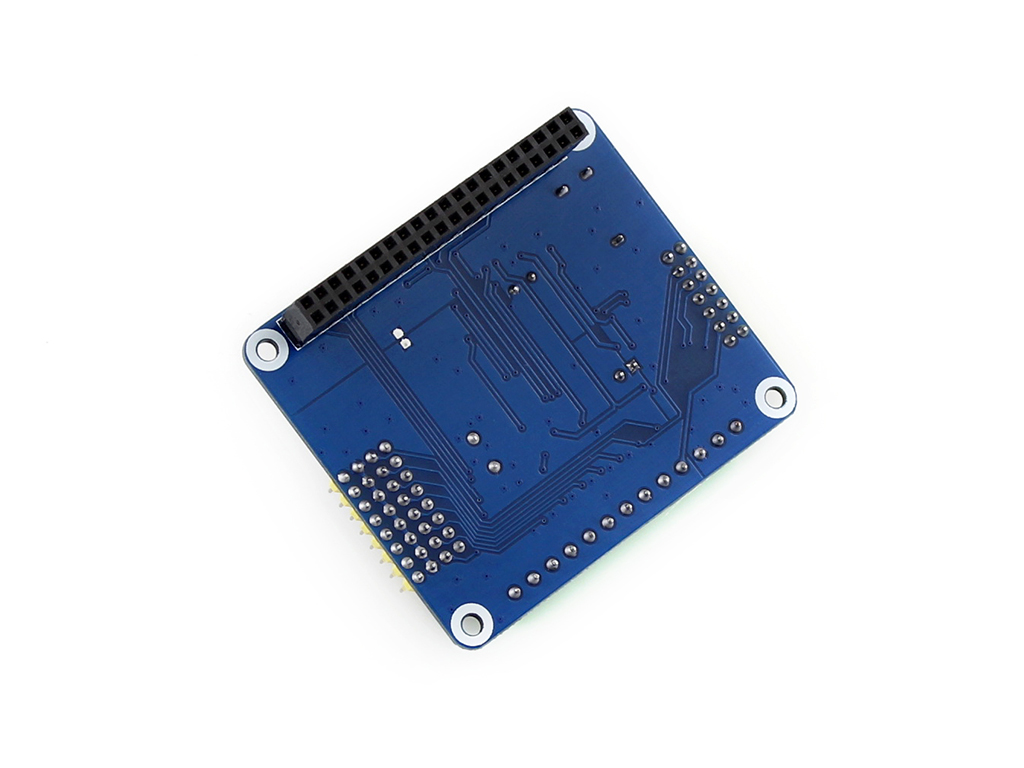

What's on Board

Raspberry Pi GPIO interface : for connecting with the Pi
AD/DA input/output : screw terminals
AD input : pinheaders, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
7.68M crystal
LM285-2.5 : provides reference voltage for the ADC chip
Photo resistor
LED output indicator
10K potentiometer
DAC8552 : 16bit high-precision DAC, 2ch
Power indicator
ADS1256 : 24bit high-precision ADC, 8ch (4ch differential input)
ADC testing jumper
DAC testing jumper
Power selection jumper
ADC reference ground configuration : when AD single inputted, the AINCOM is reference terminal, can be connected to GND or external reference voltage

Interface Definition

Pin	Symbol	Description
1, 17	3.3V	Power supply (3.3V)
2, 4	5V	Power supply (5V)
3, 5, 7, 8, 10, 18, 22, 24, 26, 27, 28, 29, 32, 36, 38, 40	NC	NC
6, 9, 14, 20, 25, 30, 34, 39	GND	Ground
11	DRDY	ADS1256 data ready output, low active
12	RESET	ADS1256 reset input
13	PDWN	ADS1256 sync/power off input, low active
15	CS0	ADS1256 chip select, low active
16	CS1	DAC8552 chip select, low active
19	DIN	SPI data input
21	DOUT	SPI data output
23	SCK	SPI clock
31, 33, 35, 37	GPIO	extend to sensor interface
