Pioneer600 Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
<Standard I/O> dual LED, joystick, buzzer, the basic components
<USB TO UART> CP2102, control the Pi through serial terminal
<Display> 0.96inch OLED, big world in the little screen
<RTC> DS3231, high precision, backup battery holder is also available
<AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
<GPIO Expansion> PCF8574, more GPIO, more possibility
<IR Control> LFN0038K, Raspberry Pi remote control comes true
<Pressure Sensor> BMP280, measuring air pressure and temperature
<1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
<Sensor Interface> for connecting various sensors

What's on the Pioneer600

Raspberry Pi Expansion Board on board resource

Raspberry Pi GPIO interface : for connecting Raspberry Pi
USB TO UART : control the Pi through serial terminal
AD/DA IO interface : screw terminal
1-WIRE interface : for connecting 1-WIRE devices like DS18B20
Sensor interface : for connecting various sensors
0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
Buzzer
CP2102 : USB TO UART converter
PCF8591 : 8-bit AD/DA converter, I2C interface
BMP280 : pressure sensor, I2C interface
PCF8574 : I/O expansion chip, I2C interface
DS3231 : high precision RTC chip, I2C interface
Power indicator
User LED
Joystick
LFN0038K IR receiver

Photos

Raspberry Pi Expansion Board

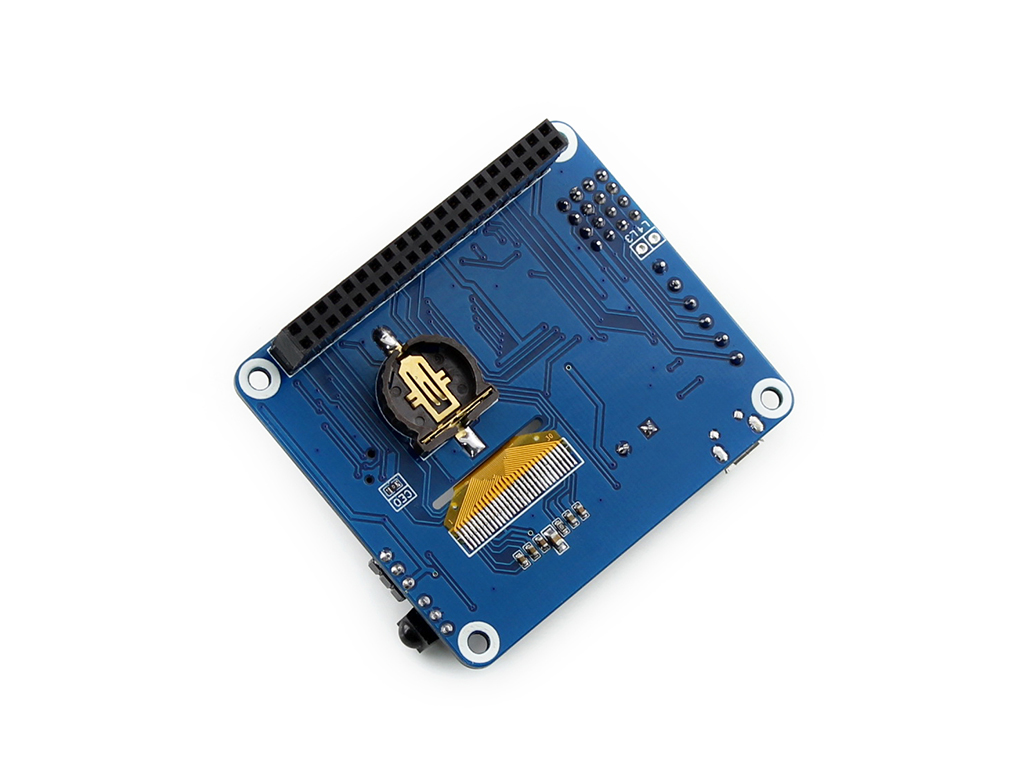

Pioneer600 Raspberry Pi Expansion Board back view

Raspberry Pi Expansion Board

Pioneer600 connecting with Raspberry Pi A+

Raspberry Pi Expansion Board

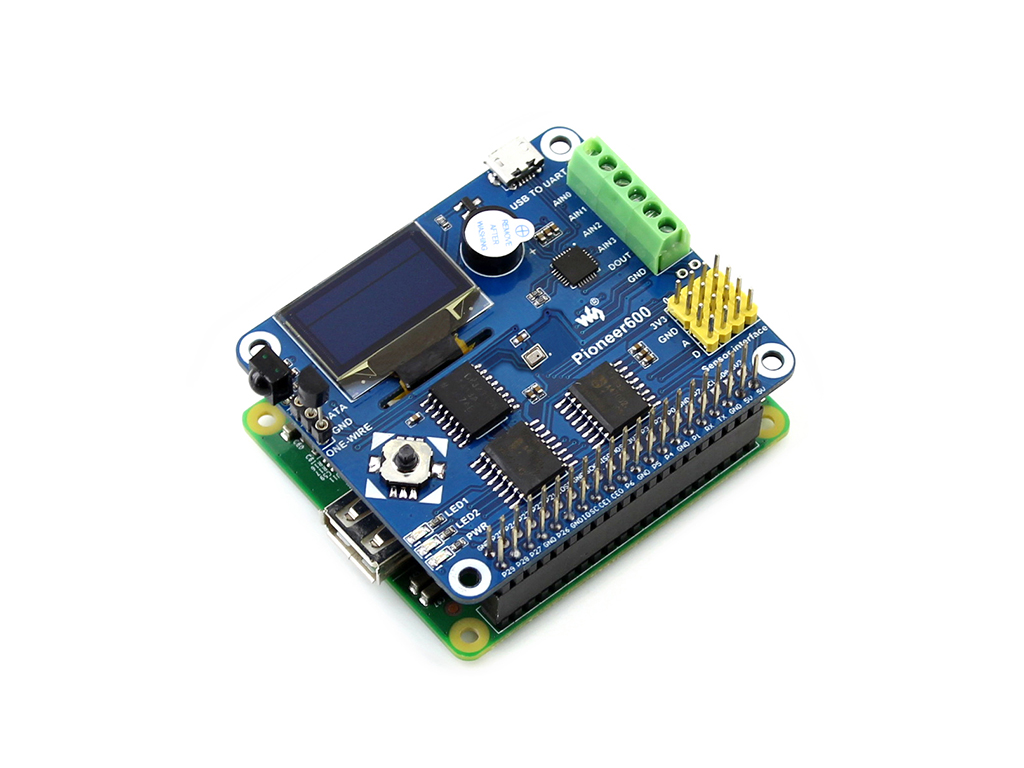

Pioneer600 connecting with Raspberry Pi 3B/3B+

Raspberry Pi Expansion Board

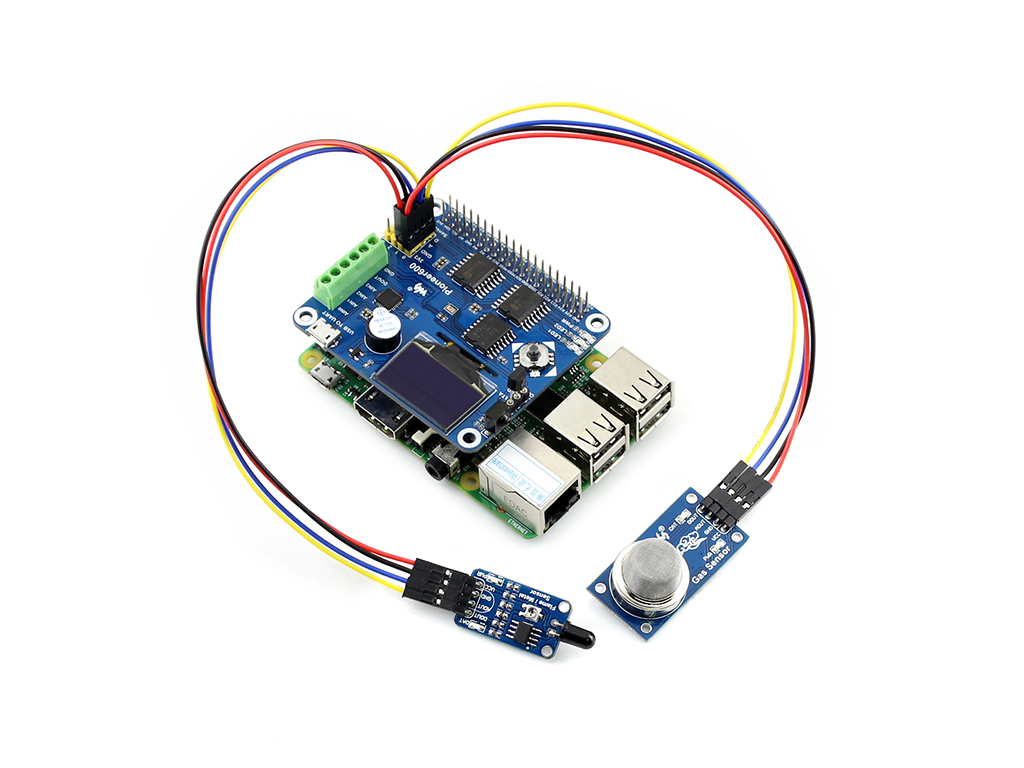

Pioneer600 connecting with sensors

Examples

Peripheral	Interface	Python	WiringPi	BCM2835 C Library	SysFs
LED	I/O	√	√	√	√
KEY	I/O	√	√	√
IRM	I/O	√	√	√
UART	UART	√	√
DS18B20	ONE-WIRE	√			√
PCF8574	I2C	√	√	√	√
PCF8591	I2C	√	√	√
DS3231	I2C	√	√	√
BMP280	I2C	√	√	√
OLED	SPI	√	√	√

Development Resources

User manual
Schematic
Demo codes : python and C (WringPi/BCM2835 C Library/SysFs)
Raspberry Pi tutorials
Raspbian (configured system image)

Wiki : www.waveshare.com/wiki/Pioneer600

Note : the Pi and sensors are NOT included.

Package Contents

Pioneer600 x 1

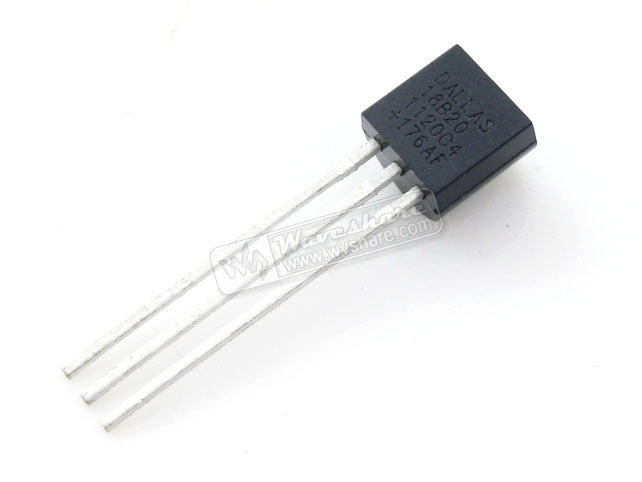

DS18B20 ×1
USB Type A Plug to Micro B Plug Cable x 1
RPi screws pack (2pcs) x 1
