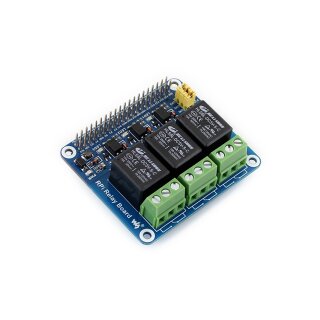

Waveshare 11638 RPi Relay Board

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.

RPi Relay Board Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• High quality relays, loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit
• Onboard LEDs for indicating relays status
• Relay control jumper, allows to control the relays by custom pins other than the default pins
• Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

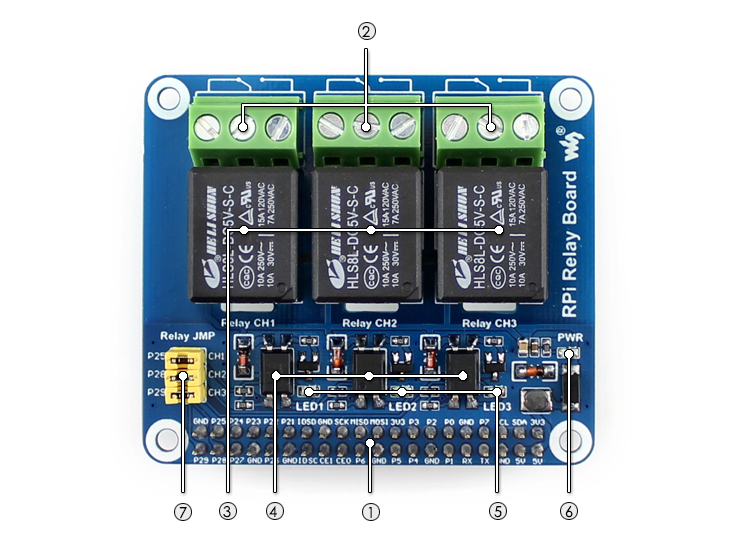

What's on the RPi Relay Board

1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
2. Relay screw terminal: for connecting target devices
3. Relays
4. Photocoupler:PC817
5. Relay indicator

• LED on: relay NC is opened, NO is closed
• LED off: relay NC is closed, NO is opened

• short the jumper: control the relays by default I/Os used in the example code
• open the jumper: control the relays by custom I/Os through jumper wires

Photos

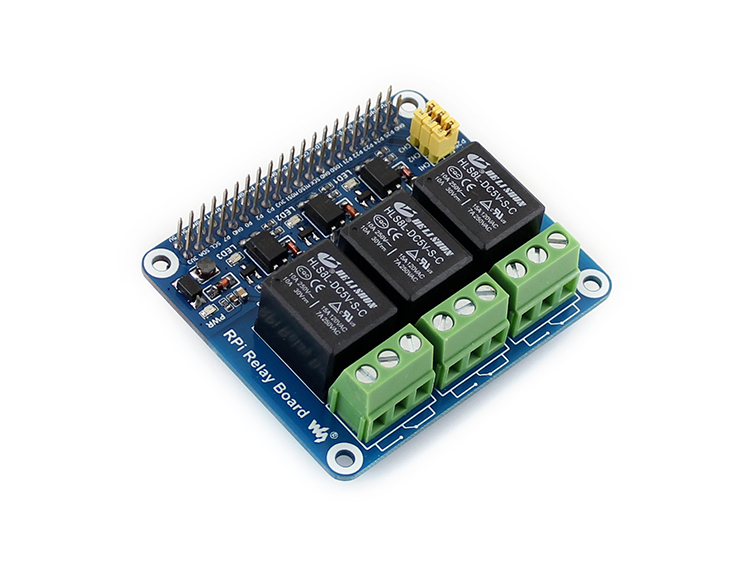

RPi Relay Board

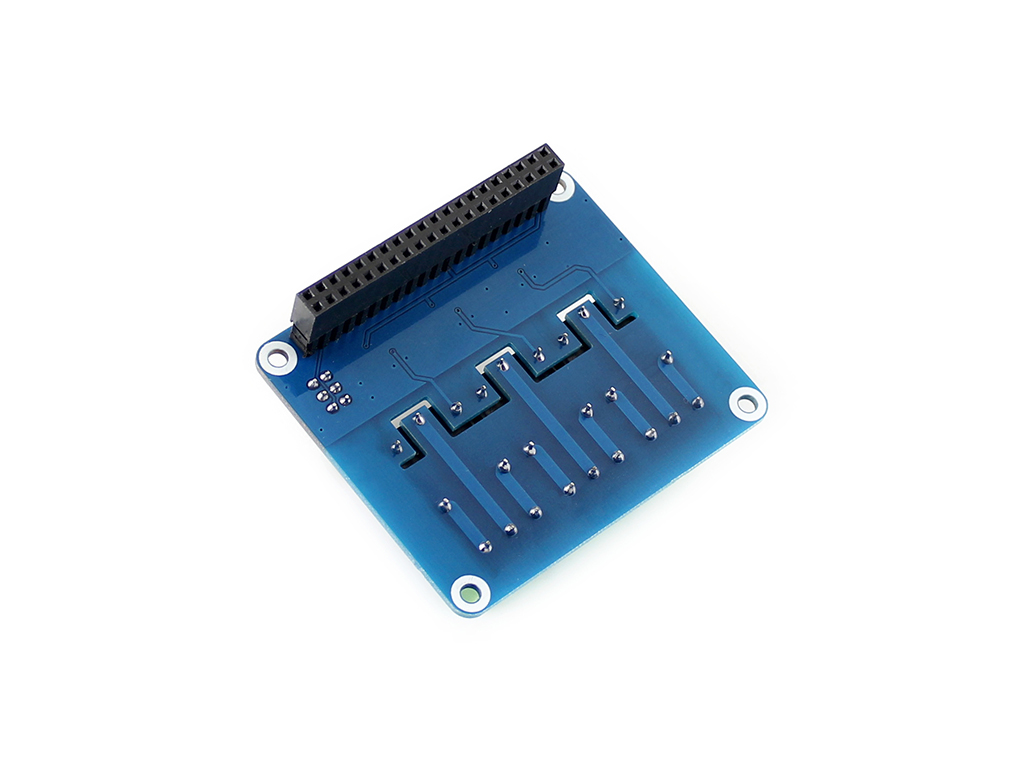

RPi Relay Board back view

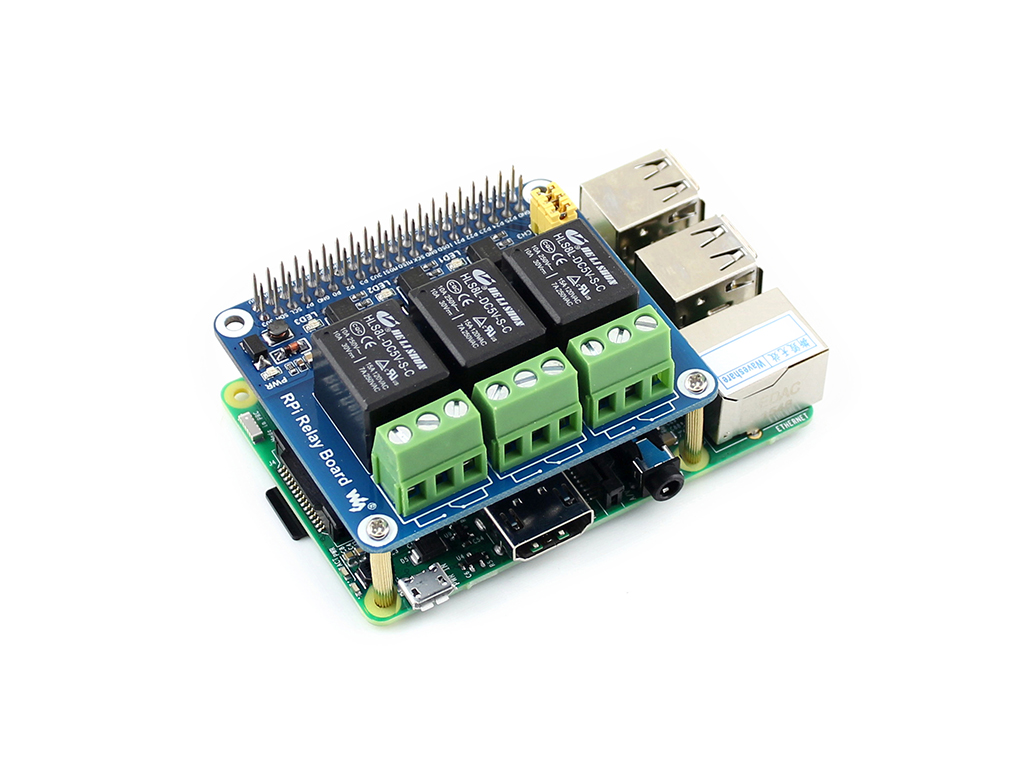

RPi Relay Board connecting with Raspberry Pi

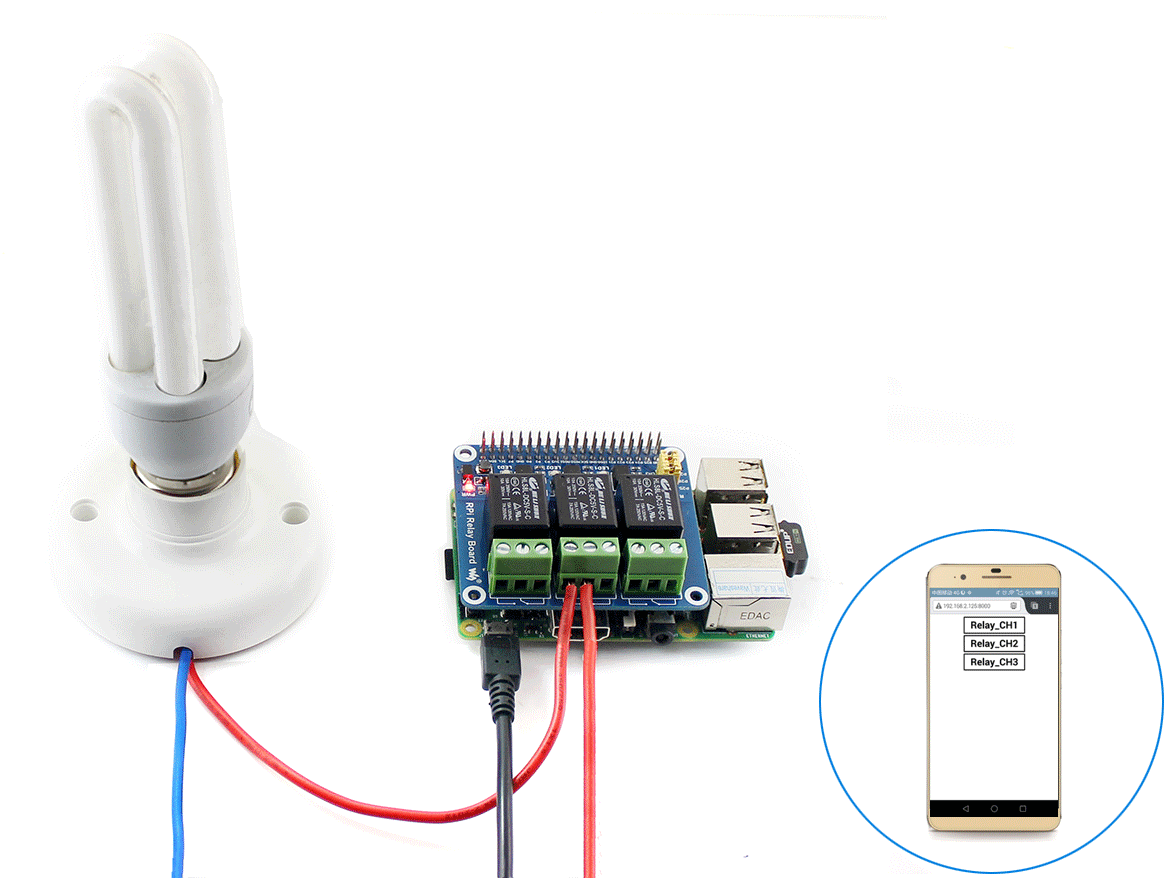

Control the lamp by mobile phone

Note : the Pi in the photos is NOT included.

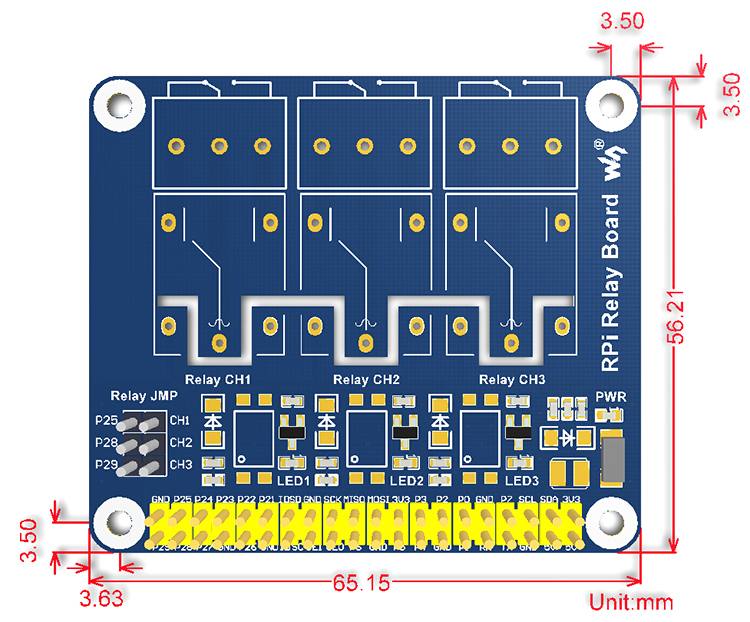

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board

Package Contents

1. RPi Relay Board x 1
2. RPi screws pack (2pcs) x 1
