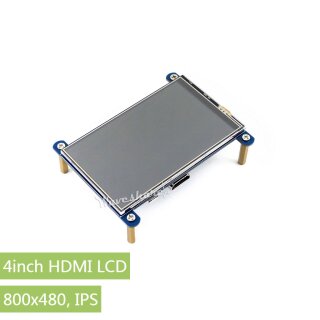

Waveshare 12030 4inch HDMI LCD

Artno.: WS3-012030

Waveshare 12030 4inch HDMI LCD

4inch Resistive Touch Screen LCD, 480×800, HDMI, IPS, Low Power Consumption

38.90 € incl. 19% VAT

32.69 € excl. VAT

plus shipping

100+ On stock

Shipping time: 1 - 3 business days

Description

Features

800x480 high hardware resolution
Resistive touch control
IPS technology, high quality and perfect displaying from very wide viewing angle

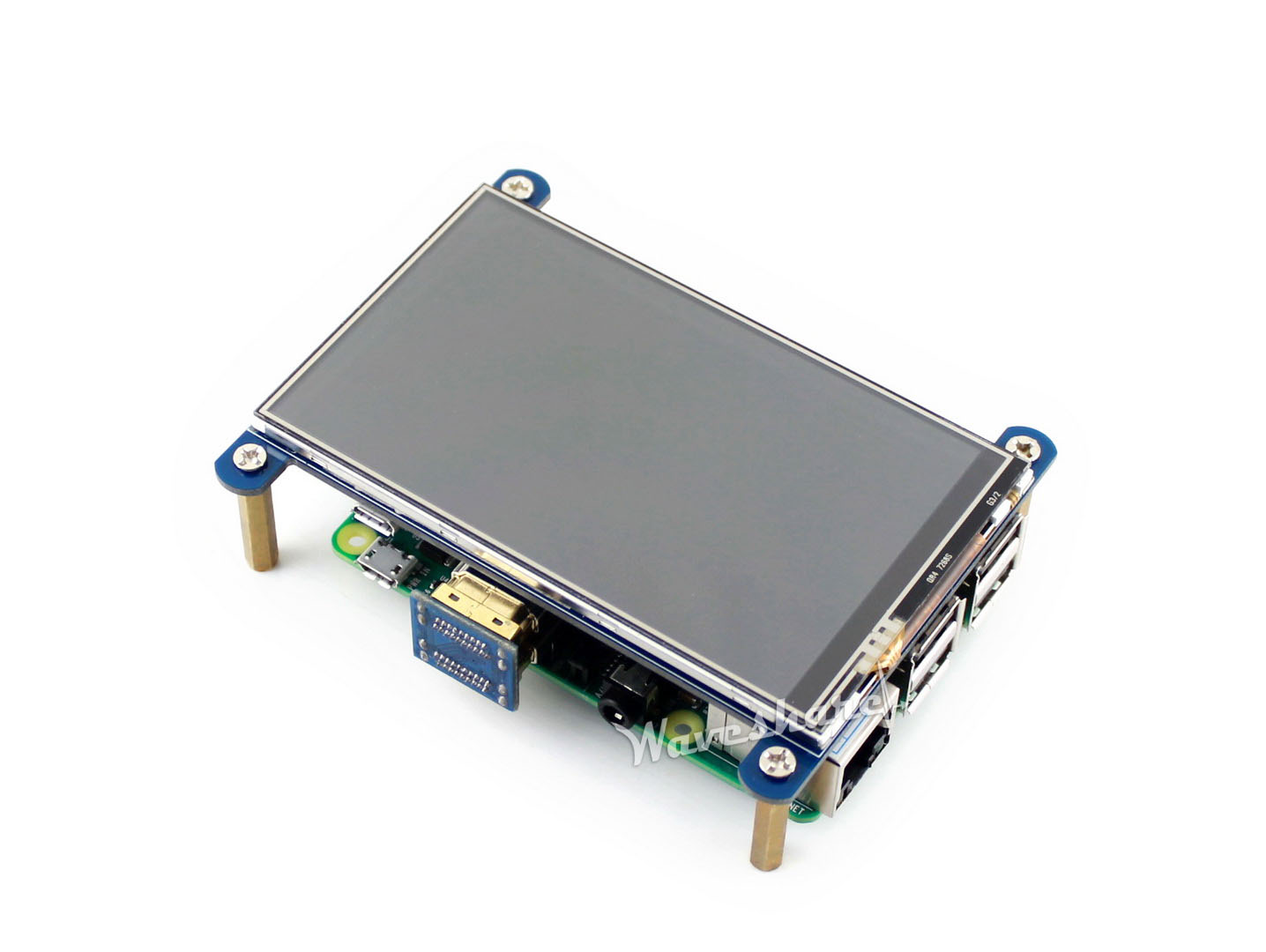

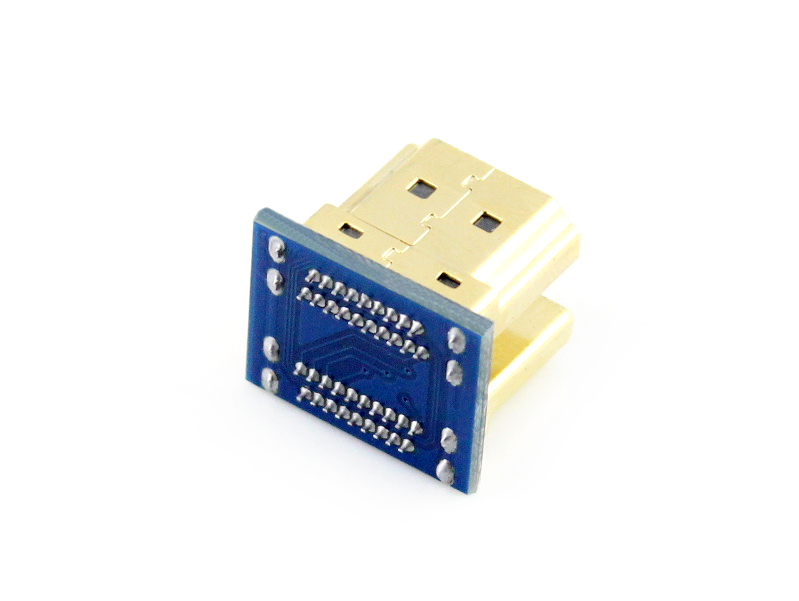

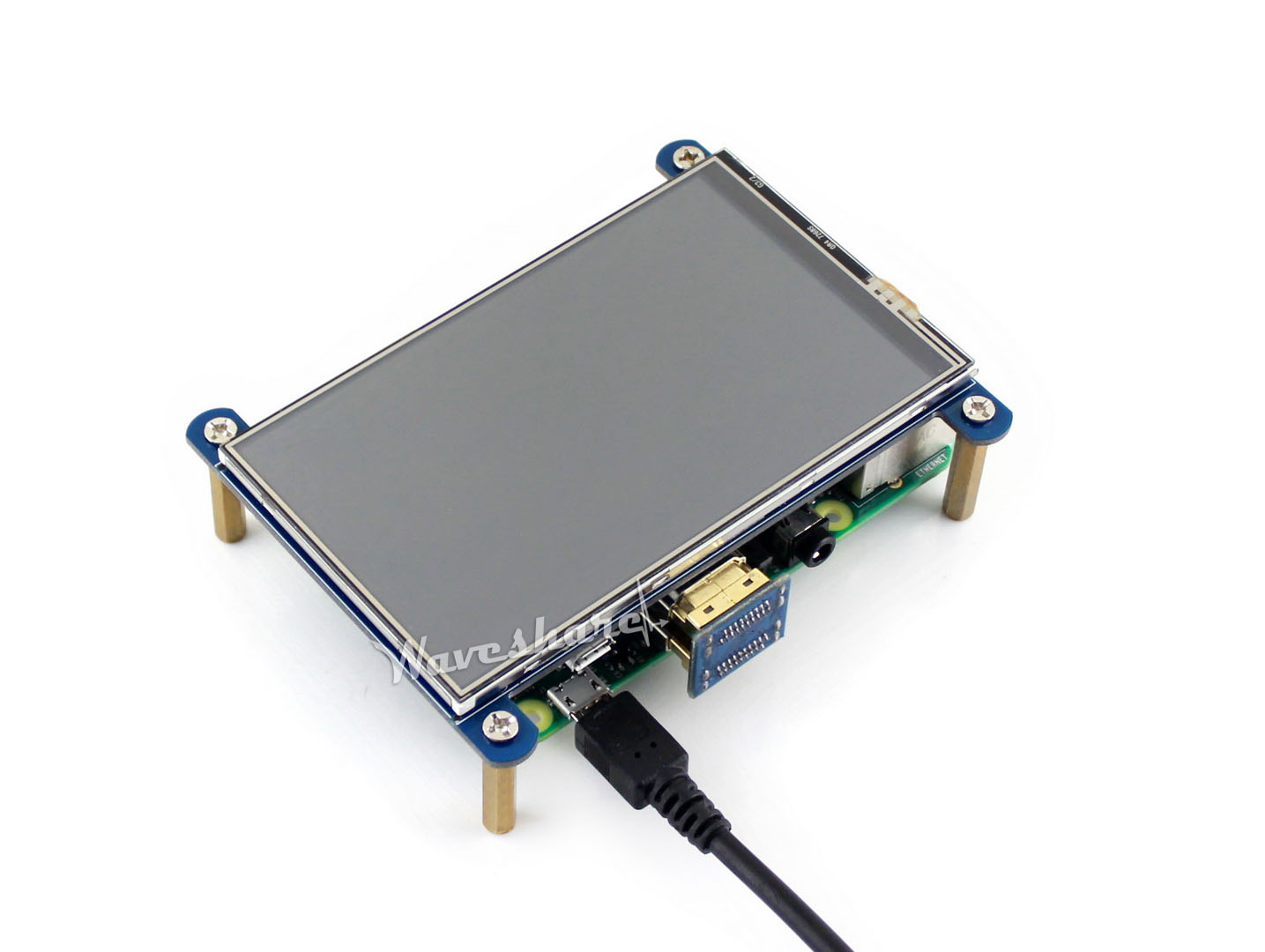

Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)

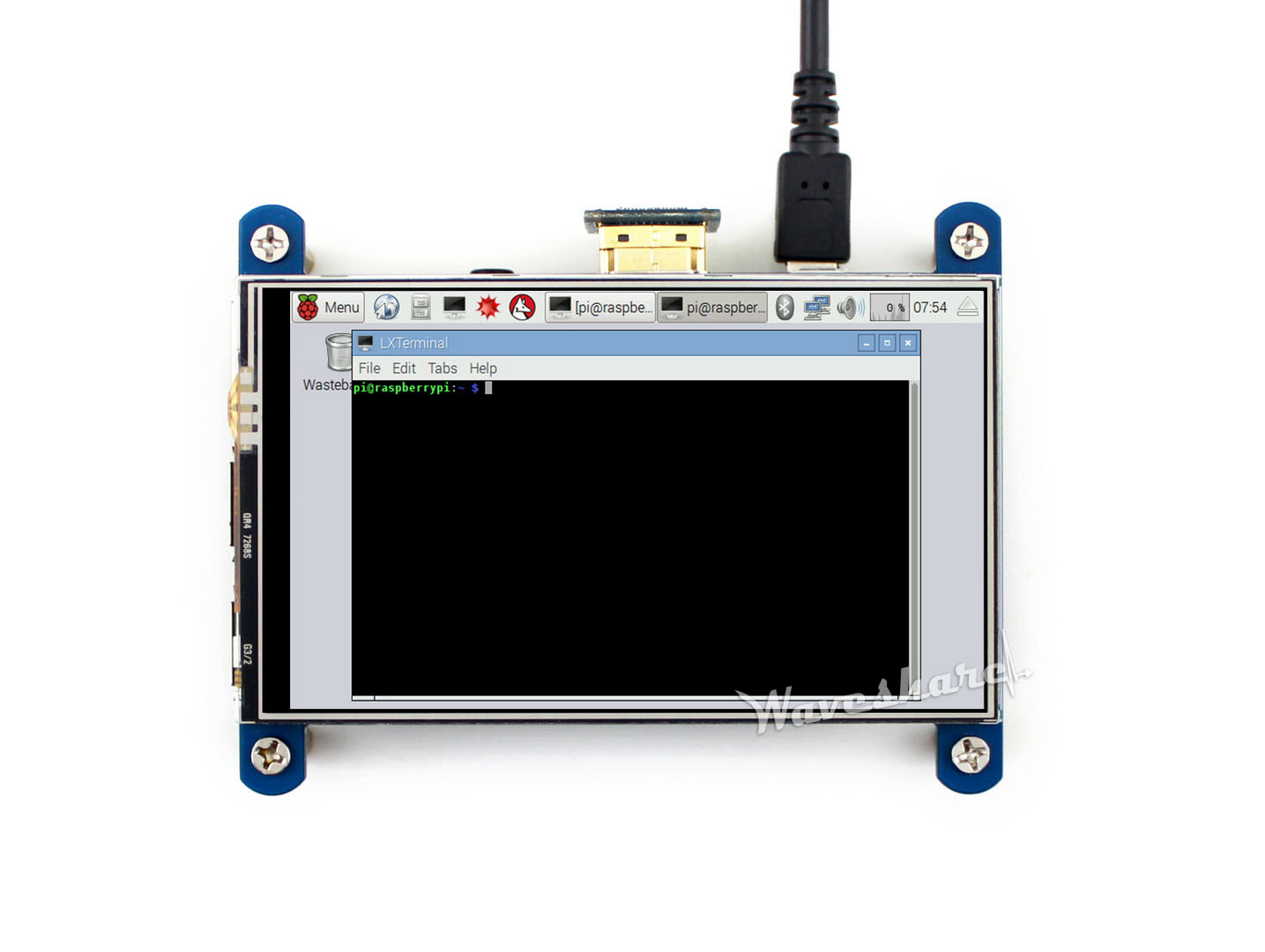

Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)

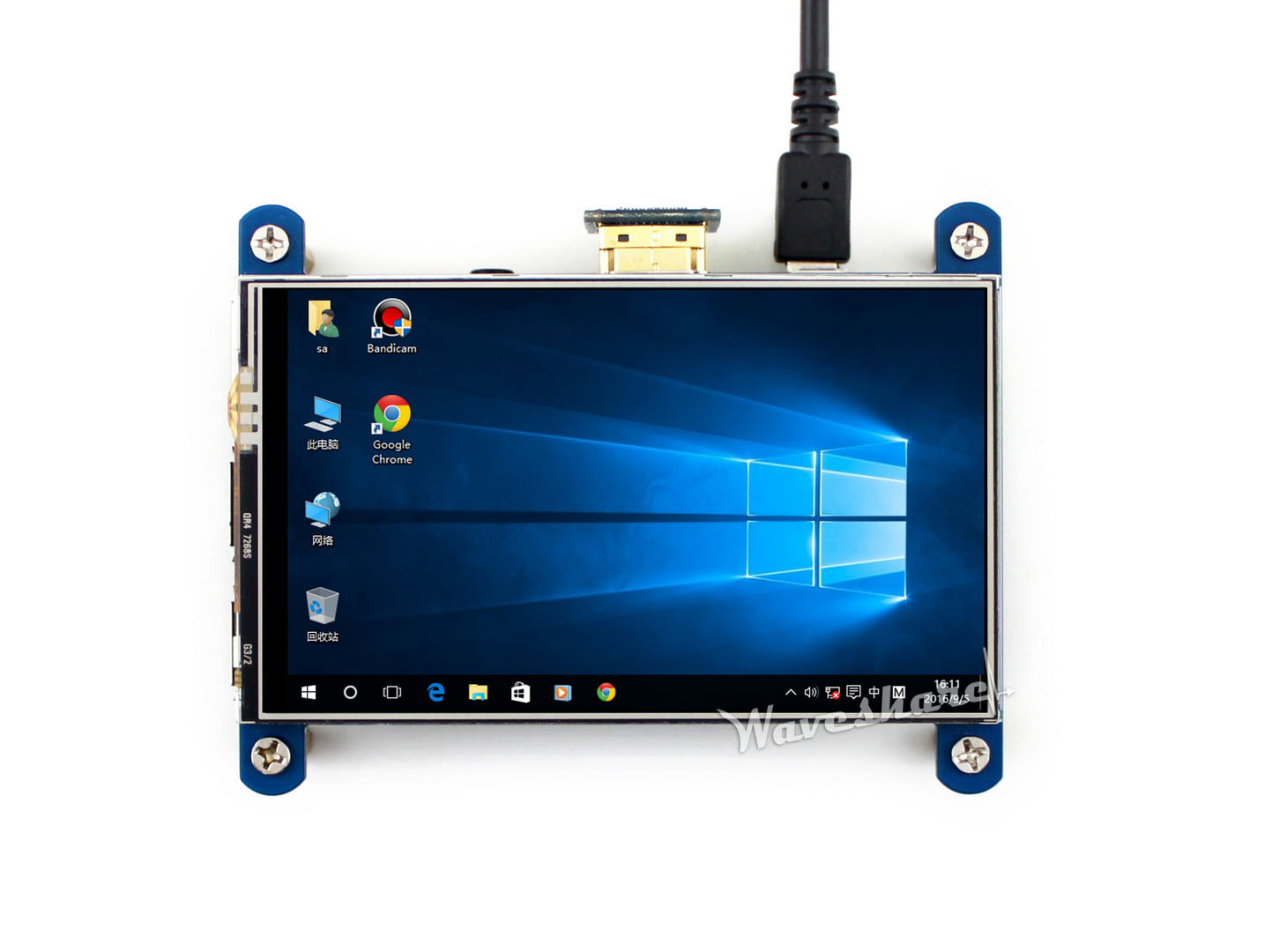

Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
Backlight can be turned off to lower power consumption

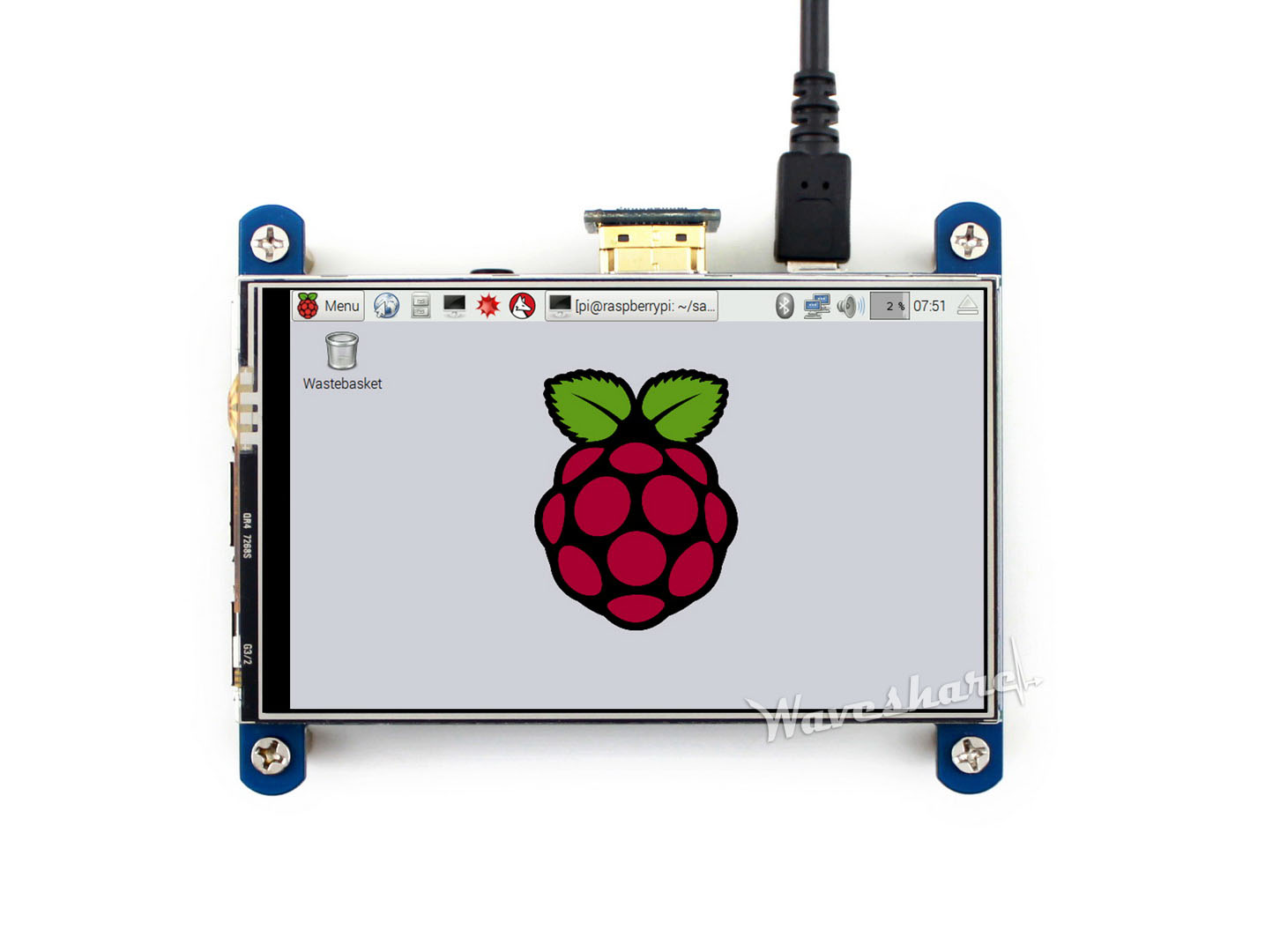

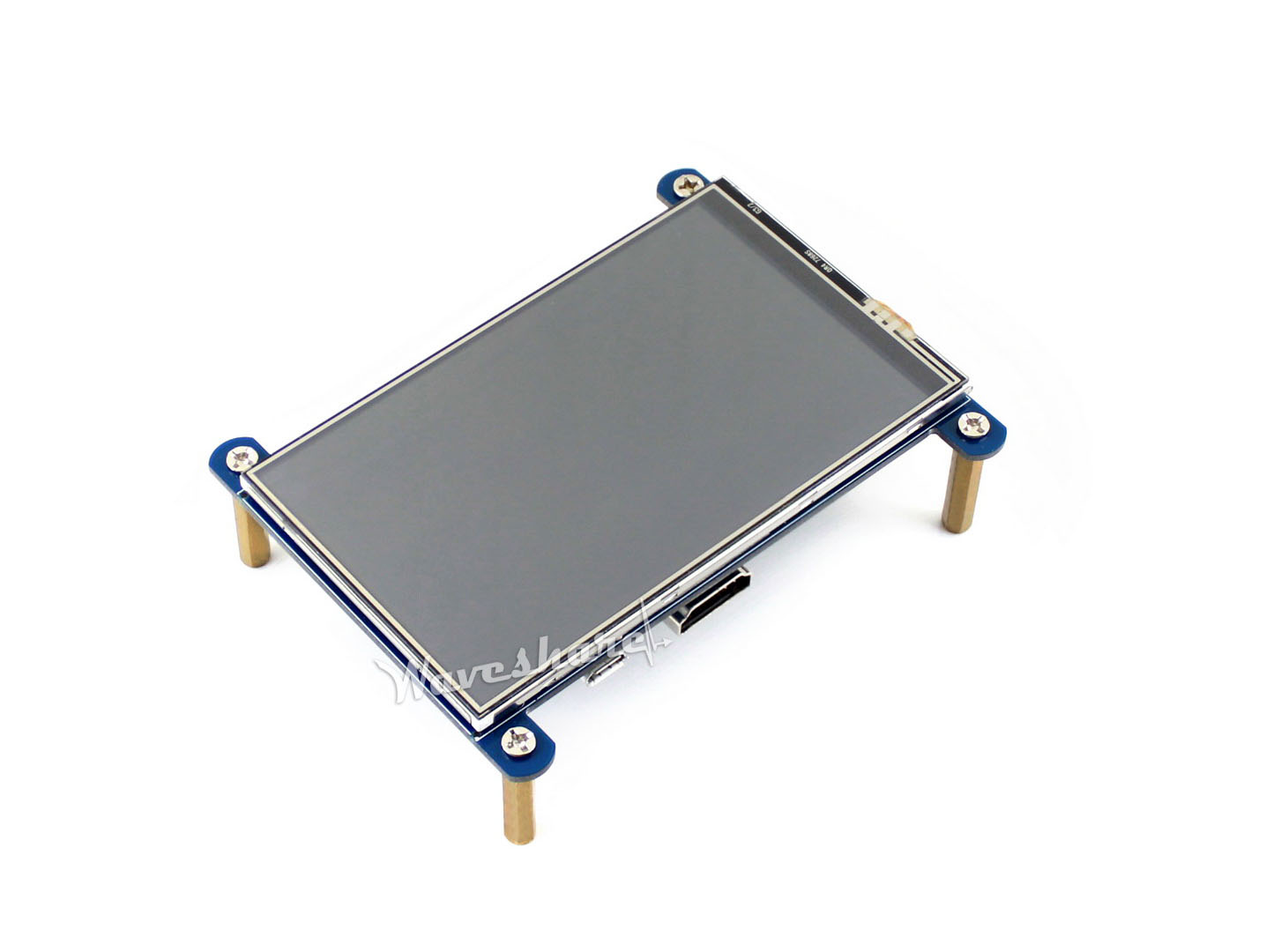

Photos

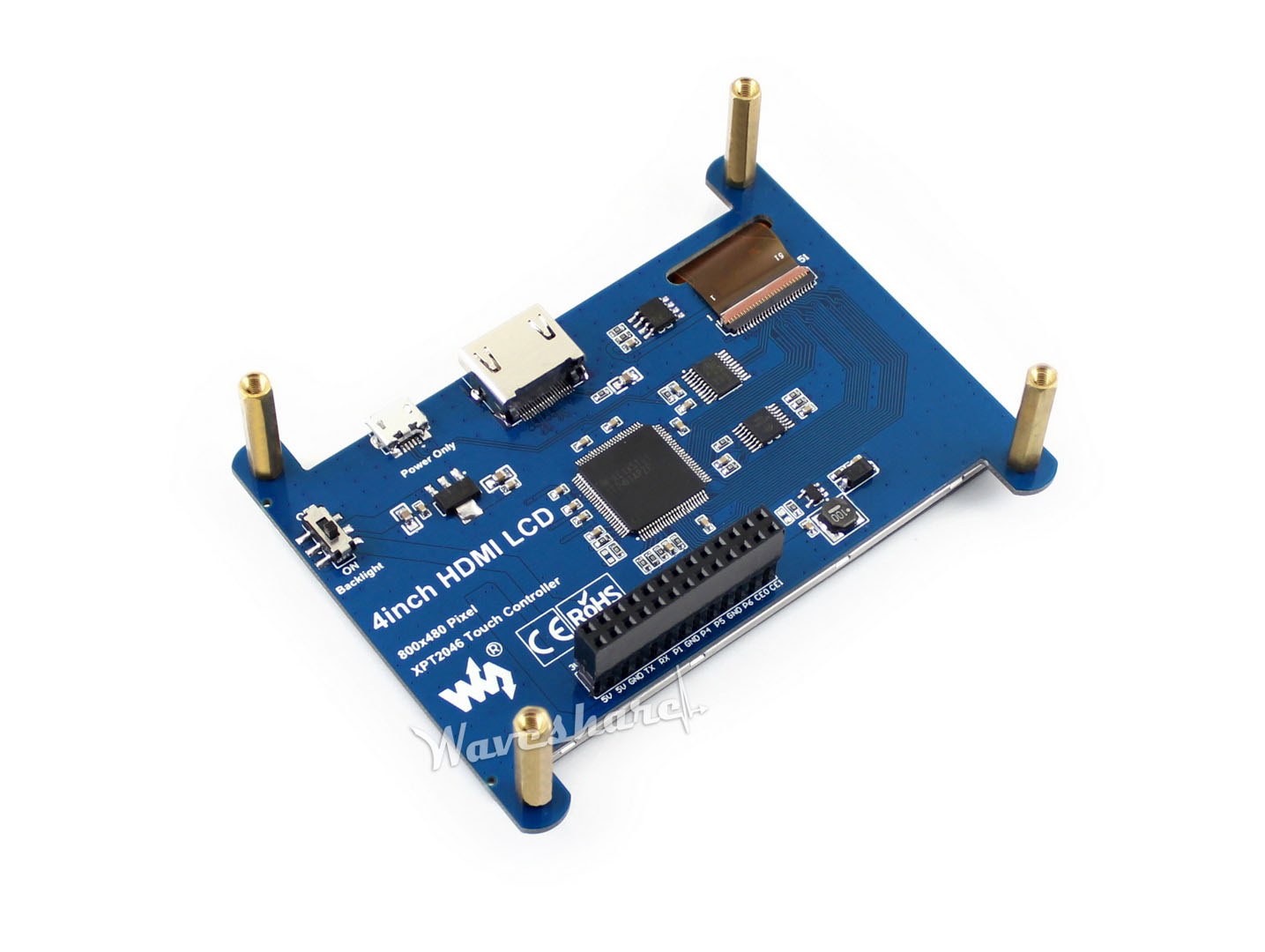

Interface

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24	NC	NC
6, 9, 14, 20, 25	GND	Ground
19	TP_SI	SPI data input of Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
23	TP_SCK	SPI clock of Touch Panel
26	TP_CS	Touch Panel chip selection, low active

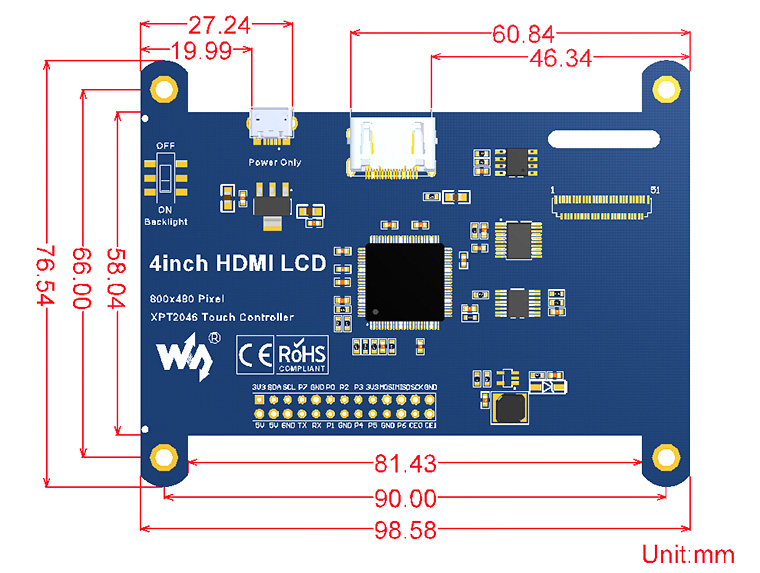

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/4inch_HDMI_LCD

FAQ

Why the LCD doesn't work with my Raspbian?: To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual. However, for the first testing, you may want to use our image directly (if provided).
Why the LCD still doesn't work with the Waveshare provided image?: Make sure the hardware connection is correct and connects fine. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?: It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Fully Laminated	Spe-aker	Signal Output	Pi	JETSON NANO	PC
