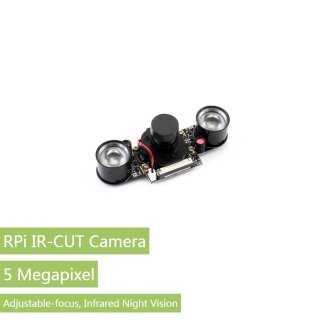

Waveshare 12076 RPi IR-CUT Camera
Artnr.: WS2-012076
Raspberry Pi Kameramodul, Embedded IR-CUT, unterstützt Nachtsicht

25,90 € inkl. 19% MwSt.
21,76 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Features

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Embedded removable IR-CUT filter, eliminating color distortion in the daylight
  • Comes with infrared LED, supports night vision
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 1.8
    • Focal Length : 3.6mm
    • Angle of View (diagonal) : 75.7 degree
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension: 31mm × 32mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera

Selection Guide

Partnumber Pixels Sensor Adjustable Focus Distance Infrared Night Vision Angle of View (diagonal) (degree) Manufacturer Dimensions (mm) Recommendation1
RPi Camera V2 8 Mega IMX219 × × 62.2 element14 25x24x9 ★★★☆
RPi NoIR Camera V2 8 Mega IMX219 × 62.2 element14 25x24x9 ★★★☆
RPi Camera (B) 5 Mega OV5647 × 60.6 Waveshare 32x32 ★★★
RPi Camera (D) 5 Mega OV5647 × × 66 Waveshare 25x24x9 ★★
RPi Camera (E) 5 Mega OV5647 × 69.1 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 75 Waveshare 25x24 ★★★★
RPi Camera (G) 5 Mega OV5647 × 160 Waveshare 25x24 ★★★★
RPi Camera (H) 5 Mega OV5647 160 Waveshare 25x24 ★★★★
RPi Camera (I) 5 Mega OV5647 × 170 Waveshare 32x32 ★★★
RPi Camera (M) 5 Mega OV5647 × 200 Waveshare 25x24 ★★★☆
RPi IR-CUT Camera2 5 Mega OV5647 75.7 Waveshare 31x32 ★★★★
RPi IR-CUT Camera (B)2 5 Mega OV5647 40 Waveshare 31x32 ★★★★
RPi Zero V1.3 Camera3 5 Mega OV5647 × × 69.1 Waveshare 60x11.5x5 ★★★
RPi FPC Camera 5 Mega OV5647 × × 72 Waveshare 300x16x5 ★★★
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
  3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH

Package Contents

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. RPi IR-CUT Camera x1
  2. Infrared LED Board (B) x2
  3. 15-pin FFC (opposite sides contact) x1
1
2
3

Versandgewicht: 0,07 Kg
