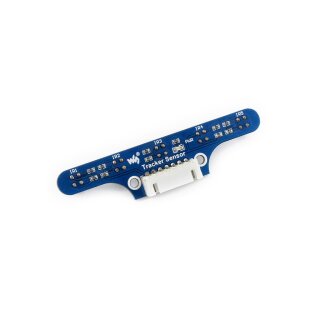

Waveshare 12223 Tracker Sensor
Description
- 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
- High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable
Specifications
- Power: 3.3V ~ 5V
- Dimension: 78mm × 18mm
- Detector spacing: 16mm
- Mounting holes size: 3mm
- Detection range: 1cm ~ 5cm
Applications
- Robot line tracking
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- IR1 ? MCU.IO (ch1, analog output)
- IR2 ? MCU.IO (ch2, analog output)
- IR3 ? MCU.IO (ch3, analog output)
- IR4 ? MCU.IO (ch4, analog output)
- IR5 ? MCU.IO (ch5, analog output)

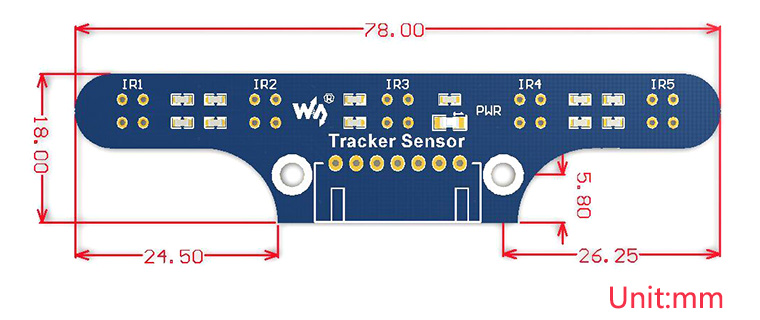

Dimensions
Development Resources
Package Contents
- Tracker Sensor x 1

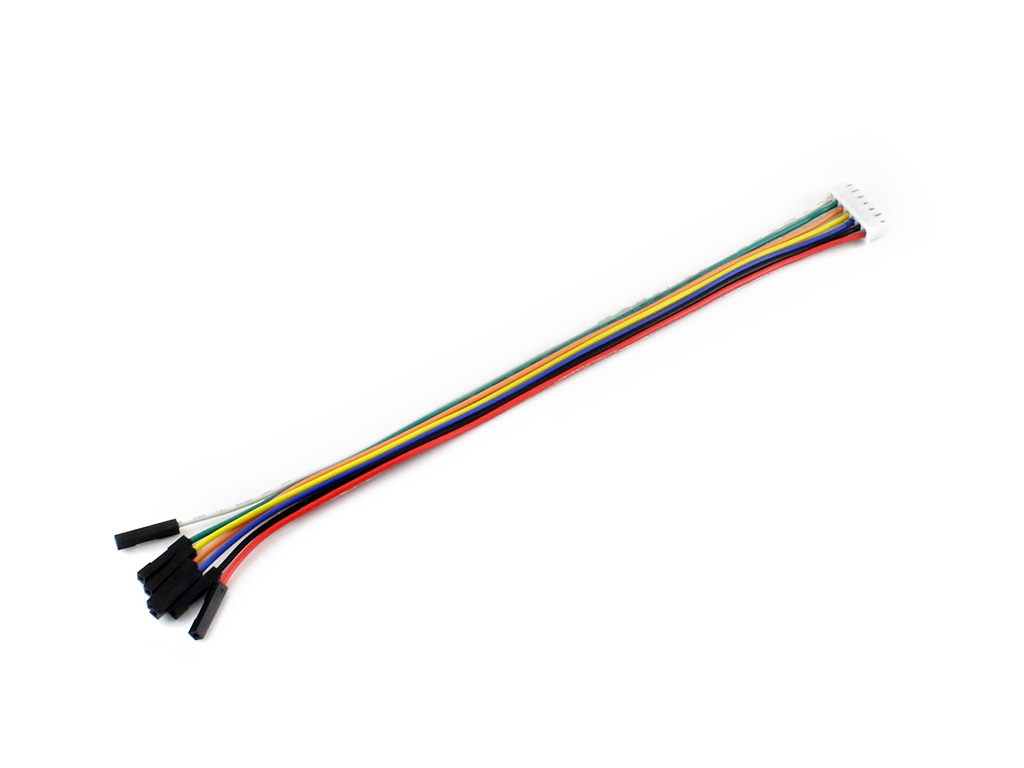

- XH2.54 7PIN wire x 1
1
2
| Shipping weight: | 0.01 Kg |
