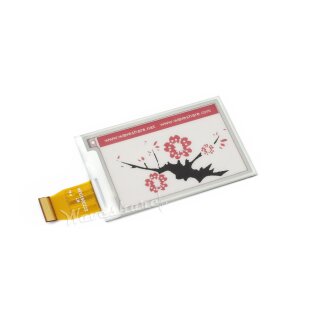

Waveshare 13185 2.7inch e-Paper (B)

Artnr.: WS3-013185
GTIN: 0614961950900
Hersteller: Waveshare

264x176, 2.7inch E-Ink raw display, three-color, SPI interface, without PCB

11,90 €

inkl. 19% MwSt.

(10,00 € exkl. MwSt.)

zzgl.

ab Lager lieferbar
Lieferstatus: Wird nicht mehr hergestellt

Beschreibung
Kundenrezensionen

This is an E-Ink raw display, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 70.42mm × 45.8mm × 0.98mm
Display size: 57.288mm × 38.192mm
Dot pitch: 0.217 × 0.217
Resolution: 264 × 176
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

Development Resources

Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT_(B)

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Interface
1.02inch e-Paper	black, white	2	128×80	21.76 × 14.00	32.57 × 18.60 × 0.98	2	SPI
1.54inch e-Paper	black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	2	SPI
1.54inch e-Paper (B)	red, black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	8	SPI
1.54inch e-Paper (C)	yellow, black, white	2	152×152	27.51 × 27.51	37.30 × 31.80 × 0.98	27	SPI
2.13inch e-Paper	black, white	2	250×122	48.55 × 23.71	59.20 × 29.20 × 1.05	2	SPI
2.13inch e-Paper (B)	red, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15	SPI
2.13inch e-Paper (C)	yellow, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15	SPI
2.13inch e-Paper (D)	black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.30	2	SPI
2.7inch e-Paper	black, white	4	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	6	SPI
2.7inch e-Paper (B)	red, black, white	2	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	15	SPI
2.9inch e-Paper	black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.05	2	SPI
2.9inch e-Paper (B)	red, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15	SPI
2.9inch e-Paper (C)	yellow, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15	SPI
2.9inch e-Paper (D)	black, white	2	296×128	66.90 × 29.06	79.00 × 36.70 × 0.34	2	SPI
4.2inch e-Paper	black, white	4	400×300	84.80 × 63.60	91.00 × 77.00 × 1.18	4	SPI
4.2inch e-Paper (B)	red, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15	SPI
4.2inch e-Paper (C)	yellow, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15	SPI
5.83inch e-Paper (B)	red, black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	20	SPI
5.83inch e-Paper (C)	yellow, black, white	2	600×448	118.80 × 88.26	125.40 × 99.50 × 1.18	26	SPI
6inch HD e-Paper	black, white	16	1448×1072	122.40 × 90.60	138.40 × 101.80 × 1.01	<1	Parallel port
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	5	SPI
7.5inch HD e-Paper	black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	5	SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	16	SPI
7.5inch HD e-Paper (B)	red, black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	21	SPI
7.5inch e-Paper (C)	yellow, black, white	2	640×384	163.20 × 97.92	170.20 × 111.20 × 1.18	16	SPI
7.8inch e-Paper	black, white	16	1872×1404	158.18 × 118.64	173.80 × 127.60 × 0.78	<1	Parallel port
9.7inch e-Paper	black, white	16	1200×825	202.8 × 139.43	218.80 × 156.425 × 1.15	<1	Parallel port
10.3inch e-Paper (D)	black, white	16	1872×1404	209.66 × 157.25	227.70 × 165.80 × 0.647	<1	Parallel port
12.48inch e-Paper	black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<8	SPI
12.48inch e-Paper (B)	red, black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<16	SPI

e-Paper raw panels comparing

Package Contents

Note: This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 2.7inch e-Paper HAT (B)

2.7inch e-Paper (B) x1

Versandgewicht:	0,01 kg
