Waveshare 13187 7.5inch e-Paper

Artnr.: WS3-013187
GTIN: 0614961951044
Hersteller: Waveshare

800×480, 7.5inch E-Ink raw display, SPI Schnittstelle, ohne PCB

54,90 €

inkl. 19% MwSt.

(46,13 € exkl. MwSt.)

zzgl.

im Zulauf

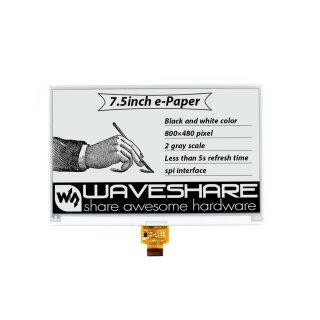

This is an E-Ink raw display, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 170.2mm × 111.2mm × 1.18mm
Display size: 163.2mm × 97.92mm
Dot pitch: 0.205 × 0.204
Resolution: 800×480
Display color: black, white
Grey scale: 2
Full refresh time: 5s
Refresh power: 38mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

Revision History

Revision V2 has been released on 2019.11, the resolution is upgraded to 800×480, from 640×384 of V1. The hardware and interface of V2 are compatible with V1, however, the related software should be updated.

Development Resources

Wiki : www.waveshare.com/wiki/7.5inch_e-Paper_HAT

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh	Flexible	Interface
1.02inch e-Paper	black, white	2	128×80	21.76 × 14.00	32.57 × 18.60 × 0.98	2	√		SPI
1.54inch e-Paper	black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	2	√		SPI
1.54inch e-Paper (B)	red, black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	8			SPI
1.54inch e-Paper (C)	yellow, black, white	2	152×152	27.51 × 27.51	37.30 × 31.80 × 0.98	27			SPI
2.13inch e-Paper	black, white	2	250×122	48.55 × 23.71	59.20 × 29.20 × 1.05	2	√		SPI
2.13inch e-Paper (B)	red, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15			SPI
2.13inch e-Paper (C)	yellow, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15			SPI
2.13inch e-Paper (D)	black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.30	2	√	√	SPI
2.66inch e-Paper	black, white	2	296×152	30.704 × 60.088	36.304 × 71.820 × 1.00	6	√		SPI
2.66inch e-Paper (B)	red, black, white	2	296×152	30.704 × 60.088	36.304 × 71.820 × 1.00	15			SPI
2.7inch e-Paper	black, white	4	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	6			SPI
2.7inch e-Paper (B)	red, black, white	2	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	15			SPI
2.9inch e-Paper	black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.05	2	√		SPI
2.9inch e-Paper (B)	red, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15			SPI
2.9inch e-Paper (C)	yellow, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15			SPI
2.9inch e-Paper (D)	black, white	2	296×128	66.90 × 29.06	79.00 × 36.70 × 0.34	2	√	√	SPI
3.7inch e-Paper	black, white	4	480×280	47.32 × 81.12	54.90 × 93.30 × 0.78	3	√		SPI
4.01inch e-Paper (F)	7-Color	2	640×400	86.40 × 54.00	96.80 × 68.70 × 0.91	15			SPI
4.2inch e-Paper	black, white	4	400×300	84.80 × 63.60	91.00 × 77.00 × 1.18	4			SPI
4.2inch e-Paper (B)	red, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15			SPI
4.2inch e-Paper (C)	yellow, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15			SPI
5.65inch e-Paper (F)	7-Color	2	600×448	114.9 × 85.8	125.4 × 99.5 × 0.91	<35			SPI
5.83inch e-Paper	black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	5			SPI
5.83inch e-Paper (B)	red, black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	20			SPI
5.83inch e-Paper (C)	yellow, black, white	2	600×448	118.80 × 88.26	125.40 × 99.50 × 1.18	26			SPI
6inch HD e-Paper	black, white	16	1448×1072	122.40 × 90.60	138.40 × 101.80 × 1.01	<1	√		Parallel port
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	5			SPI
7.5inch HD e-Paper	black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	5			SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	16			SPI
7.5inch HD e-Paper (B)	red, black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	21			SPI
7.5inch e-Paper (C)	yellow, black, white	2	640×384	163.20 × 97.92	170.20 × 111.20 × 1.18	16			SPI
7.8inch e-Paper	black, white	16	1872×1404	158.18 × 118.64	173.80 × 127.60 × 0.78	<1	√		Parallel port
9.7inch e-Paper	black, white	16	1200×825	202.8 × 139.43	218.80 × 156.425 × 1.15	<1	√		Parallel port
10.3inch e-Paper	black, white	16	1872×1404	209.66 × 157.25	216.70 × 174.40 × 0.78	<1	√		Parallel port
10.3inch e-Paper (D)	black, white	16	1872×1404	209.66 × 157.25	227.70 × 165.80 × 0.647	<1	√	√	Parallel port
12.48inch e-Paper	black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<8			SPI
12.48inch e-Paper (B)	red, black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<16			SPI
13.3inch e-Paper	black, white	16	1600×1200	270.40 × 202.80	285.80 × 213.65 × 0.78	<1	√		Parallel port

Package Contents

Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 7.5inch e-Paper HAT

7.5inch e-Paper x1

Versandgewicht:	0,12 kg
