Waveshare 13380 7.5inch e-Paper (B)

Artno.: WS3-013380
GTIN: 0614961951051
Manufacturers: Waveshare

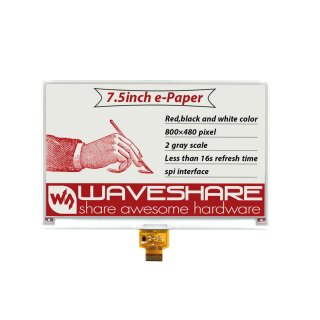

7.5inch E-Paper (B) E-Ink Raw Display, 800×480 Pixels, Red / Black / White Three-Color, SPI Interface, Without PCB

54,90 €

incl. 19% VAT

(46,13 € excl. VAT)

plus

On stock

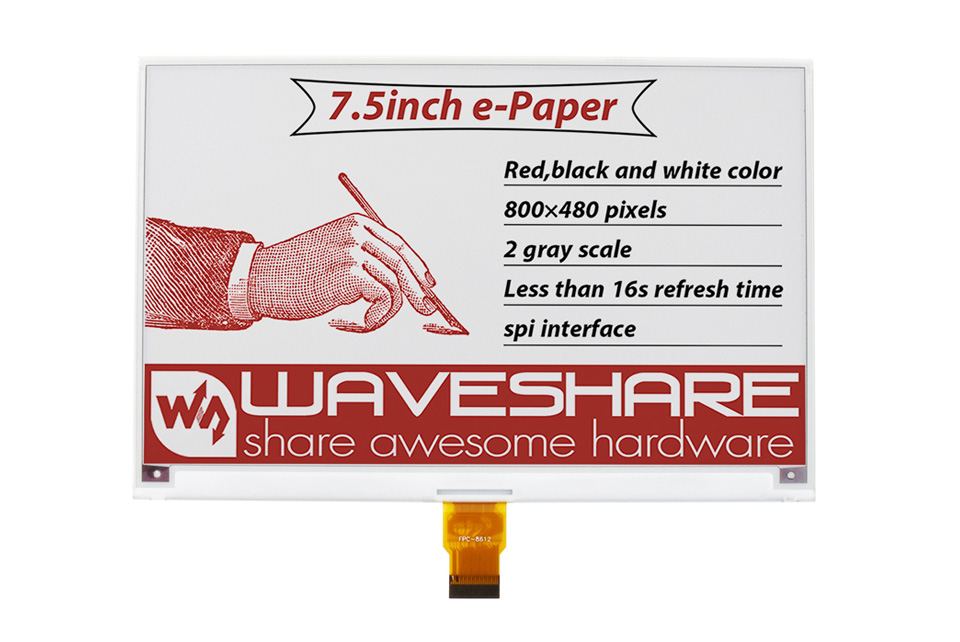

7.5" e-Paper (B)

low power consumption, wide viewing angle, paper-like displaying without electricity

Ideal for price tags, shelf labels, industrial instruments...

Size7.5"
Resolution800×480
Viewing Angle>170°
Display ColorRed / Black / White
Grey Scale2

CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

operating voltage	3.3V	display color	red, black, white
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	170.2 × 111.2 × 1.18mm	full refresh time	16s
display size	163.2 × 97.92mm	refresh power	48mW (typ.)
dot pitch	0.205 × 0.204mm	standby current	<0.01uA (almost none)
resolution	800 × 480 pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions

Resources & Services

WIKI: 7.5inch_e-Paper_HAT_(B)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh	Flexible	Interface
1.02inch e-Paper	black, white	2	128×80	21.76 × 14.00	32.57 × 18.60 × 0.98	2	√		SPI
1.54inch e-Paper	black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	2	√		SPI
1.54inch e-Paper (B)	red, black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	8			SPI
1.54inch e-Paper (C)	yellow, black, white	2	152×152	27.51 × 27.51	37.30 × 31.80 × 0.98	27			SPI
2.13inch e-Paper	black, white	2	250×122	48.55 × 23.71	59.20 × 29.20 × 1.05	2	√		SPI
2.13inch e-Paper (B)	red, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15			SPI
2.13inch e-Paper (C)	yellow, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15			SPI
2.13inch e-Paper (D)	black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.30	2	√	√	SPI
2.66inch e-Paper	black, white	2	296×152	30.704 × 60.088	36.304 × 71.820 × 1.00	6	√		SPI
2.66inch e-Paper (B)	red, black, white	2	296×152	30.704 × 60.088	36.304 × 71.820 × 1.00	15			SPI
2.7inch e-Paper	black, white	4	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	6			SPI
2.7inch e-Paper (B)	red, black, white	2	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	15			SPI
2.9inch e-Paper	black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.05	2	√		SPI
2.9inch e-Paper (B)	red, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15			SPI
2.9inch e-Paper (C)	yellow, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15			SPI
2.9inch e-Paper (D)	black, white	2	296×128	66.90 × 29.06	79.00 × 36.70 × 0.34	2	√	√	SPI
3.7inch e-Paper	black, white	4	480×280	47.32 × 81.12	54.90 × 93.30 × 0.78	3	√		SPI
4.01inch e-Paper (F)	7-Color	2	640×400	86.40 × 54.00	96.80 × 68.70 × 0.91	15			SPI
4.2inch e-Paper	black, white	4	400×300	84.80 × 63.60	91.00 × 77.00 × 1.18	4			SPI
4.2inch e-Paper (B)	red, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15			SPI
4.2inch e-Paper (C)	yellow, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15			SPI
5.65inch e-Paper (F)	7-Color	2	600×448	114.9 × 85.8	125.4 × 99.5 × 0.91	<35			SPI
5.83inch e-Paper	black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	5			SPI
5.83inch e-Paper (B)	red, black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	20			SPI
5.83inch e-Paper (C)	yellow, black, white	2	600×448	118.80 × 88.26	125.40 × 99.50 × 1.18	26			SPI
6inch HD e-Paper	black, white	16	1448×1072	122.40 × 90.60	138.40 × 101.80 × 1.01	<1	√		Parallel port
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	5			SPI
7.5inch HD e-Paper	black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	5			SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	16			SPI
7.5inch HD e-Paper (B)	red, black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	21			SPI
7.5inch e-Paper (C)	yellow, black, white	2	640×384	163.20 × 97.92	170.20 × 111.20 × 1.18	16			SPI
7.8inch e-Paper	black, white	16	1872×1404	158.18 × 118.64	173.80 × 127.60 × 0.78	<1	√		Parallel port
9.7inch e-Paper	black, white	16	1200×825	202.8 × 139.43	218.80 × 156.425 × 1.15	<1	√		Parallel port
10.3inch e-Paper	black, white	16	1872×1404	209.66 × 157.25	216.70 × 174.40 × 0.78	<1	√		Parallel port
10.3inch e-Paper (D)	black, white	16	1872×1404	209.66 × 157.25	227.70 × 165.80 × 0.647	<1	√	√	Parallel port
12.48inch e-Paper	black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<8			SPI
12.48inch e-Paper (B)	red, black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<16			SPI
13.3inch e-Paper	black, white	16	1600×1200	270.40 × 202.80	285.80 × 213.65 × 0.78	<1	√		Parallel port

Package Contents

This is a raw display, for easy testing and comparing, please consider the one with driver board: 7.5inch e-Paper HAT (B)

7.5inch e-Paper (B) x1

Shipping weight:	0,13 kg
