Waveshare 13512 e-Paper Driver HAT

Artnr.: WS1-013512
GTIN: 0614961951082
Hersteller: Waveshare

Universeller E-Paper-Treiber-HAT, unterstützt verschiedene Waveshare SPI E-Paper-Rohplatten

9,90 €

inkl. 19% MwSt.

(8,32 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

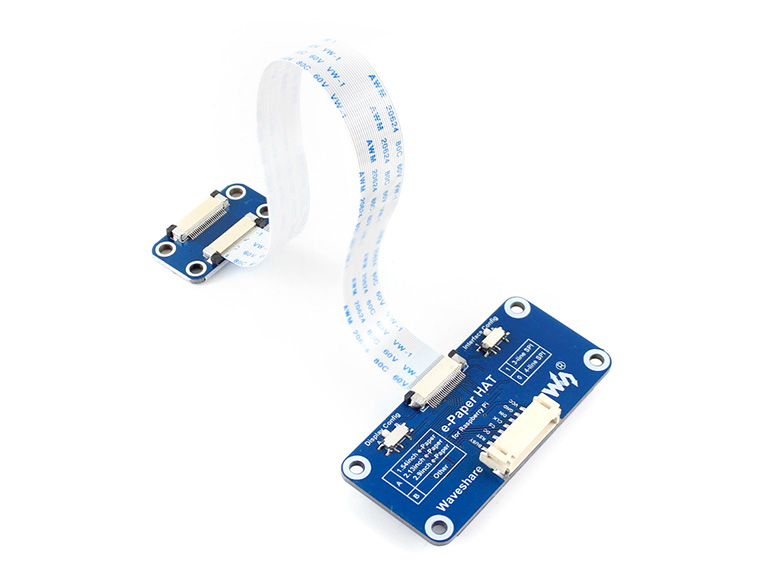

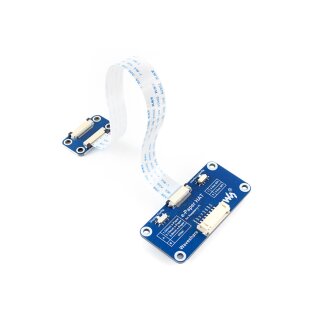

This is a universal driver board for e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.

Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage: 3.3V~5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 65mm × 30.2mm
Mounting hole size: 3.0mm

Interface

SYMBOL	DESCRIPTION
VCC	3.3V~5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/e-Paper_Driver_HAT

Supported e-Paper

Part Number	Colors	Gray Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time* (s)	Partial Refresh	Interface
1.54inch e-Paper	black, white	2	200x200	27.60 × 27.60	31.8 × 37.3	2	√	SPI
1.54inch e-Paper (B)	red, black, white	2	200x200	27.60 × 27.60	31.8 × 37.3	8	×	SPI
1.54inch e-Paper (C)	yellow, black, white	2	152x152	27.51 × 27.51	31.8 × 37.3	27	×	SPI
2.13inch e-Paper	black, white	2	250x122	48.55 × 23.71	59.2 × 29.2	2	√	SPI
2.13inch e-Paper (B)	red, black, white	2	212x104	48.55 × 23.71	59.2 × 29.2	15	×	SPI
2.13inch e-Paper (C)	yellow, black, white	2	212x104	48.55 × 23.71	59.2 × 29.2	15	×	SPI
2.13inch e-Paper (D)	black, white	2	212x104	48.55 × 23.71	59.2 × 29.2	2	√	SPI
2.7inch e-Paper	black, white	4	264x176	57.29 × 38.19	70.4 × 45.8	6	×	SPI
2.7inch e-Paper (B)	red, black, white	2	264x176	57.29 × 38.19	70.4 × 45.8	15	×	SPI
2.9inch e-Paper	black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	2	√	SPI
2.9inch e-Paper (B)	red, black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	15	×	SPI
2.9inch e-Paper (C)	yellow, black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	15	×	SPI
2.9inch e-Paper (D)	black, white	2	296x128	66.90 × 29.06	79.0 × 36.7	3	√	SPI
4.2inch e-Paper	black, white	4	400x300	84.80 × 63.60	90.1 × 77.0	4	×	SPI
4.2inch e-Paper (B)	red, black, white	2	400x300	84.80 × 63.60	90.1 × 77.0	15	×	SPI
4.2inch e-Paper (C)	yellow, black, white	2	400x300	84.80 × 63.60	90.1 × 77.0	15	×	SPI
5.83inch e-Paper	black, white	2	600x448	118.80 × 88.26	125.4 × 99.5	3.5	×	SPI
5.83inch e-Paper (B)	red, black, white	2	600x448	118.80 × 88.26	125.4 × 99.5	14	×	SPI
5.83inch e-Paper (C)	yellow, black, white	2	600x448	118.80 × 88.26	125.4 × 99.5	26	×	SPI
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	5	×	SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	16	×	SPI
7.5inch HD e-Paper (B)	red, black, white	2	880×528	163.24 × 97.94	170.2 × 111.2	21	×	SPI
7.5inch e-Paper (C)	yellow, black, white	2	640x384	163.20 × 97.92	170.2 × 111.2	16	×	SPI

* Full Refresh Time: local refreshing time without network transmission, if refreshing through network connection, it usually take 1-5 minutes, depending on the network type, connection quality, image size, and so on.

Package Contents

Note: e-Paper and Raspberry Pi are NOT included.

e-Paper Driver HAT x1
RPi screws pack (2pcs) x1

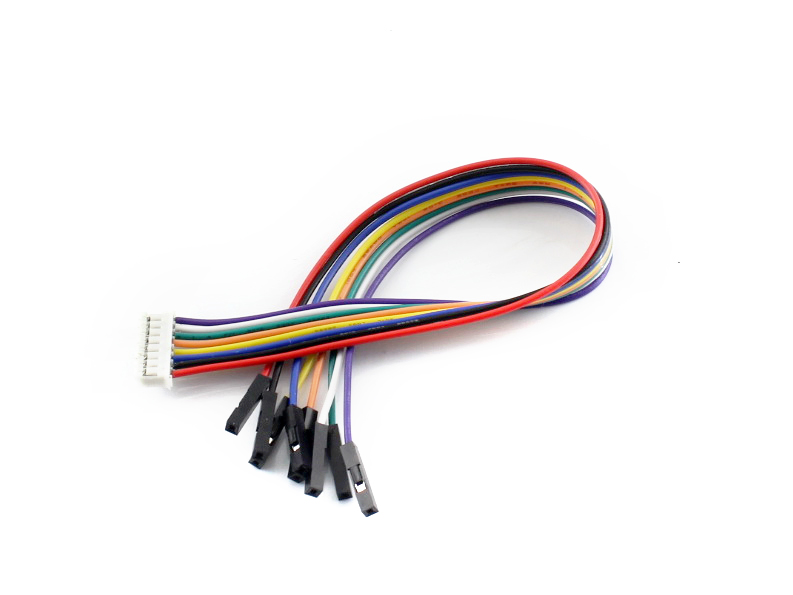

PH2.0 20cm 8Pin x1

Versandgewicht:	0,03 kg
