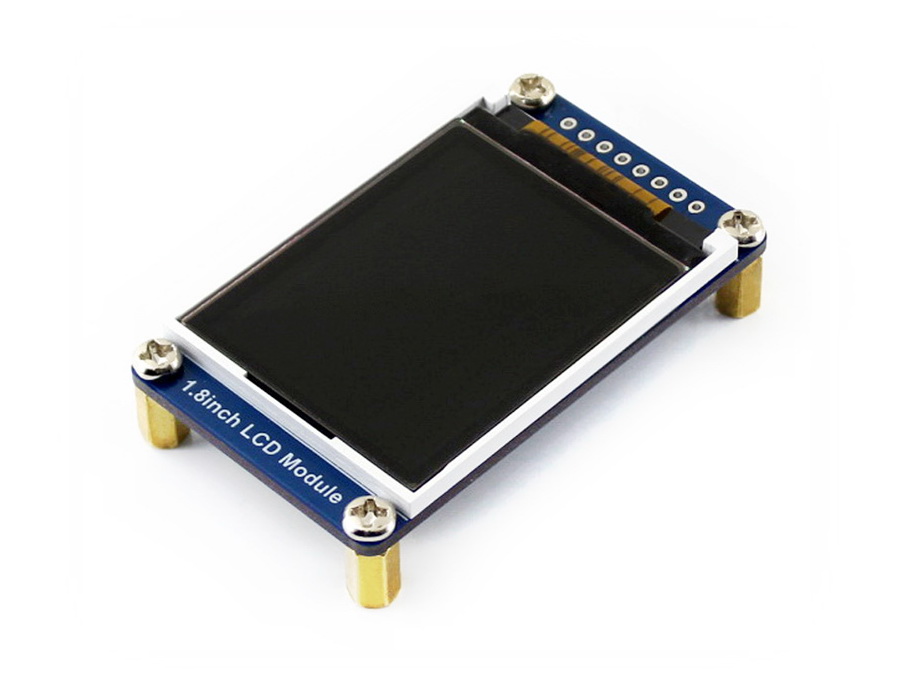

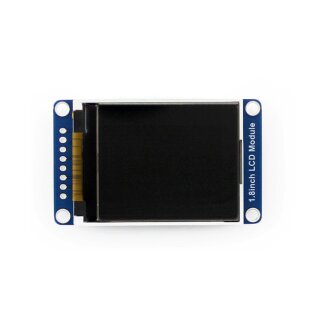

Waveshare 13892 1.8inch LCD Module

Artnr.: WS3-013892
GTIN: 0614961951471
Hersteller: Waveshare

1,8-Zoll-LCD-Display-Modul, 128x160 Pixel, SPI-Schnittstelle

8,90 €

inkl. 19% MwSt.

(7,48 € exkl. MwSt.)

zzgl.

ausverkauft

This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface.

Features

SPI interface, requires minimum GPIO for controlling
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 128x160
Backlight: LED
Operating voltage: 3.3V

Interface

SYMBOL	DESCRIPTION
VCC	Power (3.3V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

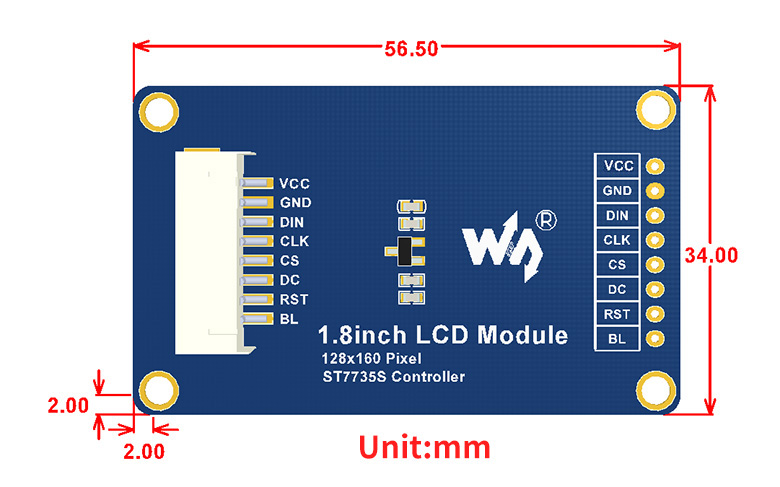

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.8inch_LCD_Module

Selection Guide

Part Number	Type	Color	Resolution	Display Size (mm×mm)	Interfaces	Driver	Dimension (mm×mm)	Pinheader
0.91inch OLED Module	OLED	White	128×32	22.38×5.58	I2C	SSD1306	36.0×12.5	PH2.0 connector
0.95inch RGB OLED (A)	OLED	65K colorful	96×64	20.14×13.42	SPI(4-wire SPI)	SSD1331	31.7×37.0	angled/horizontal
0.95inch RGB OLED (B)	OLED	65K colorful	96×64	20.14×13.42	SPI(4-wire SPI)	SSD1331	31.7×37.0	straight/vertical
0.96inch LCD Module	IPS	65K colorful	160×80	21.70×10.80	4-wire SPI	ST7735S	32.5×26.0	PH2.0 connector
0.96inch OLED (A)	OLED	1/4 yellow section, 3/4 blue section	128×64	21.7×11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0×33.5	angled/horizontal
0.96inch OLED (B)	OLED	1/4 yellow section, 3/4 blue section	128×64	21.7×11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0×33.5	straight/vertical
1.14inch LCD Module	IPS	65K colorful	240×135	24.91×14.86	4-wire SPI	ST7789	35.0×32.0	PH2.0 connector
1.28inch LCD Module	IPS	65K colorful	240×240	Φ32.4mm	4-wire SPI	GC9A01	40.4×37.5 Φ37.5	PH2.0 connector
1.3inch LCD Module	IPS	65K colorful	240×240	23.40×23.40	4-wire SPI	ST7789	45.0×31.0	PH2.0 connector
1.3inch OLED (A)	OLED	Blue	128×64	29.42×14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5×37.5	angled/horizontal
1.3inch OLED (B)	OLED	Blue	128×64	29.42×14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5×37.5	straight/vertical
1.3inch OLED Module (C)	OLED	White	64×128	14.70×29.42	4-wire SPI, I2C	SH1107	30.0×39.5	PH2.0 connector
1.5inch OLED Module	OLED	White (16 gray scale)	128×128	26.86×26.86	4-wire SPI, I2C	SSD1327	44.5×37.0	PH2.0 connector
1.5inch RGB OLED Module	OLED	65K colorful	128×128	26.86×26.86	3-wire SPI, 4-wire SPI	SSD1351	44.5×37.0	PH2.0 connector
1.54inch LCD Module	IPS	65K colorful	240×240	27.72×27.72	4-wire SPI	ST7789	50.0×35.0	PH2.0 connector
1.8inch LCD Module	TFT	65K colorful	128×160	34.50×28.30	4-wire SPI	ST7735S	56.5×34.0	PH2.0 connector
2inch LCD Module	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI	ST7789	58.0×35.0	PH2.0 connector
2.4inch LCD Module	TFT	65K colorful	240×320	36.72×48.96	4-wire SPI	ILI9341	70.5×43.3	PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Package Contents

1.8inch LCD Module x1
PH2.0 20cm 8Pin x1
