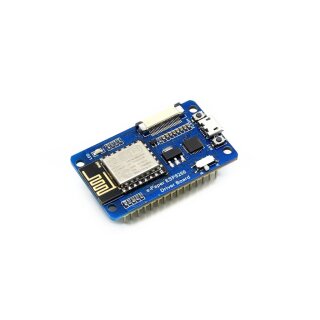

Waveshare 14138 e-Paper ESP8266 Driver Board

Waveshare 14138 e-Paper ESP8266 Driver Board

Artnr.: WS1-014138
GTIN: 0614961951891
Hersteller: Waveshare

Universal e-Paper Driver Board mit WiFi SoC ESP8266 onboard, unterstützt verschiedene Waveshare SPI e-Paper Rohplatten

14,90 €

inkl. 19% MwSt.

(12,52 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

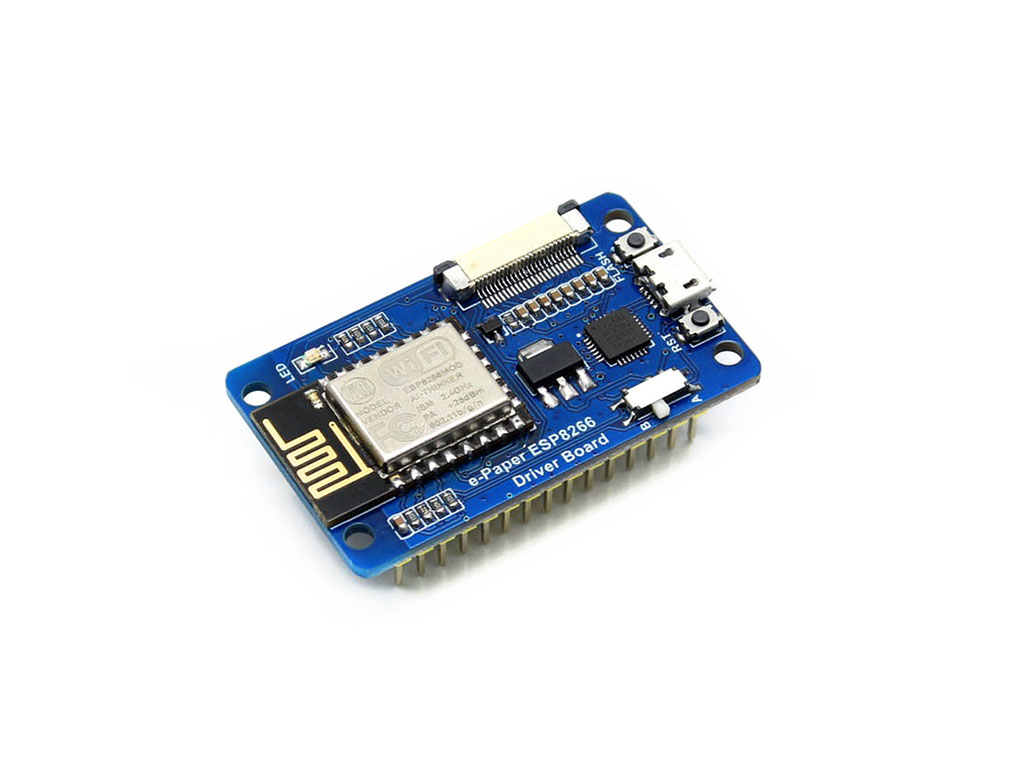

This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display images from PC / smart phone via WiFi conveniently.

Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.

Features

Onboard ESP8266, supports Arduino development
Provides HTML host code, allows to refresh display content via remote webpage, suit for Internet applications
Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
Easy to be integrated into wireless applications
Comes with e-Paper driver (open source)
Comes with development resources and manual

Specifications

WiFi protocol: 802.11b/g/n
Interface: 3-wire SPI, 4-wire SPI (default)
Operating voltage: 5V
Operating current: 50mA ~ 100mA
Outline dimension: 29.57mm x 48.26mm
Mounting holes size: 2.9mm

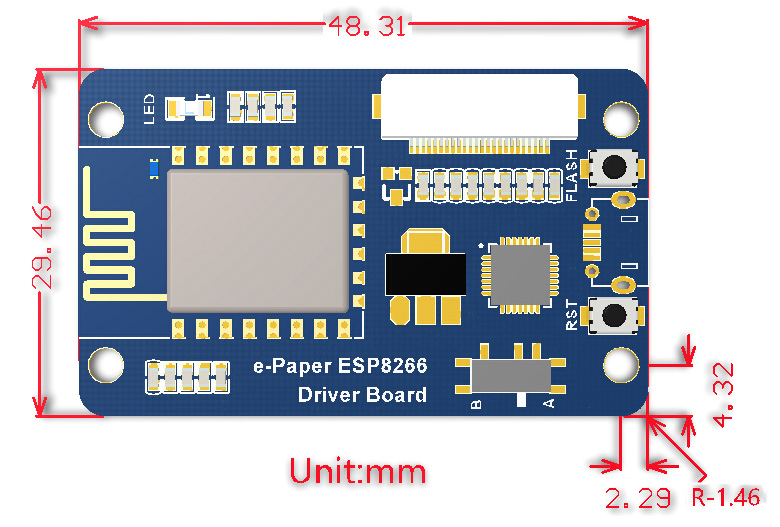

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/e-Paper_ESP8266_Driver_Board

Supported e-Paper

Part Number	Colors	Gray Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time* (s)	Partial Refresh	Interface
1.54inch e-Paper	black, white	2	200x200	27.60 × 27.60	31.8 × 37.3	2	√	SPI
1.54inch e-Paper (B)	red, black, white	2	200x200	27.60 × 27.60	31.8 × 37.3	8	×	SPI
1.54inch e-Paper (C)	yellow, black, white	2	152x152	27.51 × 27.51	31.8 × 37.3	27	×	SPI
2.13inch e-Paper	black, white	2	250x122	48.55 × 23.71	59.2 × 29.2	2	√	SPI
2.13inch e-Paper (B)	red, black, white	2	212x104	48.55 × 23.71	59.2 × 29.2	15	×	SPI
2.13inch e-Paper (C)	yellow, black, white	2	212x104	48.55 × 23.71	59.2 × 29.2	15	×	SPI
2.13inch e-Paper (D)	black, white	2	212x104	48.55 × 23.71	59.2 × 29.2	2	√	SPI
2.7inch e-Paper	black, white	4	264x176	57.29 × 38.19	70.4 × 45.8	6	×	SPI
2.7inch e-Paper (B)	red, black, white	2	264x176	57.29 × 38.19	70.4 × 45.8	15	×	SPI
2.9inch e-Paper	black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	2	√	SPI
2.9inch e-Paper (B)	red, black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	15	×	SPI
2.9inch e-Paper (C)	yellow, black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	15	×	SPI
2.9inch e-Paper (D)	black, white	2	296x128	66.90 × 29.06	79.0 × 36.7	3	√	SPI
4.2inch e-Paper	black, white	4	400x300	84.80 × 63.60	90.1 × 77.0	4	×	SPI
4.2inch e-Paper (B)	red, black, white	2	400x300	84.80 × 63.60	90.1 × 77.0	15	×	SPI
4.2inch e-Paper (C)	yellow, black, white	2	400x300	84.80 × 63.60	90.1 × 77.0	15	×	SPI
5.83inch e-Paper	black, white	2	600x448	118.80 × 88.26	125.4 × 99.5	3.5	×	SPI
5.83inch e-Paper (B)	red, black, white	2	600x448	118.80 × 88.26	125.4 × 99.5	14	×	SPI
5.83inch e-Paper (C)	yellow, black, white	2	600x448	118.80 × 88.26	125.4 × 99.5	26	×	SPI
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	5	×	SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	16	×	SPI
7.5inch HD e-Paper (B)	red, black, white	2	880×528	163.24 × 97.94	170.2 × 111.2	21	×	SPI
7.5inch e-Paper (C)	yellow, black, white	2	640x384	163.20 × 97.92	170.2 × 111.2	16	×	SPI

* Full Refresh Time: local refreshing time without network transmission, if refreshing through network connection, it usually take 1-5 minutes, depending on the network type, connection quality, image size, and so on.

Package Contents

Note: e-Paper panels in the photos are NOT included.

e-Paper ESP8266 Driver Board x1
e-Paper Adapter x1
24PIN FFC x1

2+3
