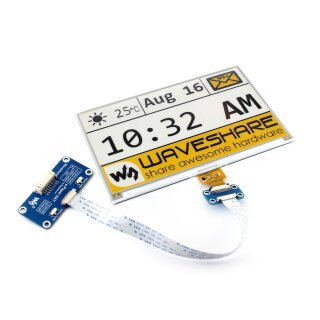

Waveshare 14229 7.5inch e-Paper HAT (C)
Beschreibung
This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
- Operating voltage: 3.3V~5V
- Interface: SPI
- Outline dimension: 170.2mm × 111.2mm
- Display size: 163.2mm × 97.92mm
- Dot pitch: 0.255 × 0.255
- Resolution: 640 × 384
- Display color: yellow, black, white
- Grey level: 2
- Full refresh time: 16s
- Refresh power: 38mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V~5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/7.5inch_e-Paper_HAT_(C)
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh1 | Pi Header2 | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper Module | black, white | 2 | 128×80 | 21.76 × 14.00 | 42.0 × 27.0 | 2 | SPI | ||
| 1.54inch e-Paper Module | black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 2 | SPI | ||
| 1.54inch e-Paper Module (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 8 | SPI | ||
| 1.54inch e-Paper Module (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 48.0 × 33.0 | 27 | SPI | ||
| 2.13inch e-Paper HAT | black, white | 2 | 250×122 | 48.55 × 23.71 | 65.0 × 30.2 | 2 | SPI | ||
| 2.13inch e-Paper HAT (B) | red, black, white | 2 | 212×104 | 48.55 × 23.71 | 65.0 × 30.2 | 15 | SPI | ||
| 2.13inch e-Paper HAT (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.71 | 65.0 × 30.2 | 15 | SPI | ||
| 2.13inch e-Paper HAT (D) | black, white | 2 | 212×104 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | SPI | ||
| 2.7inch e-Paper HAT | black, white | 4 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 6 | SPI | ||
| 2.7inch e-Paper HAT (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 15 | SPI | ||
| 2.9inch e-Paper Module | black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 2 | SPI | ||
| 2.9inch e-Paper Module (B) | red, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | ||
| 2.9inch e-Paper Module (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | ||
| 2.9inch e-Paper HAT (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.0 × 36.7 | 2 | SPI | ||
| 4.2inch e-Paper Module | black, white | 4 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 4 | SPI | ||
| 4.2inch e-Paper Module (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 15 | SPI | ||
| 4.2inch e-Paper Module (C) | yellow, black, white | 2 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 15 | SPI | ||
| 4.3inch e-Paper UART Module | black, white | 4 | 800×600 | 88.00 × 66.00 | 118.0 × 75.0 | 1.5 | UART | ||
| 5.65inch e-Paper Module (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 138.5 × 100.5 | 15 | SPI | ||
| 5.83inch e-Paper HAT (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.4 × 99.5 | 20 | SPI | ||
| 5.83inch e-Paper HAT (C) | yellow, black, white | 2 | 600×448 | 118.8 × 88.26 | 125.4 × 99.5 | 26 | SPI | ||
| 6inch e-Paper HAT | black, white | 16 | 800×600 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | USB/SPI/ I80/I2C | ||
| 6inch HD e-Paper HAT | black, white | 16 | 1448×1072 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | USB/SPI/ I80 | ||
| 7.5inch e-Paper HAT | black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 5 | SPI | ||
| 7.5inch HD e-Paper HAT | black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 5 | SPI | ||
| 7.5inch e-Paper HAT (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | SPI | ||
| 7.5inch HD e-Paper HAT (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 21 | SPI | ||
| 7.5inch e-Paper HAT (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | SPI | ||
| 7.8inch e-Paper HAT | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.8 × 127.6 | <1 | USB/SPI/ I80/I2C | ||
| 9.7inch e-Paper HAT | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.8×156.4 | <1 | USB/SPI/ I80/I2C | ||
| 10.3inch e-Paper HAT (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.7 × 165.8 | <1 | USB/SPI/ I80/I2C | ||
| 12.48inch e-Paper Module | black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | <8 | SPI | ||
| 12.48inch e-Paper Module (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | <16 | SPI |
- It takes about 0.3s for partial refresh
- Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Package Contents
- 7.5inch e-Paper (C) x1
- e-Paper Driver HAT x1
- RPi screws pack (2pcs) x1
- PH2.0 20cm 8Pin x1
| Versandgewicht: | 0,15 Kg |
