Waveshare 14412 5.83inch e-Paper (C)
Beschreibung

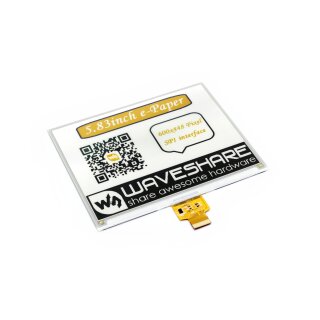

This is an E-Ink raw display, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 125.40mm × 99.50mm × 1.18mm
- Display size: 118.80mm × 88.26mm
- Dot pitch: 0.198 × 0.197
- Resolution: 600 × 448
- Display color: yellow, black, white
- Grey level: 2
- Full refresh time: 26s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
Development Resources
Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT_(C)_
Recommended
To fastly get started with this raw display, please consider the following driver boards:
- e-Paper Driver HAT(Universal)
- e-Paper Shield(Arduino/NUCLEO)
- e-Paper ESP8266 Driver Board(WiFi)
- e-Paper ESP32 Driver Board (WiFi / Bluetooth)
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh | Flexible | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper | black, white | 2 | 128×80 | 21.76 × 14.00 | 32.57 × 18.60 × 0.98 | 2 | √ | SPI | |
| 1.54inch e-Paper | black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 2 | √ | SPI | |
| 1.54inch e-Paper (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 8 | SPI | ||
| 1.54inch e-Paper (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 37.30 × 31.80 × 0.98 | 27 | SPI | ||
| 2.13inch e-Paper | black, white | 2 | 250×122 | 48.55 × 23.71 | 59.20 × 29.20 × 1.05 | 2 | √ | SPI | |
| 2.13inch e-Paper (B) | red, black, white | 2 | 212×104 | 48.55 × 23.71 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.71 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (D) | black, white | 2 | 212×104 | 48.55 × 23.71 | 59.20 × 29.20 × 0.30 | 2 | √ | √ | SPI |
| 2.66inch e-Paper | black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 6 | √ | SPI | |
| 2.66inch e-Paper (B) | red, black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 15 | SPI | ||
| 2.7inch e-Paper | black, white | 4 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 6 | SPI | ||
| 2.7inch e-Paper (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 15 | SPI | ||
| 2.9inch e-Paper | black, white | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.05 | 2 | √ | SPI | |
| 2.9inch e-Paper (B) | red, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.18 | 15 | SPI | ||
| 2.9inch e-Paper (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.18 | 15 | SPI | ||
| 2.9inch e-Paper (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 0.34 | 2 | √ | √ | SPI |
| 3.7inch e-Paper | black, white | 4 | 480×280 | 47.32 × 81.12 | 54.90 × 93.30 × 0.78 | 3 | √ | SPI | |
| 4.01inch e-Paper (F) | 7-Color | 2 | 640×400 | 86.40 × 54.00 | 96.80 × 68.70 × 0.91 | 15 | SPI | ||
| 4.2inch e-Paper | black, white | 4 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.18 | 4 | SPI | ||
| 4.2inch e-Paper (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 90.10 × 77.00 × 1.18 | 15 | SPI | ||
| 4.2inch e-Paper (C) | yellow, black, white | 2 | 400×300 | 84.80 × 63.60 | 90.10 × 77.00 × 1.18 | 15 | SPI | ||
| 5.65inch e-Paper (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 125.4 × 99.5 × 0.91 | <35 | SPI | ||
| 5.83inch e-Paper | black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 5 | SPI | ||
| 5.83inch e-Paper (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 20 | SPI | ||
| 5.83inch e-Paper (C) | yellow, black, white | 2 | 600×448 | 118.80 × 88.26 | 125.40 × 99.50 × 1.18 | 26 | SPI | ||
| 6inch HD e-Paper | black, white | 16 | 1448×1072 | 122.40 × 90.60 | 138.40 × 101.80 × 1.01 | <1 | √ | Parallel port | |
| 7.5inch e-Paper | black, white | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 5 | SPI | ||
| 7.5inch HD e-Paper | black, white | 2 | 880×528 | 163.24 × 97.94 | 170.20 × 111.20 × 1.25 | 5 | SPI | ||
| 7.5inch e-Paper (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 16 | SPI | ||
| 7.5inch HD e-Paper (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.20 × 111.20 × 1.25 | 21 | SPI | ||
| 7.5inch e-Paper (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 16 | SPI | ||
| 7.8inch e-Paper | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.80 × 127.60 × 0.78 | <1 | √ | Parallel port | |
| 9.7inch e-Paper | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.80 × 156.425 × 1.15 | <1 | √ | Parallel port | |
| 10.3inch e-Paper | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 216.70 × 174.40 × 0.78 | <1 | √ | Parallel port | |
| 10.3inch e-Paper (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.70 × 165.80 × 0.647 | <1 | √ | √ | Parallel port |
| 12.48inch e-Paper | black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.50 × 211.00 × 0.30 | <8 | SPI | ||
| 12.48inch e-Paper (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.50 × 211.00 × 0.30 | <16 | SPI | ||
| 13.3inch e-Paper | black, white | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 × 0.78 | <1 | √ | Parallel port |
Package Contents
Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 5.83inch e-Paper HAT (C)
- 5.83inch e-Paper (C) x1
| Versandgewicht: | 0,12 Kg |
