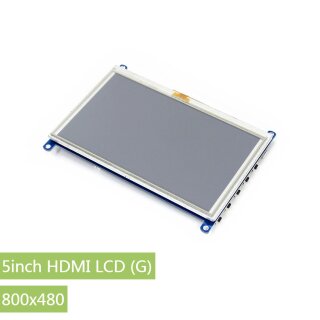

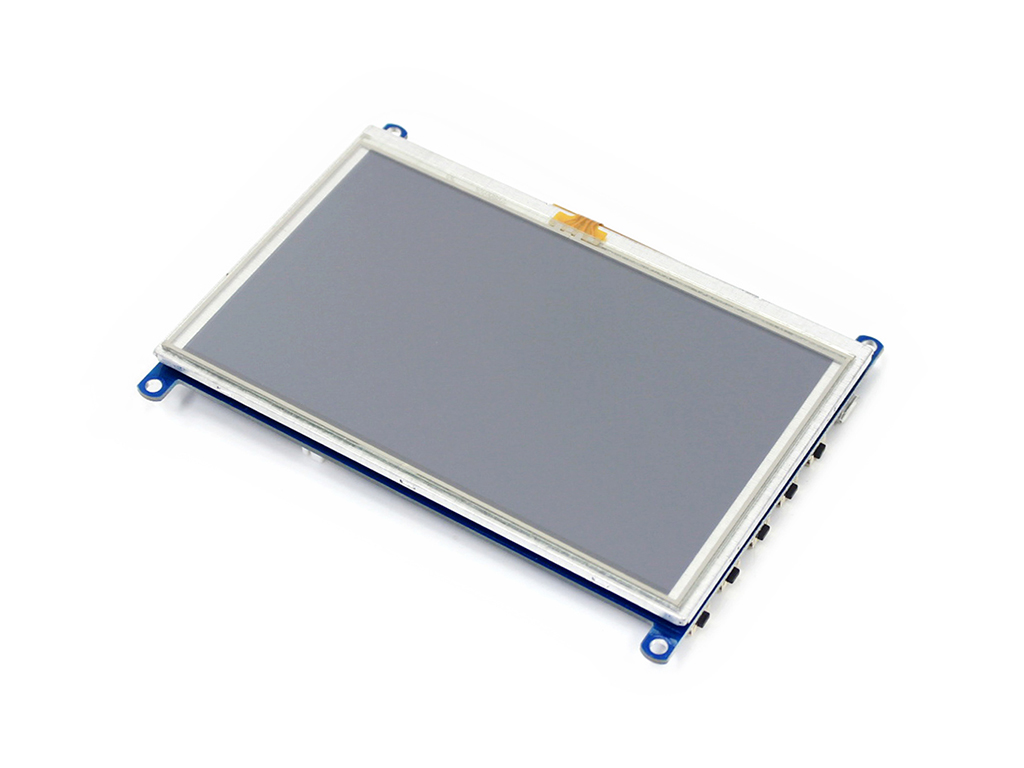

Waveshare 14447 5inch HDMI LCD (G)
Description
Features
- 800x480 hardware resolution, configurable by software (up to 1920x1080)
- Resistive touch control
- Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack, speaker connector, supports HDMI audio output
- Also supports VGA input (specific cable is required and should be purchased separately)
Using with Game Consoles
Part Number | Microsoft XBOX | Sony PS4 | Nintendo Switch | |||
---|---|---|---|---|---|---|
Display | Sound | Display | Sound | Display | Sound | |
3.5inch HDMI LCD | √ | √ | √ | √ | √ | √ |
4.3inch HDMI LCD (B) | √ | √ | √ | √ | √ | √ |
5inch HDMI LCD (G) | √ | √ | √ | √ | √ | √ |
5inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | √ | × | √ | × | √ | × |
7inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | √ | × | √ | × | √ | × |
10.1inch HDMI LCD (B) | × | × | × | × | √ | × |
10.1inch HDMI LCD (H) | √ | √ | × | × | √ | √ |
11.6inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) V2 | √ | √ | √ | √ | √ | √ |
15.6inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
Note:
- Limited by the game console OS, the touch function is unavailable.
- Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

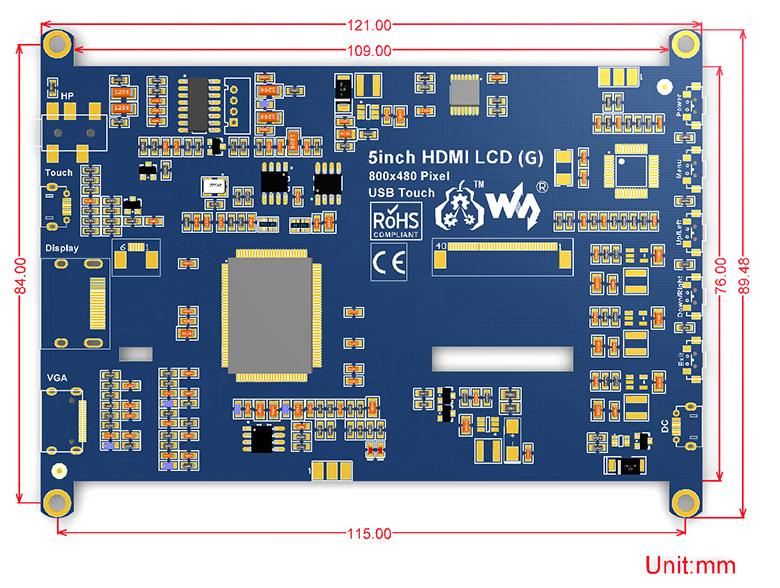

External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/5inch_HDMI_LCD_(G)
FAQ
- Why the LCD doesn't work with my Raspbian?
- To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual. However, for the first testing, you may want to use our image directly (if provided).
- Why the LCD still doesn't work with the Waveshare provided image?
- Make sure the hardware connection is correct and connects fine. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
- Which power supply should I use?
- It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.
For more info, please check the wiki page.
Selection Guide
PartNumber | Display | Touch | Audio | Device Support | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Resolu-tion | Display Port | Display Panel | View Angle | Touch Type | Touch Port | Toughened Glass Panel | Fully Laminated | Spe-aker | Signal Output | Pi | JETSON NANO | PC | |
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. | |||||||||||||
3.2inch RPi LCD (C) | 320×240 | High-Speed SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (B) | 480×320 | SPI | IPS | 160° | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (C) | 480×320 | High-Speed SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
4inch RPi LCD (C) | 480×320 | High-Speed SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. | |||||||||||||
2.8inch DPI LCD | 480×640 | DPI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.5inch DPI LCD | 640×480 | DPI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4inch DPI LCD (B) | 480×800 | DPI | IPS | 170° | Capacitive | I2C | √ | × | √ | √ | √ | × | × |
4inch DPI LCD (C) | 720×720 | DPI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
5inch DPI LCD | 800×480 | DPI | IPS | 160° | × | × | × | × | × | × | √ | × | × |
7inch DPI LCD | 1024×600 | DPI | IPS | 170° | × | × | × | × | × | × | √ | × | × |
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only. | |||||||||||||
4.3inch DSI LCD | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI LCD (with case) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD | 800×480 | DSI | TFT | - | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD | 800×480 | DSI | TFT | - | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with case A) | 800×480 | DSI | TFT | - | Capacitive | I2C | √ | × | × | × | √ | × | × |
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly. | |||||||||||||
3.5inch HDMI LCD | 480×320 | HDMI | IPS | 160° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
4inch HDMI LCD | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
4inch HDMI LCD (H) | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
4.3inch HDMI LCD (B) | 800×480 | HDMI | IPS | 160° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
5inch HDMI LCD | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (with case) | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (B) (with case) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (G) | 800×480 | HDMI/VGA | TFT | – | Resistive | USB | × | × | × | √ | √ | × | √ |
5inch HDMI LCD (H) | 800×480 | HDMI/VGA | TFT | – | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD (H) V4 | 800×480 | HDMI | TFT | – | Capacitive | USB | √ | × | × | × | √ | × | √ |
5inch HDMI AMOLED | 960×544 | HDMI | AMOLED | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
5.5inch HDMI AMOLED | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
5.5inch HDMI AMOLED (with case A) | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | × | × | √ | √ | × | × |
5.5inch HDMI AMOLED (with case B) | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
7inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (B) (with case) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) (with case) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (H) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
7inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7inch FHD Monitor | 1080×1920 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
7HP-CAPQLED | 1024×600 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
9HP-CAPQLED | 1280×720 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
10.1HP-CAPQLED | 1280×720 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch HDMI LCD | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
9inch 2560x1600 Monitor | 2560×1600 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
10.1inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | TFT | – | Capacitive | USB | × | × | × | × | √ | √ | √ |
10.1inch HDMI LCD (E) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1inch HDMI LCD (B) (with case) | 1280×800 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | × | √ | × | √ |
11.6inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.9inch HDMI LCD | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
12.5inch FHD Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C / USB | √ | × | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) V2 | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
15.6inch HDMI LCD | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
15.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
15.6inch FHD Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C / USB | √ | × | √ | √ | √ | √ | √ |
Have a look :
Package Contents
Note:Raspberry PiandSpeaker (8O 5W) in the photos are NOT included.
- 5inch HDMI LCD (G) x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x 1
- USB type A plug to micro B plug cable x1

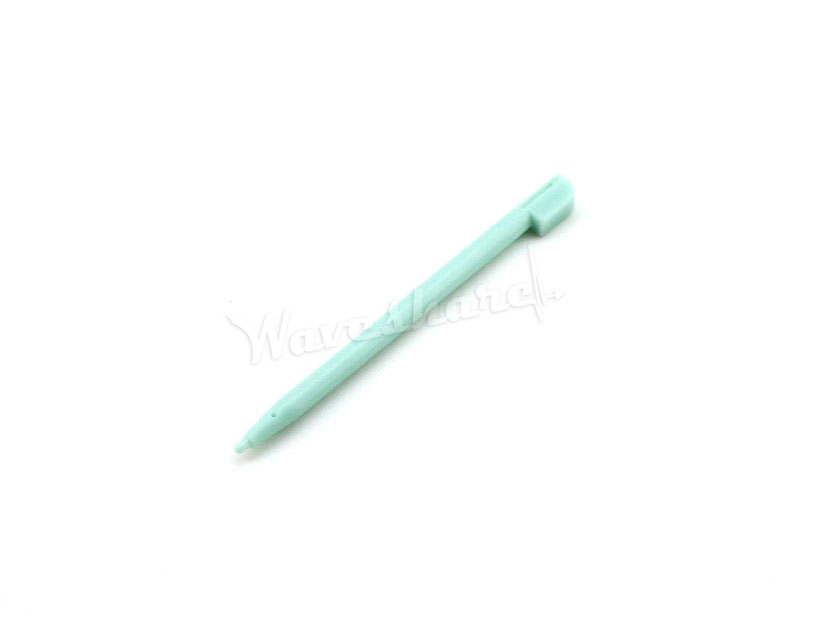

- Touch pen x1
- RPi screws pack (4pcs) x1

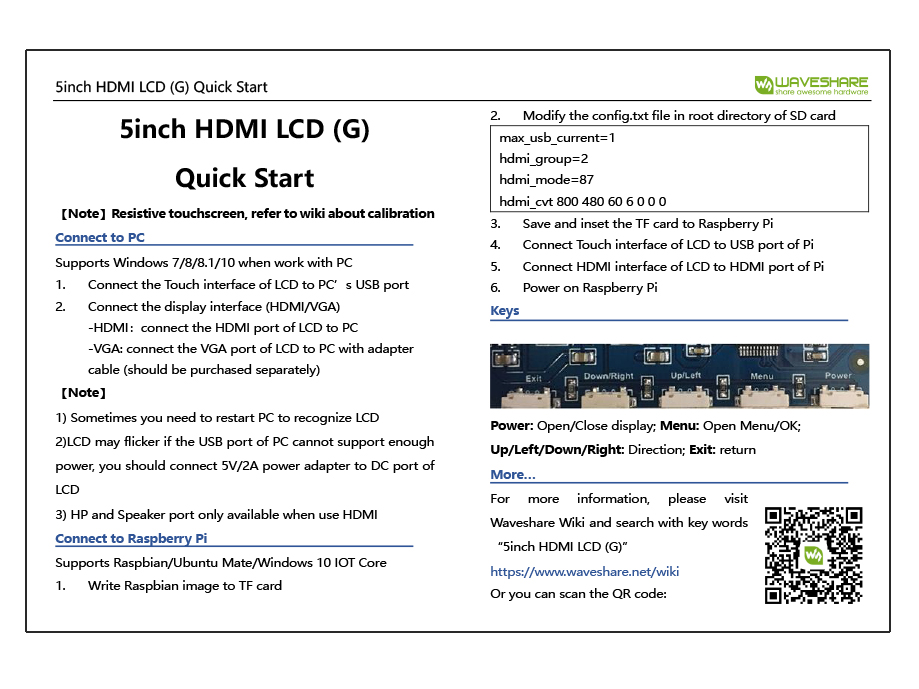

- Quick start sheet x1
