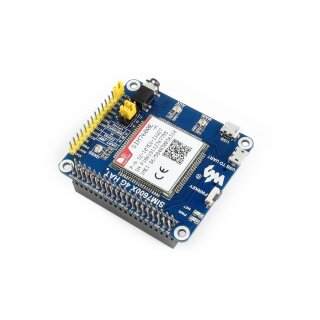

Waveshare 14952 SIM7600E-H 4G HAT
Description
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:
| SIM7600A-H 4G HAT | LTE Cat-4 | mainly applicable in North America (US, CA) |
| SIM7600E-H 4G HAT | LTE Cat-4 | mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, South Korea |
| SIM7600E LTE Cat-1 HAT | LTE Cat-1 | |
| A7670E Cat-1 HAT | ||
| A7600E Cat-1/GSM/GPRS HAT | ||
| SIM7600SA-H 4G HAT | LTE Cat-4 | mainly applicable in Australia, New Zealand, Taiwan, Latin America |
| SIM7600CE 4G HAT | LTE Cat-4 | mainly applicable in China, and some Southeast Asia countries |
| SIM7600CE-CNSE 4G HAT | ||
| A7600C1 Cat-1/GSM/GPRS HAT | LTE Cat-1 | |
| SIM7600G-H 4G HAT | LTE Cat-4 | the global version |
Please check the supported bands according to your local service provider, select the proper one when placing order.

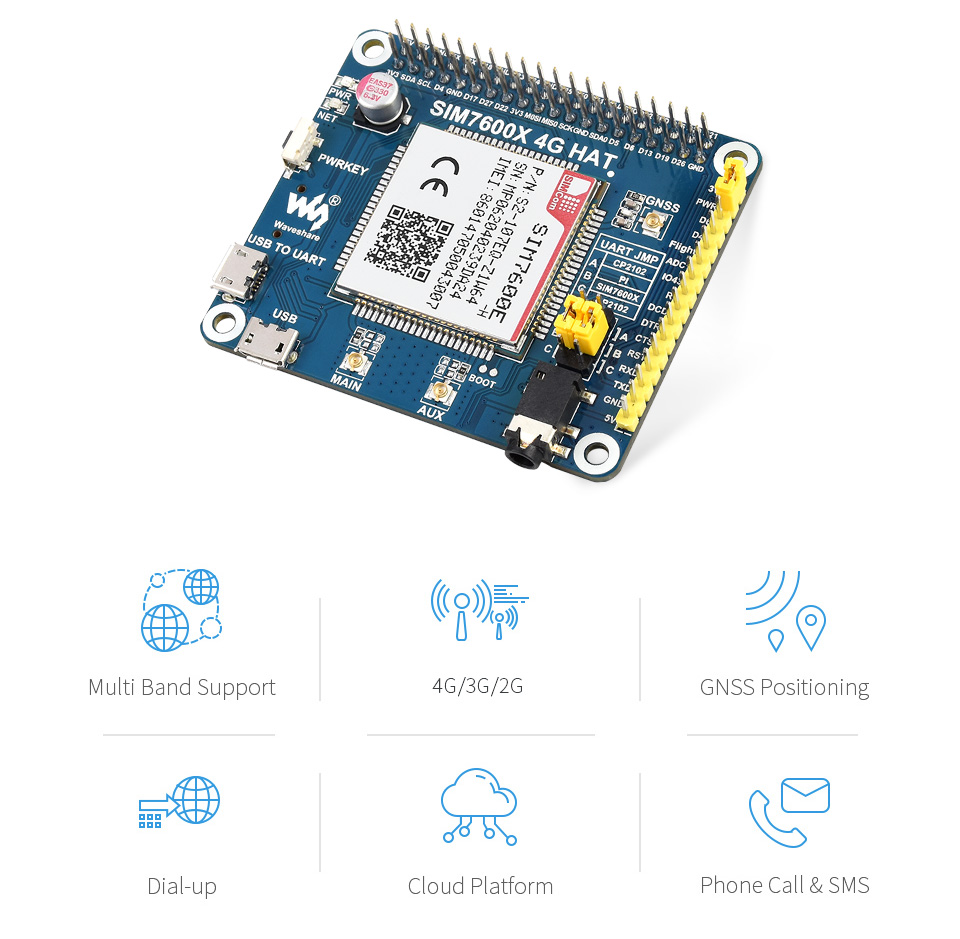

4G HAT for Raspberry Pi
enabling LTE Cat-4 4G / 3G / 2G communication & GNSS positioning
Based on SIM7600E-H
Features at a glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, LBS base station positioning
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the operating status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| Frequency band | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41 |
| 3G | UMTS/HSPA+: B1/B5/B8 |
| 2G | GSM/GPRS/EDGE: 900/1800 MHz |
| GNSS | |
| Satellite systems | GPS/Beidou/GLONASS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS and Audio | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| Other | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.21mm × 65.15mm |

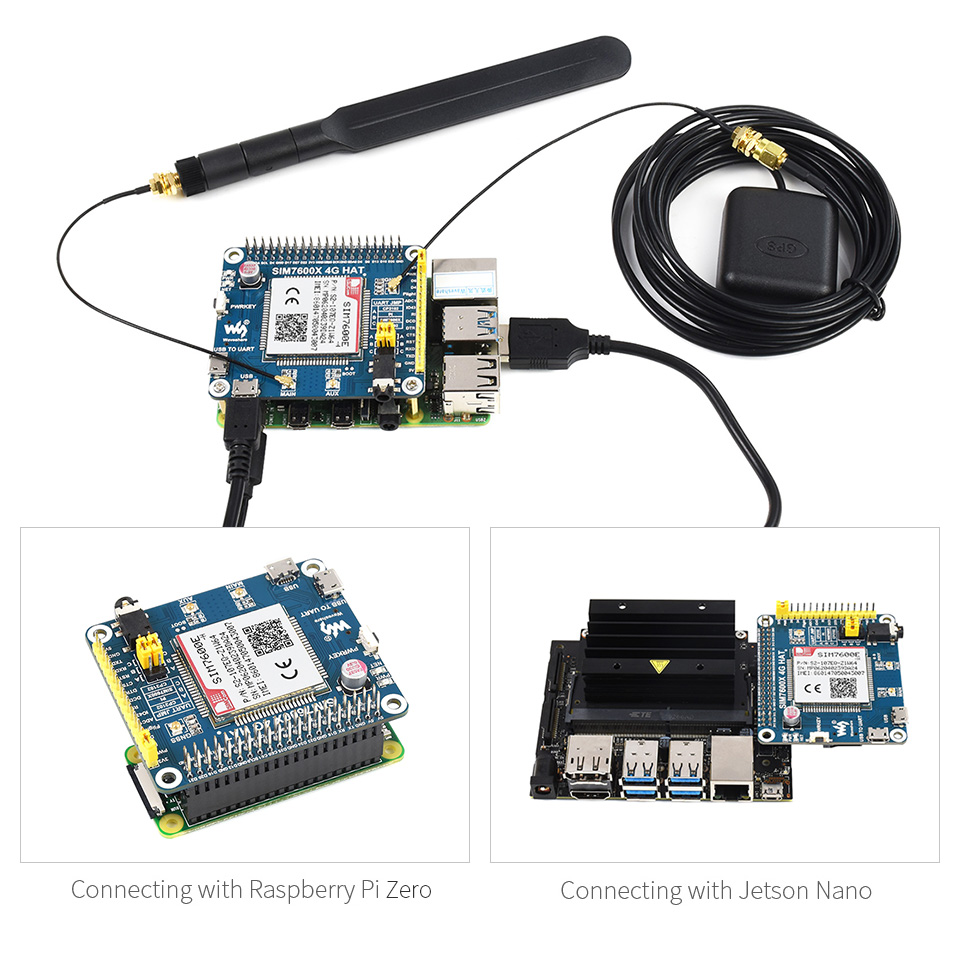

Standard Raspberry Pi 40PIN GPIO
Compatible with Raspberry Pi series boards, Jetson Nano

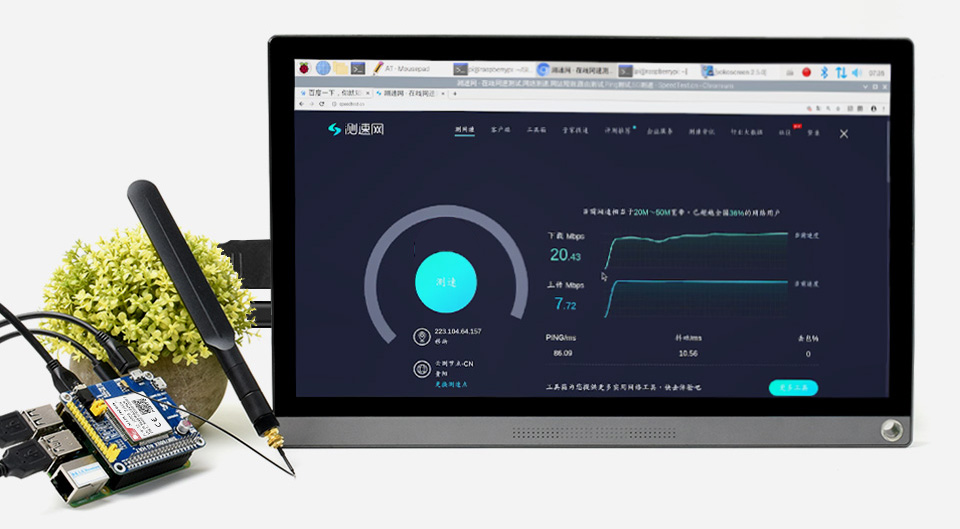

Dial-up on Windows/Linux
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink) *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

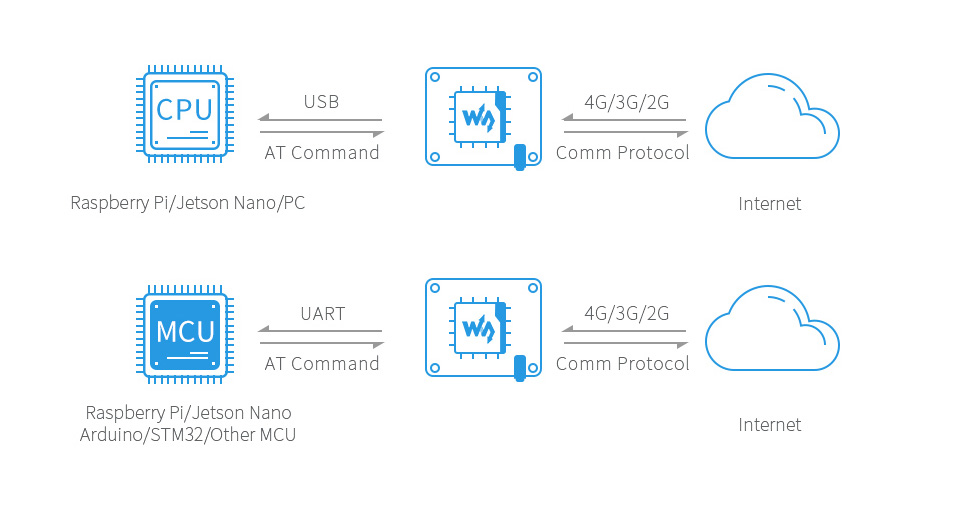

Cloud Communication
Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS
GNSS positioning
Supports GPS, BeiDou, Glonass, LBS base station positioning
Telephoto call & SMS Support
Making telephoto call or sending SMS by AT commands, with onboard audio jack

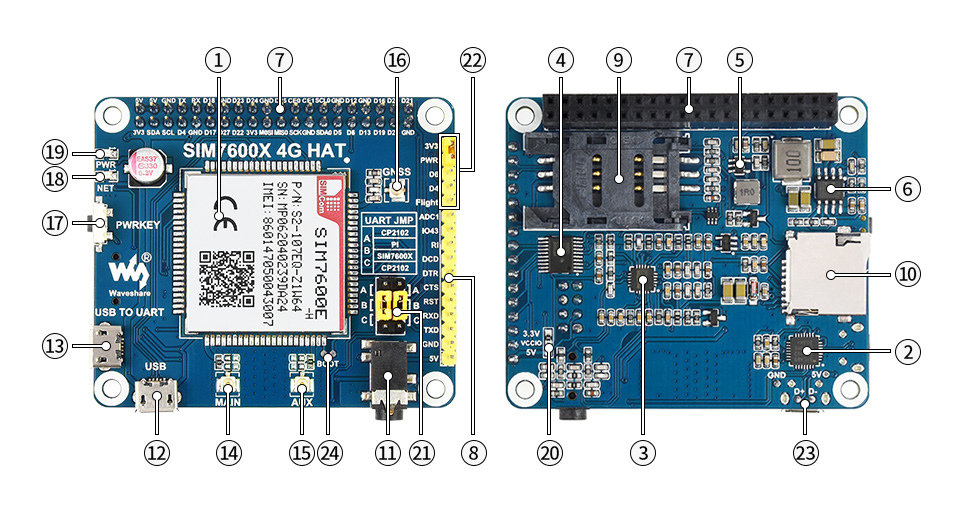

What's on board
- SIM7600E-H
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator translates 3.3V/5V into 1.8V
- MP2128DT power chip
- MP1482 power chip
- Raspberry Pi GPIO header
- SIM7600 control interface for connecting with host boards like Arduino/STM32
- SIM card slot supports 1.8V/3V SIM card
- TF card slot allows data storage like files, messages, etc.
- 3.5mm earphone/mic jack
- USB interface for testing AT Commands, getting GPS positioning data, etc.
- USB to UART interface for serial debugging, or login to Raspberry Pi
- MAIN antenna connector
- AUX antenna connector
- GNSS antenna connector
- Power switch
- Network status indicator
- Power indicator
- Operating voltage selection jumper configured via 0O resistor jumperVCCIO - 3.3V: set operating voltage as 3.3V VCCIO - 5V: set operating voltage as 5V
- UART selection jumper A: access Raspberry Pi via USB to UARTB: control the SIM7600 by Raspberry PiC: control the SIM7600 via USB to UART
- PWR configuration jumper PWR - 3V3: auto startup on power-up (default) PWR - D6: startup/shutdown by the Raspberry Pi D6 pin Flight mode configuration jumper NC by default, no flight mode control pinFlight - D4: flight mode is controlled by the Raspberry Pi D4 pin
- USB connector solder pads
- BOOT forced programming solder pads

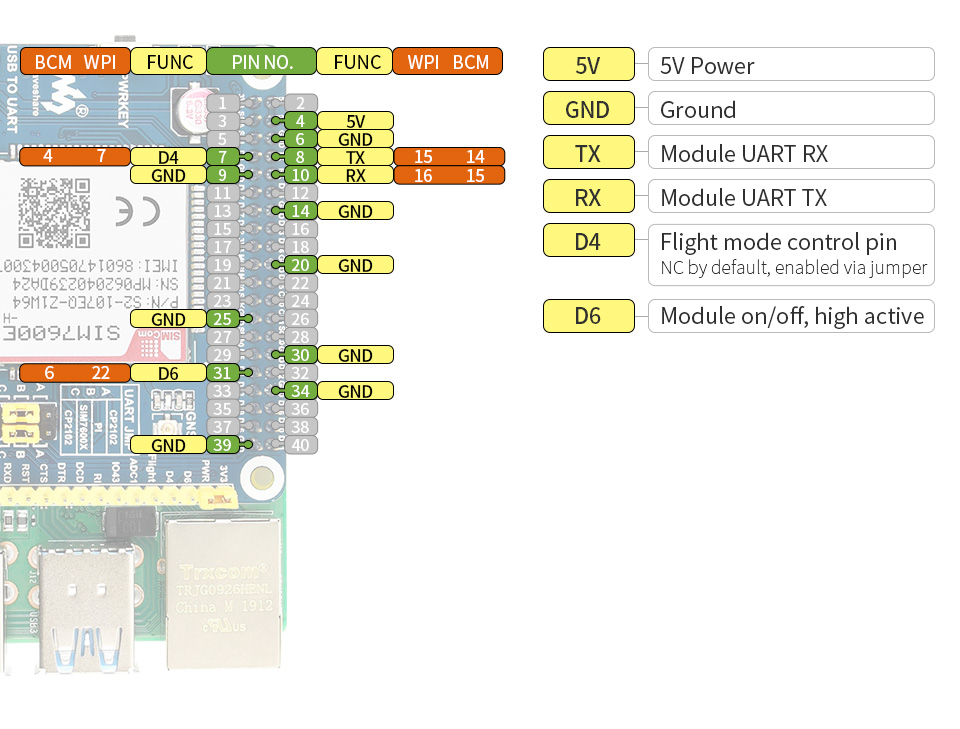

Pinout definition

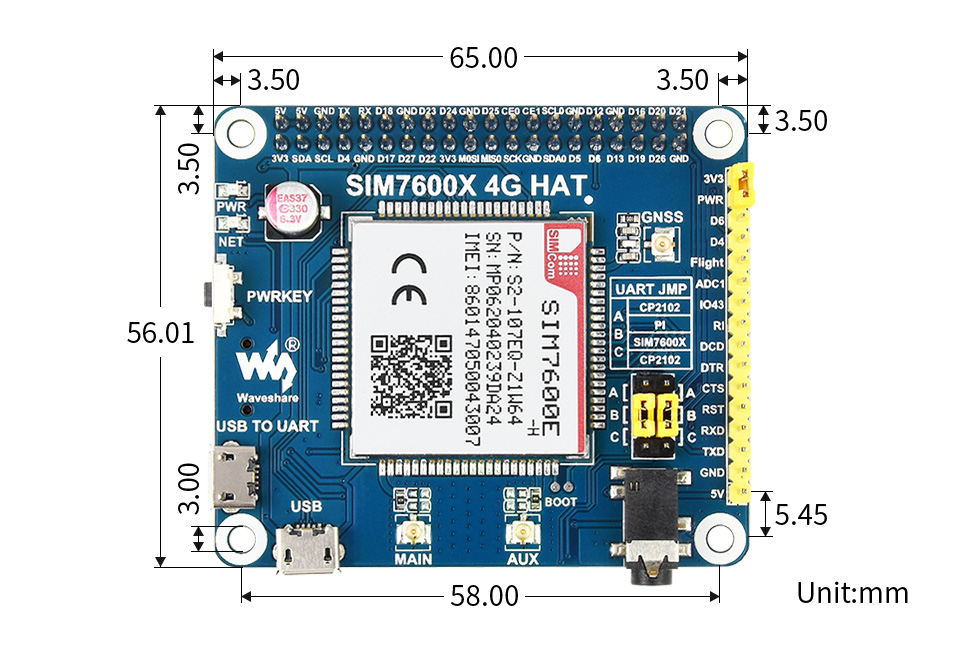

Outline Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
| SIM7600CE-CNSE | SIM7600CE-T | SIM7600E-H | SIM7600A-H | SIM7600G-H | |
|---|---|---|---|---|---|
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America | Global | |
| Band | |||||
| LTE Cat-4 | LTE-FDD B1/B3/B5/B8 LTE-TDD B38/B39/B40/B41 | LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 | LTE-FDD B2/B4/B12 | LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 LTE-TDD B34/B38 /B39/B40/B41 | |
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 | UMTS/HSPA+ B1/B5/B8 | UMTS/HSPA+ B2/B5 | UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 | |
| 2G | GSM/GPRS/EDGE 900/1800 MHz | N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz | ||
| GNSS | N/A | GPS/Beidou/GLONASS | |||
| Data Rate | |||||
| LTE Cat-4 | 150Mbps(DL)/50Mbps(UL) | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL/UL) | N/A | 236.8Kbps(DL/UL) | ||
| 2G (GPRS) | 85.6Kbps(DL/UL) | N/A | 85.6Kbps(DL/UL) | ||
| Software Features | |||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||
| Dial-up protocol | PPP/NDIS/RNDIS | ||||
| USB driver | Windows XP/7/8/10, Linux (driver free for Raspbian) | ||||
| Hardware Interfaces | |||||
| SIM card slot | Compatible with 1.8V and 3V SIM card | ||||
| UART | Supports AT commands through UART, compatible with 3.3V/5V operating voltage | ||||
| USB port | Supports AT commands testing, network communication, firmware upgrading, etc. | ||||
| USB to UART | Supports serial debugging, or login to Raspberry Pi | ||||
| Audio jack | Supports audio actions like making telephoto call | ||||
| TF card slot | Yes, for storing data like files, messages, etc. | N/A | Yes | ||
| Antenna connector | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||
| Applications | |||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||
Package Contents
- SIM7600E-H 4G HAT x1

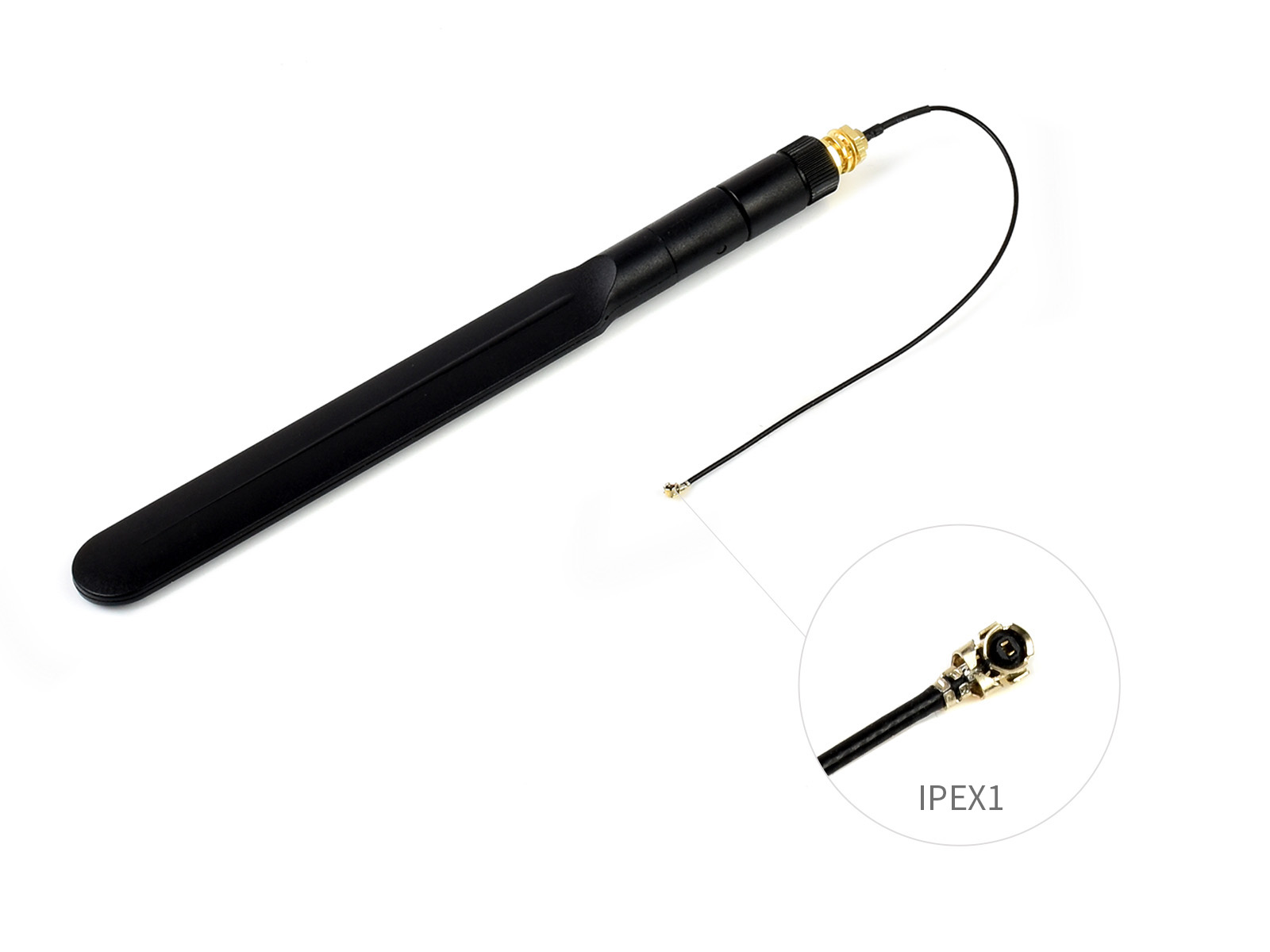

- LTE Antenna x1
- GPS External Antenna (B) x1
- USB type A plug to micro plug cable x2
- RPi screws pack (2pcs) x1
1
2
3
4
5
| Shipping weight: | 0.23 Kg |
