Waveshare 15154 Game HAT (EN)

Artnr.: WS1-015154

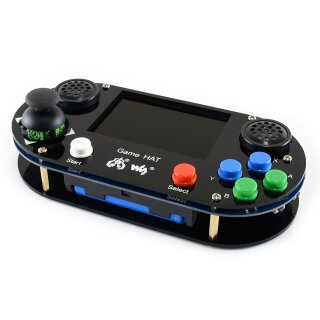

Game HAT für Raspberry Pi, mach deine eigene Spielkonsole
ab 49,90 € inkl. 19% MwSt.
41,93 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Ihre Konfiguration
Raspberry Pi Board
  • Raspberry Pi Zero WH
    Einplatinen-Computer, 1x1000 MHz, 512 MB RAM, GPIO, 1x USB, 1x CSI (Kamera-Port), WLAN+BT
    100+ ab Lager lieferbar
    Lieferzeit: 1 - 3 Arbeitstage
    Einplatinen-Computer, 1x1000 MHz, 512 MB RAM, GPIO, 1x USB, 1x CSI (Kamera-Port), WLAN+BT
  • Raspberry Pi 3 Modell B+ (Rev. 9)
    Einplatinen-Computer, 4x1,4 GHz, 1 GB RAM, 4x USB, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), LAN, WLAN, Bluetooth
    10+ ab Lager lieferbar
    Lieferzeit: 1 - 3 Arbeitstage
    Einplatinen-Computer, 4x1,4 GHz, 1 GB RAM, 4x USB, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), LAN, WLAN, Bluetooth
  • Raspberry Pi 4 B (2 GB)
    Einplatinen-Computer, 4x1,8 GHz, 2 GB RAM, 2x USB 2.0, 2x USB 3.0, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), Gigabit LAN, WLAN, Bluetooth 5.0
    100+ ab Lager lieferbar
    Lieferzeit: 1 - 3 Arbeitstage
    Einplatinen-Computer, 4x1,8 GHz, 2 GB RAM, 2x USB 2.0, 2x USB 3.0, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), Gigabit LAN, WLAN, Bluetooth 5.0
  • Raspberry Pi 4 B (4 GB)
    Einplatinen-Computer, 4x1,8 GHz, 4 GB RAM, 2x USB 2.0, 2x USB 3.0, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), Gigabit LAN, WLAN, Bluetooth 5.0
    100+ ab Lager lieferbar
    Lieferzeit: 1 - 3 Arbeitstage
    Einplatinen-Computer, 4x1,8 GHz, 4 GB RAM, 2x USB 2.0, 2x USB 3.0, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), Gigabit LAN, WLAN, Bluetooth 5.0
  • Raspberry Pi 4 B (8 GB)
    Einplatinen-Computer, 4x1,8 GHz, 8 GB RAM, 2x USB 2.0, 2x USB 3.0, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), Gigabit LAN, WLAN, Bluetooth 5.0
    100+ ab Lager lieferbar
    Lieferzeit: 1 - 3 Arbeitstage
    Einplatinen-Computer, 4x1,8 GHz, 8 GB RAM, 2x USB 2.0, 2x USB 3.0, 40-Pin GPIO, CSI (Kamera-Port), DSI (Display-Interface), Gigabit LAN, WLAN, Bluetooth 5.0
49,90 € inkl. 19% MwSt. *

Beschreibung

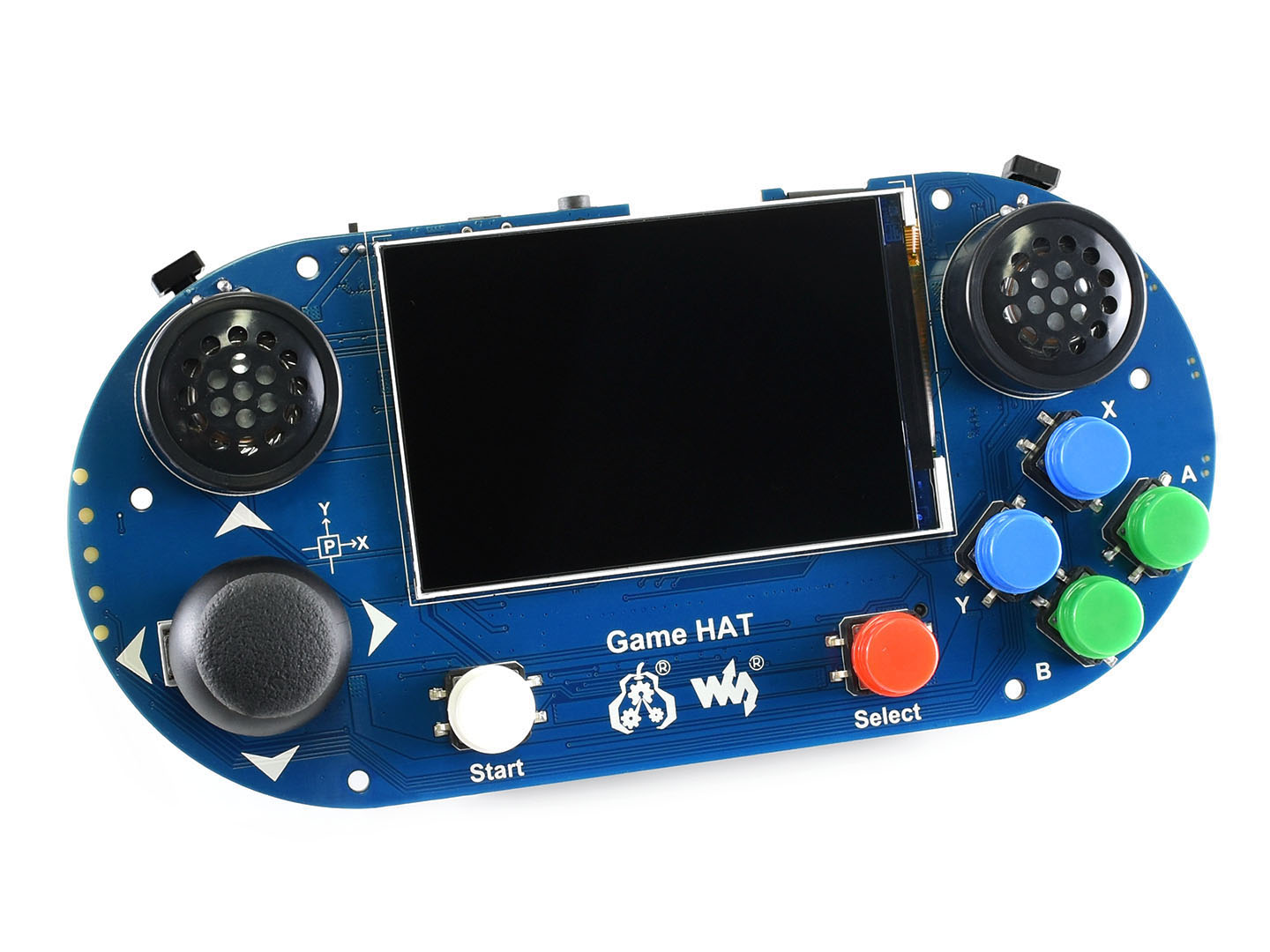

This Game HAT will turn your Raspberry Pi into a classic game console in a second, recalls you all the gaming pleasures in the memory.

Game HAT Features

  • 3.5inch IPS screen, 480×320 resolution
  • 60 frame experience, smoothly display, no more frame loss
  • Compatible with Raspberry Pi A+/B+/2B/3B/3B+/4B (Raspberry Pi Zero/Zero W/Zero WH requires another HDMI cable)
  • Integrates battery charge circuitry, powered from a 18650 lithium battery (NOT included), plays anywhere anytime
  • Battery capacity indicator
  • Onboard speaker and earphone jack, listen to the familiar BGM from the old days

Keys Introduction

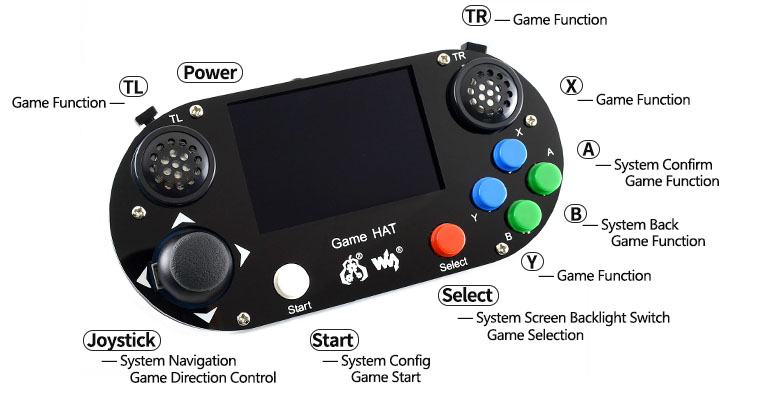

Game HAT keys introduction

  • Game function keys vary according to specific game
  • Start+Select to exit current game
  • Menu,Up/Left,Down/Right,Exit, this four keys on the bottom allow to adjust screen brightness/contrast, volume, etc.

Dimensions

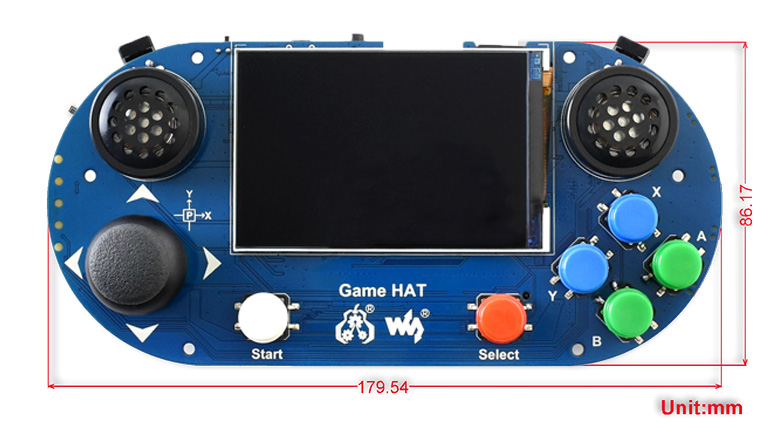

Game HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Game_HAT

Selection Guide

PartNumber Category Display Requirements
GamePi15 Portable Game Console 1.54inch display, 240×240 resolution Pi required
GamePi20 Portable Game Console 2.0inch IPS display, 320×240 resolution Pi included, out-of-box
GamePi20-Acce Portable Game Console 2.0inch IPS display, 320×240 resolution Pi required
Game HAT Portable Game Console 3.5inch IPS display, 480×320 resolution Pi required
GamePi43 Portable Game Console 4.3inch IPS display, 800×480 resolution Pi (PI3B+ OR PI4B-2GB) included, out-of-box
GamePi43-Acce Portable Game Console 4.3inch IPS display, 800×480 resolution Pi required

Have a look:

Arcade Machine Console Control Box Selection

Package Contents

For users who have bought this product, you may want the additional HDMI adapter to support the Raspberry Pi 4, please feel free to contact us.
  • The 18650 batteries are NOT included.
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
  1. Game HAT x1

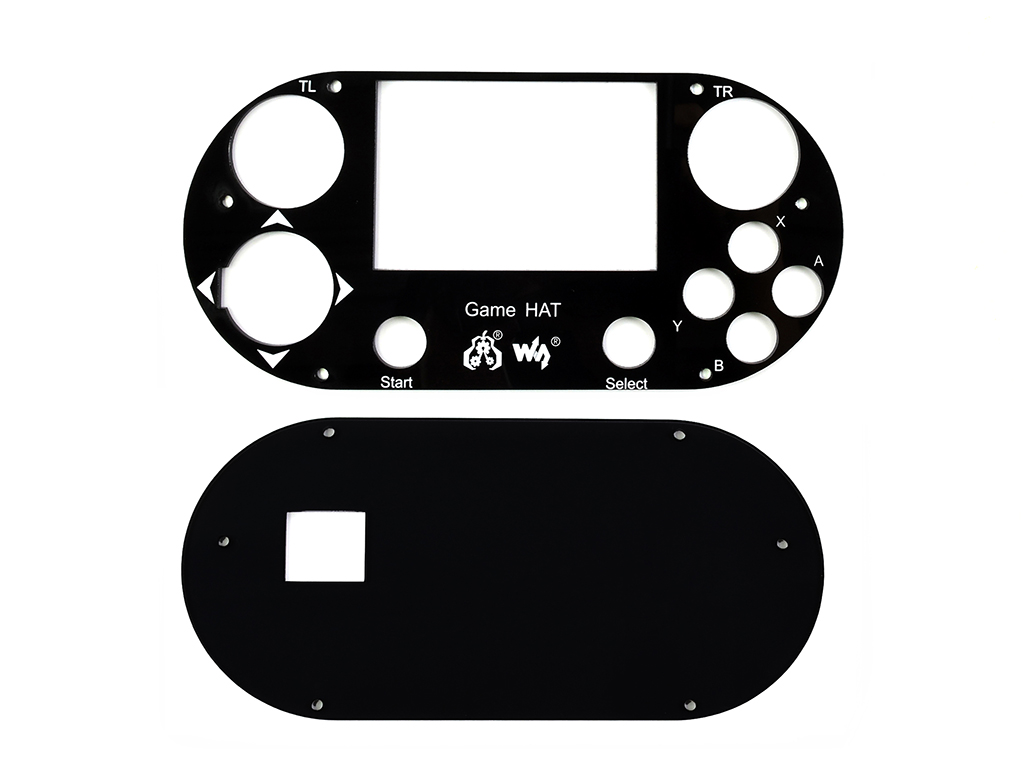

  2. Acrylic case x1

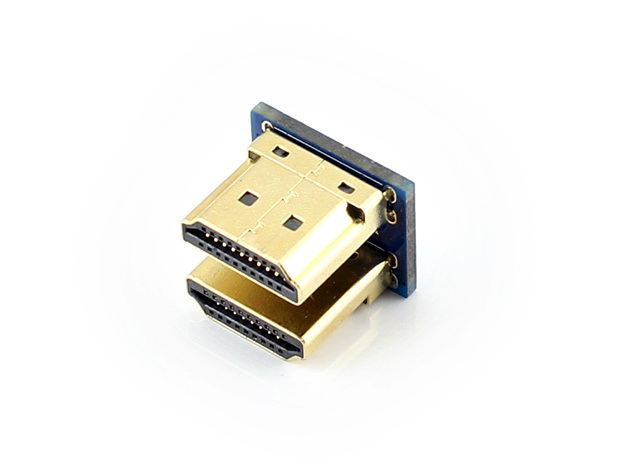

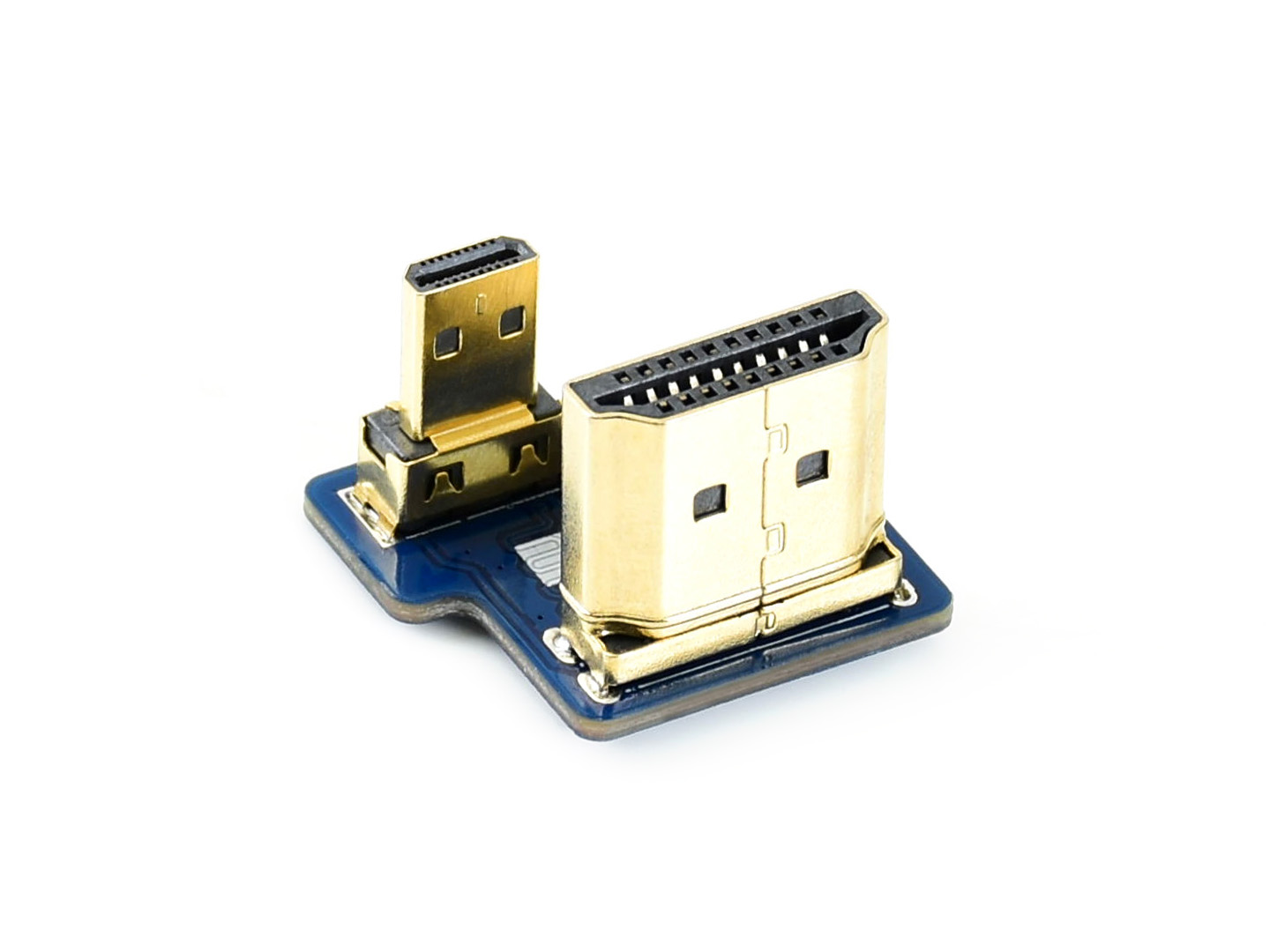

  3. HDMI connector (A) x1
  4. HDMI connector (B) x1

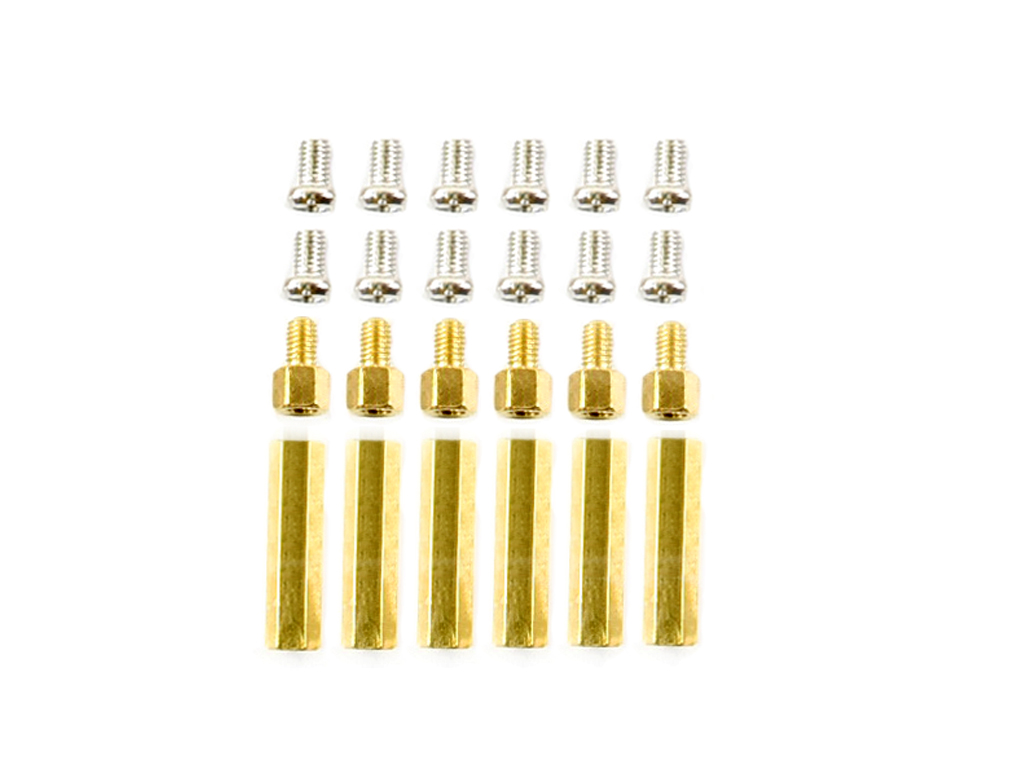

  5. RPi screws pack x1
1
2
3
4
5
Versandgewicht: 0,21 Kg

Software

Waveshare Wiki
