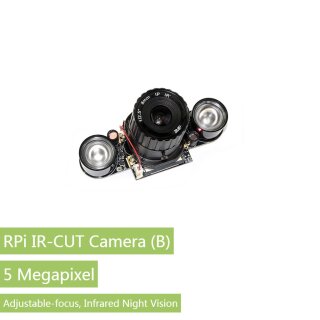

Waveshare 15203 RPi IR-CUT Camera (B)

Raspberry Pi Kameramodul, Embedded IR-CUT, unterstützt Nachtsicht, Typ B

25,90 €

inkl. 19% MwSt.

(21,76 € exkl. MwSt.)

zzgl.

Features

Raspberry Pi Camera, supports all revisions of the Pi
Embedded removable IR-CUT filter, eliminating color distortion in the daylight
Comes with infrared LED, supports night vision
5 megapixel OV5647 sensor
Adjustable focus distance
Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 1.2
- Focal Length : 8mm
- Angle of View (diagonal) : 40 degree
- Sensor best resolution : 1080p
4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
Dimension: 31mm x32mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Note: the actual image pixels is 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.

Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera_(B)

Partnumber	Pixels	Sensor	Adjustable Focus Distance	Infrared Night Vision	Angle of View (diagonal) (degree)	Manufacturer	Dimensions (mm)	Recommendation¹
RPi Camera V2	8 Mega	IMX219	×	×	62.2	element14	25x24x9	★★★☆
RPi NoIR Camera V2	8 Mega	IMX219	×	√	62.2	element14	25x24x9	★★★☆
RPi Camera (B)	5 Mega	OV5647	√	×	60.6	Waveshare	32x32	★★★
RPi Camera (D)	5 Mega	OV5647	×	×	66	Waveshare	25x24x9	★★
RPi Camera (E)	5 Mega	OV5647	×	√	69.1	Waveshare	25x24x6	★★
RPi Camera (F)	5 Mega	OV5647	√	√	75	Waveshare	25x24	★★★★
RPi Camera (G)	5 Mega	OV5647	√	×	160	Waveshare	25x24	★★★★
RPi Camera (H)	5 Mega	OV5647	√	√	160	Waveshare	25x24	★★★★
RPi Camera (I)	5 Mega	OV5647	√	×	170	Waveshare	32x32	★★★
RPi Camera (M)	5 Mega	OV5647	√	×	200	Waveshare	25x24	★★★☆
RPi IR-CUT Camera²	5 Mega	OV5647	√	√	75.7	Waveshare	31x32	★★★★
RPi IR-CUT Camera (B)²	5 Mega	OV5647	√	√	40	Waveshare	31x32	★★★★
RPi Zero V1.3 Camera³	5 Mega	OV5647	×	×	69.1	Waveshare	60x11.5x5	★★★
RPi FPC Camera	5 Mega	OV5647	×	×	72	Waveshare	300x16x5	★★★

The recommendation is considered from sales report and cost performance.
While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH

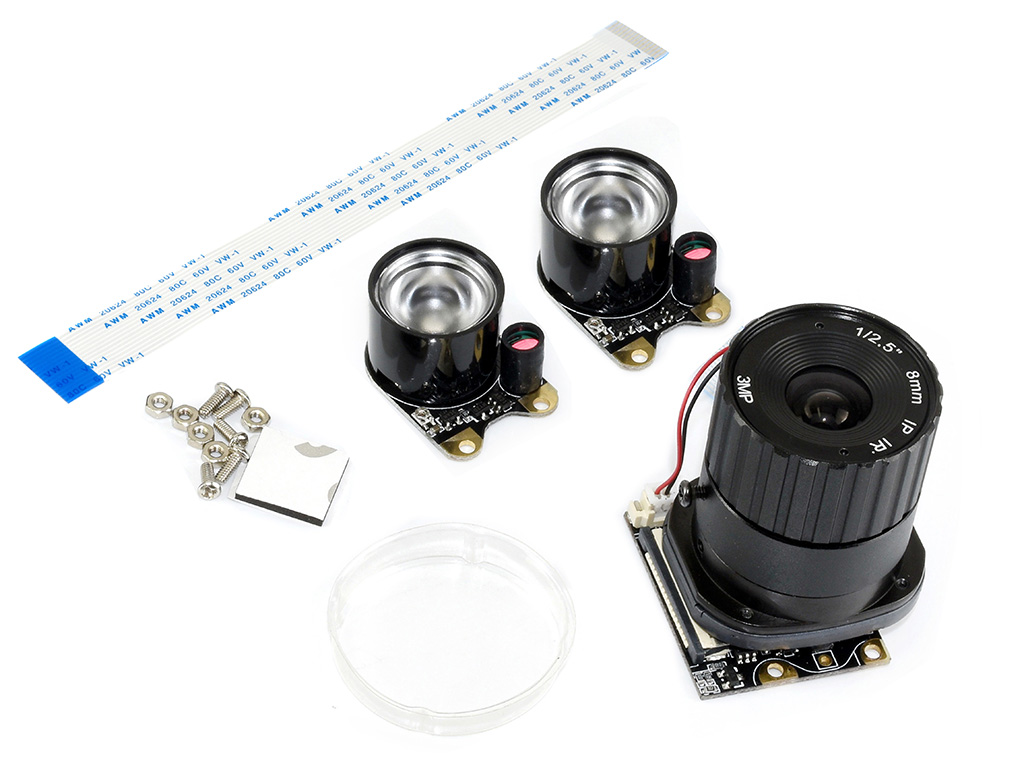

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

1+2+3
