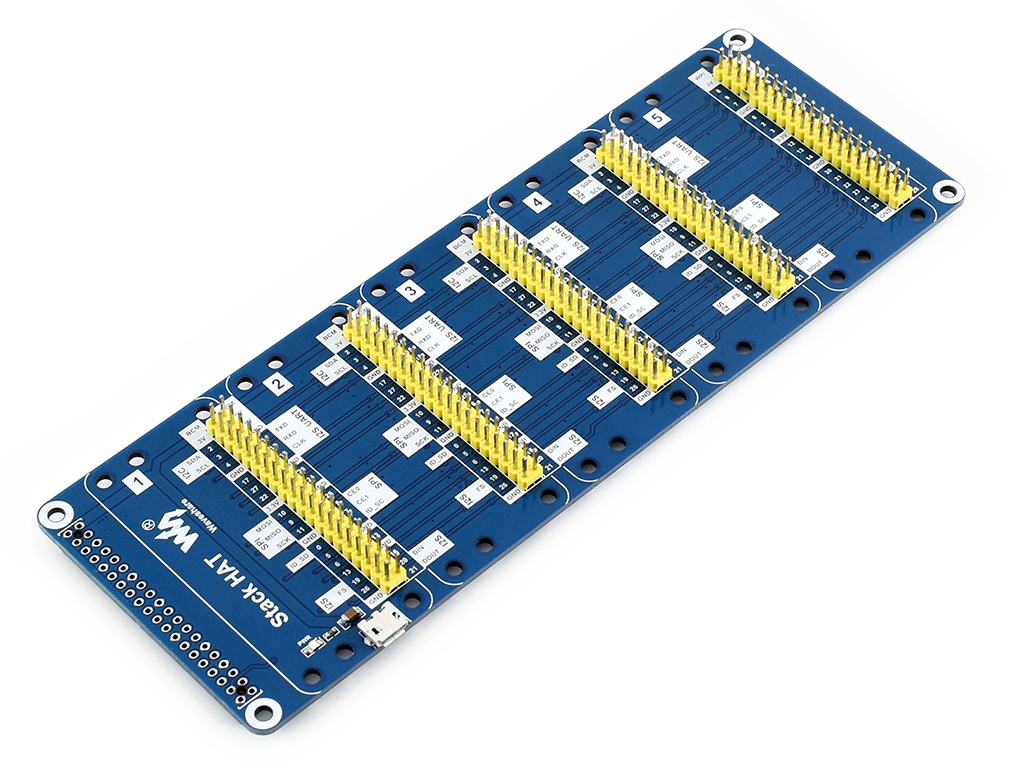

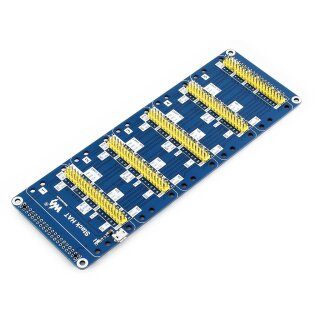

Waveshare 15799 Stack HAT
Beschreibung
This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.
Features
- Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
- 5 sets of 2x20 pinheaders, connect multi HATs together
- USB external power port, provides enough power supply for multi HATs
- Clear and descriptive pin labels for easy use
- Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts
Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.
Specifications
- Dimension: 183mm × 65mm
- Mounting hole size: 3mm

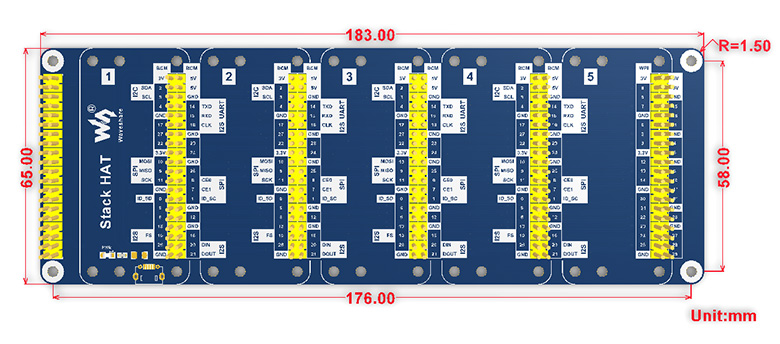

Dimension
Development Resources
Package Contents
- Stack HAT x1

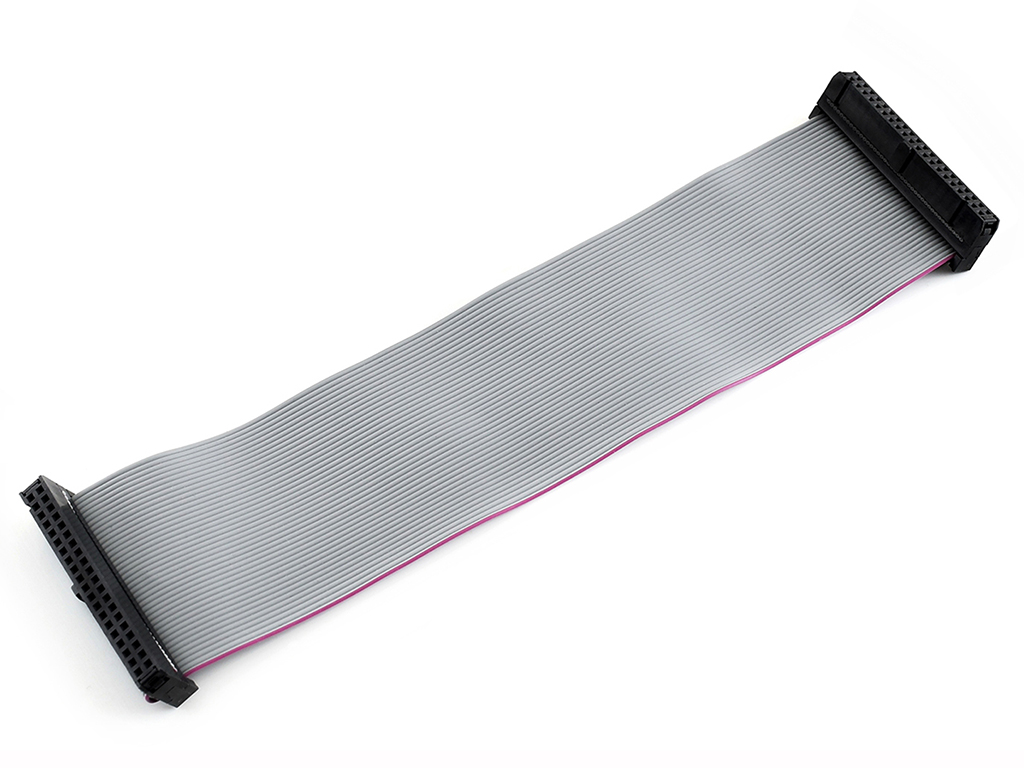

- Ribbon cable 40PIN x1

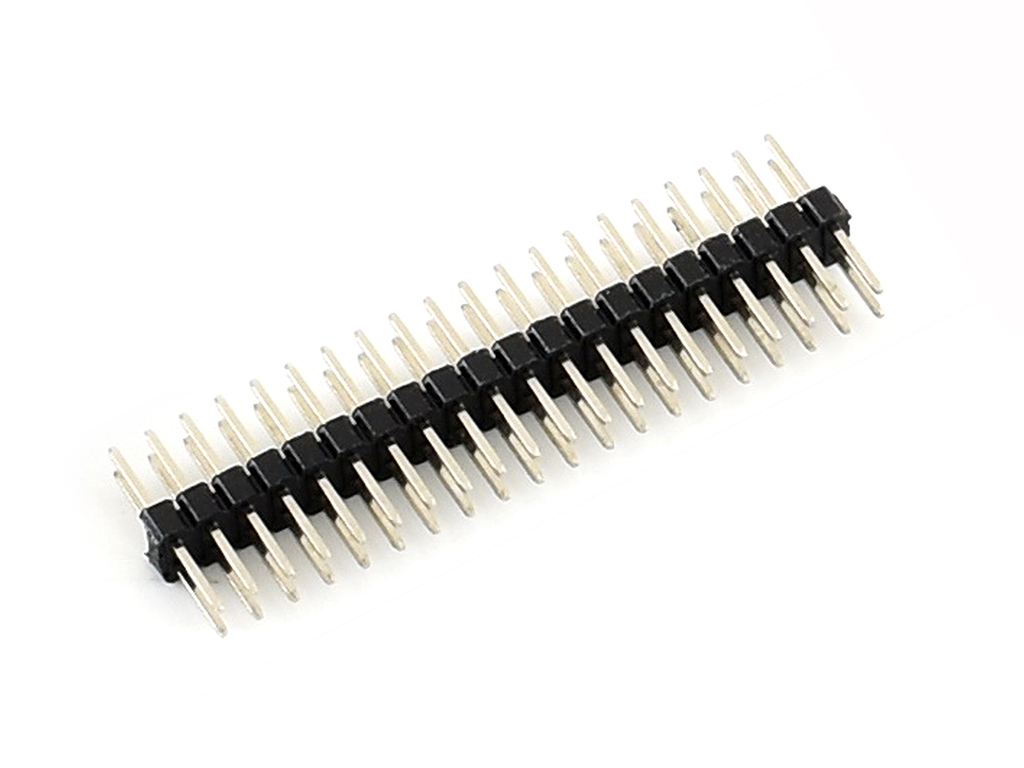

- 2x20 male pinheader x1

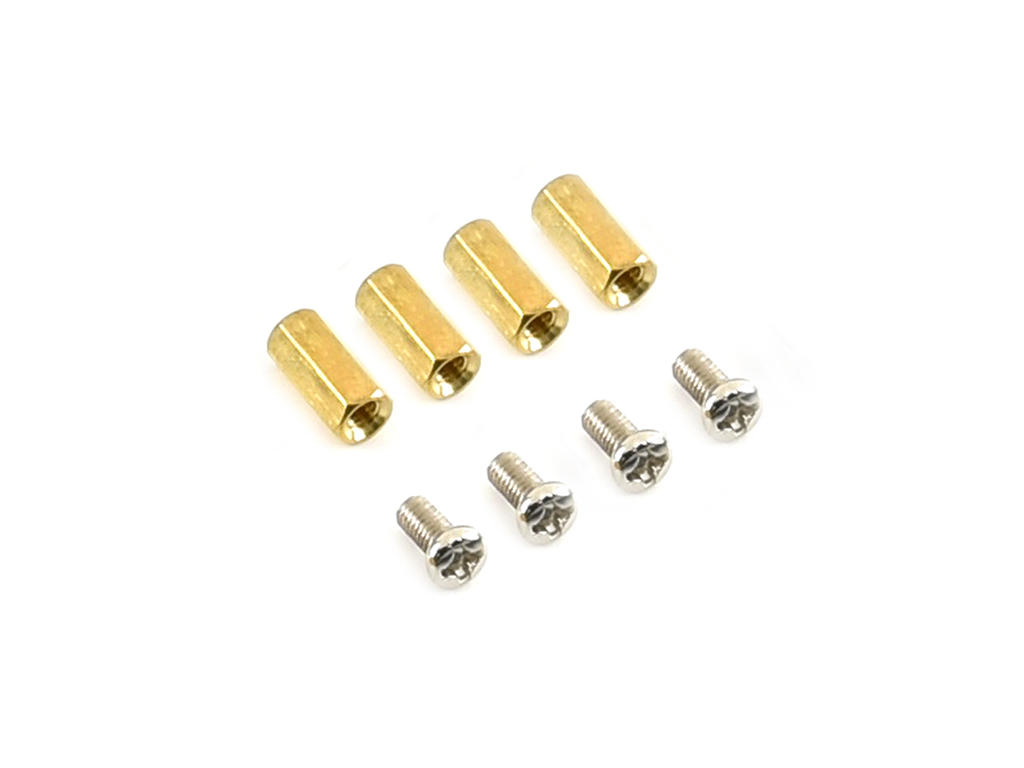

- RPi screws pack (4pcs) x1
1
2
3
4
| Versandgewicht: | 0,08 Kg |
