Description

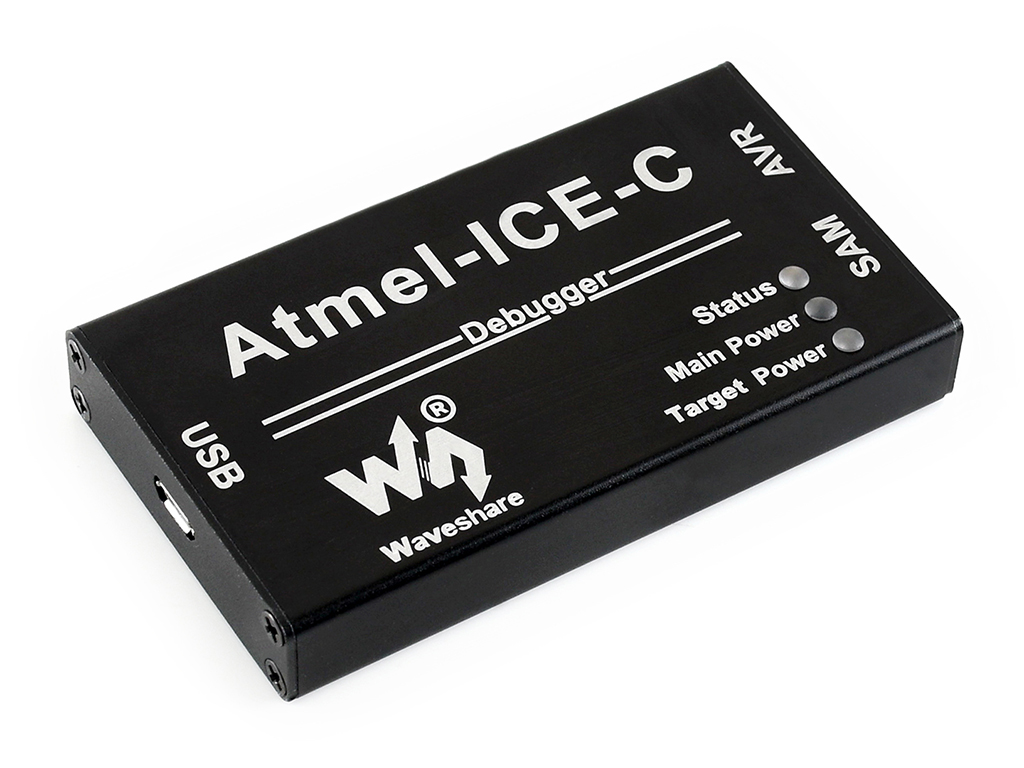

Atmel-ICE-C is the cost effective solution for the powerful Atmel-ICE, it adopts the original ATMEL-ICE-PCBA and comes with a durable aluminium alloy enclosure.
Atmel-ICE-C delivers the same functionality and usability just as the ATMEL-ICE Full Kit, it is capable of debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.
Key Features
- Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
- Full source-level debugging in Atmel Studio
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
- Up to 128 software breakpoints
- 1.62 to 5.5V target operation
- USB powered
- Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Supported Software
- Perfectly supports Atmel Studio 6.2 or higher version
- Directly supports ICC8AVR or higher version
- Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.
Supported Devices
- Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
- Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces
- JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
- Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
- Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface
For more details, please visit UC3,Mega,SAM,Tiny,Xmega
Specifications
| Interface voltage | 1.62V ~ 5.5V |
|---|---|
| JTAG clock | 32kHz ~ 7.5MHz |
| PDI clock | 32kHz ~ 7.5MHz |
| debugWIRE baudrate | 4kbit/s ~ 0.5Mbit/s |
| aWire baudrate | 7.5kbit/s ~ 7Mbit/s |
| SPI clock | 8kHz ~ 5MHz |
| SWD clock | 32kHz ~ 2MHz |
| PC interface | USB 2.0 high speed |
Physical Interfaces
Atmel-ICE-C Connection Options
Note : While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad). The adapter board included in Atmel-ICE-C is compatible with the official one in the Atmel-ICE Full Kit.
? 10-pin AVR JTAG header
? 6-pin AVR ISP/debugWIRE/PDI/aWire/TPI header
10-pin AVR ISP header is also available through our extra free 6-pin to 10-pin ISP cable
? 10-pin SAM JTAG/SWD header
Development Resources
Wiki : www.waveshare.com/wiki/Atmel-ICE-C

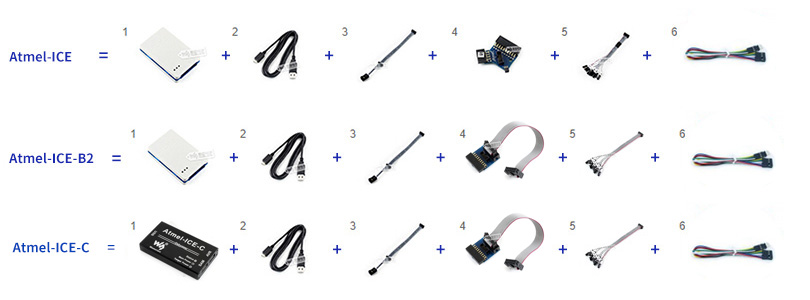

Selection Guide
Atmel-ICE: includes everything in the official Atmel-ICE Full Kit, and an extra free 6-pin to 10-pin ISP cable.Atmel-ICE-B2: includes everything in the official Atmel-ICE Basic Kit, and more adapter and cables from Waveshare, provides the same functions as Atmel-ICE Full Kit in lower price.Atmel-ICE-C: adopts the original Microchip ATMEL-ICE-PCBA board, comes with aluminium alloy enclosure, more durable and cost effective.

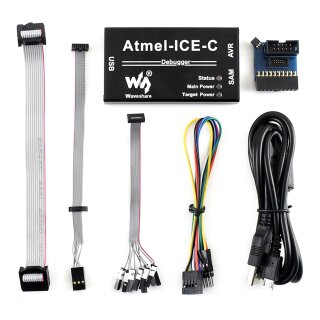

Package Contents
- Atmel-ICE-C unit x1
- USB type A plug to micro B plug cable x1
- IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1

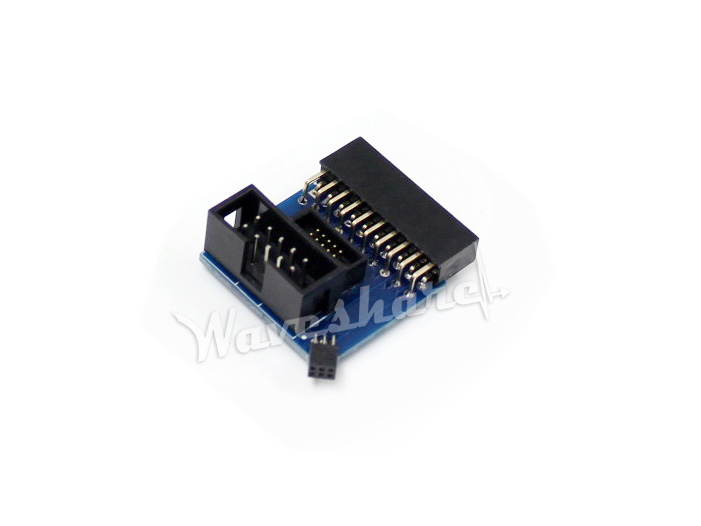

- Multi-functional adapter board x1

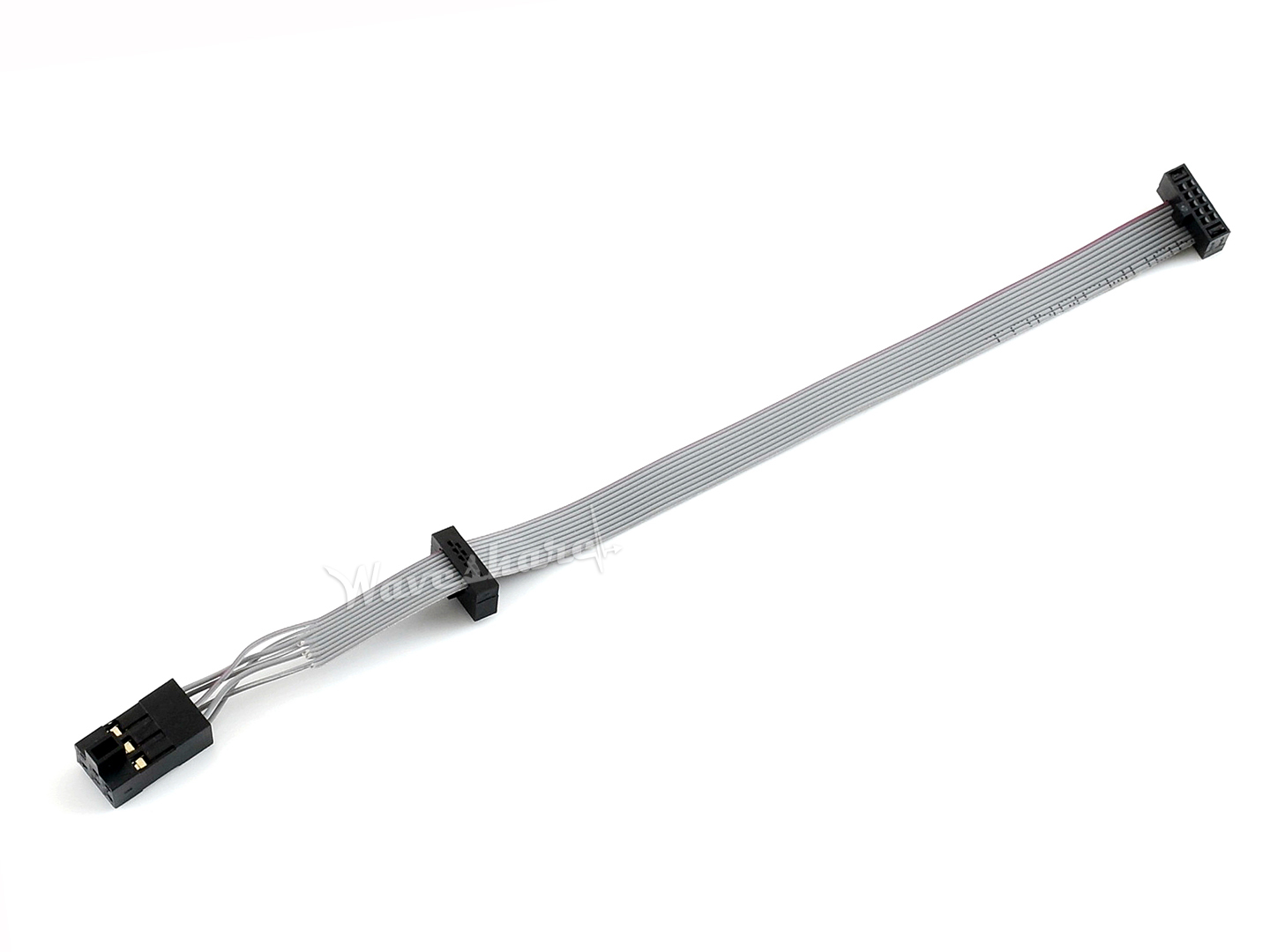

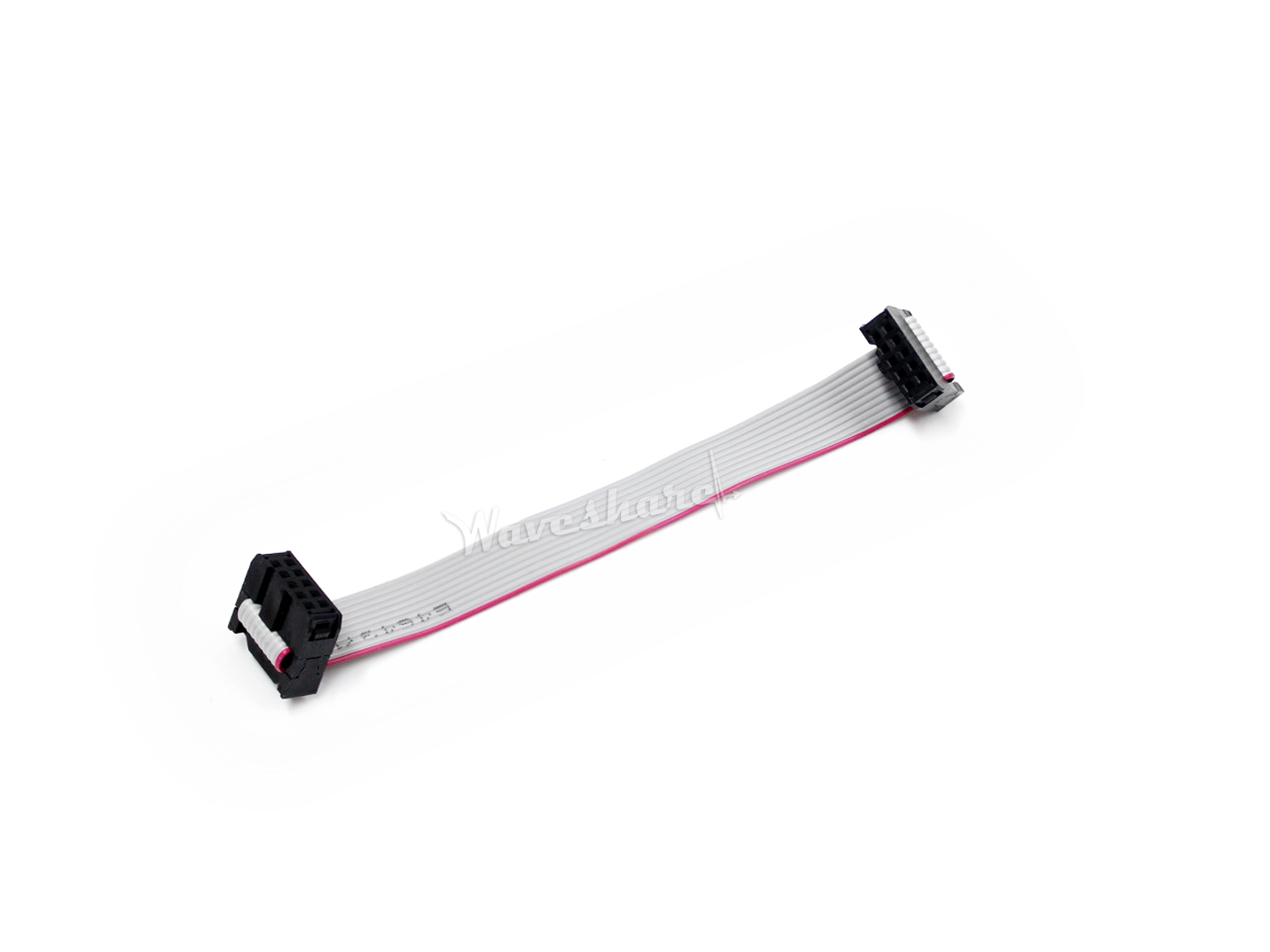

- 10pin flat cable x1

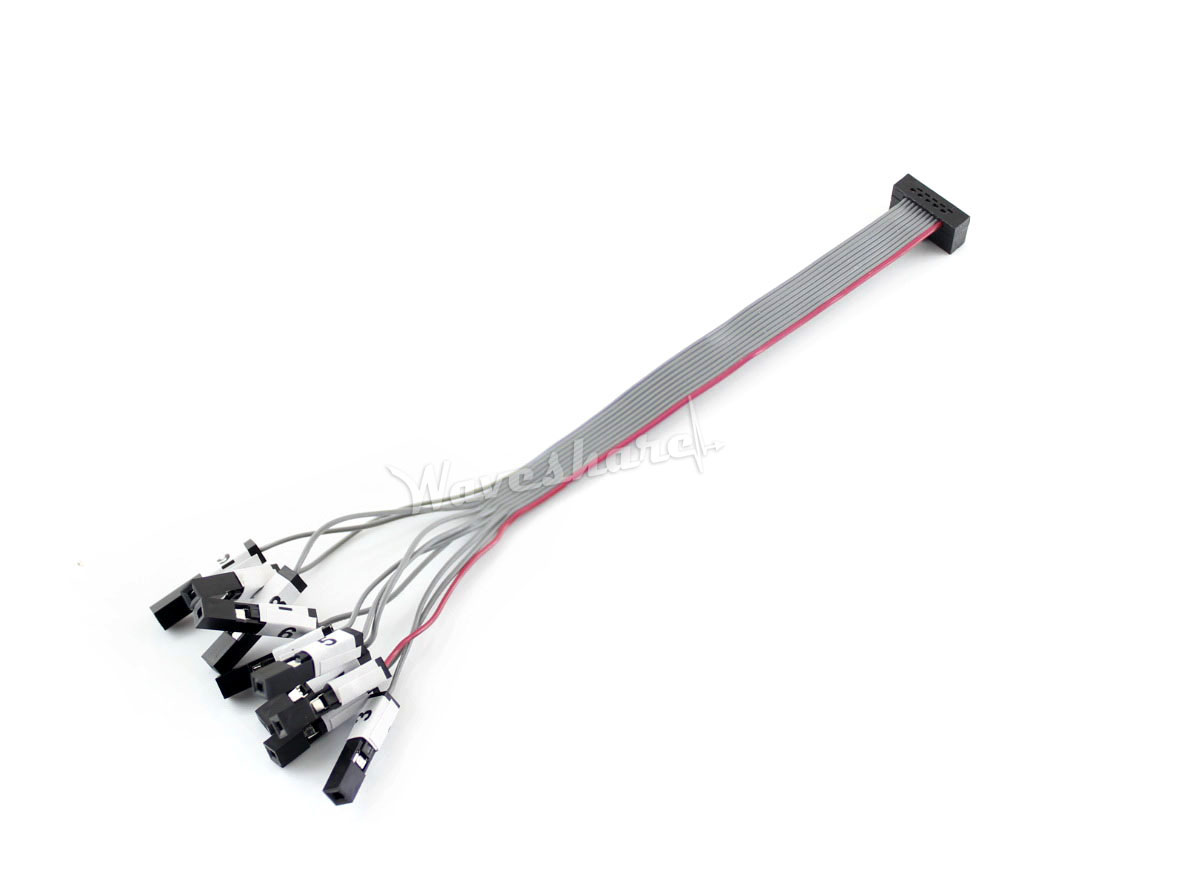

- 10pin 100mil squid cable x1
- 6-pin to 10-pin ISP cable x1
| Shipping weight: | 0.16 Kg |
