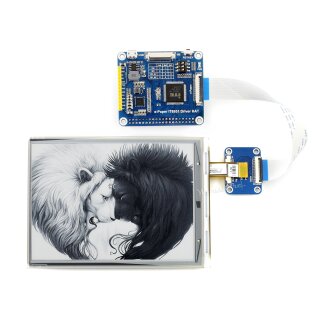

Waveshare 15852 6inch e-Paper HAT
Beschreibung
This is an E-Ink display HAT for Raspberry Pi, 6inch, 800x600 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
- Operating voltage: 5V
- Interface: USB/SPI/I80/I2C
- Outline dimension: 138.4mm × 101.8mm × 0.954mm
- Display size: 122.4mm × 90.6mm
- Dot pitch: 0.153mm × 0.151mm
- Resolution: 800 × 600
- Display color: black, white
- Gray scale: 2-16 (1-4 bit)
- Full refresh time: <1s
- Total refresh power: 0.6W(typ.)
- Total standby power: 0.3W(typ.)
- Viewing angle: >170°
SPI Pinouts
| SYMBOL | DESCRIPTION |
|---|---|
| 5V | Power input |
| GND | Ground |
| MISO | SPI MISO pin |
| MOSI | SPI MOSI pin |
| SCK | SPI SCK pin |
| CS | SPI chip selection, low active |
| RST | External reset, low active |
| HRDY | Busy status output, low active |
e-Paper IT8951 Driver HAT Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/6inch_e-Paper_HAT
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh1 | Pi Header2 | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper Module | black, white | 2 | 128×80 | 21.76 × 14.00 | 42.0 × 27.0 | 2 | SPI | ||
| 1.54inch e-Paper Module | black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 2 | SPI | ||
| 1.54inch e-Paper Module (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 8 | SPI | ||
| 1.54inch e-Paper Module (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 48.0 × 33.0 | 27 | SPI | ||
| 2.13inch e-Paper HAT | black, white | 2 | 250×122 | 48.55 × 23.71 | 65.0 × 30.2 | 2 | SPI | ||
| 2.13inch e-Paper HAT (B) | red, black, white | 2 | 212×104 | 48.55 × 23.71 | 65.0 × 30.2 | 15 | SPI | ||
| 2.13inch e-Paper HAT (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.71 | 65.0 × 30.2 | 15 | SPI | ||
| 2.13inch e-Paper HAT (D) | black, white | 2 | 212×104 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | SPI | ||
| 2.7inch e-Paper HAT | black, white | 4 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 6 | SPI | ||
| 2.7inch e-Paper HAT (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 15 | SPI | ||
| 2.9inch e-Paper Module | black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 2 | SPI | ||
| 2.9inch e-Paper Module (B) | red, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | ||
| 2.9inch e-Paper Module (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | ||
| 2.9inch e-Paper HAT (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.0 × 36.7 | 2 | SPI | ||
| 4.2inch e-Paper Module | black, white | 4 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 4 | SPI | ||
| 4.2inch e-Paper Module (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 15 | SPI | ||
| 4.2inch e-Paper Module (C) | yellow, black, white | 2 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 15 | SPI | ||
| 4.3inch e-Paper UART Module | black, white | 4 | 800×600 | 88.00 × 66.00 | 118.0 × 75.0 | 1.5 | UART | ||
| 5.65inch e-Paper Module (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 138.5 × 100.5 | 15 | SPI | ||
| 5.83inch e-Paper HAT (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.4 × 99.5 | 20 | SPI | ||
| 5.83inch e-Paper HAT (C) | yellow, black, white | 2 | 600×448 | 118.8 × 88.26 | 125.4 × 99.5 | 26 | SPI | ||
| 6inch e-Paper HAT | black, white | 16 | 800×600 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | USB/SPI/ I80/I2C | ||
| 6inch HD e-Paper HAT | black, white | 16 | 1448×1072 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | USB/SPI/ I80 | ||
| 7.5inch e-Paper HAT | black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 5 | SPI | ||
| 7.5inch HD e-Paper HAT | black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 5 | SPI | ||
| 7.5inch e-Paper HAT (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | SPI | ||
| 7.5inch HD e-Paper HAT (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 21 | SPI | ||
| 7.5inch e-Paper HAT (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | SPI | ||
| 7.8inch e-Paper HAT | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.8 × 127.6 | <1 | USB/SPI/ I80/I2C | ||
| 9.7inch e-Paper HAT | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.8×156.4 | <1 | USB/SPI/ I80/I2C | ||
| 10.3inch e-Paper HAT (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.7 × 165.8 | <1 | USB/SPI/ I80/I2C | ||
| 12.48inch e-Paper Module | black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | <8 | SPI | ||
| 12.48inch e-Paper Module (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | <16 | SPI |
- It takes about 0.3s for partial refresh
- Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Package Contents
- 6inch e-Paper x1
- e-Paper IT8951 Driver HAT x1
- 6inch e-Paper Adapter x1
- 33PIN FFC (same side contact) x1
- USB type A plug to micro B plug cable x1
- PH2.0 20cm 8Pin x1
- RPi screws pack (2pcs) x1
