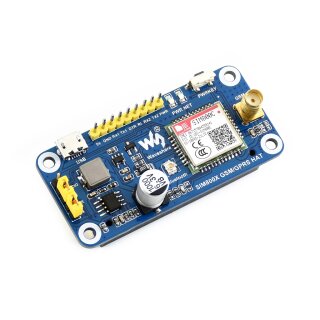

Waveshare 16157 SIM800C GSM/GPRS HAT
Description
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
GSM / GPRS / Bluetooth HATfor Raspberry Pi
SMS support, 2G communication & Bluetooth data transmission
Based on SIM800C
Features at a glance
The SIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth, with up to 85.6kbps GPRS data rate.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
- Bluetooth 3.0, supports data transferring through Bluetooth
- UART interface, for connecting host control boards like Arduino/STM32
- Onboard voltage level translator, 3.3V by default, switch to 5V via jumper
- 2x LEDs for indicating the module operating status
- SIM card slot for 1.8V/3V SIM card
- Autobauding baudrate: 1200bps ~115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: GSM 11.14 Release 99
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| GSM / GPRS / Bluetooth | |
|---|---|
| Frequency band | GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ |
| Emitting power | Class 4 (2W @ 850/900 MHz) Class 1 (1W @ 1800/1900 MHz) |
| GPRS connectivity | GPRS multi-slot class 12/10 (default) GPRS multi-slot class 1~12 (configurable) |
| GPRS data feature | UL/DL data rate: =85.6kbps Supports Packet Broadcast Control Channel (PBCCH) Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD) |
| SMS | Supports: MT, MO, CB, Text, PDU SMS storage: SIM card |
| Bluetooth | Integrates AT commands Compliant to Bluetooth specification3.0 + EDR Supports SPP, OPP, HFP/HSP, etc. |
| Others | |
| Power supply | 5V (USB port OR pinheader) |
| Logic level | 5V / 3.3V (default) |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.2 x 65mm |

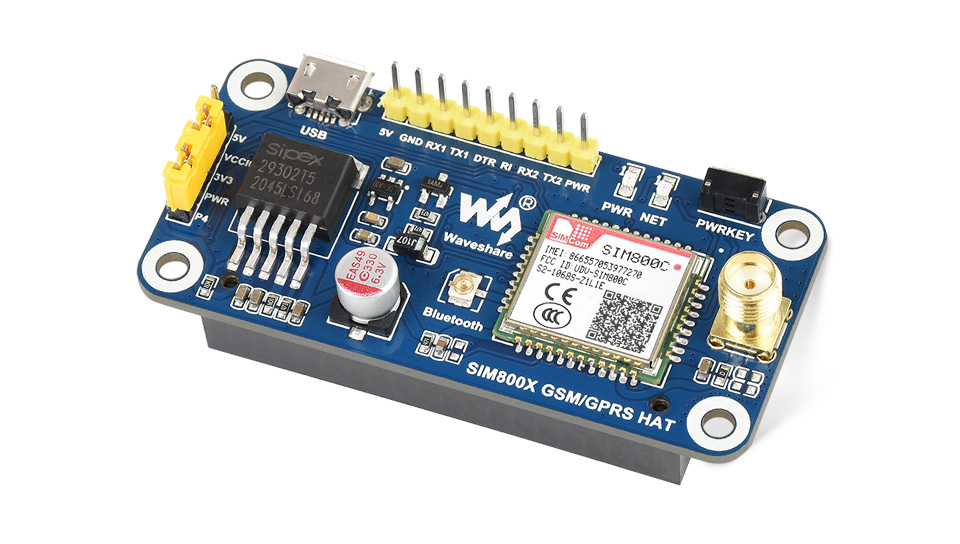

Standard Raspberry Pi 40PIN GPIO

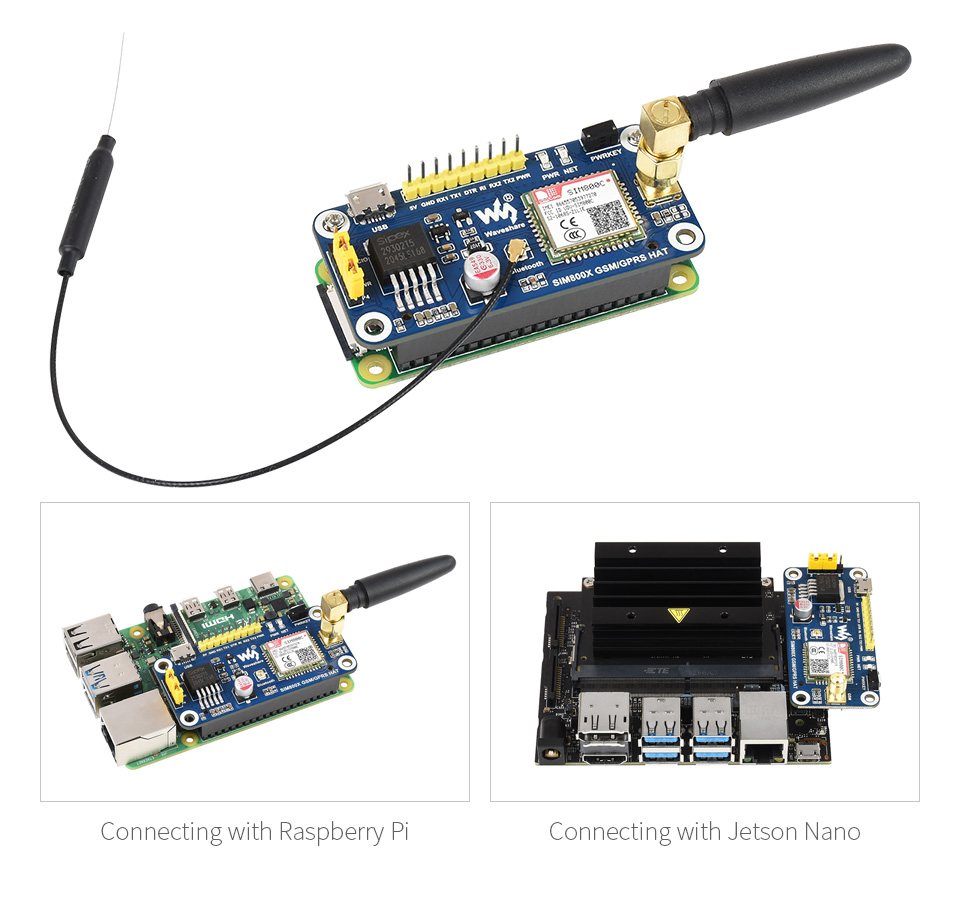

Compatible with Raspberry Pi series boards, Jetson Nano

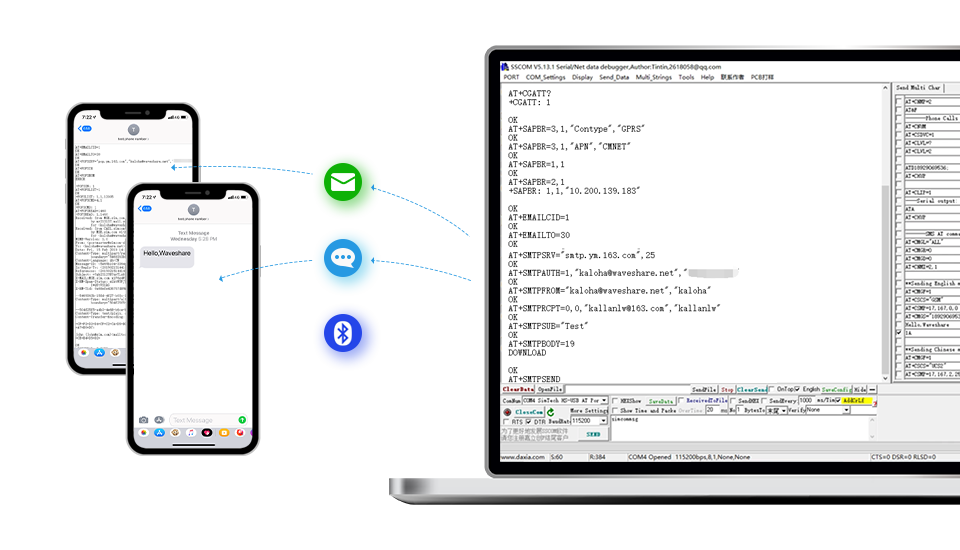

SMS & email Support
supports sending SMS, email, or MMS by AT commands

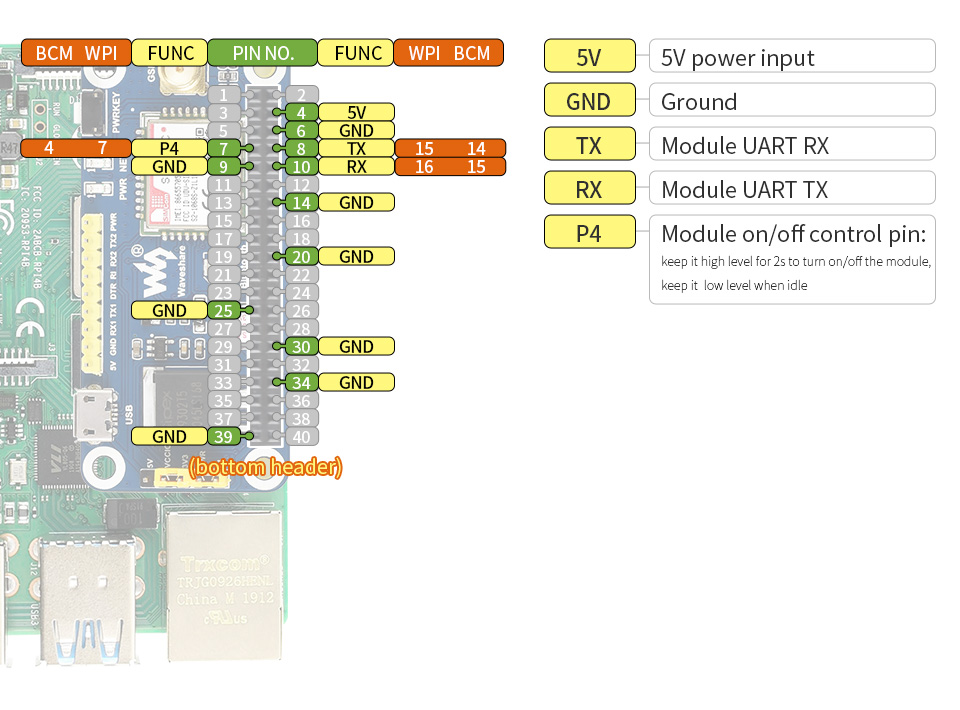

Pinout definition

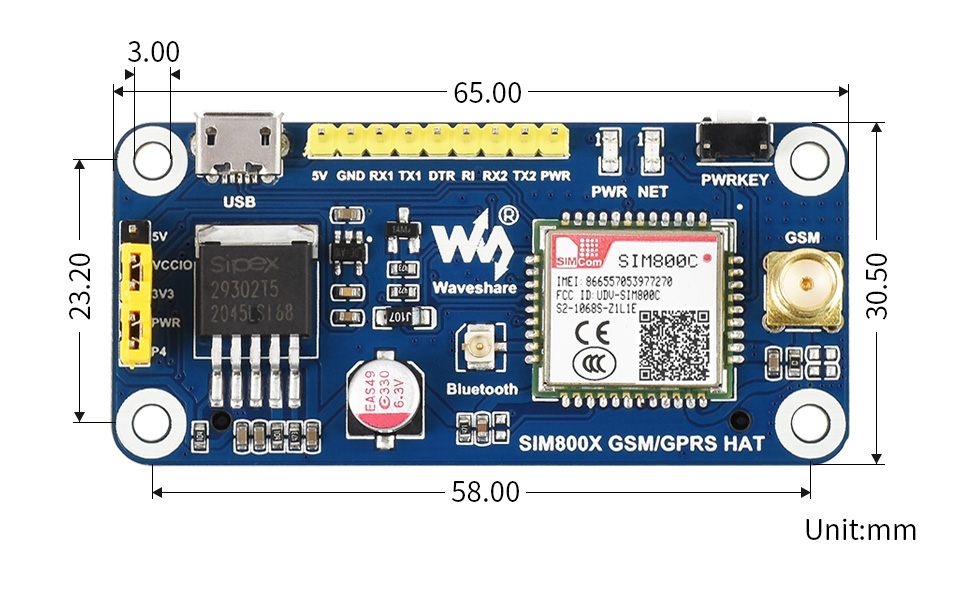

Outline Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- SIM800C GSM/GPRS HAT x1
- GSM Antenna x1
- Bluetooth Antenna x1
- USB type A plug to micro plug cable x1
- RPi screws pack (2pcs) x1
1
2
3
4
5
| Shipping weight: | 0.08 Kg |
