Waveshare 16562 GamePi15 (EN)

Artnr.: WS1-016562
GTIN: 0614961954625
Hersteller: Waveshare

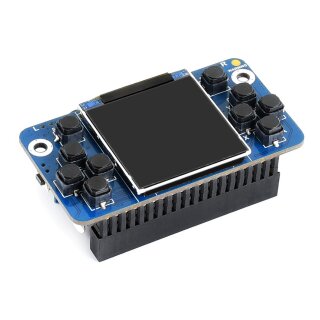

Tiny GamePi15 Designed for Raspberry Pi, 1.54inch Display, make your own game console

31,90 €

inkl. 19% MwSt.

(26,81 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

The GamePi15 will turn your Raspberry Pi into a tiny retro game console in a second, recalls you all the gaming pleasures in the memory.

The Special One for Zero

You might have noticed that there're so many game console solutions for the regular size Pi in the market, but rare for the Pi Zero.

That's why we publish this GamePi15, a full-functional game console expansion in the extreme compact size, tailored for the Raspberry Pi Zero/Zero W/Zero WH. Simply combine it with the Zero, now you get a literally "portable console", have fun anywhere anytime.

Features

1.54inch screen, 240×240 resolution
Compatible with Raspberry Pi Zero/Zero W/Zero WH/B+/2B/3B/3B+
Integrates battery charge circuitry, powered from a 14500 lithium battery (NOT included), plays anywhere anytime
Battery capacity indicator
Onboard speaker and earphone jack, listen to the familiar BGM from the old days
Onboard volume knob, adjust the volume according to specific game, better experience

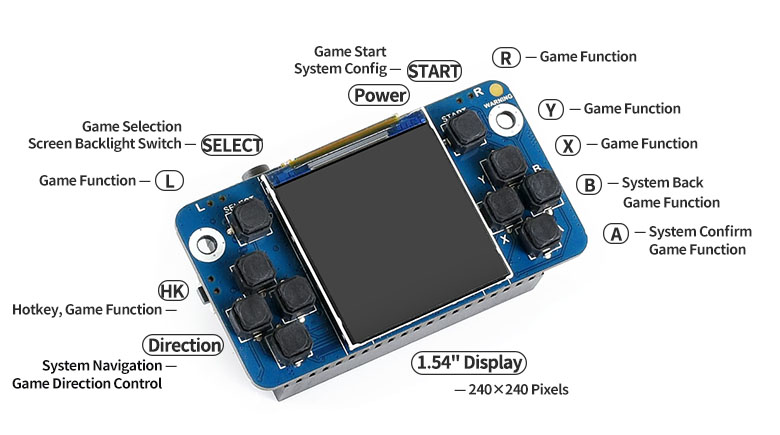

Keys/Display Introduction

Game function keys vary according to specific game

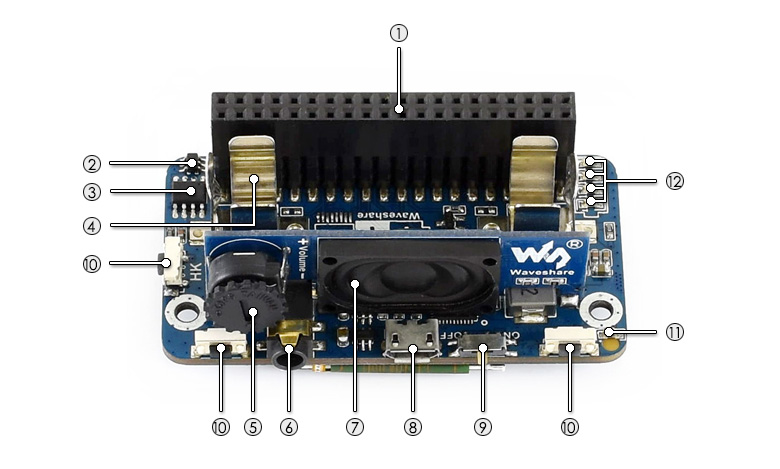

What's on Board

GamePi15 onboard resource introduction

Raspberry Pi GPIO connector
8205 reverse protection chip
XB8777A over charge/discharge protection chip
14500 battery
Volume adjustment knob
Earphone jack
Speaker
USB charge port : charge the battery by connecting the 5V power adapter
Power switch
Game function keys
Battery reverse warning indicator : light up when the battery is reversed
Battery capacity indicators : 4x LEDs for indicating the remaining battery life or charge status

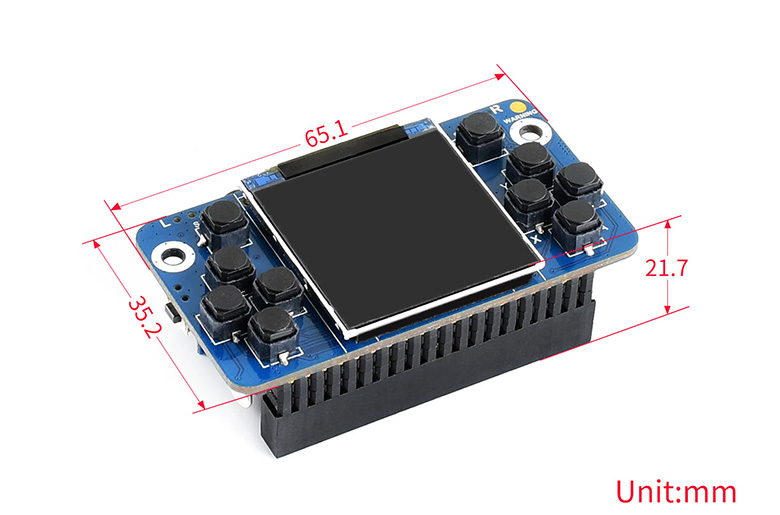

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/GamePi15

Selection Guide

PartNumber	Category	Display	Requirements
GamePi15	Portable Game Console	1.54inch display, 240×240 resolution	Pi required
GamePi20	Portable Game Console	2.0inch IPS display, 320×240 resolution	Pi included, out-of-box
GamePi20-Acce	Portable Game Console	2.0inch IPS display, 320×240 resolution	Pi required
Game HAT	Portable Game Console	3.5inch IPS display, 480×320 resolution	Pi required
GamePi43	Portable Game Console	4.3inch IPS display, 800×480 resolution	Pi (PI3B+ OR PI4B-2GB) included, out-of-box
GamePi43-Acce	Portable Game Console	4.3inch IPS display, 800×480 resolution	Pi required

Have a look:

Arcade Machine Console Control Box Selection

Package Contents

Note: the Raspberry Pi and 14500 battery are NOT included.

GamePi15 x1

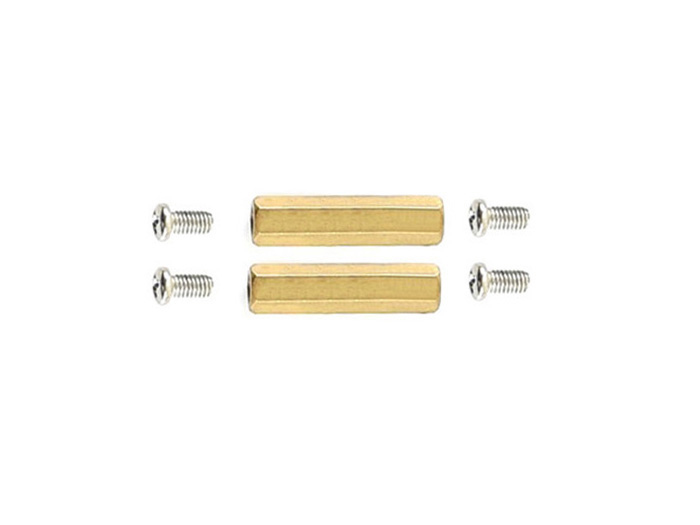

Screws pack x1
Screwdriver x1

Versandgewicht:	0,06 kg
