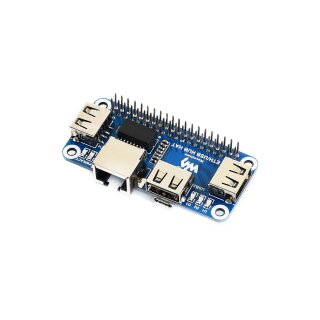

Waveshare 16595 ETH/USB HUB HAT

Artnr.: WS1-016595
GTIN: 0614961954779
Hersteller: Waveshare

Ethernet / USB HUB HAT für Raspberry Pi, 1x RJ45 Ethernet-Anschluss, 3x USB-Anschlüsse

11,90 €

inkl. 19% MwSt.

(10,00 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

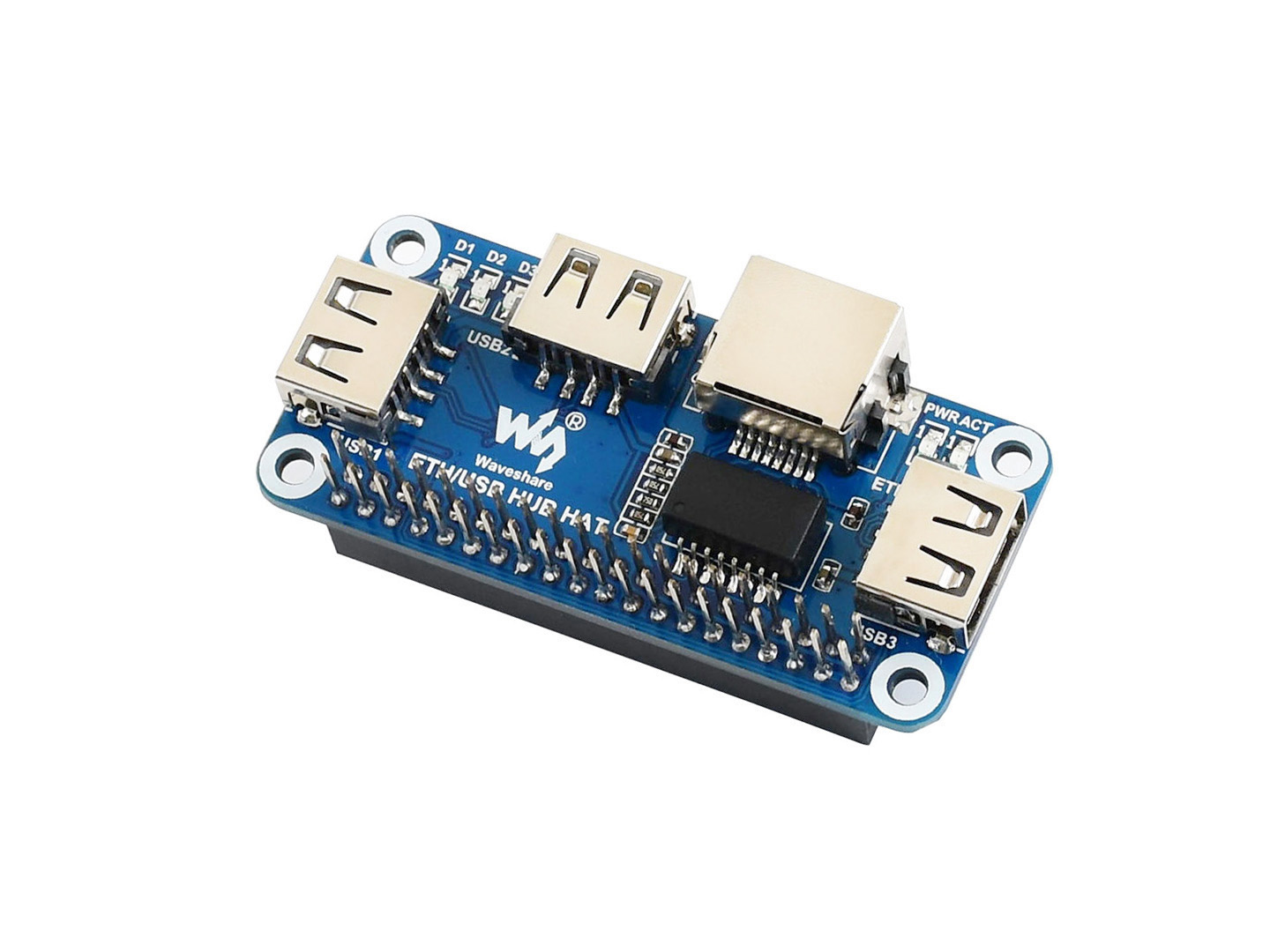

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

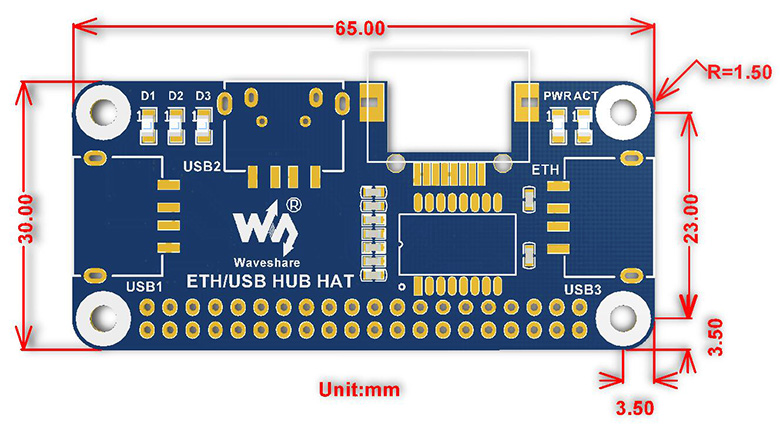

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Features

3x USB ports, compatible with USB2.0/1.1
1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

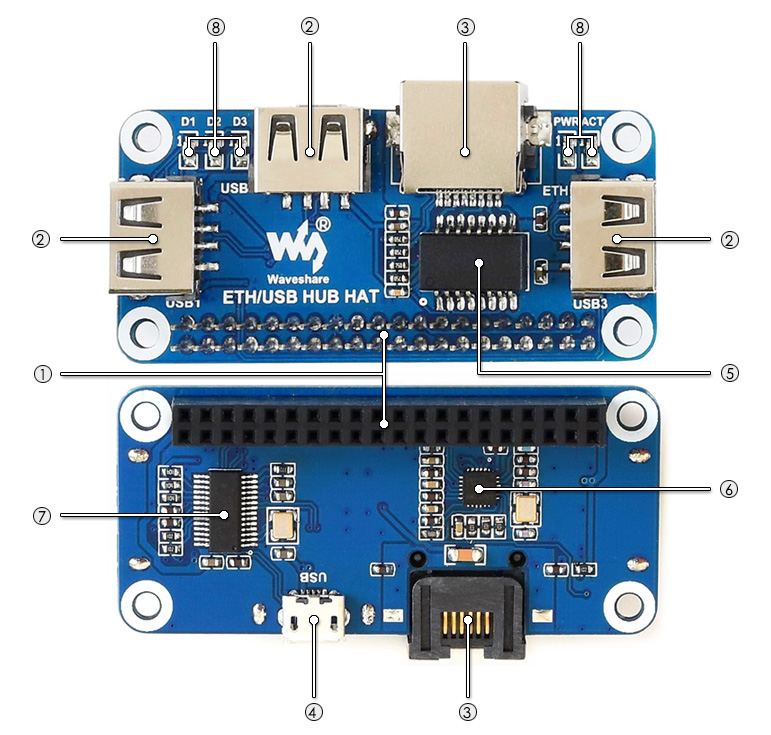

What's on Board

Raspberry Pi GPIO interface: for connecting Raspberry Pi
USB extended ports:USB1~USB3
RJ45 port: 10/100M Ethernet interface
USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
- Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
- Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
TS8121A: Ethernet wave filter
RTL8152B: 10/100M Ethernet chip
FE1.1S: USB HUB chip
LED indicators:
- PWR: power indicator
- ACT: Ethernet indicator
- D1~D3: dedicated indicator for USB1~USB3 respectively
