Waveshare 16664 Compute Module PoE Board

Waveshare 16664 Compute Module PoE Board

Artnr.: WS1-016664
GTIN: 0614961956407
Hersteller: Waveshare

Compute Module IO Board mit PoE-Funktion, Composite Breakout Board für die Entwicklung mit Raspberry Pi CM3 / CM3L / CM3+ / CM3+L

39,90 €

inkl. 19% MwSt.

(33,53 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

Konfigurieren + Kaufen

Compute Module

Raspberry Pi Compute Module 3 CM3 Lite - Artikel zurzeit vergriffen: System-on-Module, Broadcom BCM2837 CPU 4x1,2 GHz, 1 GB RAM
27,50 € Artikeldetails

Menge: 1

Raspberry Pi Compute Module 3 CM3 4 GB: System-on-Module, Broadcom BCM2837 CPU 4x1,2 GHz, 1 GB RAM
35,90 € Artikeldetails

Menge: 1

Raspberry Pi Compute Module 3+ CM3+/Lite: System-on-Module, Broadcom BCM2837 CPU 4x1,2 GHz, 1 GB RAM
29,90 € Artikeldetails

Menge: 1

Raspberry Pi Compute Module 3+ CM3+/8GB: System-on-Module, Broadcom BCM2837 CPU 4x1,2 GHz, 1 GB RAM
35,90 € Artikeldetails

Menge: 1

Raspberry Pi Compute Module 3+ CM3+/16GB

Raspberry Pi Compute Module 3+ CM3+/16GB: System-on-Module, Broadcom BCM2837 CPU 4x1,2 GHz, 1 GB RAM
40,90 € Artikeldetails

Menge: 1

Raspberry Pi Compute Module 3+ CM3+/32GB

Raspberry Pi Compute Module 3+ CM3+/32GB: System-on-Module, Broadcom BCM2837 CPU 4x1,2 GHz, 1 GB RAM
46,90 € Artikeldetails

Menge: 1

Netzteile

Offizielles Raspberry Pi 3 / Zero Steckernetzteil...

Offizielles Raspberry Pi 3 / Zero Steckernetzteil micro-USB 5,1V/2,5A weiß (EU): Das offizielle und empfohlene Micro-USB-Netzteil für alle micro-USB-betriebenen Raspberry Pi-Computer
7,90 € Artikeldetails

Menge: 1

Offizielles Raspberry Pi 3 Steckernetzteil microUSB...

Offizielles microUSB Netzteil (EU): Offizielles Raspberry Pi Steckernetzteil mit festem Euro-Stecker, 5,1V/2,5A microUSB-Ausgang (Stontronics T6716DV)
7,90 € Artikeldetails

Menge: 1

Offizielles microUSB Netzteil (EU/UK) - Artikel zurzeit vergriffen: Offizielles Raspberry Pi Steckernetzteil mit zwei Wechselsteckern (EU/UK), 5,1V/2,5A microUSB-Ausgang (Stontronics T6090DV/T6143DV)
7,90 € Artikeldetails

Menge: 1

Offizielles microUSB Netzteil (EU/UK/US/AU): Offizielles Raspberry Pi Steckernetzteil mit vier Wechselsteckern (EU/UK/US/AU), 5,1V/2,5A microUSB-Ausgang (Stontronics T5989DV)
7,90 € Artikeldetails

Menge: 1

PoE Splitter 5V/2,5A micro-USB: PoE-Splitter 5V/2,5A, 100 Mbit/s Fast Ethernet, geeignet für Raspberry Pi Zero, 1B, 2B, 3B, 3B+
7,90 € Artikeldetails

Menge: 1

Ihre Konfiguration

inkl. 19% MwSt.

(33,53 € exkl. MwSt.)

zzgl.

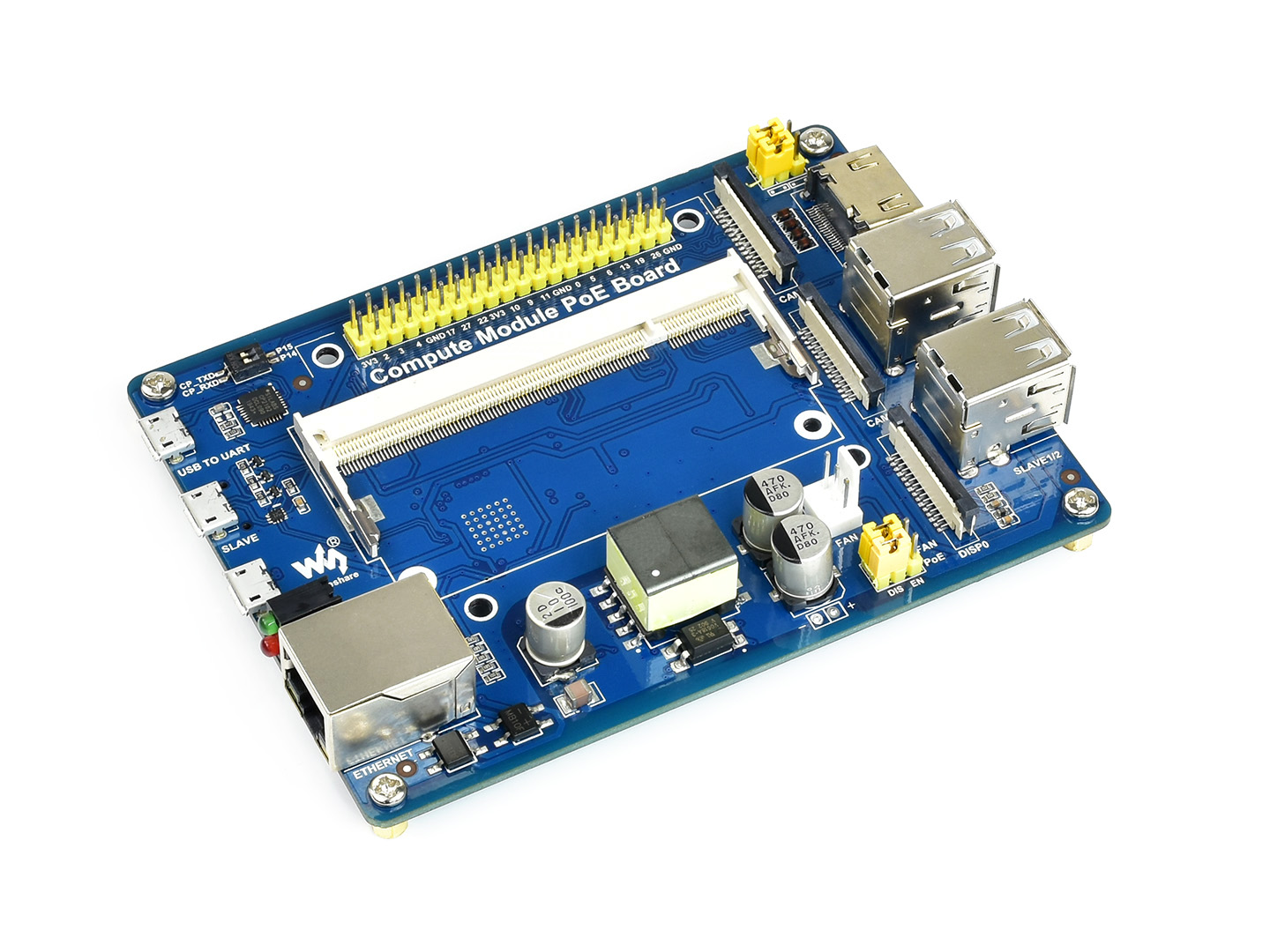

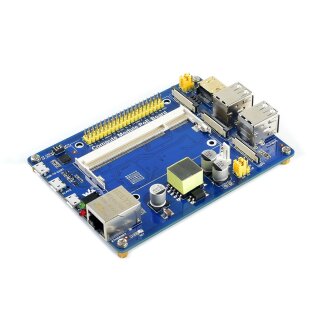

The Compute Module PoE Board is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile onboard peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products.

Features

Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
10/100M auto-negotiation Ethernet port, with PoE enabled
4x USB ports, allows connecting more USB devices
2x CSI camera interfaces
Onboard HDMI / DSI interfaces for connecting displays
Onboard USB TO UART, for serial debugging
Cooling fan interface, auto run on power up OR controlled by IO pins
Adopts isolated SMPS (Switching Mode Power Supply)

Specifications

Power supply: micro USB port / PoE Ethernet port
PoE power input: 37V ~ 57V DC in
PoE power output: 5V 2.5A DC out
Network standard: 802.3af PoE standard

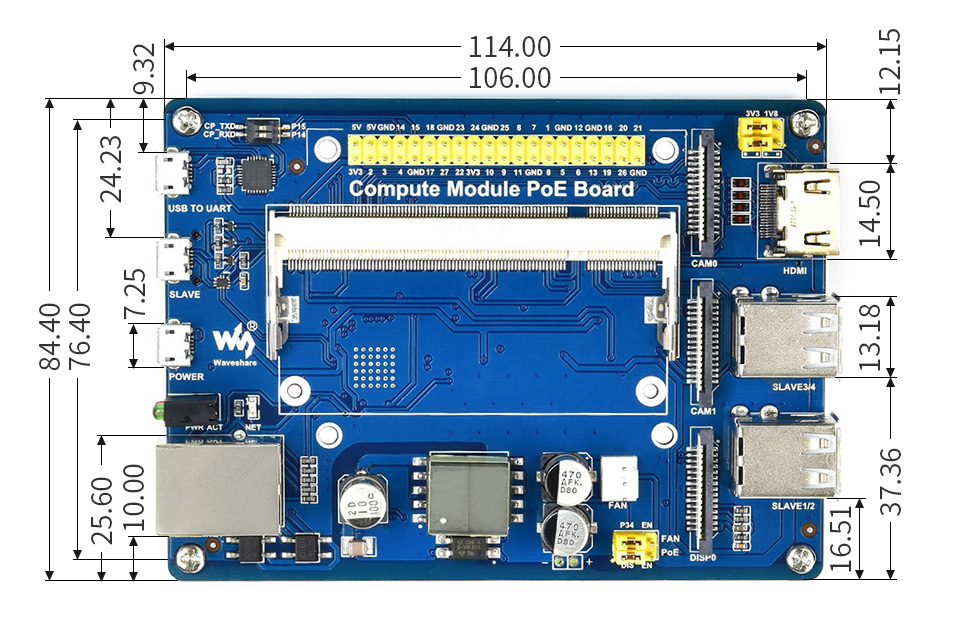

Dimensions: 114mm × 84.4mm
Mounting hole size: 3.2mm

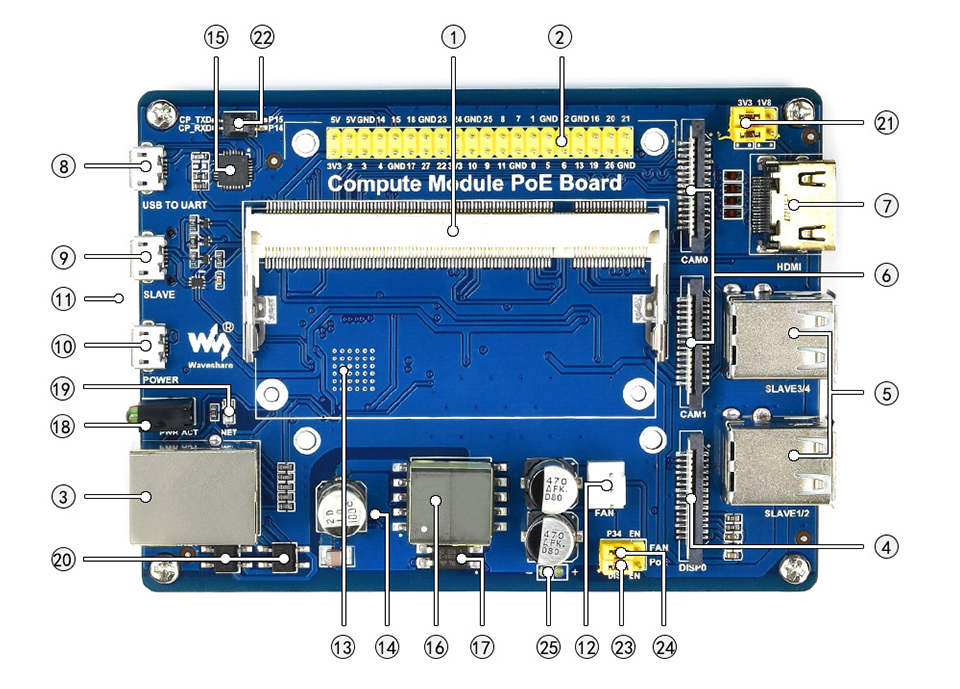

What's on Board

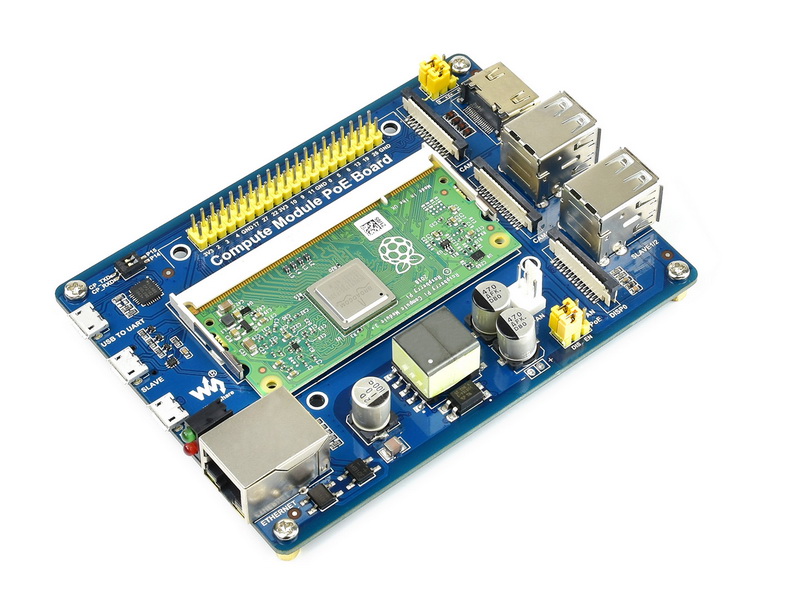

Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L)
Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
PoE enabled Ethernet port: 10/100M auto-negotiation, for connecting router or switch with PoE function
DSI interface: display ports, for connecting Raspberry Pi LCD
USB ports: 4x USB ports, for connecting USB devices
CSI interface: 2x CSI camera ports, for connecting Raspberry Pi Camera
HDMI port
USB TO UART interface: for serial debugging
USB SLAVE interface: allows you to burn system image into Compute Module 3/3+
Power port: 5V 2.5A
TF card slot (bottom side): insert a Micro SD card with pre-burnt system, to start up Compute Module 3/3+ Lite variant
Cooling fan interface
LAN9514 (bottom side): fully-integrated USB hub and 10/100M Ethernet controller
Si3404 PoE power management chip (bottom side)
CP2102 USB TO UART converter
EP13 PoE power transformer
Optical isolator
Two LED indicators: Red: Raspberry Pi power indicator Green: Raspberry Pi operating status indicator
NET network indicator
Bridge rectifier
VGx power config jumper: config the I/O level
UART output config: Left: connect the CP2102 serial port and Raspberry Pi serial port Right: disconnect the CP2102 serial port and Raspberry Pi serial port
Cooling fan config: P34: the fan is program controlled via P34 pin EN: the fan is directly powered from 5V power supply
PoE config: DIS: disable PoE EN: enable PoE
PoE power voltage measuring pads
