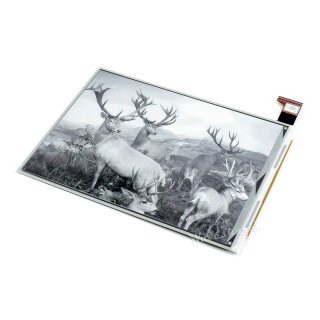

Waveshare 16711 7.8inch e-Paper

Artnr.: WS3-016711

Waveshare 16711 7.8inch e-Paper

1872×1404, 7,8-Zoll-E-Ink-Rohdisplay, parallele Schnittstelle, ohne PCB

109,00 € inkl. 19% MwSt.

91,60 € exkl. MwSt.

kostenfreie Lieferung

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

This is an E-Ink raw display, 7.8inch, 1872×1404 resolution, communicating via parallel port, supports partial refresh.

Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.

Features

No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

Operating voltage: 5V
Interface: parallel port
Outline dimension: 173.8mm × 127.6mm × 0.78mm
Display size: 158.184mm × 118.638mm
Dot pitch: 0.0845mm × 0.0845mm
Resolution: 1872 × 1404
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: 450ms
Viewing angle: >170°

Development Resources

Wiki : www.waveshare.com/wiki/7.8inch_e-Paper_HAT

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh	Flexible	Interface
1.02inch e-Paper	black, white	2	128×80	21.76 × 14.00	32.57 × 18.60 × 0.98	2	√		SPI
1.54inch e-Paper	black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	2	√		SPI
1.54inch e-Paper (B)	red, black, white	2	200×200	27.60 × 27.60	37.32 × 31.80 × 1.05	8			SPI
1.54inch e-Paper (C)	yellow, black, white	2	152×152	27.51 × 27.51	37.30 × 31.80 × 0.98	27			SPI
2.13inch e-Paper	black, white	2	250×122	48.55 × 23.71	59.20 × 29.20 × 1.05	2	√		SPI
2.13inch e-Paper (B)	red, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15			SPI
2.13inch e-Paper (C)	yellow, black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.98	15			SPI
2.13inch e-Paper (D)	black, white	2	212×104	48.55 × 23.71	59.20 × 29.20 × 0.30	2	√	√	SPI
2.66inch e-Paper	black, white	2	296×152	30.704 × 60.088	36.304 × 71.820 × 1.00	6	√		SPI
2.66inch e-Paper (B)	red, black, white	2	296×152	30.704 × 60.088	36.304 × 71.820 × 1.00	15			SPI
2.7inch e-Paper	black, white	4	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	6			SPI
2.7inch e-Paper (B)	red, black, white	2	264×176	57.29 × 38.19	70.42 × 45.80 × 0.98	15			SPI
2.9inch e-Paper	black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.05	2	√		SPI
2.9inch e-Paper (B)	red, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15			SPI
2.9inch e-Paper (C)	yellow, black, white	2	296×128	66.89 × 29.05	79.00 × 36.70 × 1.18	15			SPI
2.9inch e-Paper (D)	black, white	2	296×128	66.90 × 29.06	79.00 × 36.70 × 0.34	2	√	√	SPI
3.7inch e-Paper	black, white	4	480×280	47.32 × 81.12	54.90 × 93.30 × 0.78	3	√		SPI
4.01inch e-Paper (F)	7-Color	2	640×400	86.40 × 54.00	96.80 × 68.70 × 0.91	15			SPI
4.2inch e-Paper	black, white	4	400×300	84.80 × 63.60	91.00 × 77.00 × 1.18	4			SPI
4.2inch e-Paper (B)	red, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15			SPI
4.2inch e-Paper (C)	yellow, black, white	2	400×300	84.80 × 63.60	90.10 × 77.00 × 1.18	15			SPI
5.65inch e-Paper (F)	7-Color	2	600×448	114.9 × 85.8	125.4 × 99.5 × 0.91	<35			SPI
5.83inch e-Paper	black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	5			SPI
5.83inch e-Paper (B)	red, black, white	2	648×480	119.232 × 88.320	125.40 × 99.50 × 1.18	20			SPI
5.83inch e-Paper (C)	yellow, black, white	2	600×448	118.80 × 88.26	125.40 × 99.50 × 1.18	26			SPI
6inch HD e-Paper	black, white	16	1448×1072	122.40 × 90.60	138.40 × 101.80 × 1.01	<1	√		Parallel port
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	5			SPI
7.5inch HD e-Paper	black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	5			SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.20 × 111.20 × 1.18	16			SPI
7.5inch HD e-Paper (B)	red, black, white	2	880×528	163.24 × 97.94	170.20 × 111.20 × 1.25	21			SPI
7.5inch e-Paper (C)	yellow, black, white	2	640×384	163.20 × 97.92	170.20 × 111.20 × 1.18	16			SPI
7.8inch e-Paper	black, white	16	1872×1404	158.18 × 118.64	173.80 × 127.60 × 0.78	<1	√		Parallel port
9.7inch e-Paper	black, white	16	1200×825	202.8 × 139.43	218.80 × 156.425 × 1.15	<1	√		Parallel port
10.3inch e-Paper	black, white	16	1872×1404	209.66 × 157.25	216.70 × 174.40 × 0.78	<1	√		Parallel port
10.3inch e-Paper (D)	black, white	16	1872×1404	209.66 × 157.25	227.70 × 165.80 × 0.647	<1	√	√	Parallel port
12.48inch e-Paper	black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<8			SPI
12.48inch e-Paper (B)	red, black, white	2	1304×984	252.98 × 190.90	261.50 × 211.00 × 0.30	<16			SPI
13.3inch e-Paper	black, white	16	1600×1200	270.40 × 202.80	285.80 × 213.65 × 0.78	<1	√		Parallel port
