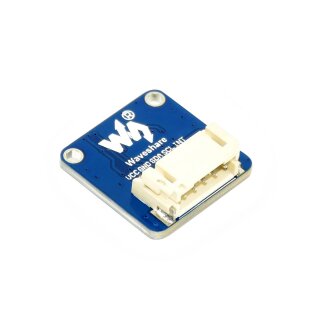

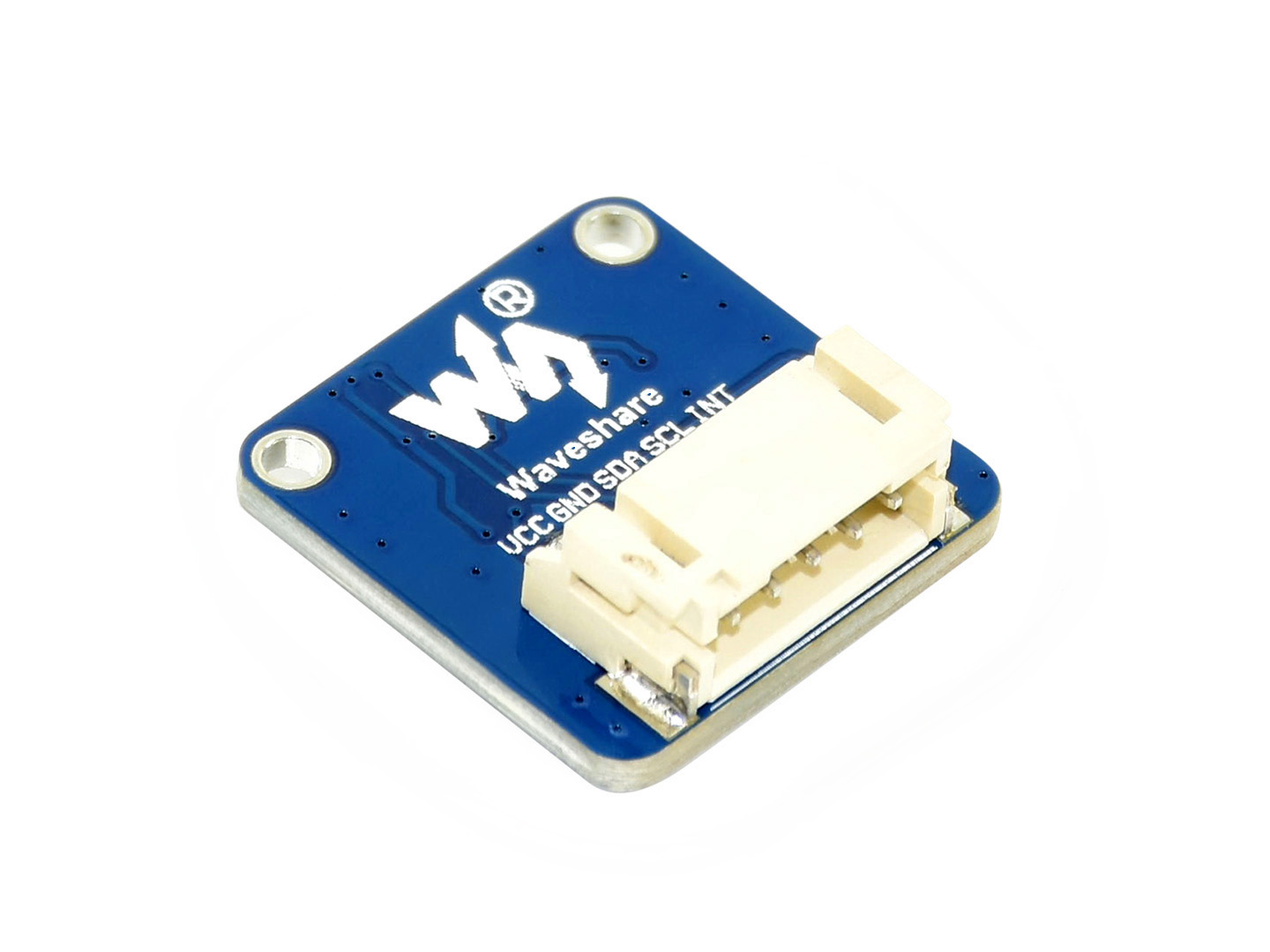

Waveshare 16738 PAJ7620U2 Gesture Sensor
Description
The PAJ7620U2 Gesture Sensor allows to recognise up to 9 gestures via the I2C interface, it is compatible with 3.3V/5V levels.
Compare with solutions like APDS-9960, this module is faster, more accurate, while recognising more gestures with higher anti-interference capability. It suits for low power applications such as smart home, robot interaction, etc.
Features
- Based on PAJ7620U2 sensor, directly recognises 9 basic gestures, supports gesture interrupt output
- Embedded infrared LED and optical lens, be able to work in low-light even dark environment
- I2C interface, requires only two signal pins to control
- Onboard voltage translator, compatible with 3.3V/5V logic level
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Operating voltage: 3.3V/5V
- Communication interface: I2C
- Recognition distance: 5cm ~ 15cm
- Supported gestures: up, down, left, right, forward, backward, clockwise, anticlockwise, shake
- Recognition rate: 240Hz
- Recognition angle: 60° (diagonal)
- Ambient light immunity: <100k Lux
- Dimensions: 20mm × 20mm
- Mounting hole size: 2.0mm
Applications
- Smart home, office and education
- Robot interaction, toys, motion sense gaming devices
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V/5V power supply |
| GND | power ground |
| SDA | I2C data pin |
| SCL | I2C clock pin |
| INT | interrupt output, connects to I/O pin |

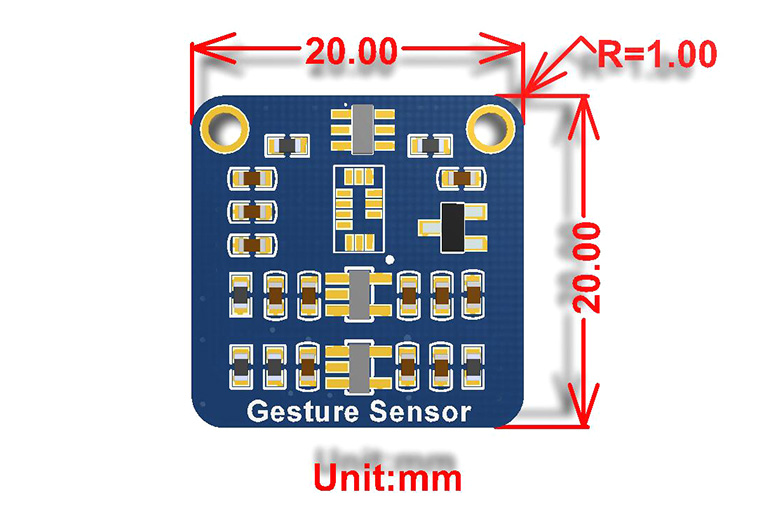

Dimension
Development Resources
Package Contents
- PAJ7620U2 Gesture Sensor x1
- PH2.0 5PIN wire x1
