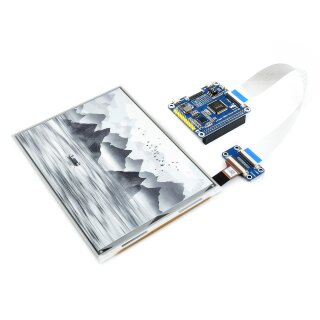

Waveshare 16766 7.8inch e-Paper HAT

Artnr.: WS3-016766

Waveshare 16766 7.8inch e-Paper HAT

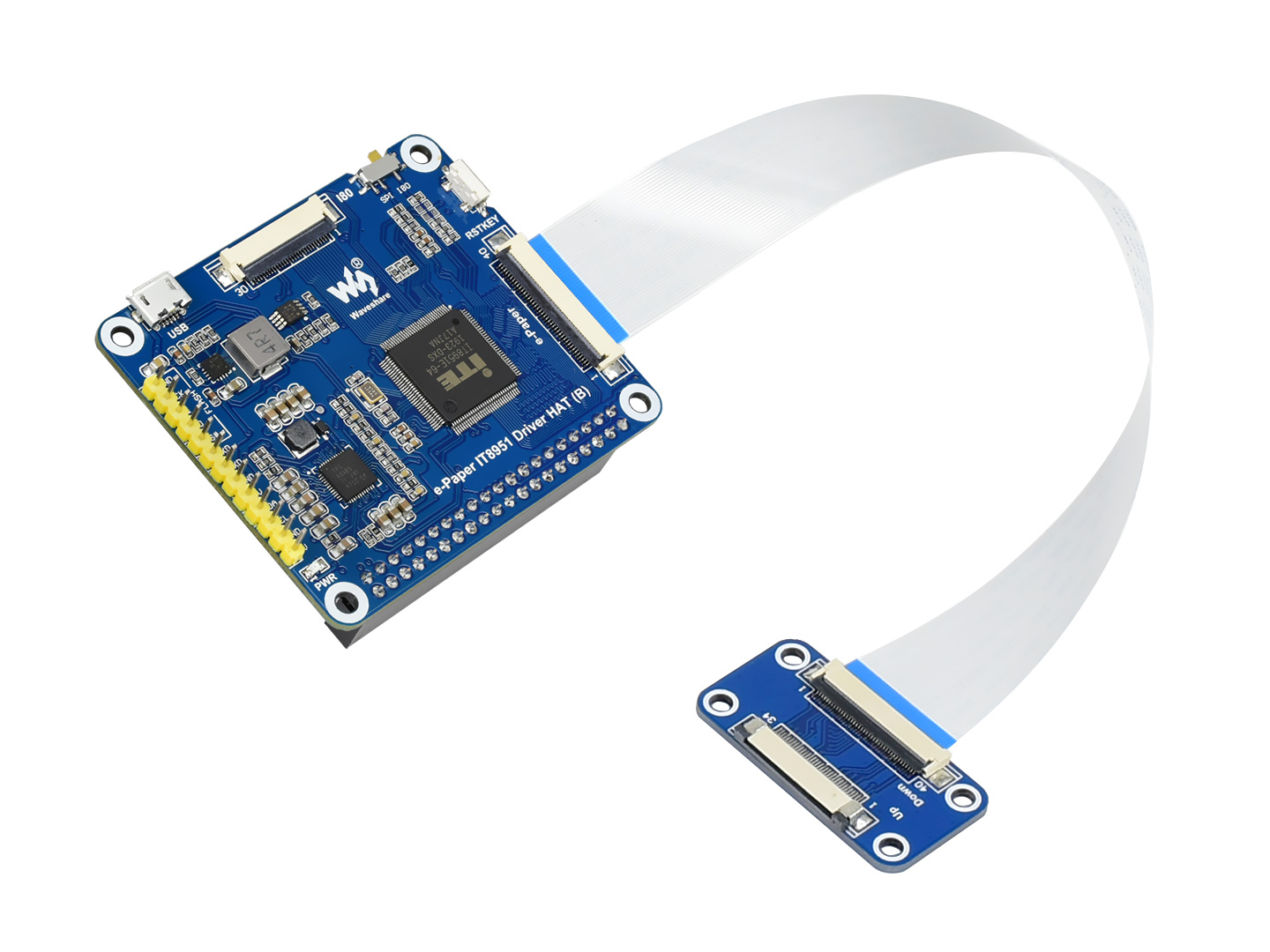

1872×1404, 7.8inch E-Ink Display HAT für Raspberry Pi, IT8951 Controller, USB/SPI/I80 Schnittstelle

159,00 € inkl. 19% MwSt.

133,61 € exkl. MwSt.

kostenfreie Lieferung

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

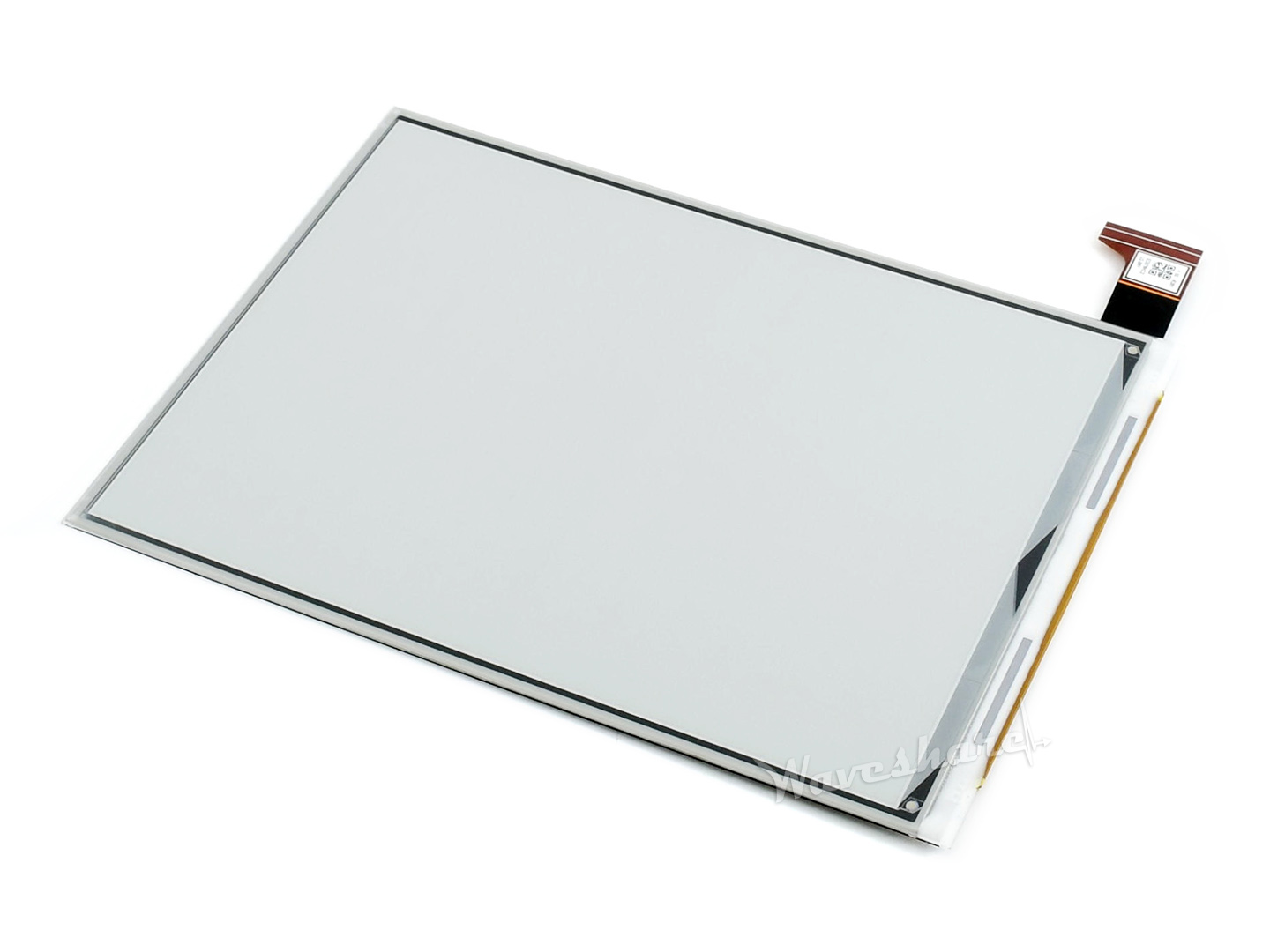

This is an E-Ink display HAT for Raspberry Pi, 7.8inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.

Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.

Features

No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 173.8mm × 127.6mm × 0.78mm
Display size: 158.184mm × 118.638mm
Dot pitch: 0.0845mm × 0.0845mm
Resolution: 1872 × 1404
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: 450ms
Total refresh power: 1.2W(typ.)
Total standby power: 0.1W(typ.)
Viewing angle: >170°

SPI Pinouts

SYMBOL	DESCRIPTION
5V	Power input
GND	Ground
MISO	SPI MISO pin
MOSI	SPI MOSI pin
SCK	SPI SCK pin
CS	SPI chip selection, low active
RST	External reset, low active
HRDY	Busy status output, low active

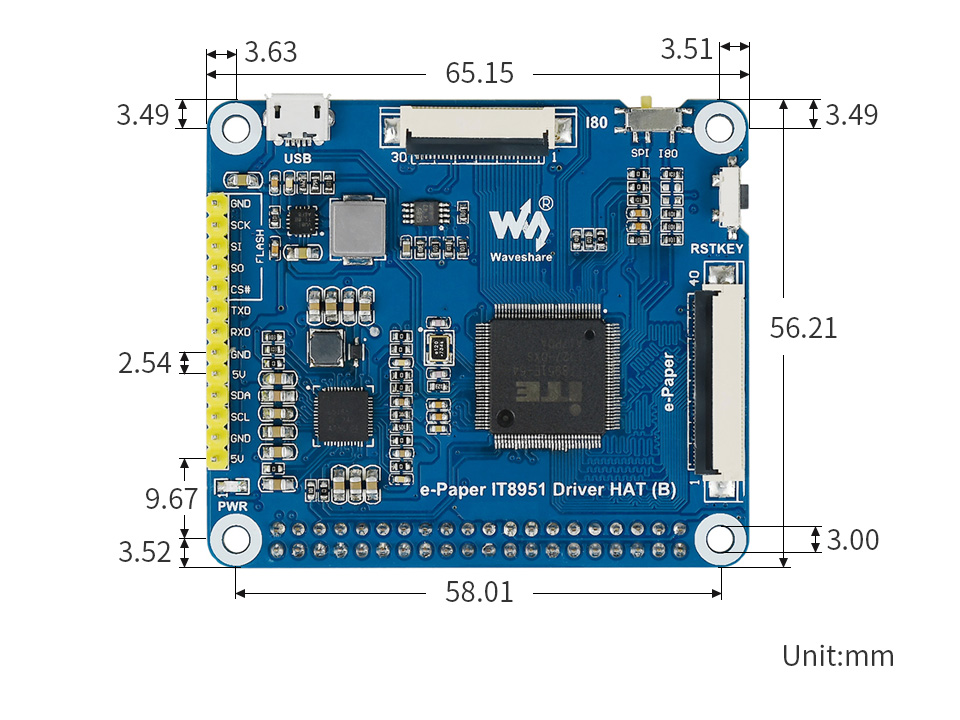

e-Paper IT8951 Driver HAT (B) Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/7.8inch_e-Paper_HAT

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh¹	Pi Head-er²	Flexi-ble	Interface
1.02inch e-Paper Module	black, white	2	128×80	21.76 × 14.00	42.0 × 27.0	2	√			SPI
1.54inch e-Paper Module	black, white	2	200×200	27.60 × 27.60	48.0 × 33.0	2	√			SPI
1.54inch e-Paper Module (B)	red, black, white	2	200×200	27.60 × 27.60	48.0 × 33.0	8				SPI
1.54inch e-Paper Module (C)	yellow, black, white	2	152×152	27.51 × 27.51	48.0 × 33.0	27				SPI
2.13inch e-Paper HAT	black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	2	√	√		SPI
2.13inch e-Paper HAT (B)	red, black, white	2	212×104	48.55 × 23.70	65.0 × 30.2	15		√		SPI
2.13inch e-Paper HAT (C)	yellow, black, white	2	212×104	48.55 × 23.70	65.0 × 30.2	15		√		SPI
2.13inch e-Paper HAT (D)	black, white	2	212×104	48.55 × 23.70	59.2 × 29.2	2	√	√	√	SPI
2.13inch Touch e-Paper HAT	black, white	2	250×122	48.55 × 23.70	69.15 × 38.90	2	√	√		SPI
2.66inch e-Paper Module	black, white	2	296×152	30.704 × 60.088	37.0 × 83.5	6	√			SPI
2.66inch e-Paper Module (B)	red, black, white	2	296×152	30.704 × 60.088	37.0 × 83.5	15				SPI
2.7inch e-Paper HAT	black, white	4	264×176	57.29 × 38.19	85.0 × 56.0	6		√		SPI
2.7inch e-Paper HAT (B)	red, black, white	2	264×176	57.288 × 38.192	73.5 × 56.0	15		√		SPI
2.9inch e-Paper Module	black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	2	√			SPI
2.9inch e-Paper Module (B)	red, black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	15				SPI
2.9inch e-Paper Module (C)	yellow, black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	15				SPI
2.9inch e-Paper HAT (D)	black, white	2	296×128	66.90 × 29.06	79.0 × 36.7	2	√	√	√	SPI
2.9inch Touch e-Paper HAT	black, white	2	296×128	66.89 × 29.05	89.10 × 42.70	2	√	√		SPI
3.7inch e-Paper HAT	black, white	4	480×280	47.32 × 81.12	58.0 × 96.5	3	√	√		SPI
4.01inch e-Paper Module (F)	7-Color	2	640×400	86.40 × 54.00	98.5 × 70.0	15		√		SPI
4.2inch e-Paper Module	black, white	4	400×300	84.80 × 63.60	103.0 × 78.5	4				SPI
4.2inch e-Paper Module (B)	red, black, white	2	400×300	84.80 × 63.60	103.0 × 78.5	15				SPI
4.2inch e-Paper Module (C)	yellow, black, white	2	400×300	84.80 × 63.60	103.0 × 78.5	15				SPI
4.3inch e-Paper UART Module	black, white	4	800×600	88.00 × 66.00	118.0 × 75.0	1.5				UART
5.65inch e-Paper Module (F)	7-Color	2	600×448	114.9 × 85.8	138.5 × 100.5	<35				SPI
5.83inch e-Paper HAT	black, white	2	648×480	119.232 × 88.320	125.4 × 99.5	5		√		SPI
5.83inch e-Paper HAT (B)	red, black, white	2	648×480	119.232 × 88.320	125.4 × 99.5	20		√		SPI
5.83inch e-Paper HAT (C)	yellow, black, white	2	600×448	118.8 × 88.26	125.4 × 99.5	26		√		SPI
6inch e-Paper HAT	black, white	16	800×600	122.4 × 90.6	138.4 × 101.8	<1	√	√		USB/SPI/ I80
6inch HD e-Paper HAT	black, white	16	1448×1072	122.4 × 90.6	138.4 × 101.8	<1	√	√		USB/SPI/ I80
7.5inch e-Paper HAT	black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	5		√		SPI
7.5inch HD e-Paper HAT	black, white	2	880×528	163.24 × 97.94	170.2 × 111.2	5		√		SPI
7.5inch e-Paper HAT (B)	red, black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	16		√		SPI
7.5inch HD e-Paper HAT (B)	red, black, white	2	880×528	163.24 × 97.94	170.2 × 111.2	21		√		SPI
7.5inch e-Paper HAT (C)	yellow, black, white	2	640×384	163.20 × 97.92	170.2 × 111.2	16		√		SPI
7.8inch e-Paper HAT	black, white	16	1872×1404	158.18 × 118.64	173.8 × 127.6	<1	√	√		USB/SPI/ I80
9.7inch e-Paper HAT	black, white	16	1200×825	202.8 × 139.43	218.8×156.4	<1	√	√		USB/SPI/ I80
10.3inch e-Paper HAT	black, white	16	1872×1404	209.66 × 157.25	216.7 × 174.4	<1	√	√		USB/SPI/ I80
10.3inch e-Paper HAT (D)	black, white	16	1872×1404	209.66 × 157.25	227.7 × 165.8	<1	√	√	√	USB/SPI/ I80
12.48inch e-Paper Module	black, white	2	1304×984	252.98 × 190.90	280.0 × 229.5	<8		√		SPI
12.48inch e-Paper Module (B)	red, black, white	2	1304×984	252.98 × 190.90	280.0 × 229.5	<16		√		SPI
13.3inch e-Paper HAT	black, white	16	1600×1200	270.40 × 202.80	285.80 × 213.65	<1	√	√		USB/SPI/ I80

It usually takes about 0.3s for partial refresh
Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
