Waveshare 16864 Sense HAT (B)
Beschreibung

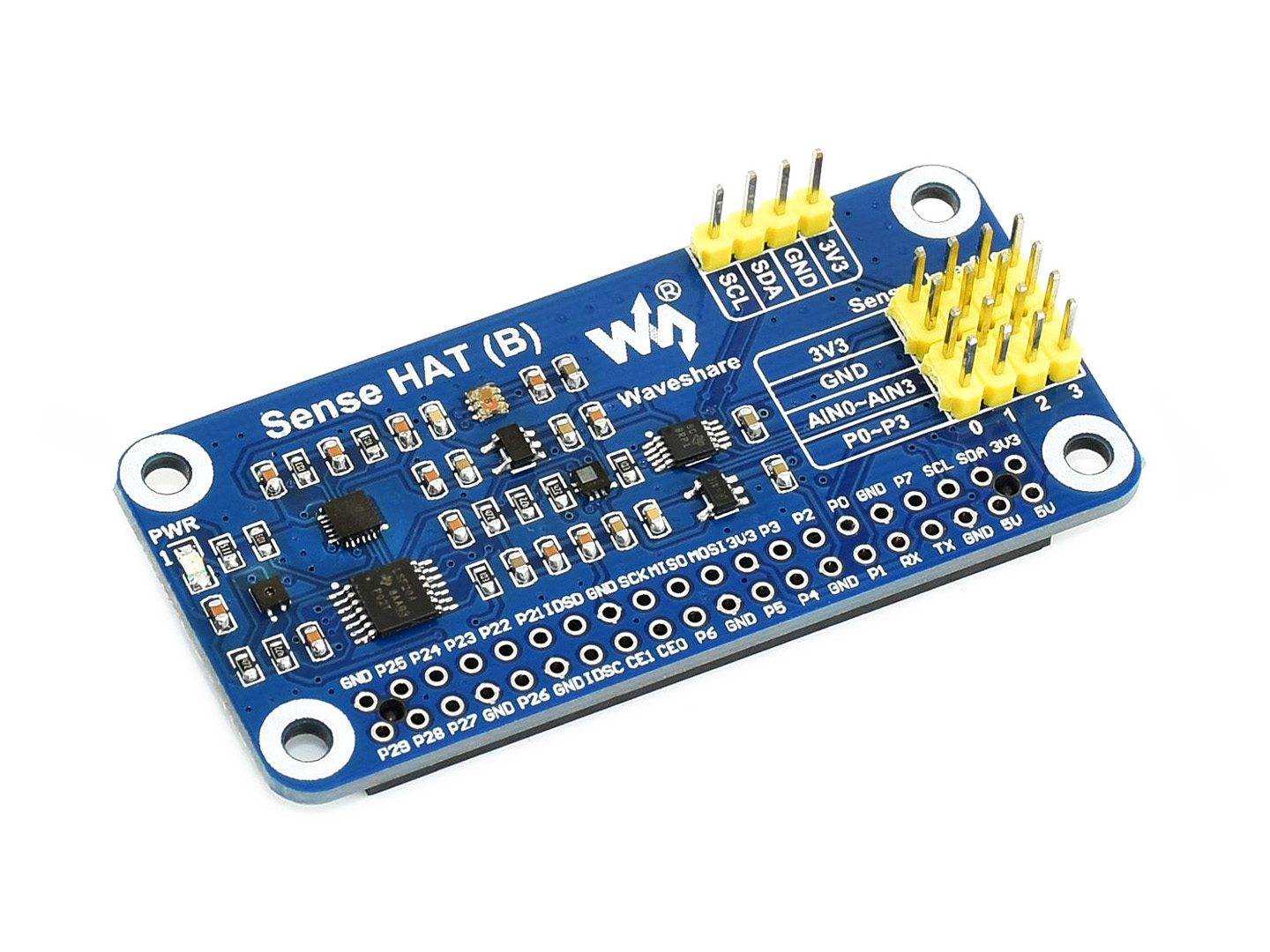

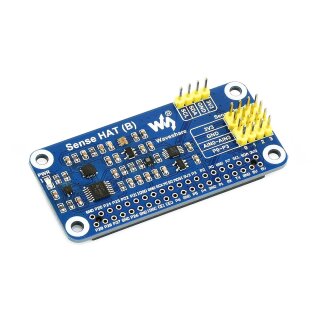

The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need.
Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic
- Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment
- Onboard LPS22HB barometric pressure sensor, allows monitoring the environment
- Onboard TCS34725 color sensor, identifies the color of nearby object
- Onboard ADS1015 ADC, 4-ch 12-bit precision, AD expansion to support more external sensors
- Brings I2C control pins, for connecting other host boards like STM32
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
- Operating voltage: 3.3V
- Communication interface: I2C
- Logic level: 3.3V
- Dimensions: 65mm x 30.5mm
Comparison
| Sense HAT (B) | Pi Foundation Sense HAT | Remarks | |
|---|---|---|---|
| Gyroscope | Ranging: ±250/500/1000/2000 dps Resolution: 16-bit | Ranging: ±245/500/2000 dps Resolution: 16-bit | Type (B) provides more angular velocity range option |
| Accelerometer | Ranging: ±2/4/8/16 g Resolution: 16-bit | Ranging: ±2/4/8/16 g Resolution: 16-bit | |
| Magnetometer | Ranging: ±49 gauss Resolution: 16-bit | Ranging: ±4/8/12/16 gauss Resolution: 16-bit | Type (B) has wider magnetic range |
| Barometer | Ranging: 260 ~ 1260 hPa Accuracy (ordinary temperature): ±0.025hPa Speed: 1 Hz - 75 Hz | Ranging: 260 ~ 1260 hPa Accuracy (ordinary temperature): ±0.1 hPa Speed: 1 Hz - 25 Hz | Type (B) measures the barometric pressure more precise and faster |
| Temp & Humidity | Accuracy (Humidity): ±2% rH Ranging (Humidity): 0% ~ 100% rH Accuracy (Temp): ±0.2°C Ranging (Temp): -30 ~ 100°C | Accuracy: ±4.5% rH Ranging: 20% ~ 80% rH Accuracy (Temp): ±0.5°C Ranging (Temp): 15 ~ 40°C | Type (B) has higher precision and wider range |
| Misc | Color Sensor High precision 12-bit ADC | 8×8 RGB LED matrix Five-button joystick | Type (B) features color sensor, and supports more external AD sensors |
What's on Board

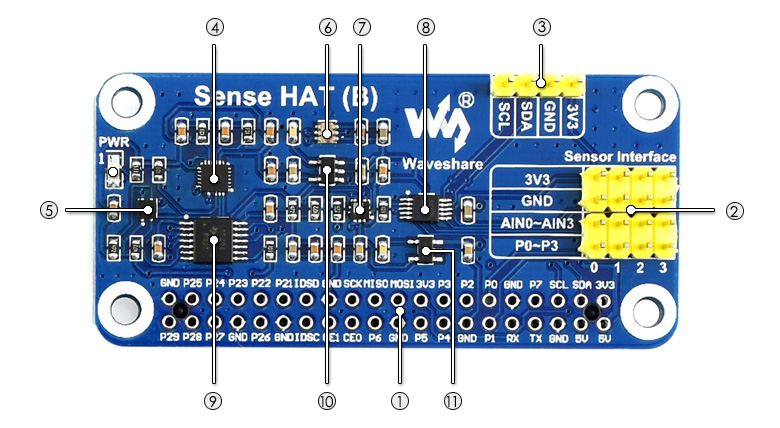

- Raspberry Pi GPIO connector: for connecting with Raspberry Pi
- Sensor Interface: for external sensors
- I2C extension header: for connecting host boards like Arduino/STM32
- ICM-20948: 9-axis movement sensor
- SHTC3: temperature and humidity sensor
- TCS34725: color sensor
- LPS22HB: barometric pressure sensor
- ADS1015: 12-bit ADC
- LSF0204PWR: 4-ch voltage level translator
- RT9193-18: 1.8V linear regulator
- RT9193-33: 3.3V linear regulator

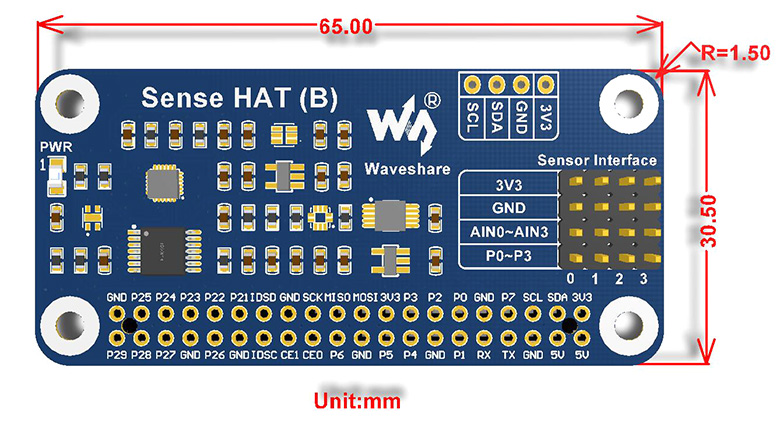

Dimension
Development Resources
Package Contents
Note: Raspberry Pi and external sensors are NOT included.
- Sense HAT (B) x1
- RPi screws pack (2pcs) x1
- 2x20PIN female header x1
