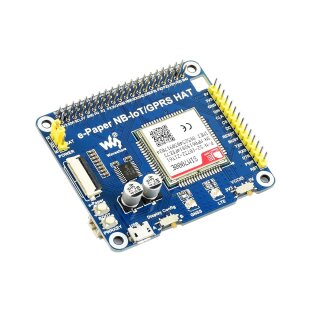

Waveshare 17211 e-Paper NB-IoT/GPRS HAT (EN)

Waveshare 17211 e-Paper NB-IoT/GPRS HAT (EN)

Artnr.: WS1-017211
GTIN: 0614961956247
Hersteller: Waveshare

e-Paper IoT Driver HAT for Raspberry Pi, Supports NB-IoT/eMTC/GPRS

34,90 €

inkl. 19% MwSt.

(29,33 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

This is a Raspberry Pi IoT driver board for e-Paper raw panels. It allows getting text/image data from IoT clouds through NB-IoT/eMTC/EDGE/GPRS network connection, and then display them on the e-Paper.

Features

Onboard SIM7000E module, controlled via UART, supports NB-IoT/eMTC/EDGE/GPRS communication
e-Paper interface, controlled via SPI, compatible with various Waveshare SPI e-Paper raw panels
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Breakout SIM7000E and e-Paper control pins, for connecting with host control boards like STM32
3.7V lithium battery port and charging circuit, provides power to SIM7000E module or external 3.3V system (5V system like Raspberry Pi requires another power supply)
Onboard voltage translator, select 3.3V/5V operating voltage by switch
Provides Windows host code (based on Alibaba Cloud), make it easy to study/develop, or integrate it into IoT applications
Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

Communication interface: UART + SPI (4-wire SPI by default, switch to 3-wire SPI by soldering)
Communication module: SIM7000E
- Quad-Band LTE-FDD B3/B8/B20/B28
- GPRS/EDGE 900/1800Mhz
- GNSS (GPS, GLONASS, BeiDou, and Galileo, GNSS antenna is required and NOT included)
Support SIM card: NB-IoT specific card, or 1.8V/3V normal SIM card
Applicable region: China mainland, southeast Asia, Europe, Africa, Australia, etc. (for reference only, please check the supported bands according to your local service provider)
Power supply voltage: 5V
Logic level: 5V / 3.3V
Applicable battery: 3.7V lithium battery via PH2.0 connector (NOT included)

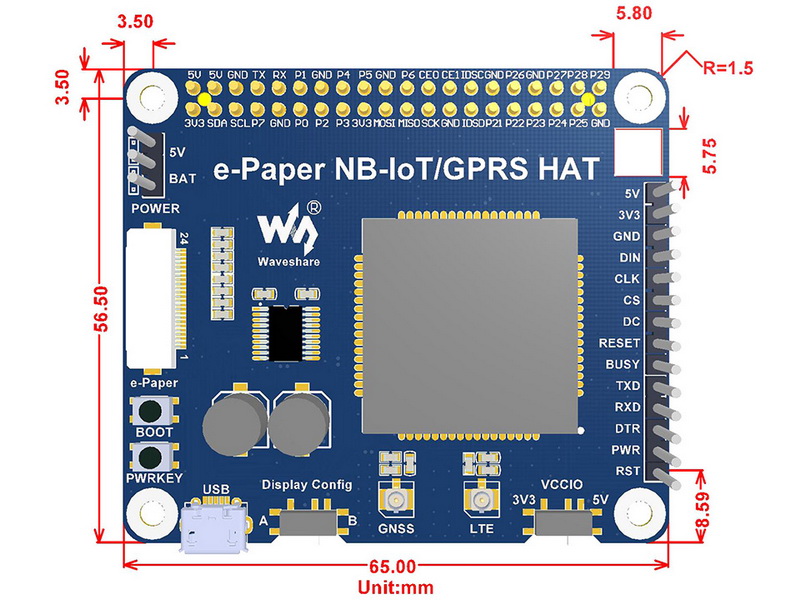

Dimensions: 56.5mm x 65mm

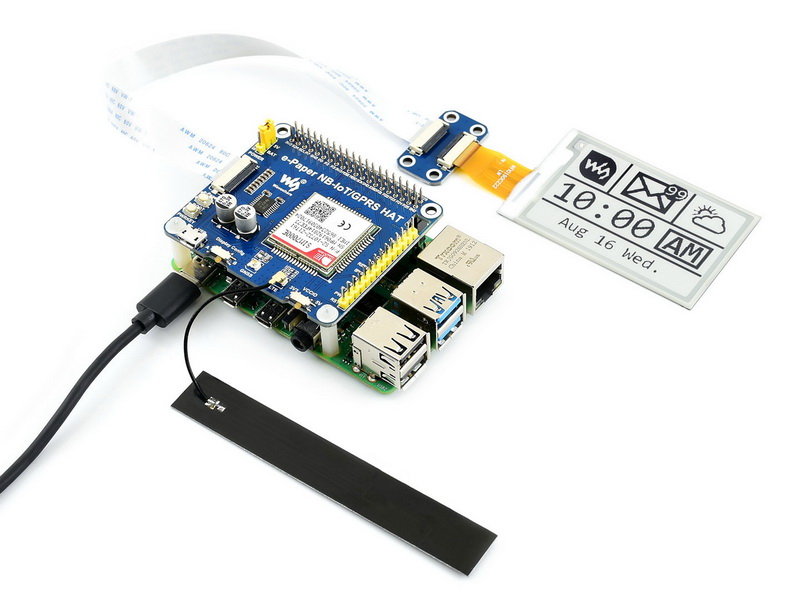

Applications

Shelf label
AD label
IoT applications which requires remote refreshing

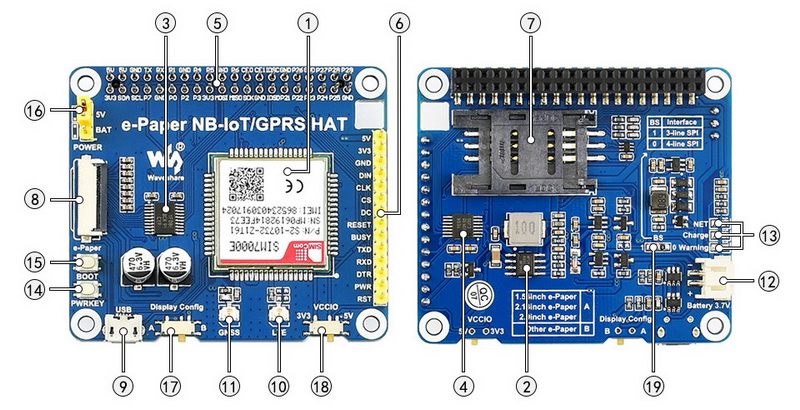

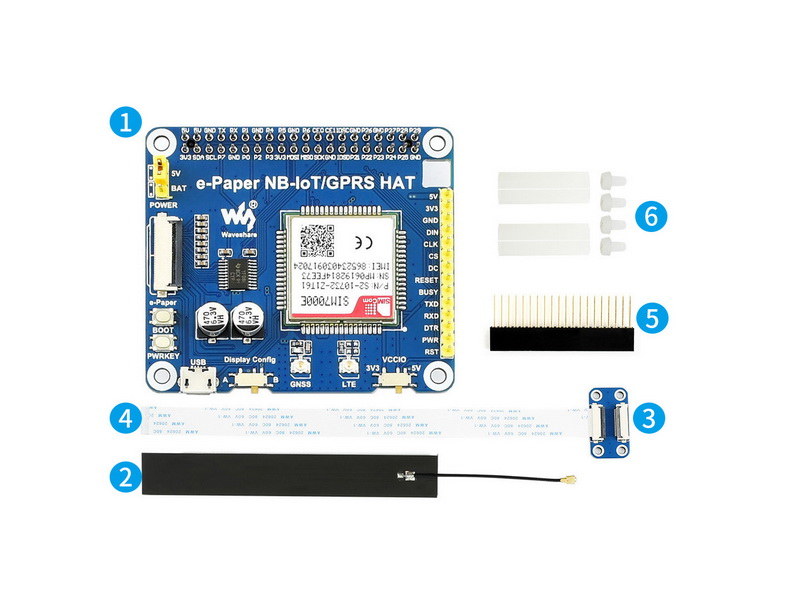

What's on Board

SIM7000E communication module
MP1482 power chip
TXS0108E voltage translator
TXB0104PWR voltage translator
Raspberry Pi GPIO connector: for connecting Raspberry Pi
SIM7000E and e-Paper control pins: for connecting with host control boards like STM32
SIM card slot: for SIM cards with compatible bands
e-Paper interface: for connecting e-Paper, compatible with various Waveshare SPI e-Paper raw panels
USB port: control the SIM7000E module by AT commands through the USB port
LTE antenna connector: connects LTE antenna for NB-IoT/eMTC/EDGE/GPRS communication
GNSS antenna connector: connects GNSS antenna (IPEX connector, NOT included) for GPS/BeiDou/GLONASS/Galileo positioning
3.7V lithium battery port: provides power to SIM7000E module or external 3.3V system
LED indicators: NET: network status indicator Charge: charge indicator, light up when charging, off when fully charged Warning: battery reverse connection warning
PWRKEY button: SIM7000E on/off
BOOT button: enable battery power supply
SIM7000E power supply selection: the SIM7000E can be powered from Raspberry Pi 5V or lithium battery 3.7V
e-Paper configuration: configured according to the connected e-Paper A: for 1.54inch e-Paper, 2.13inch e-Paper, and 2.9inch e-Paper B: for other e-Paper
Operating voltage selection: 3.3V or 5V
SPI selection: 0: enable 4-wire SPI (default) 1: enable 3-wire SPI
