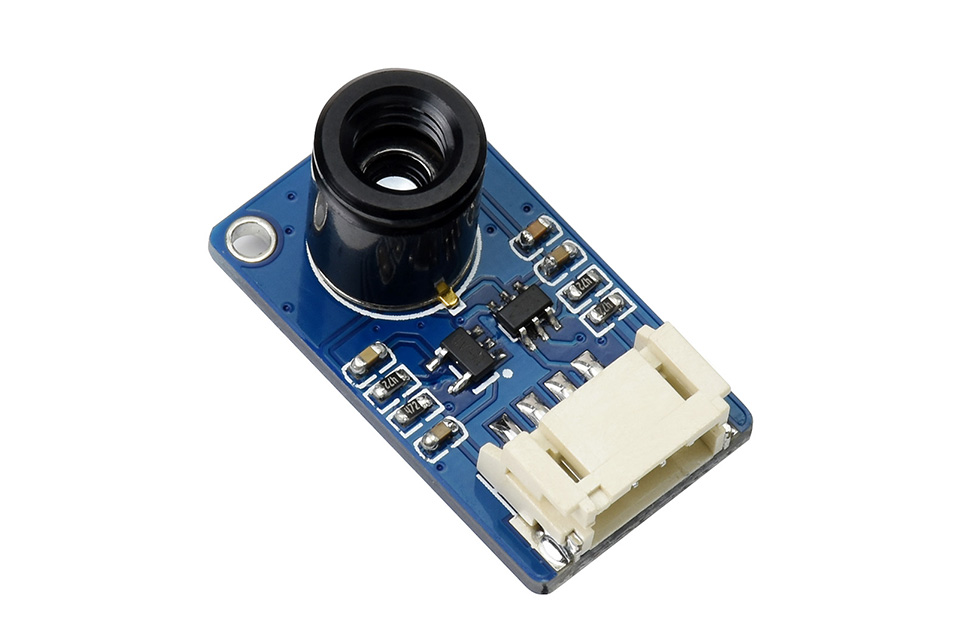

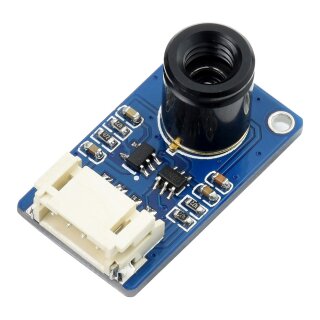

Waveshare 17220 MLX90640-D55 Thermal Camera
Description
IR Array Thermal Imaging Camera
MLX90640, 32×24 IR array
Small size, non-contact, low cost
Features at a glance
The MLX90640-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 32×24 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
- Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
- Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
- Noise Equivalent Temperature Difference (NETD) 0.1K RMS@1Hz refresh rate
- Onboard voltage translator, compatible with 3.3V/5V operating voltage
- Programable frame rate 0.5~64Hz (0.25~32FPS)
- Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)
Typical applications:
- High precision non-contact temperature measurements
- IR thermal imaging devices, IR thermometers
- Smart home, intelligent building, intelligent lighting
- Industrial temperature control, security & safety, intrude/movement detection
Specifications
| Operating voltage | 3.3V/5V | Current | < 23mA |
|---|---|---|---|
| Field of view (FOV) | 55° × 35° | Absolute accuracy | ±2? (ambient temp. 0 ~ 50?) |
| Communication bus | I2C (0x33 by default) | Refresh rate | 0.5~64Hz (0.25~32FPS) |
| Target temperature range | -40 ~ 300? | Operating temperature | -40 ~ 85? |
| Dimensions | 28 × 16mm | Mounting hole size | 2.0mm |

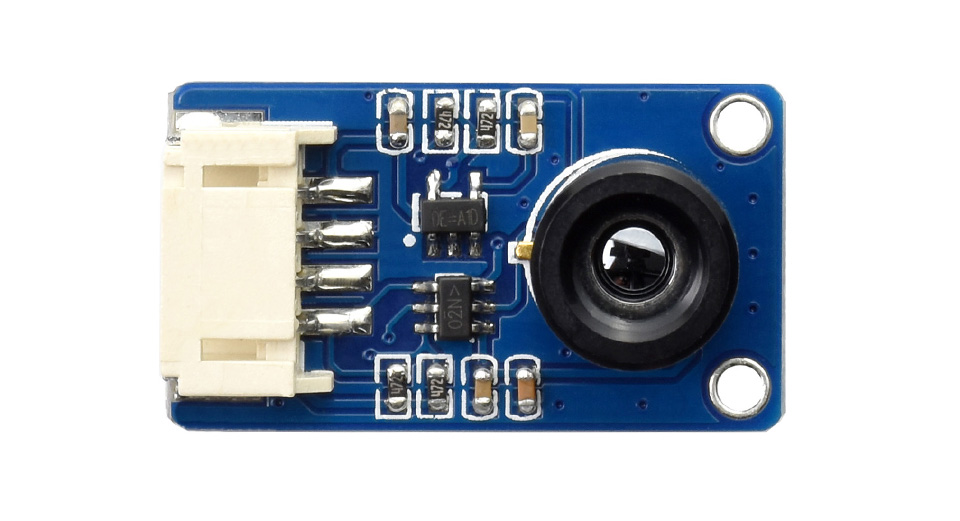

I2C control interface
supports host boards including Raspberry Pi/Arduino(ESP32)/STM32...
| VCC | 3.3V/5V power input |
| GND | GND |
| SDA | connects to MCU I2C data pin |
| SCL | connects to MCU I2C clock pin |

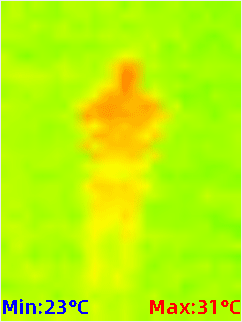

Demonstration

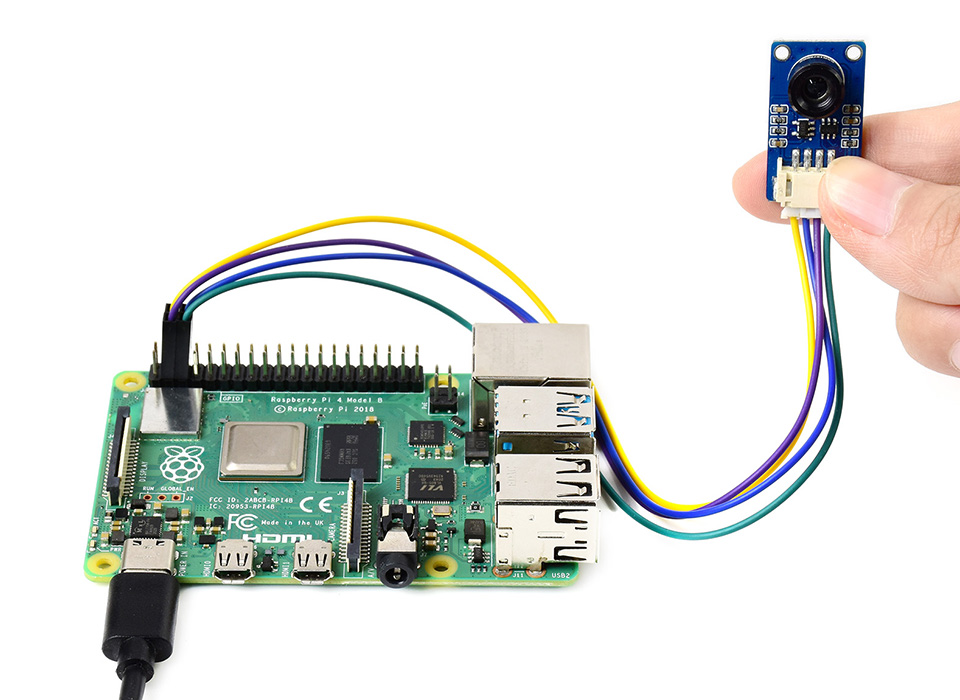

for reference ONLY, Raspberry Pi is NOT included.
Outline Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
| MLX90640-D55 | MLX90640-D110 | MLX90641-D55 | MLX90614ESF-BCC | |
|---|---|---|---|---|
| Pixel array | 32×24 | 16×12 | 1 | |
| Absolute accuracy | ±2? (ambient temp. 0 ~ 50?) | ±0.5? (ambient temp. 0 ~ 50?) | ||
| Target temp. range | -40 ~ 300? | -70 ~ 380? | ||
| Field of view (FOV) | 55° × 35° | 110° × 75° | 55° × 35° | 35° |
| Refresh rate | 0.5~64Hz (0.25~32FPS) | - | ||
| Operating temperature | -40 ~ 85? | -40 ~ 125? | -40 ~ 85? | |
| Current | < 23mA | ≈12mA | < 2mA | |
| Market orientation | medium pixels, higher price | low cost | high precision | |
Package Contents
- MLX90640-D55 Thermal Camera x1
- PH2.0 4PIN wire x1
1
2
| Shipping weight: | 0.01 Kg |
