Waveshare 17951 Fan HAT
Beschreibung

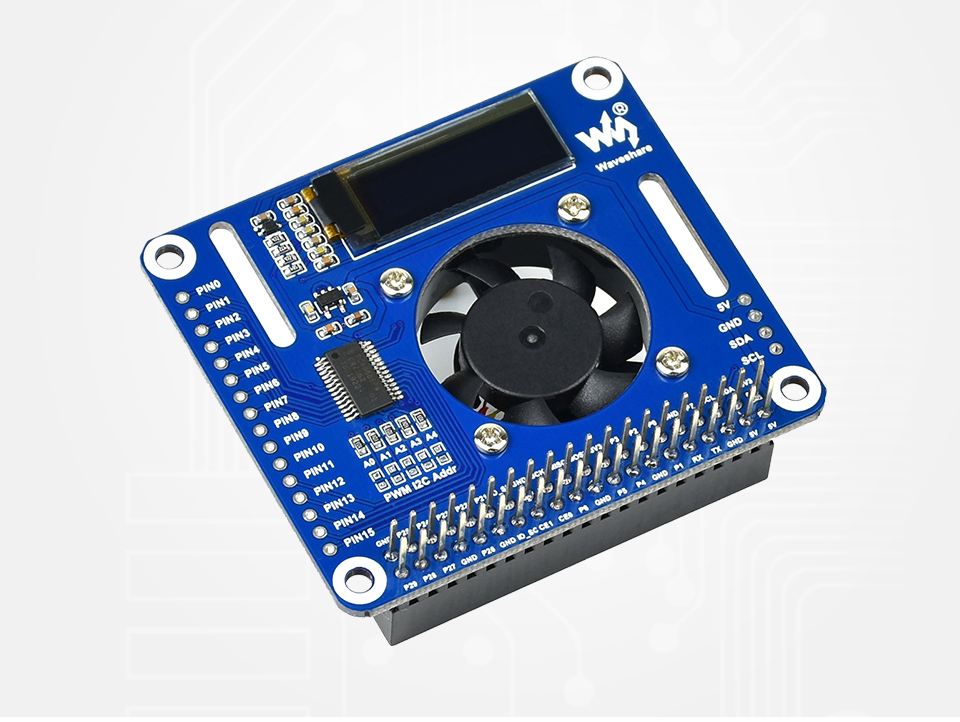

Fan HAT for Raspberry Pi
PWM controlled fan speed via I2C bus, real time temperature monitor
Comes with manual and examples in C / Python
Designed for Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
Features at a glance
- PCA9685 PWM driver as the fan controller, powerful driving capability, auto PWM adjustment
- 0.91" OLED, 128x32 pixels, displays board temperature or other user-defined content in real time
- Adopts 3007 size PWM controlled fan, up to 8000rpm speed, brings strong airflow
- Supports retrieving temperature data in real time, and then adjusting the speed automatically, programmable configuration
- I2C pins, for connecting other host control boards
- 16-ch PWM outputs, for driving other external PWM devices
- Comes with heat sinks, better cooling effect

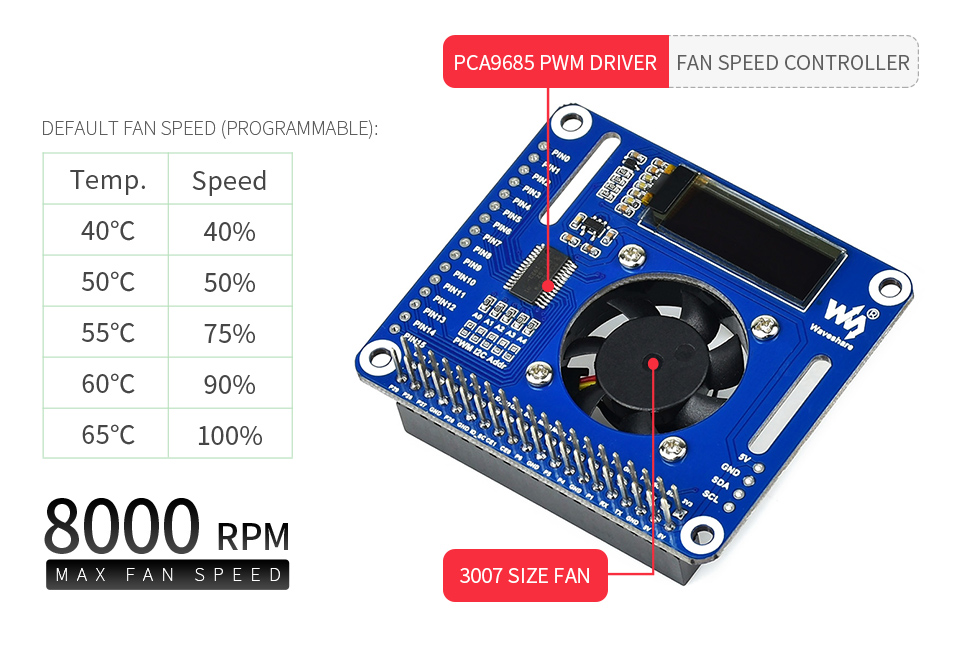

PCA9685 Fan Controller
up to 16-ch PWM outputs, powerful driving capability, auto PWM adjustmentcombined with the included heat sinks, achieving better cooling effect

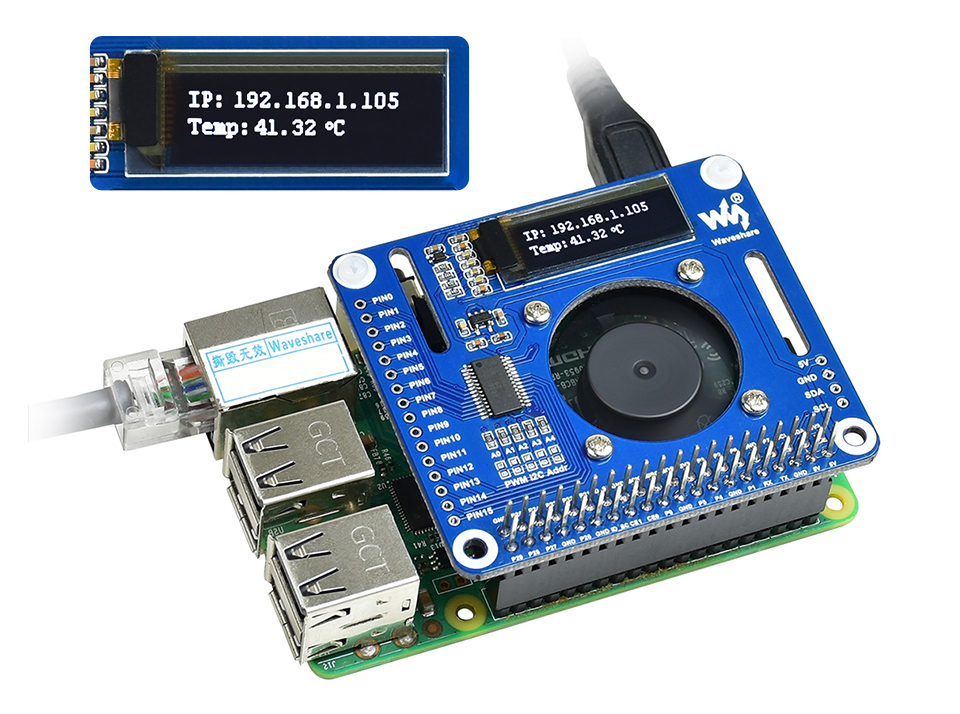

0.91" OLED mini display
128×32 pixels, I2C controlleddisplays board temperature or other user-defined content in real time

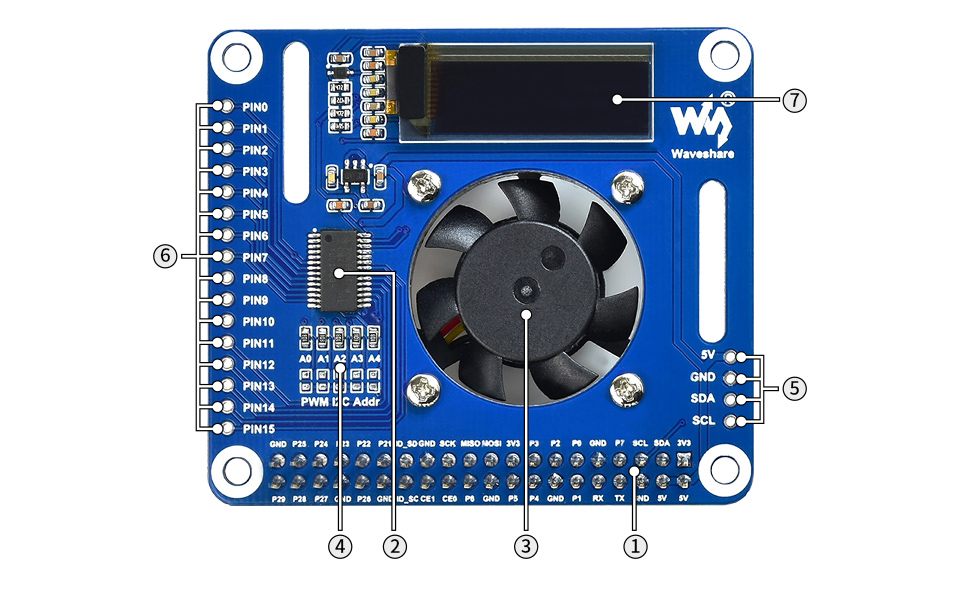

What's On Board

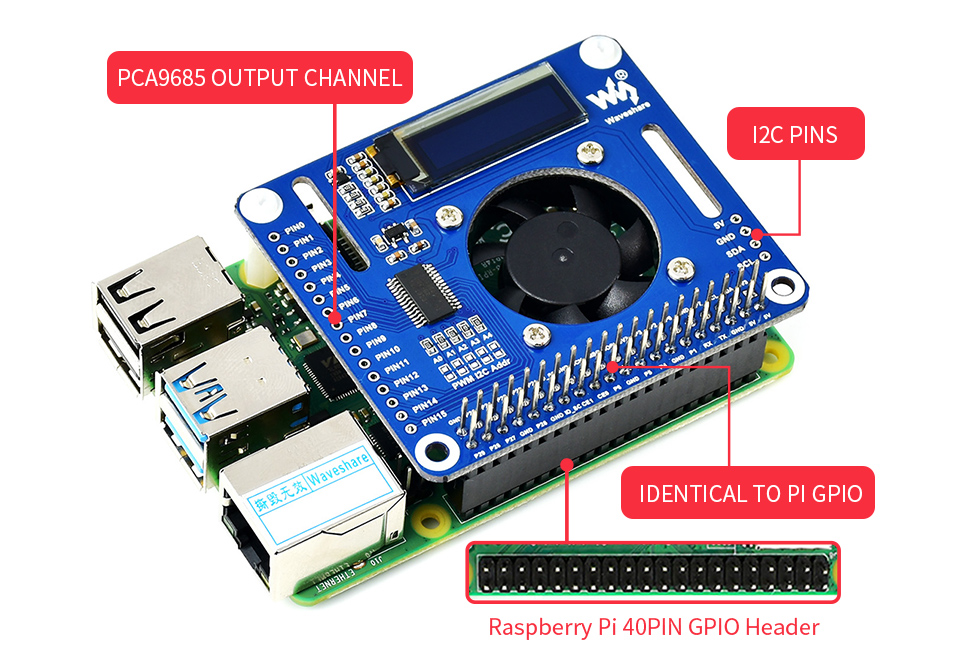

- Standard Raspberry Pi 40PIN GPIO header
- PCA9685 PWM driver
- 3007 size PWM controlled adjustable fan
- PCA9685 I2C address configuration
- Reserved I2C control pins
- Reserved PCA9685 output channels
- 0.91" OLED display

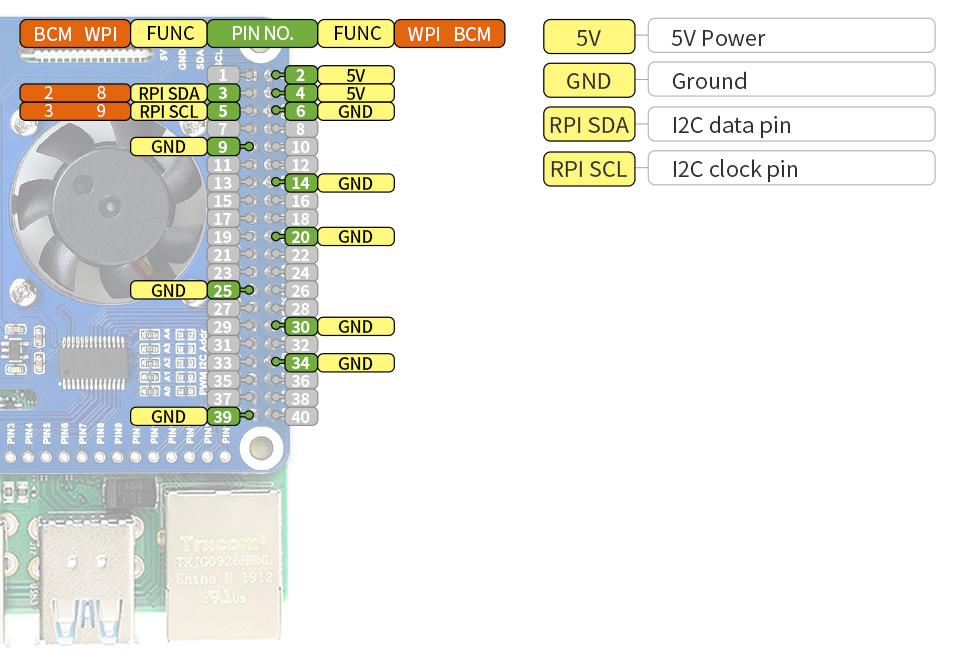

Pinout definition
Specifications
| Power supply voltage | 5V | Logic level voltage | 3.3V |
|---|---|---|---|
| Fan Driver | PCA9685 | OLED driver | SSD1306 |
| Control bus | I2C | OLED resolution | 128×32 |
| Fan PWM driver duty cycle | =25% | OLED display color | White |
| Fan speed (Max) | 8000rpm | OLED viewing angle | >160° |

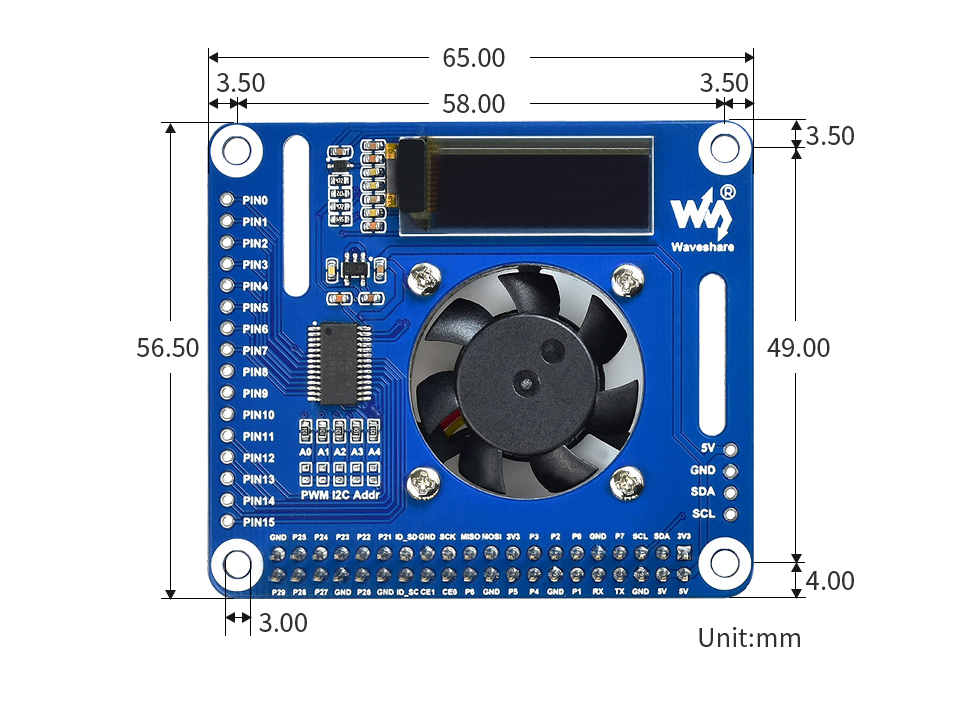

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Fan HAT x1
- PI4-HEATSINK-SET x1
- Male header x1
- Standoffs pack (2pcs) x1
1
2
3
4
| Versandgewicht: | 0,04 Kg |
