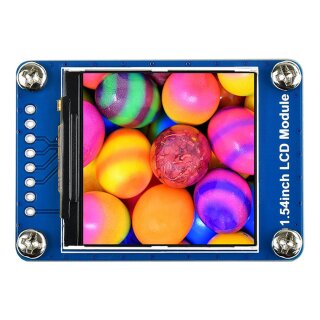

Waveshare 18079 1.54inch LCD Module
Beschreibung

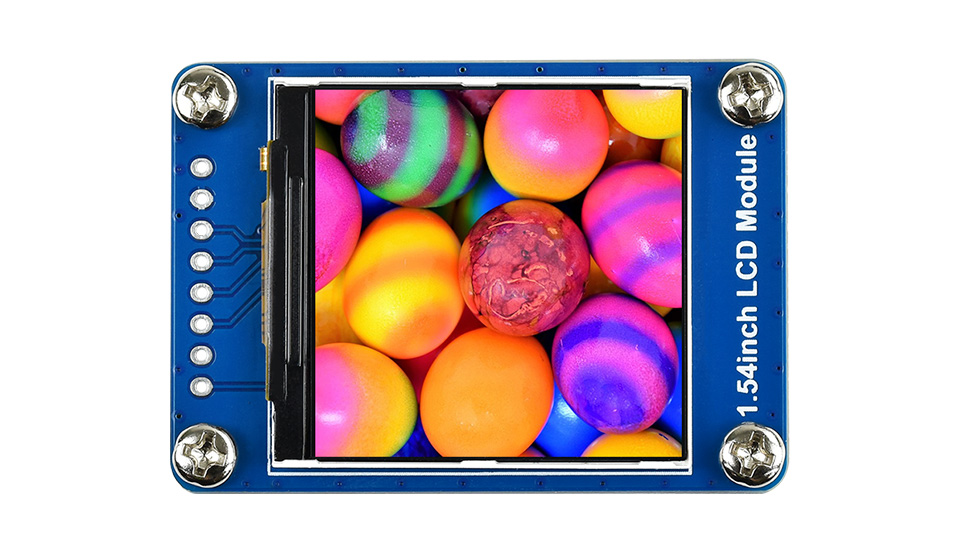

1.54" LCD Display Module
embedded ST7789 driver, using SPI bus
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
-
Size
1.54"
-
Resolution
240×240
-
Display Color
65K RGB
-
Display Panel
IPS
-
Interface
SPI
-
Driver
ST7789
Features at a glance
- 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| Operating voltage | 3.3V/5V | Resolution | 240 × 240pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | 27.72 × 27.72mm |
| Display Panel | IPS | Pixel size | 0.1155 × 0.1155mm |
| Driver | ST7789 | Dimensions | 50 × 35mm |

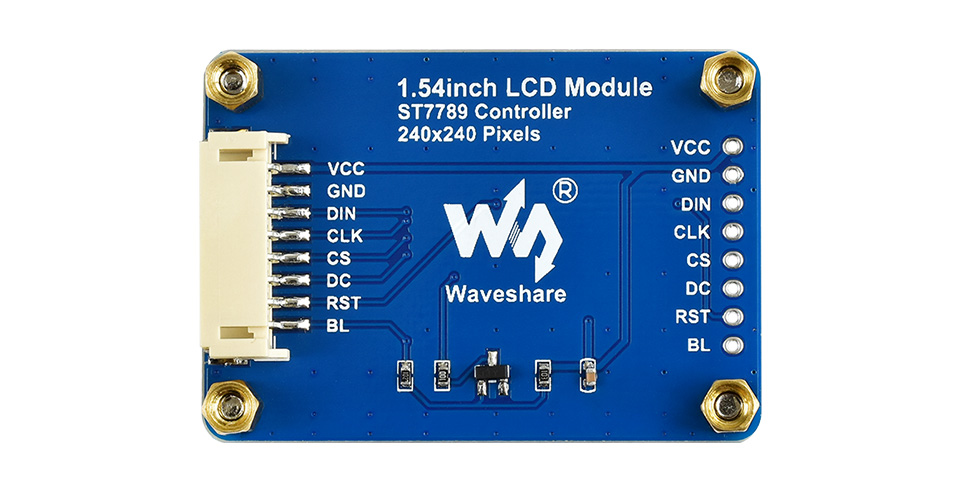

Controlled via SPI Bus
supports controller boards like Raspberry Pi/Arduino/STM32
| VCC | Power (3.3V/5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware connection

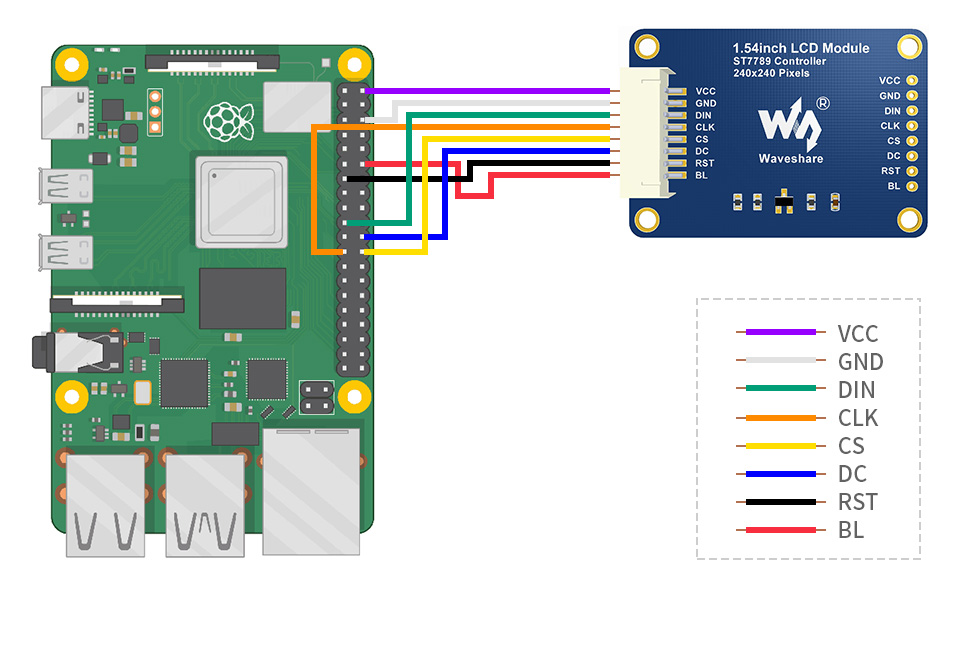

connecting with Raspberry Pi

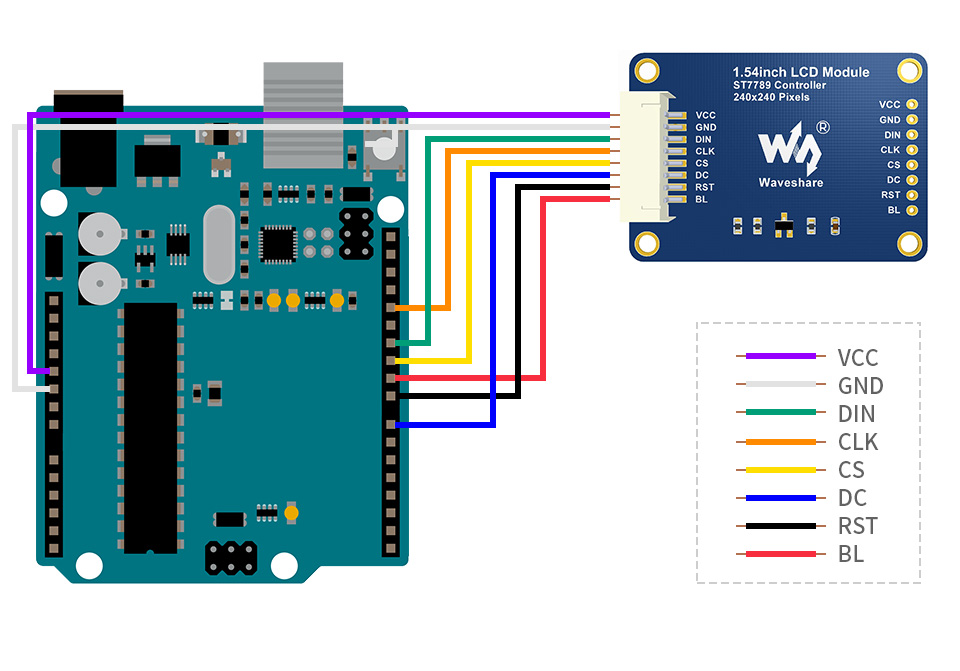

connecting with Arduino board

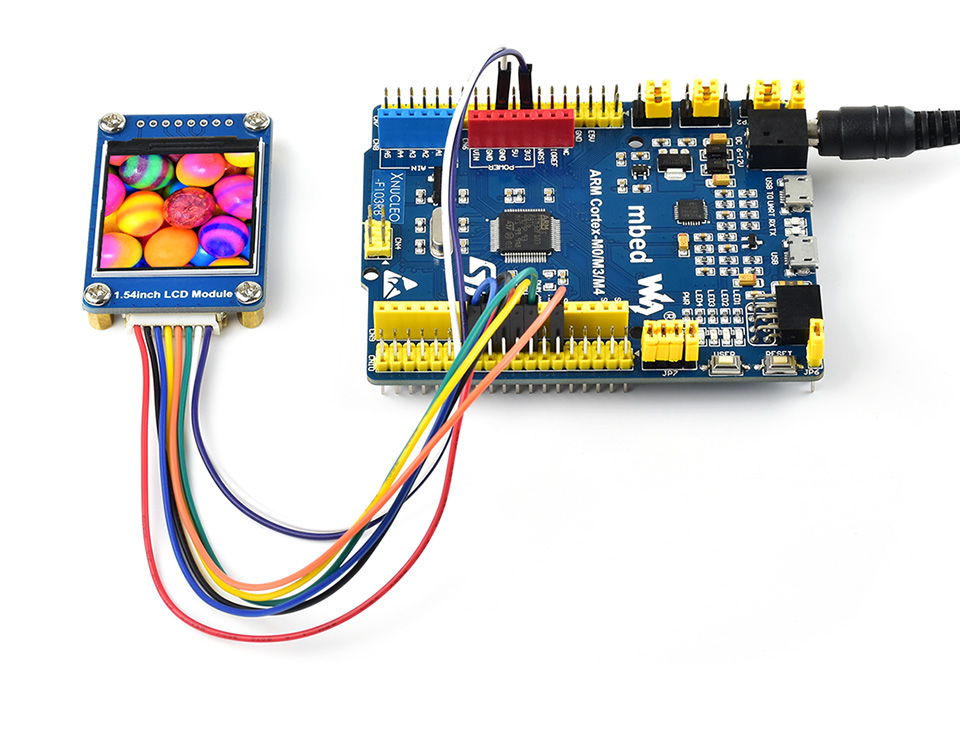

Living example

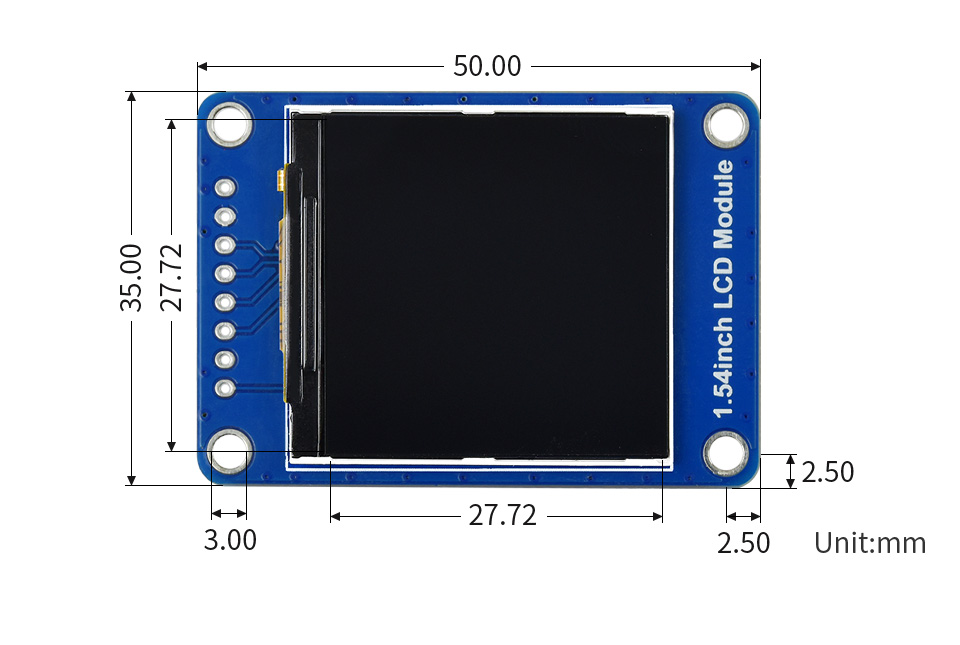

Outline dimensions
Selection Guide
| Part Number | Type | Color | Resolution | Display Size (mm×mm) | Interfaces | Driver | Dimension (mm×mm) | Pinheader |
|---|---|---|---|---|---|---|---|---|
| 0.91inch OLED Module | OLED | White | 128×32 | 22.38×5.58 | I2C | SSD1306 | 36.0×12.5 | PH2.0 connector |
| 0.95inch RGB OLED (A) | OLED | 65K colorful | 96×64 | 20.14×13.42 | SPI(4-wire SPI) | SSD1331 | 31.7×37.0 | angled/horizontal |
| 0.95inch RGB OLED (B) | OLED | 65K colorful | 96×64 | 20.14×13.42 | SPI(4-wire SPI) | SSD1331 | 31.7×37.0 | straight/vertical |
| 0.96inch LCD Module | IPS | 65K colorful | 160×80 | 21.70×10.80 | 4-wire SPI | ST7735S | 32.5×26.0 | PH2.0 connector |
| 0.96inch OLED (A) | OLED | 1/4 yellow section, 3/4 blue section | 128×64 | 21.7×11.2 | 3-wire SPI, 4-wire SPI, I2C | SSD1306 | 33.0×33.5 | angled/horizontal |
| 0.96inch OLED (B) | OLED | 1/4 yellow section, 3/4 blue section | 128×64 | 21.7×11.2 | 3-wire SPI, 4-wire SPI, I2C | SSD1306 | 33.0×33.5 | straight/vertical |
| 1.14inch LCD Module | IPS | 65K colorful | 240×135 | 24.91×14.86 | 4-wire SPI | ST7789 | 35.0×32.0 | PH2.0 connector |
| 1.28inch LCD Module | IPS | 65K colorful | 240×240 | Φ32.4mm | 4-wire SPI | GC9A01 | 40.4×37.5 Φ37.5 | PH2.0 connector |
| 1.3inch LCD Module | IPS | 65K colorful | 240×240 | 23.40×23.40 | 4-wire SPI | ST7789 | 45.0×31.0 | PH2.0 connector |
| 1.3inch OLED (A) | OLED | Blue | 128×64 | 29.42×14.7 | 3-wire SPI, 4-wire SPI, I2C | SH1106 | 40.5×37.5 | angled/horizontal |
| 1.3inch OLED (B) | OLED | Blue | 128×64 | 29.42×14.7 | 3-wire SPI, 4-wire SPI, I2C | SH1106 | 40.5×37.5 | straight/vertical |
| 1.3inch OLED Module (C) | OLED | White | 64×128 | 14.70×29.42 | 4-wire SPI, I2C | SH1107 | 30.0×39.5 | PH2.0 connector |
| 1.5inch OLED Module | OLED | White (16 gray scale) | 128×128 | 26.86×26.86 | 4-wire SPI, I2C | SSD1327 | 44.5×37.0 | PH2.0 connector |
| 1.5inch RGB OLED Module | OLED | 65K colorful | 128×128 | 26.86×26.86 | 3-wire SPI, 4-wire SPI | SSD1351 | 44.5×37.0 | PH2.0 connector |
| 1.54inch LCD Module | IPS | 65K colorful | 240×240 | 27.72×27.72 | 4-wire SPI | ST7789 | 50.0×35.0 | PH2.0 connector |
| 1.8inch LCD Module | TFT | 65K colorful | 128×160 | 34.50×28.30 | 4-wire SPI | ST7735S | 56.5×34.0 | PH2.0 connector |
| 2inch LCD Module | IPS | 262K colorful | 240×320 | 30.60×40.80 | 4-wire SPI | ST7789 | 58.0×35.0 | PH2.0 connector |
| 2.4inch LCD Module | TFT | 65K colorful | 240×320 | 36.72×48.96 | 4-wire SPI | ILI9341 | 70.5×43.3 | PH2.0 connector |
Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
Package Contents
- 1.54inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
1
2
| Versandgewicht: | 0,03 Kg |
