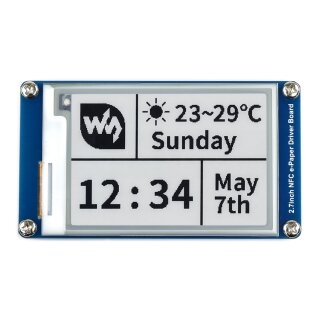

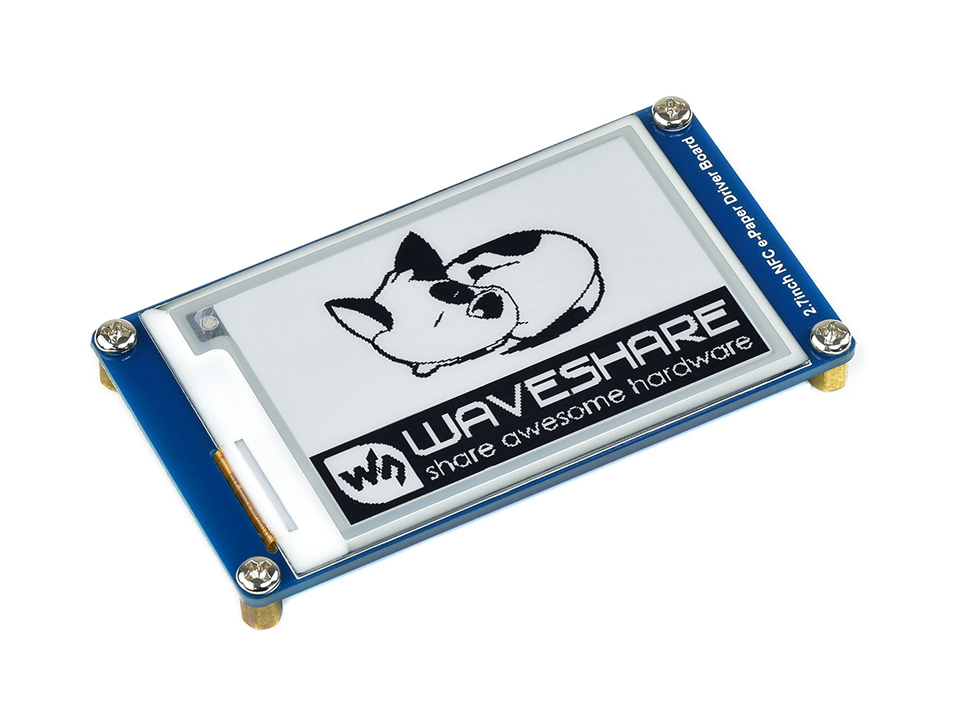

Waveshare 18136 2.7inch NFC-Powered e-Paper Module
Beschreibung
2.7" NFC-Powered E-Paper Module
Novel Passive NFC Technology, No Battery Required, No More Battery Life Trouble
Black and White Display Colors
-
Size
2.7"
-
Resolution
264×176
-
Viewing Angle
>170°
-
Display Color
Black and White
-
Grey Scale
2
-
Communication
Passive NFC
-
Display Panel
E-paper
-
Experience
Paper-like
-
Environment
Ambient Light Required
-
Display Type
Passively Reflective
-
No Battery
Energy Saving
-
Smartphone APP
Android APP
Specifications
| POWER SUPPLY | Wireless | GREY SCALE | 2 |
|---|---|---|---|
| DISPLAY COLOR | Black / White | REFRESH TIME | 6s (data transfer time is not included) |
| DOT PITCH | 0.217 × 0.217mm | DISPLAY SIZE | 57.29 × 38.19mm |
| RESOLUTION | 264 × 176pixels | OUTLINE DIMENSION | 84.5 × 47.50mm |
| VIEWING ANGLE | >170° |

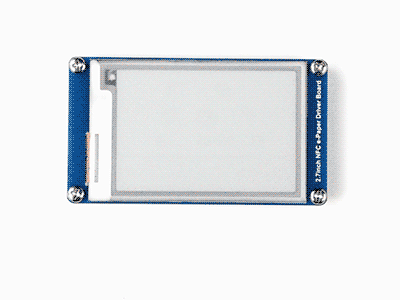

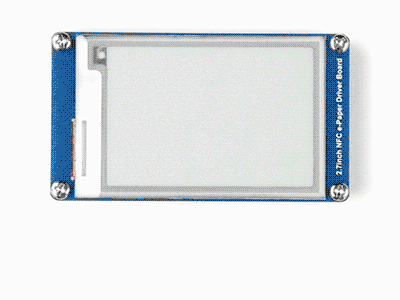

Wireless NFC-Powered Display Refreshing
Passive NFC Solution, No Battery Required, No Messy Wiring

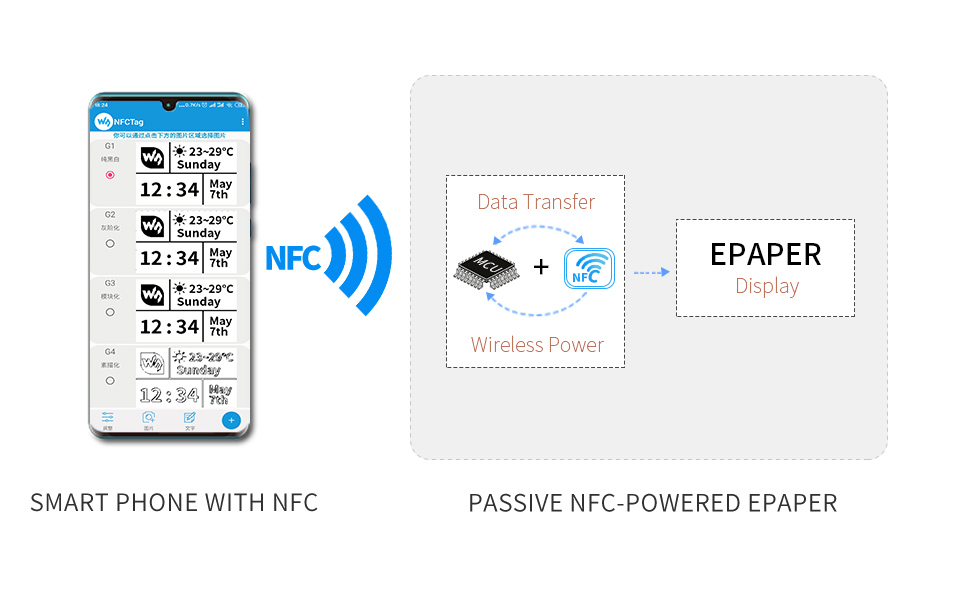

How It Works
Wireless Powering & Data Transfer
To Refresh The Display Content, Use A Smart Phone With NFC Function, Or An NFC Reader, Close To The E-Paper, It'll Be Done In A Few Seconds
Refreshing Example

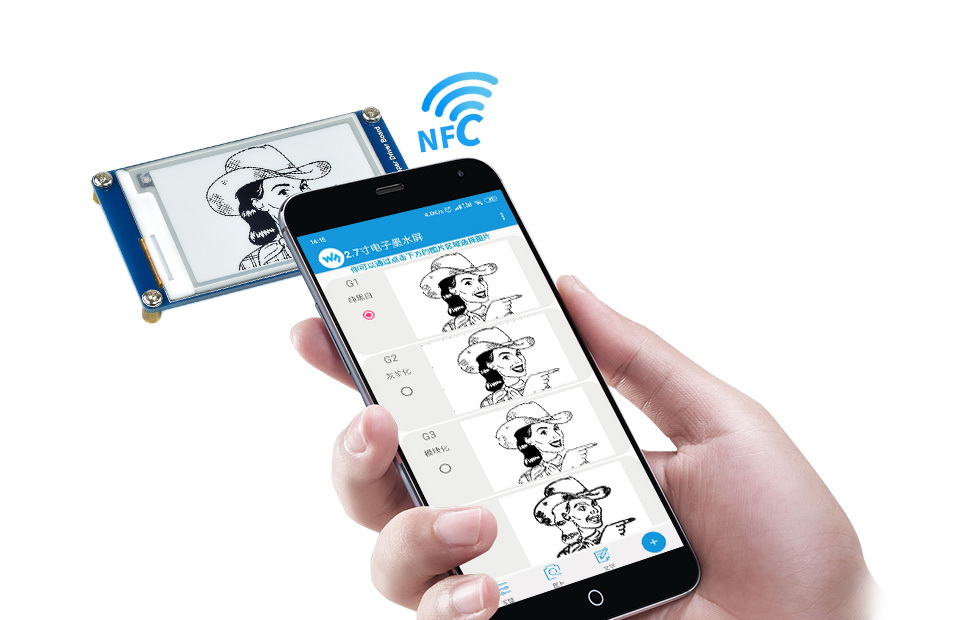

Refreshed By Smartphone, Comes With Android APP
Refreshed By NFC Reader
Recommended: ST25R3911B NFC Board
NFC smartphone or ST25R3911B NFC Board in the examples is NOT included.
Applications
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

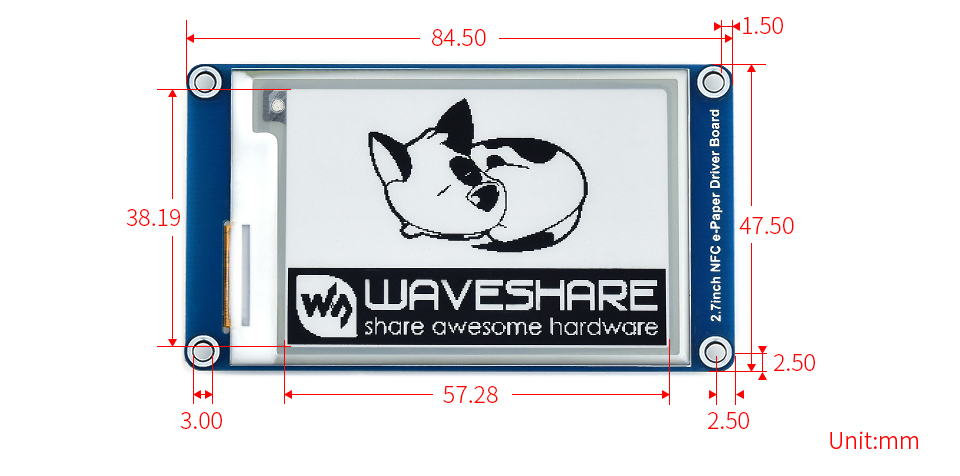

Outline dimensions

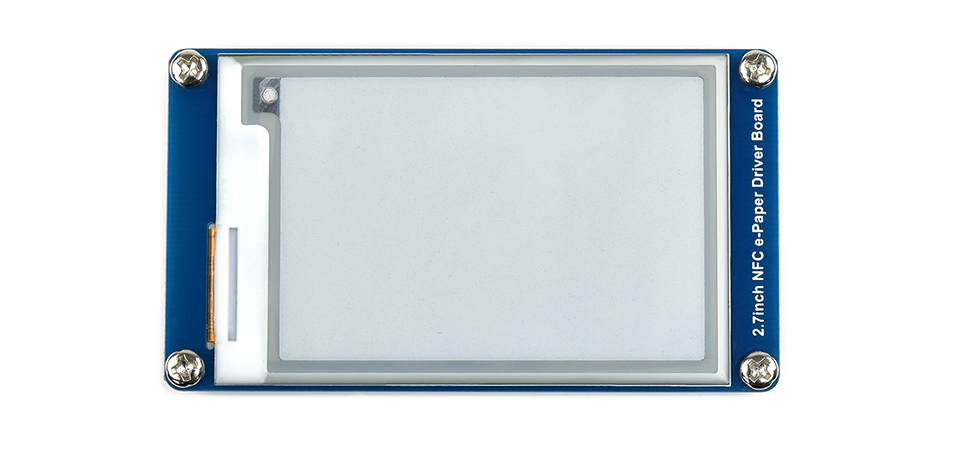

Package Contents
- 2.7inch NFC-Powered e-Paper Module x1
| Versandgewicht: | 0,05 Kg |
