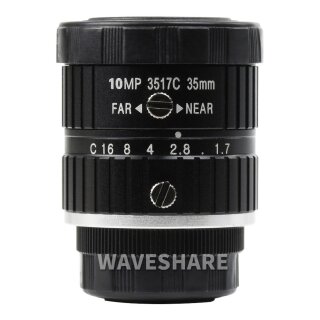

Waveshare 18155 35mm Telephoto Lens for Pi
Beschreibung
35mmTelephotoLens

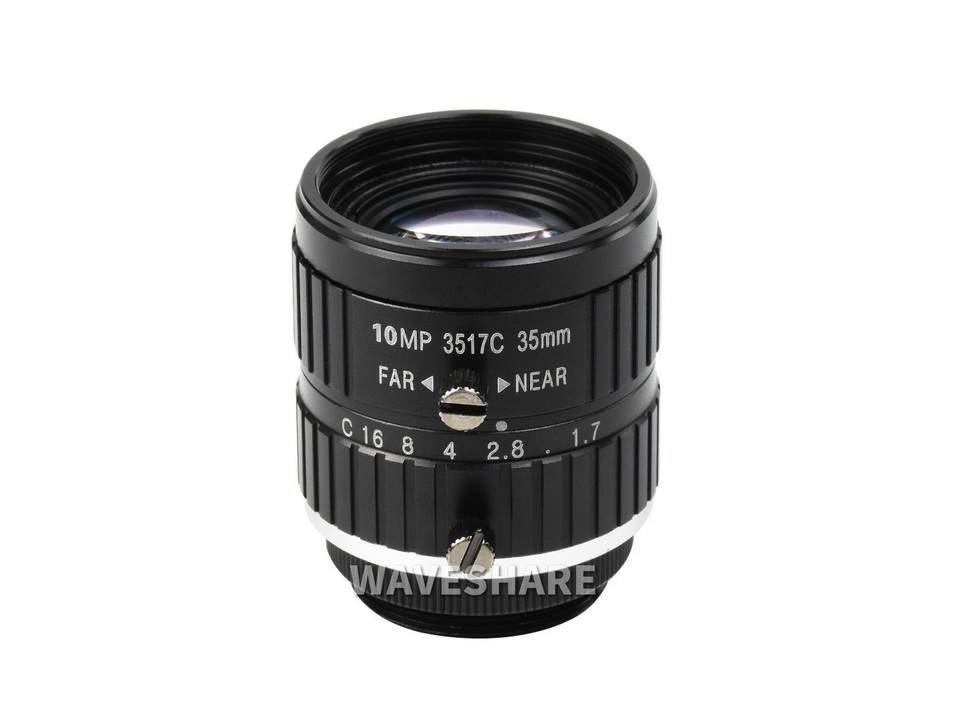

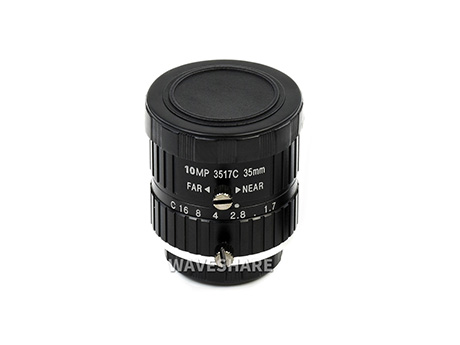

35mm C-mount Telephoto lens for Raspberry Pi High Quality Camera
shorten the distance
35mm focal length high definition telephoto lens, capturing every tiny details

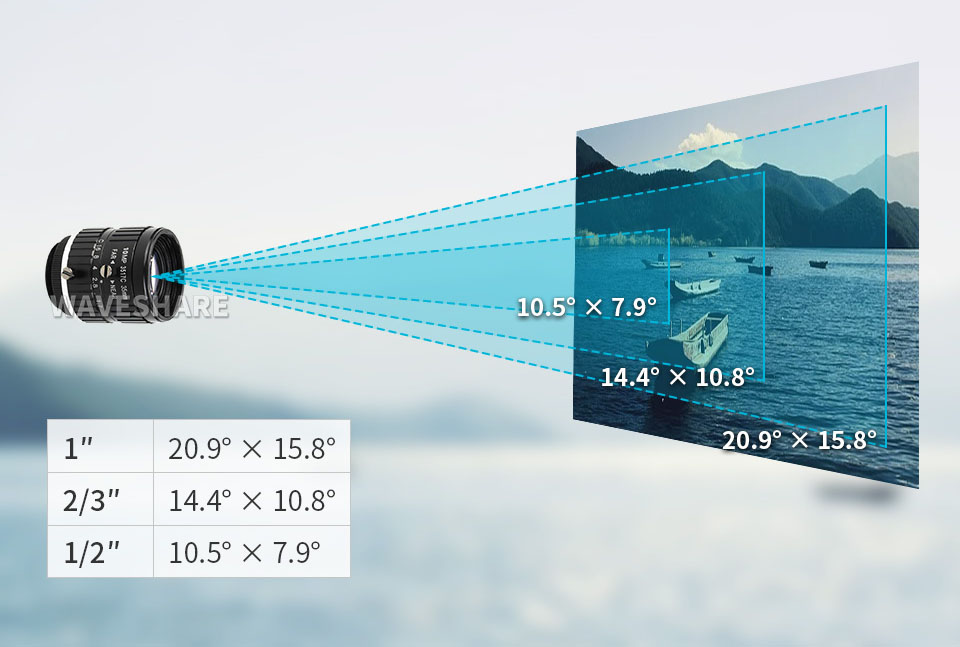

Multi field angle options
Brings the beautiful world into your vision

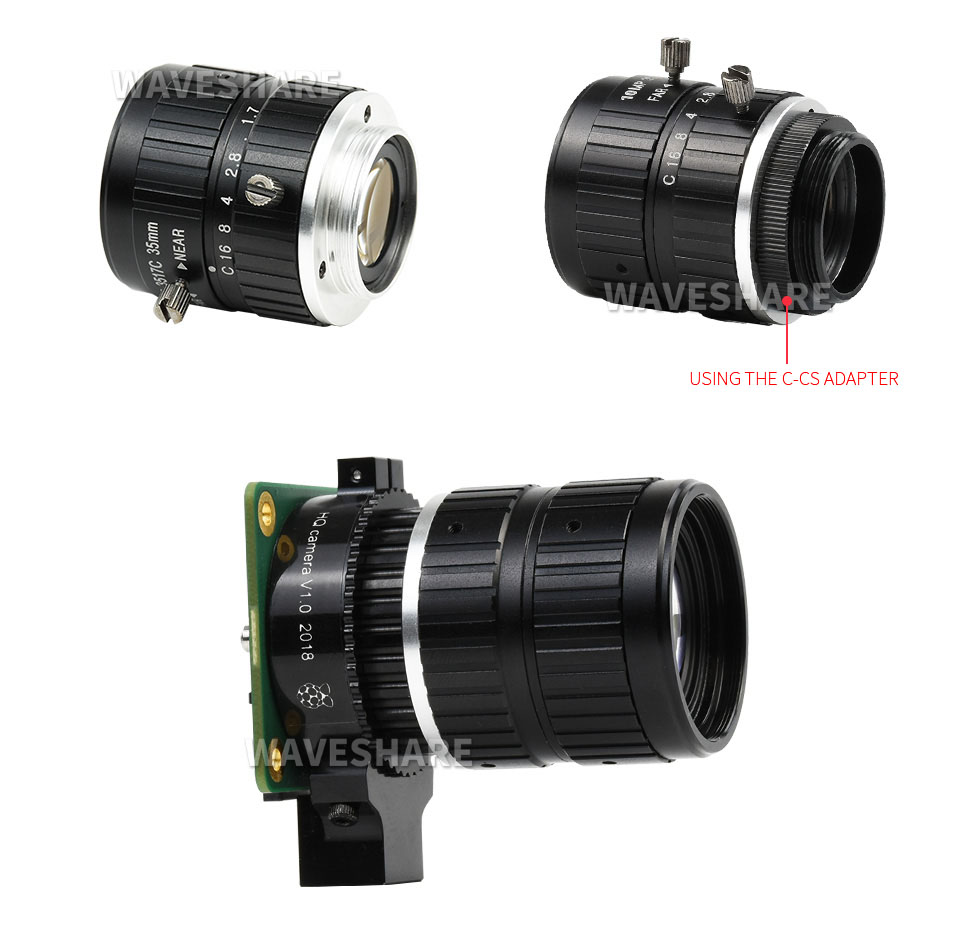

Fitting to the Camera
Fitting the lens to Raspberry Pi High Quality Camera(C-CS adapter required)

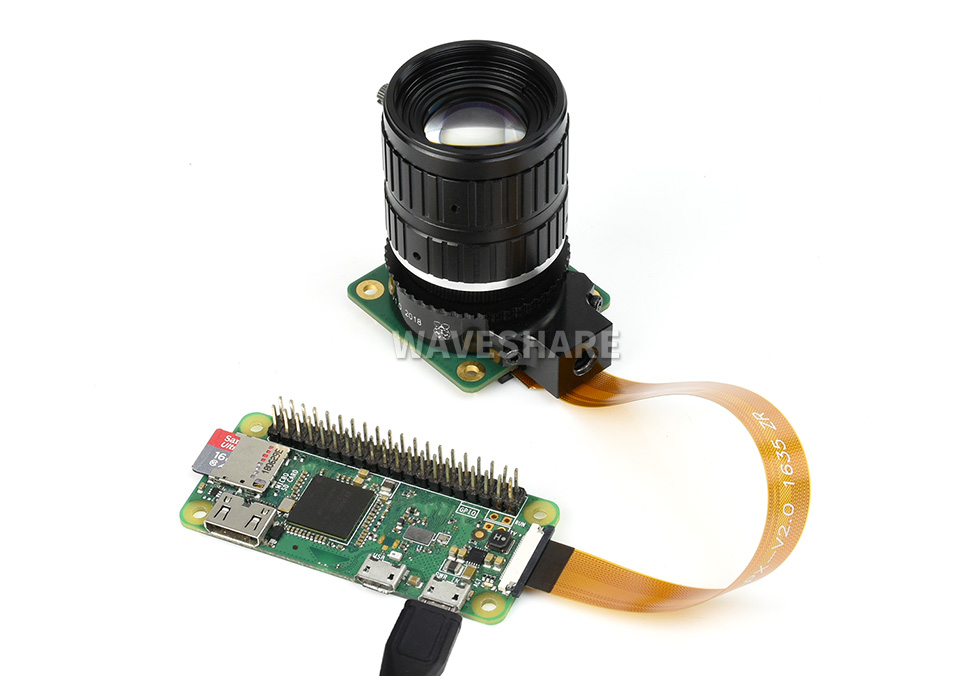

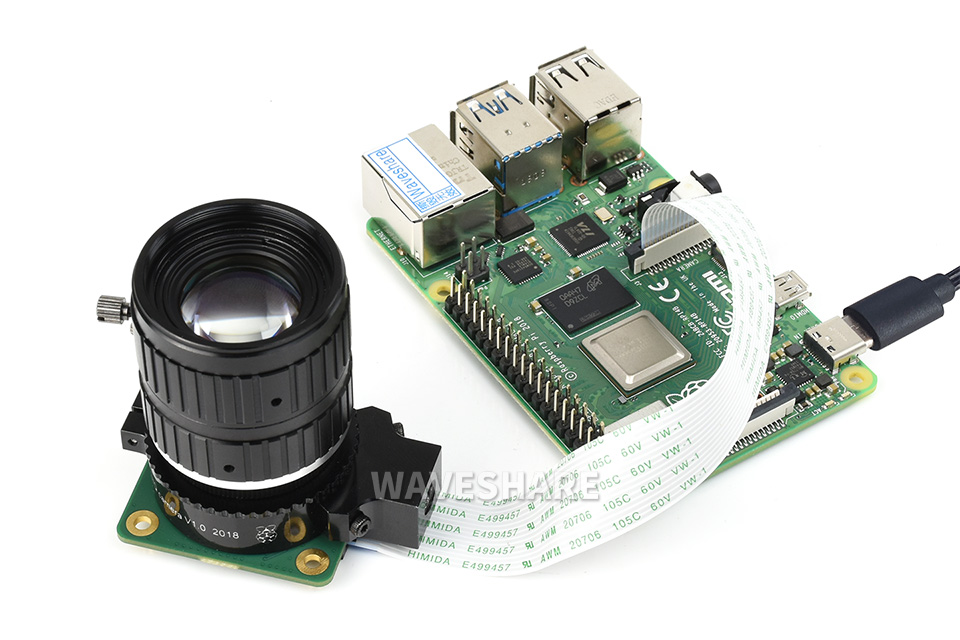

Working with Raspberry Pi
- Raspberry Pi, and High Quality Camera in the photos are NOT included
- To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable
Lens Selection
6mm Wide Angle Lens | 16mm Telephoto Lens | 25mm Telephoto Lens | 35mm Telephoto Lens | 8-50mm Zoom Lens | |
Image format | 1/2" | 1" | 2/3" | 1" | 1/2.3" |
---|---|---|---|---|---|
Focal length | 6mm | 16mm | 25mm | 35mm | 8-50mm |
Aperture | F1.2 | F1.4-16 | F1.4-16 | F1.7-16 | F1.4 |
Mount | CS-mount | C-mount | |||
Angle of view | 63° | 1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4° | 2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5° | 1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9° | 45°-5.35° |
Back focus | 7.53mm | 17.53mm | |||
Optical length | - | 67.53mm | - | - | - |
Distortion | - | 1"(-0.7%) 1/2"(-0.5%) 1/3"(-0.15%) | 0.05% | 0.35% | - |
M.O.D. | 0.20m | 0.20m | 0.25m | 0.30m | 0.20m |
Dimensions | Φ30.00 × 34.00mm | Φ39.00 × 50.00mm | Φ34.00 × 34.00mm | Φ35.00 × 34.00mm | Φ40.00×68.30mm |
Operation | Manual aperture adjustment | ||||
Weight | 53g | 133.7g | 82g | 78g | 148g |
Resources & Services
Package Contents
- 35mm Telephoto Lens for Pi
- C-CS adapter
1
2
Versandgewicht: | 0,14 Kg |
