Description

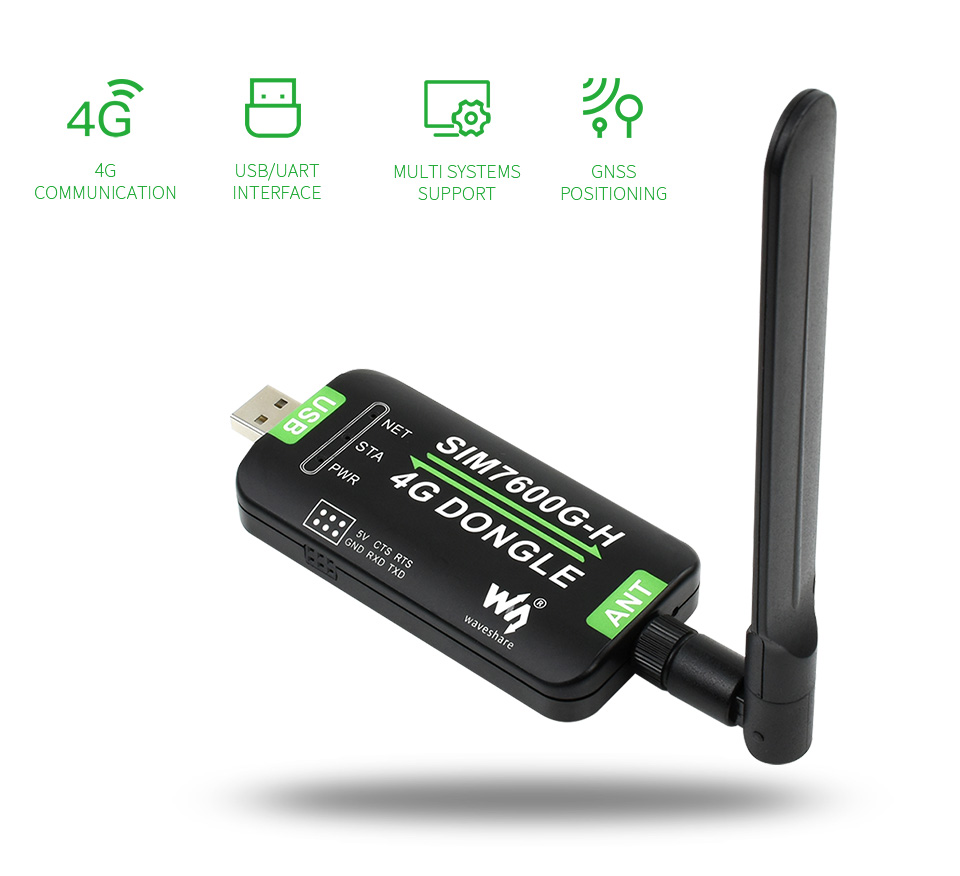

SIM7600G-H 4G DONGLE
This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux/Android. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-1.jpg)
Features at a glance
- Supports 2G/3G/4G network connection, global band
- Driver provided, for operating systems including Windows/Linux/Android
- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
- Onboard GNSS connecting, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
- Nano SIM card slot, supports 1.8V / 3V nano SIM card
- 3x LED indicators, easy to monitor the working status
- Portable customized enclosure, mini size, nice looking
- Baudrate support: 300bps ~ 4Mbps (115200bps by default)
- Baudrate auto-negotiation: 9600bps ~ 115200bps
Specification comparing
SIM7600CE-CNSE | SIM7600G-H | |
---|---|---|
Applicable regions* | China | Global |
Band | ||
LTE Cat-4 / LTE Cat-1 | LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B8 | LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 |
3G | UMTS/HSDPA/HSPA+: B1/B8 TD-SCDMA: B34/B39 | UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
2G | GSM/GPRS/EDGE: 900/1800MHz | GSM/GPRS/EDGE: 850/900/1800/1900MHz |
GNSS | N/A | GPS, BeiDou, Glonass, LBS base station |
Data Rate | ||
LTE Cat-4 | 150Mbps(DL) / 50Mbps(UL) | |
3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | |
2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | |
2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | |
Software Features | ||
Operating system | Windows/Linux/Android | |
Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | |
Dial-up protocol | NDIS/RNDIS/PPP | |
SMS | Supports MT, MO, CB, Text, PDU | |
Hardware Description | ||
Communication interface | USB / UART | |
UART baud rate | 300bps ~ 4Mbps (115200bps by default) | |
Indicator | NET:network indicator | |
STA:status indicator | ||
PWR:power indicator | ||
SIM card support | Nano SIM card (1.8V / 3V) | |
Antenna connector | LTE | |
Power supply | 5V | |
Logic level | 3.3V | |
Outline dimensions | 89.20 × 45.26 × 14.62mm |
* for bulk purchase, customizing service (like SIM7600CE-T / E-H / A-H etc.) is available to support other regions, please feel free to contact Waveshare team.
Global band support
supports global 2G/3G/4G communication
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-5.jpg)

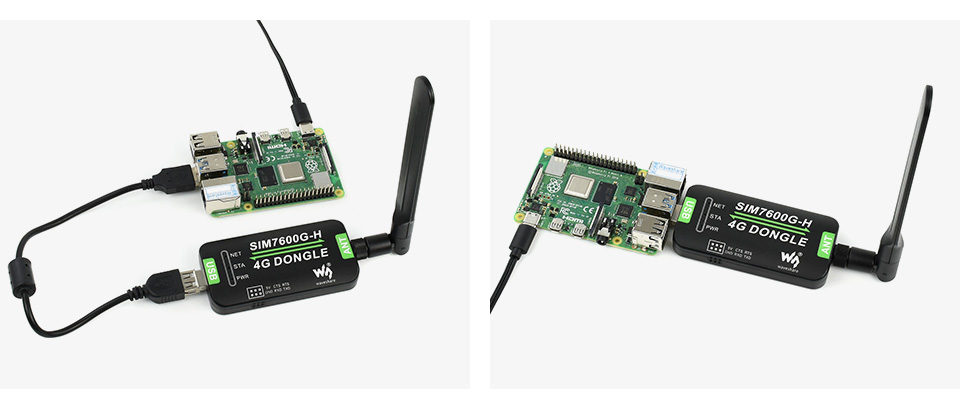

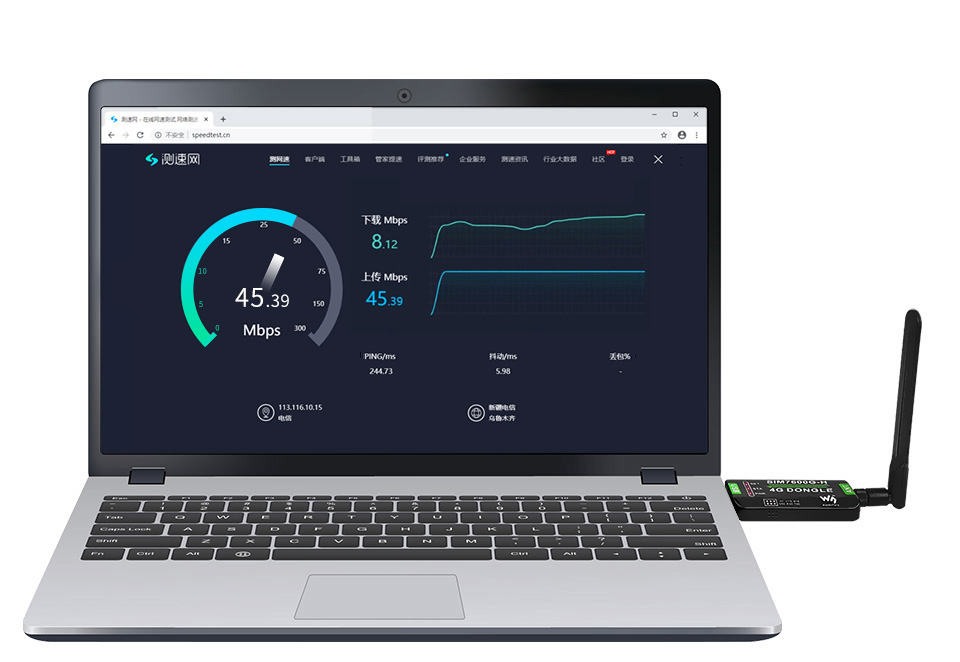

Multi host support
working with laptop / Raspberry Pi / industrial computer...up to 150Mbps downlink and 50Mbps uplink*
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-6.jpg)
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-7.jpg)
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
Multi system support
supports Windows/Android/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-15.jpg)

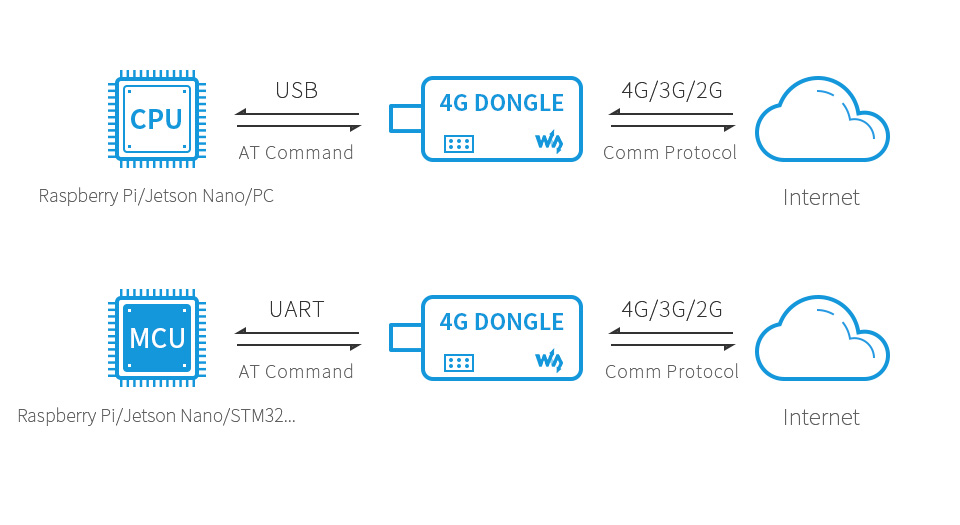

Cloud Communication
supports USB/UART communication interfacessupports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-9.jpg)

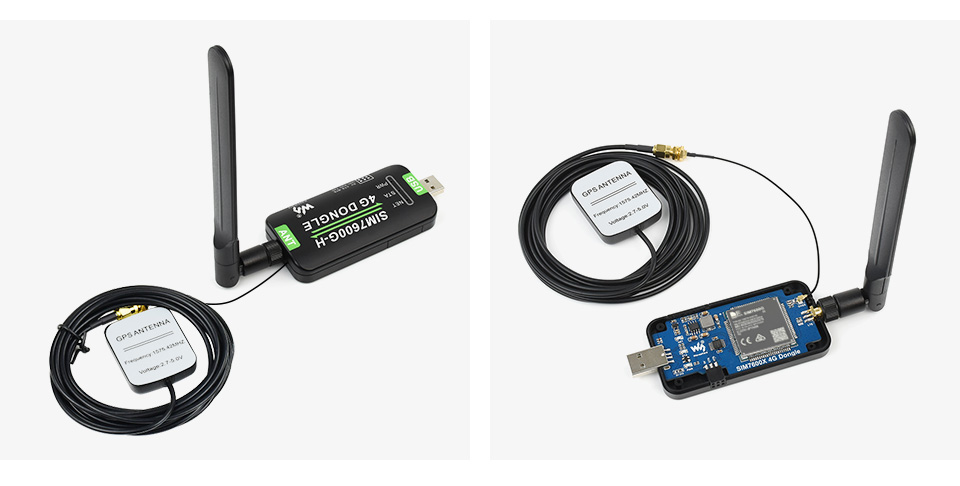

GNSS positioning
Supports GPS, BeiDou, Glonass, LBS base station positioning
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-11.jpg)
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-13.jpg)
Industrial grade 4G solution
Integrates SIM7600G-H module, industrial grade design, stable connection, more durable
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-8.jpg)

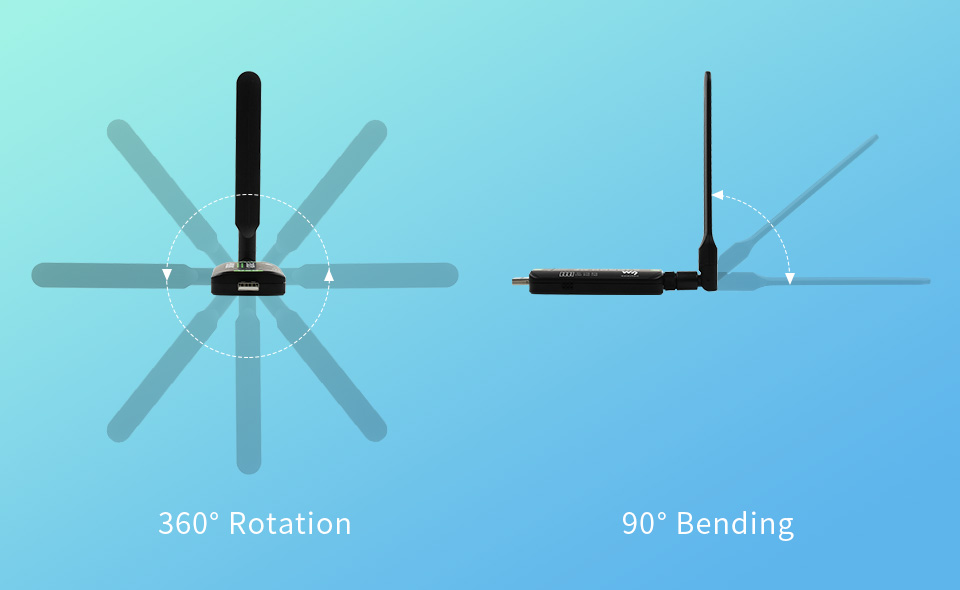

Flexible antenna
flexible structure antenna design, allows multidimensional rotation for better connection
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-17.jpg)

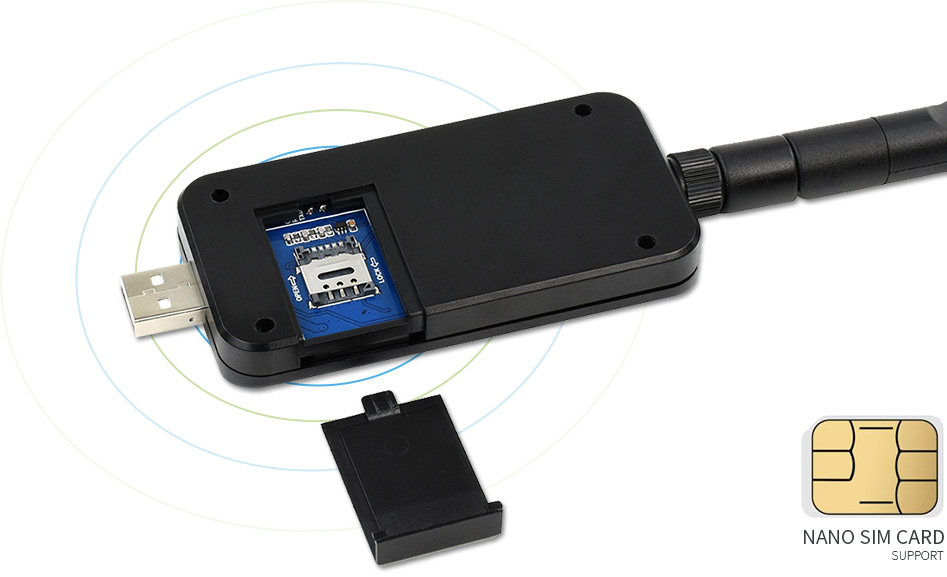

4G SIM card slot
onboard nano SIM card slot with sliding cover, easy to use
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-19.jpg)

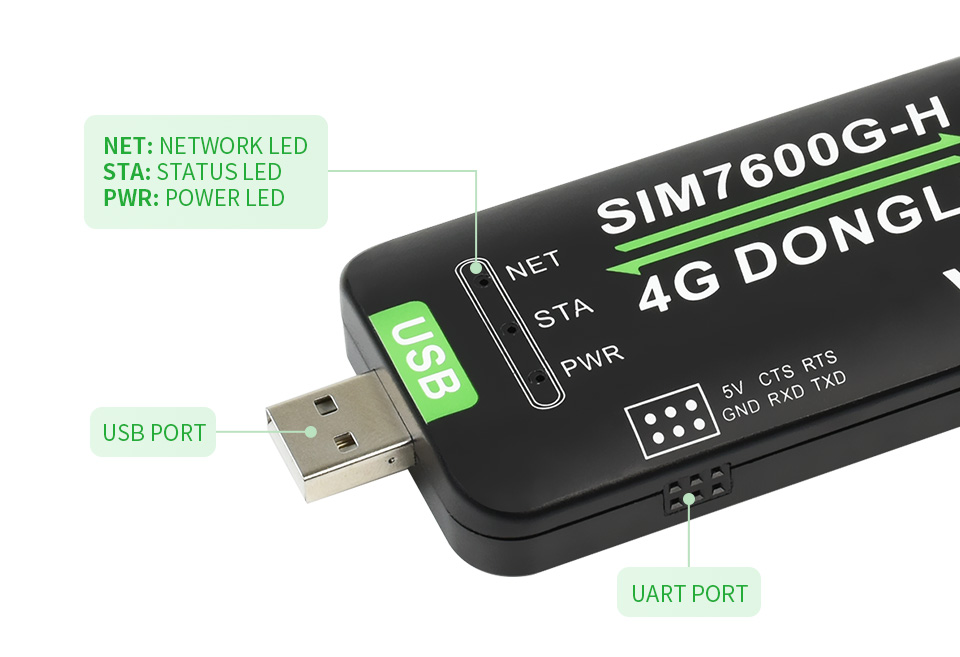

Three LED indicators
easy to check the operating status, convenient for programming/debugging
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-21.jpg)
UART pinouts | |
---|---|
5V | 5V DC input |
GND | power ground |
TXD | data transmitting |
RXD | data receiving |
CTS | hardware flow control, clear to send, NC if not used |
RTS | hardware flow control, request to send, NC if not used |
Application examples
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-23.jpg)

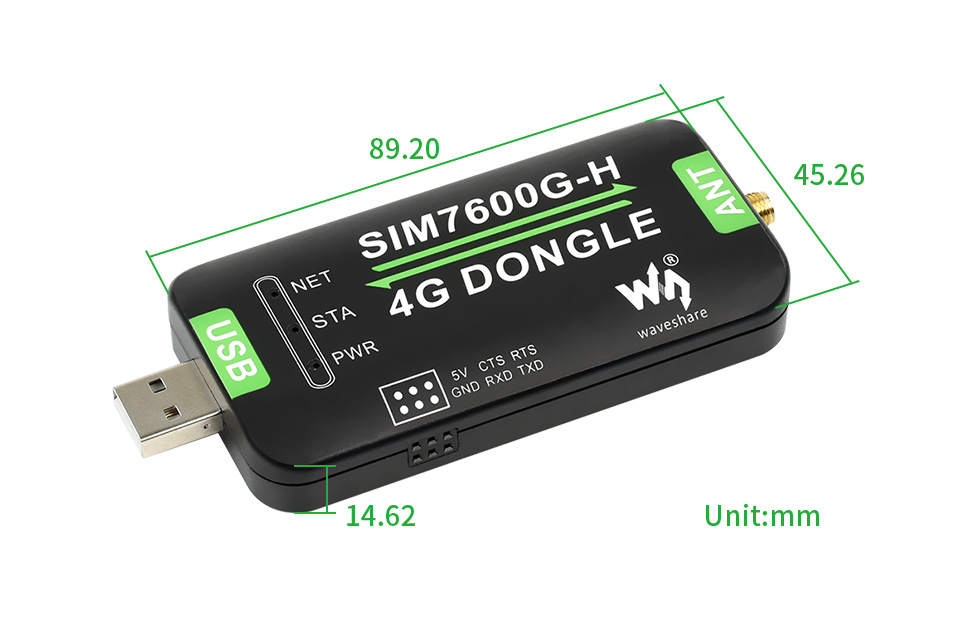

Outline Dimensions
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/SIM7600G-H-4G-DONGLE/SIM7600G-H-4G-DONGLE-details-size.jpg)
Shipping weight: | 0.14 Kg |
