Waveshare 18179 1.3inch OLED Module (C)

Artno.: WS3-018179
1.3inch OLED Display Module, Black / White Display Color, 64×128 Resolution, SPI / I2C Interface
8.50 € incl. 19% VAT
7.14 € excl. VAT

plus shipping

10+ On stock

Shipping time: 1 - 3 business days

Description

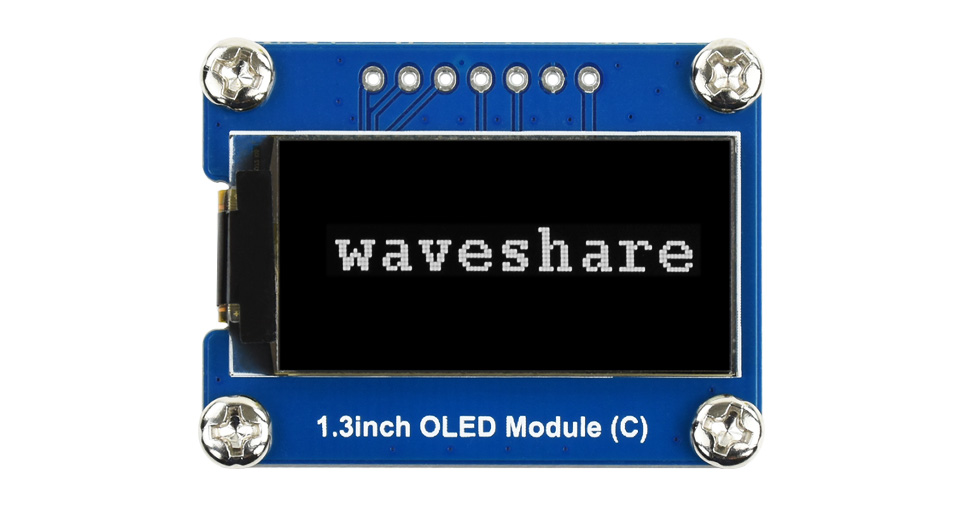

1.3" OLED Display Module

embedded SH1107 driver, using SPI / I2C bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

  • Size1.3"
  • Resolution64×128
  • Display ColorBlack / White
  • InterfaceSPI / I2C
  • Display PanelOLED
  • DriverSH1107

Features at a glance

  • Adopts both 4-wire SPI and I2C interfaces, better compatibility, high transmission rate
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage 3.3V Resolution 64 × 128 pixels
Communication Interface 4-wire SPI, I2C Display size 14.70 × 29.42mm
Display Panel OLED Pixel size 0.15 × 0.15mm
Driver SH1107 Dimensions 30.0 × 39.5mm

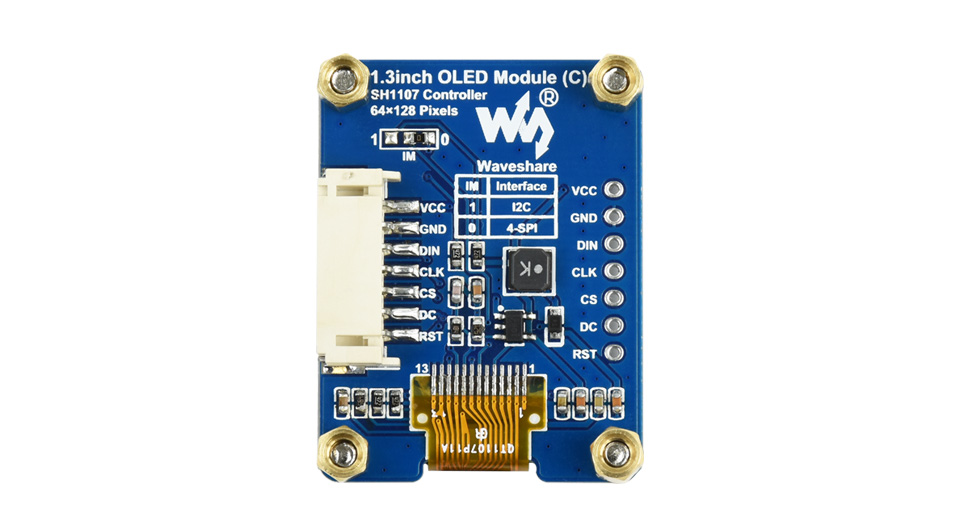

SPI Control Interface

supports controller boards like Raspberry Pi/Arduino/STM32

VCC Power (3.3V input)
GND Ground
DIN data input
CLK clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

Hardware connection

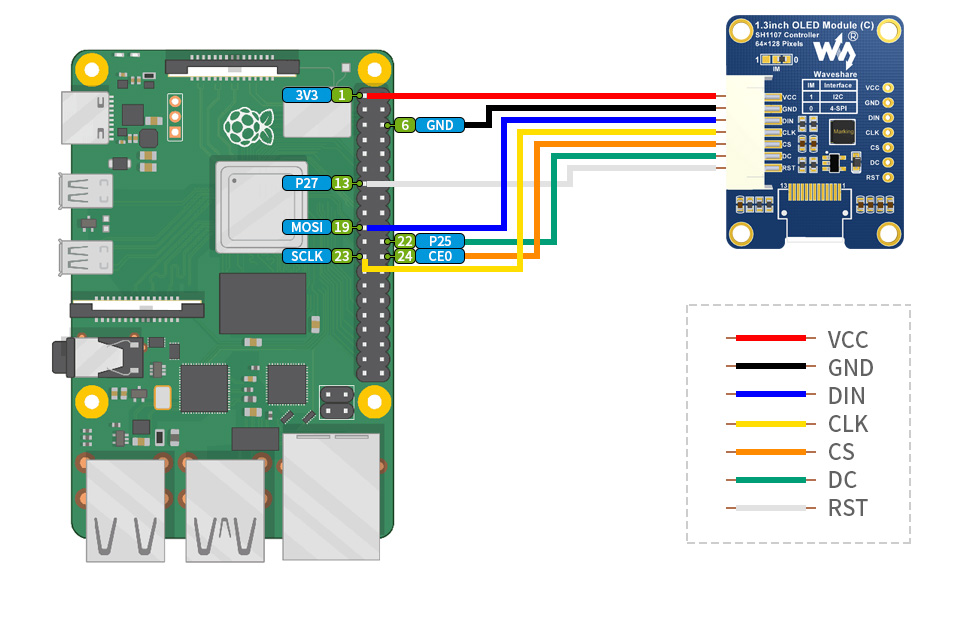

connecting with Raspberry Pi

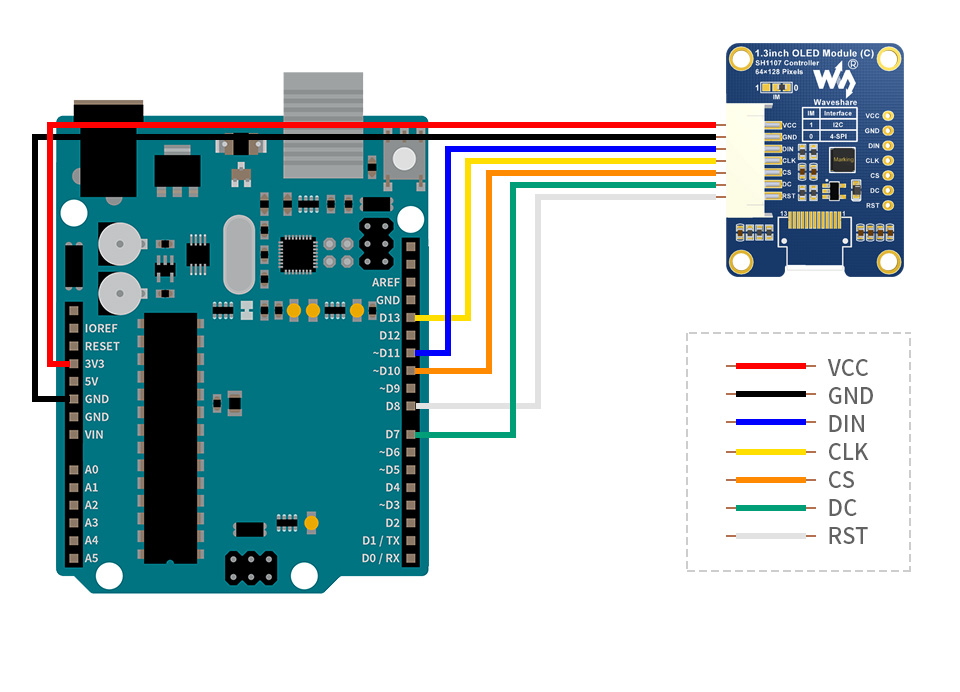

connecting with Arduino board

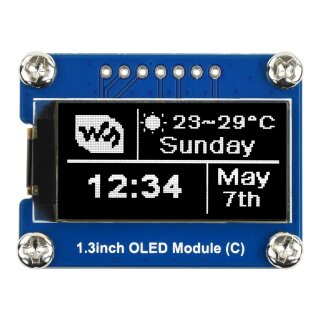

Living example

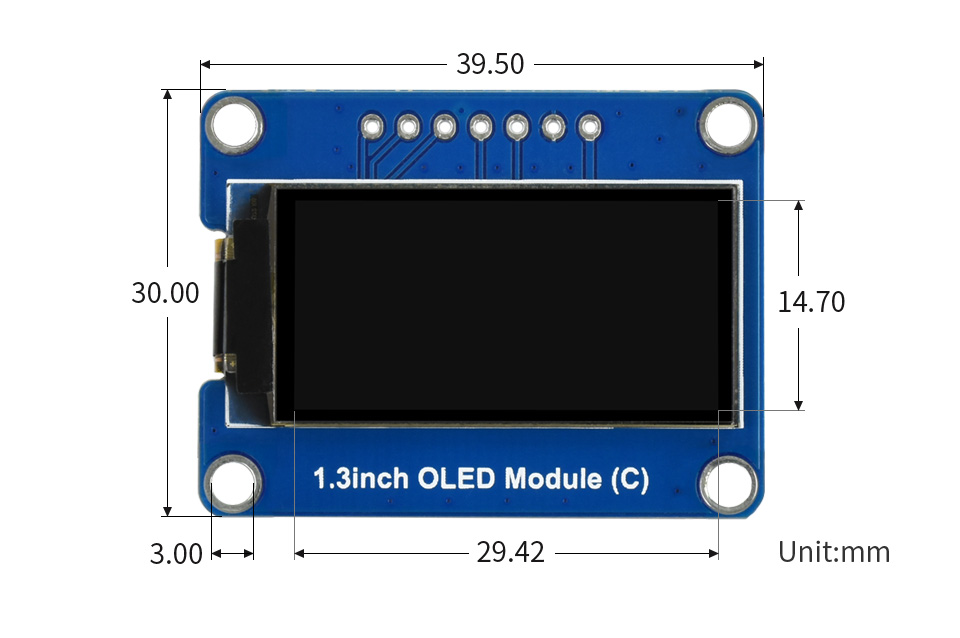

Outline dimensions

Resources & Services

Wiki: 1.3inch_OLED_Module_(C)

Selection Guide

Part Number Type Color Resolution Display Size (mm×mm) Interfaces Driver Dimension (mm×mm) Pinheader
0.91inch OLED Module OLED White 128×32 22.38×5.58 I2C SSD1306 36.0×12.5 PH2.0 connector
0.95inch RGB OLED (A) OLED 65K colorful 96×64 20.14×13.42 SPI(4-wire SPI) SSD1331 31.7×37.0 angled/horizontal
0.95inch RGB OLED (B) OLED 65K colorful 96×64 20.14×13.42 SPI(4-wire SPI) SSD1331 31.7×37.0 straight/vertical
0.96inch LCD Module IPS 65K colorful 160×80 21.70×10.80 4-wire SPI ST7735S 32.5×26.0 PH2.0 connector
0.96inch OLED (A) OLED 1/4 yellow section, 3/4 blue section 128×64 21.7×11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0×33.5 angled/horizontal
0.96inch OLED (B) OLED 1/4 yellow section, 3/4 blue section 128×64 21.7×11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0×33.5 straight/vertical
1.14inch LCD Module IPS 65K colorful 240×135 24.91×14.86 4-wire SPI ST7789 35.0×32.0 PH2.0 connector
1.28inch LCD Module IPS 65K colorful 240×240 Φ32.4mm 4-wire SPI GC9A01 40.4×37.5 Φ37.5 PH2.0 connector
1.3inch LCD Module IPS 65K colorful 240×240 23.40×23.40 4-wire SPI ST7789 45.0×31.0 PH2.0 connector
1.3inch OLED (A) OLED Blue 128×64 29.42×14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5×37.5 angled/horizontal
1.3inch OLED (B) OLED Blue 128×64 29.42×14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5×37.5 straight/vertical
1.3inch OLED Module (C) OLED White 64×128 14.70×29.42 4-wire SPI, I2C SH1107 30.0×39.5 PH2.0 connector
1.5inch OLED Module OLED White (16 gray scale) 128×128 26.86×26.86 4-wire SPI, I2C SSD1327 44.5×37.0 PH2.0 connector
1.5inch RGB OLED Module OLED 65K colorful 128×128 26.86×26.86 3-wire SPI, 4-wire SPI SSD1351 44.5×37.0 PH2.0 connector
1.54inch LCD Module IPS 65K colorful 240×240 27.72×27.72 4-wire SPI ST7789 50.0×35.0 PH2.0 connector
1.8inch LCD Module TFT 65K colorful 128×160 34.50×28.30 4-wire SPI ST7735S 56.5×34.0 PH2.0 connector
2inch LCD Module IPS 262K colorful 240×320 30.60×40.80 4-wire SPI ST7789 58.0×35.0 PH2.0 connector
2.4inch LCD Module TFT 65K colorful 240×320 36.72×48.96 4-wire SPI ILI9341 70.5×43.3 PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Package Contents

  1. 1.3inch OLED Module (C) x1
  2. PH2.0 7PIN 20cm cable x1
1
2
Shipping weight: 0.02 Kg

Product Reviews

Average product review

5 Stars
4 Stars
3 Stars
2 Stars
1
1 Star

Share your experience with other customers:

2 from 5 I²C Modus schwierig

Ich habe mir dieses OLED gekauft weil es sich auch mit I²C-Bus ansteuern lässt.

Auf der Internetseite von waveshare nahezu null Information wie man das Display dafür konfiguriert.
Man muss einen SMD-Widerstand AB-löten und gegen die Lötstopmaske eine Lötverbindung zwischen zwei Lötpunkte hinfummeln.
Zusätzlich muss man den Reset-Eingang des Displays mit dem IO-pin 13 /bei einem Arduino-Uno) verbinden damit der Demo-Code auf dem Display mit I²C-Bus läuft.
Man braucht also insgesamt drei Leitungen.

Ganz merkwürdig ist die Tatsache, dass die Resetleitung empfindlich gegen Störeinflüsse ist. Ich wollte mit dem Digitalmultimeter den Spannungspegel messen aber das zusätzliche Verbinden des DMM stoppte das Display es bliebt dunkel bis ich den Arduino neu gestartet habe.

Was ist denn das für ein Murks?!

, 02.01.2022
