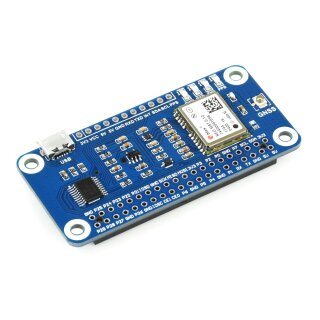

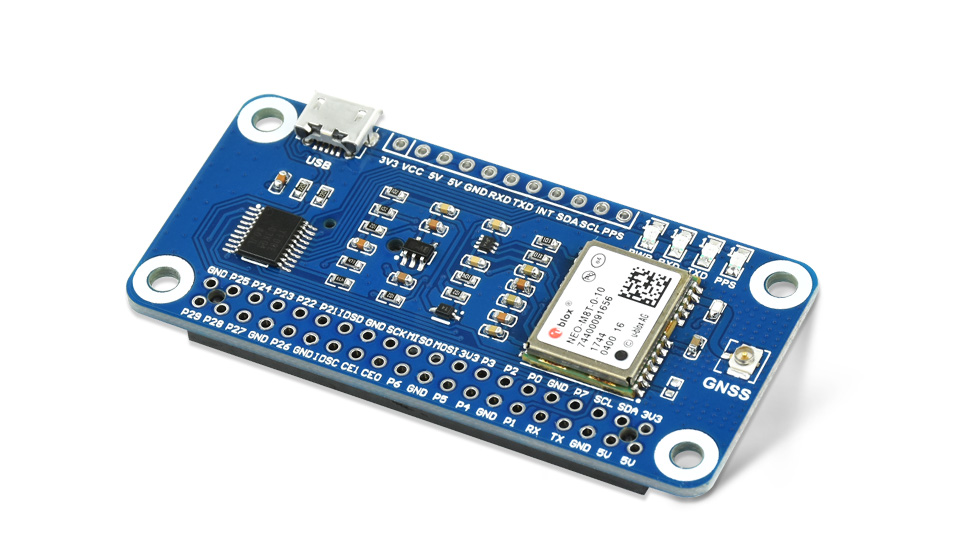

Waveshare 18294 NEO-M8T GNSS TIMING HAT

Artnr.: WS1-018294

Waveshare 18294 NEO-M8T GNSS TIMING HAT

NEO-M8T GNSS TIMING HAT für Raspberry Pi, Unterstützung für Multi-Konstellations-Empfänger, Einzel-Satelliten-Timing-Funktion

129,00 € inkl. 19% MwSt.

108,40 € exkl. MwSt.

kostenfreie Lieferung

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

NEO-M8T GNSS TIMING HAT

GNSS module based on NEO-M8T for Raspberry Pi, single-satellite timing feature

accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming

This is a Raspberry Pi GNSS HAT based on NEO-M8T with multi-constellation receiver support, as well as precise single-satellite timing feature. It supports concurrent reception of up to 3 GNSS (GPS, Beidou, Galileo, GLONASS) and augment systems like SBAS, QZSS, IMES, and D-GPS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on.

By simply attaching it onto the Pi, it is fairly easy to enable GNSS capability for your Raspberry Pi.

Features at a glance

Precise timing feature, high availability even with one single satellite
High dynamic range radios with both analog and digital interference mitigation, supporting applications in wireless communications equipment
Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption
Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location
A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
Supports U-Center, an easy way to config the module
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32
Baudrate range: 4800~921600bps (9600bps by default)
Supports DDC (I2C compliant) interface: up to 400KHz (max)
Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
4x LEDs for indicating the module operating status
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

GNSS Specifications
NEO-M8T		GPS & GLONASS	GPS	GLONASS	BeiDou	Galileo
Frequency band		72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1, Galileo E1B/C
Horizontal positioning accuracy	Autonomous	2.5m CEP	2.5m CEP	4.0m CEP	3.0m CEP	-
Horizontal positioning accuracy	SBAS	2.0m CEP	2.0m CEP	-	-	-
Max navigation update rate		4Hz	10Hz	10Hz	10Hz	10Hz
Time-To-First-Fix	Cold starts	25s	29s	30s	34s	45s
	Hot starts	1s	1s	1s	1s	1s
	Aided starts	2s	2s	2s	3s	7s
Sensitivity	Tracking and navigating	-167 dBm	-166 dBm	-166 dBm	-159 dBm	-159 dBm
	Aided acquisition	-157 dBm	-157 dBm	-151 dBm	-146 dBm	-142 dBm
	Re-acquisition	-160 dBm	-160 dBm	-156 dBm	-156 dBm	-153 dBm
	Cold starts	-148 dBm	-148 dBm	-145 dBm	-143 dBm	-138 dBm
	Hot starts	-160 dBm	-160 dBm	-156 dBm	-155 dBm	-151 dBm
Velocity accuracy		0.05 m/s	0.05 m/s	0.1 m/s	0.1 m/s	0.1 m/s
Heading accuracy		0.3 degree	0.3 degree	0.4 degree	0.5 degree	0.5 degree
PPS accuracy	Clear sky	=20ns
	Indoor	=500ns
	Jitter	±11ns
PPS frequency		0.25Hz?10MHz (configurable)
Operational limits		Acceleration (max): 4g
		Altitude (max): 50000m
		Velocity (max): 500m/s
Other Specifications
Communication interface		USB, UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate		1Hz (default), 10Hz (max)
Protocol		NMEA 0183 Version 4.0 (V2.3 or V4.1 selectable), UBX, RTCM 2.3
Power supply		5V
Overall current		<45mA@5V (Continue mode)
Module current		32mA@3V (Continue mode)
Operating temperature		-40? ~ 85?

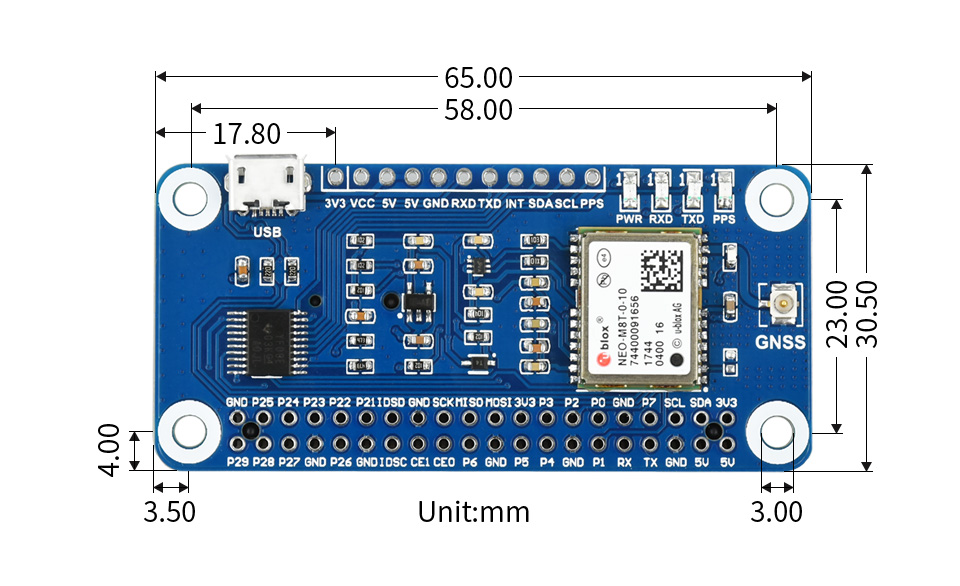

Dimensions		65mm × 30.5mm

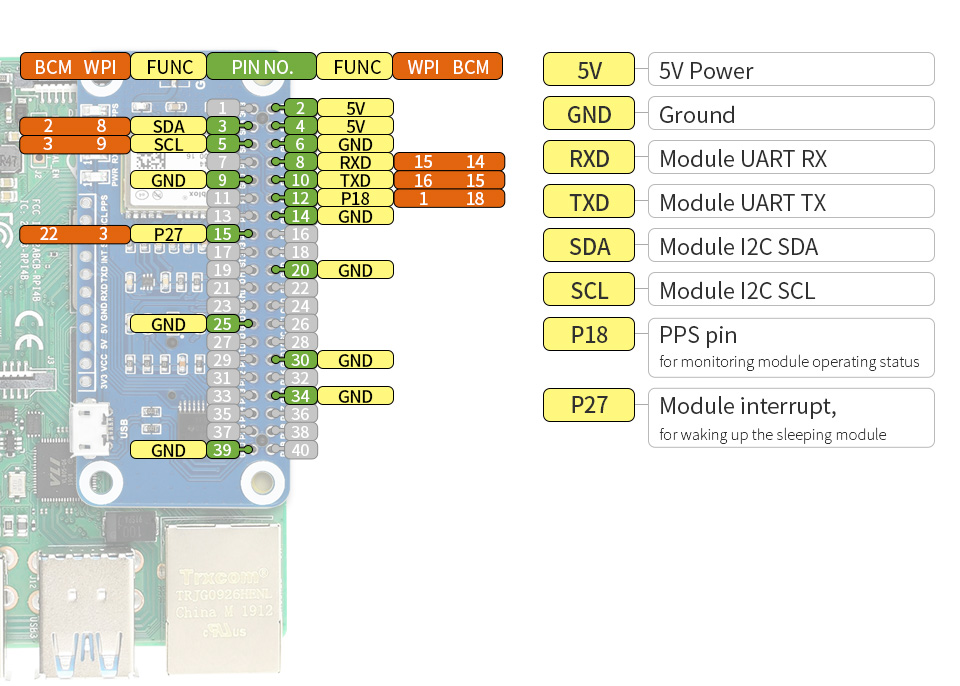

Standard Raspberry Pi 40PIN GPIO

Compatible with Raspberry Pi series boards, Jetson Nano

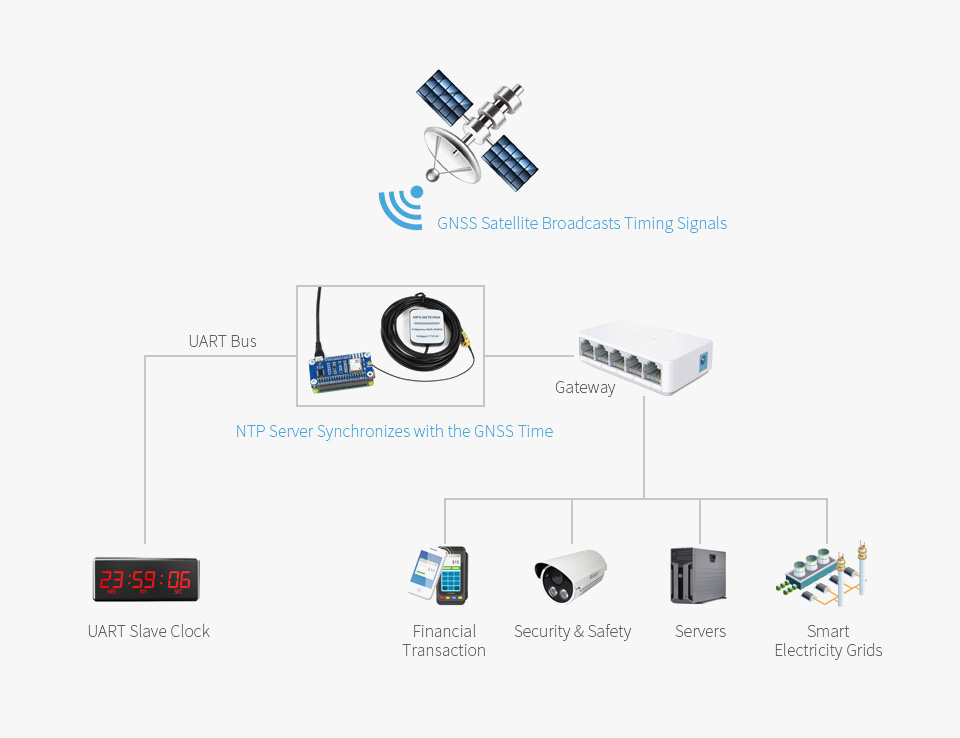

single-satellite timing & synchronization

high integrity, precise timing feature, high availability even with one single satellite

Cost effective, high precision, easy implement

Multi-constellation receiver support

concurrent reception of up to 3 types of GNSS satellite systems, and still retains low power consumption

Supports GPS, Beidou, Galileo, and GLONASS

Augment systems support

Augment system is aimed at improving the accuracy, integrity, reliability, and availability of positioning and navigation

Supports augment systems including SBAS, QZSS, IMES, D-GPS

Geo-fencing support

Features -167dBm navigating sensitivity, outstanding ability for anti-spoofing & anti-jamming

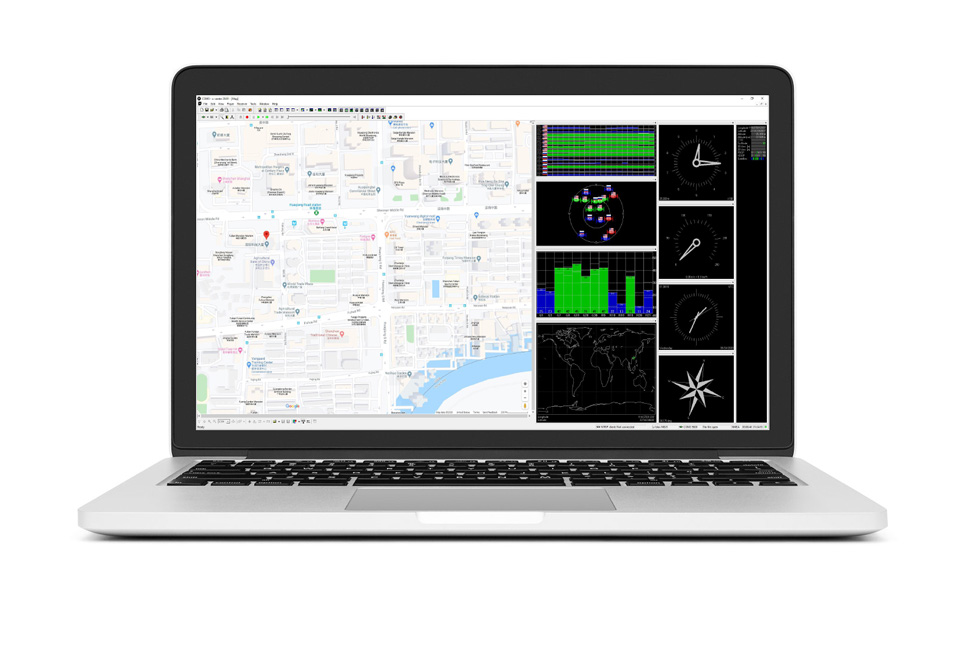

software U-Center support

an easy way to config the module

applications

Ideal for fleet management, asset tracking, financial transaction, smart electricity grids, security systems, industrial PDA, GIS app, etc.

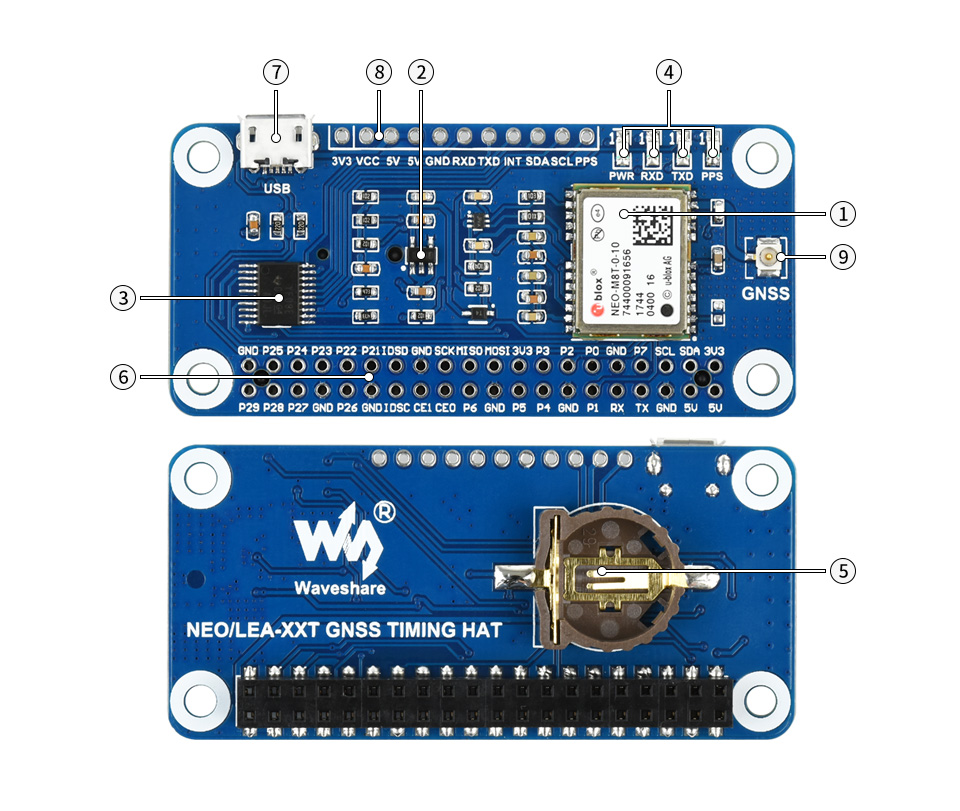

What's on board

NEO-M8T module
RT9193-33 power chip
TXS0108EPWR voltage translator
Status indicators RXD/TXD: UART TX/RX indicator PPS: GPS status indicatorPWR: power indicator
Battery holder supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
