Waveshare 18401 2.66inch e-Paper

Artno.: WS3-018401
2.66inch e-Paper E-Ink Raw Display, 296×152 pixels, Black / White Dual-Color, SPI Interface, without PCB
9.90 € incl. 19% VAT
8.32 € excl. VAT

plus shipping

10+ On stock

Shipping time: 1 - 3 business days

Description

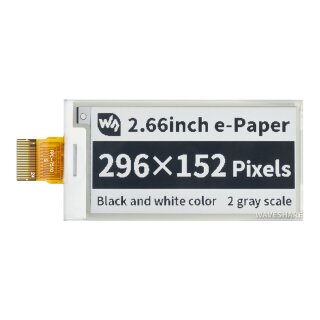

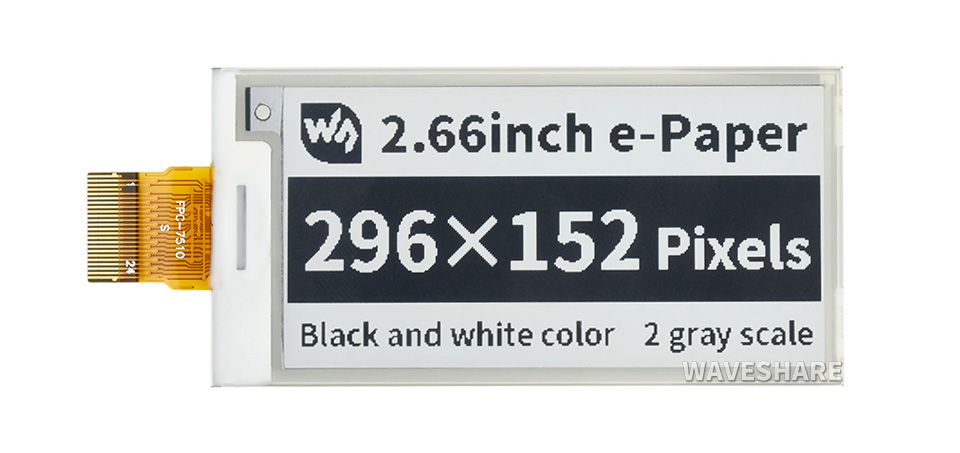

2.66" e-Paper

partial refresh support, low power, wide viewing angle, paper-like effect

Ideal for price tags, shelf labels, industrial instruments...

  • Size2.66"
  • Resolution296×152
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support

Features at a glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

operating voltage 3.3V display color black, white
interface 3-wire SPI, 4-wire SPI grey scale 2
outline dimensions 36.304 × 71.820 × 1.0mm partial refresh time 0.3s
display size 30.704 × 60.088mm full refresh time 6s
dot pitch 0.202 × 0.203mm refresh power 42.4mW(typ.)
resolution 296 × 152 pixels standby current <0.01uA (almost none)
viewing angle >170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

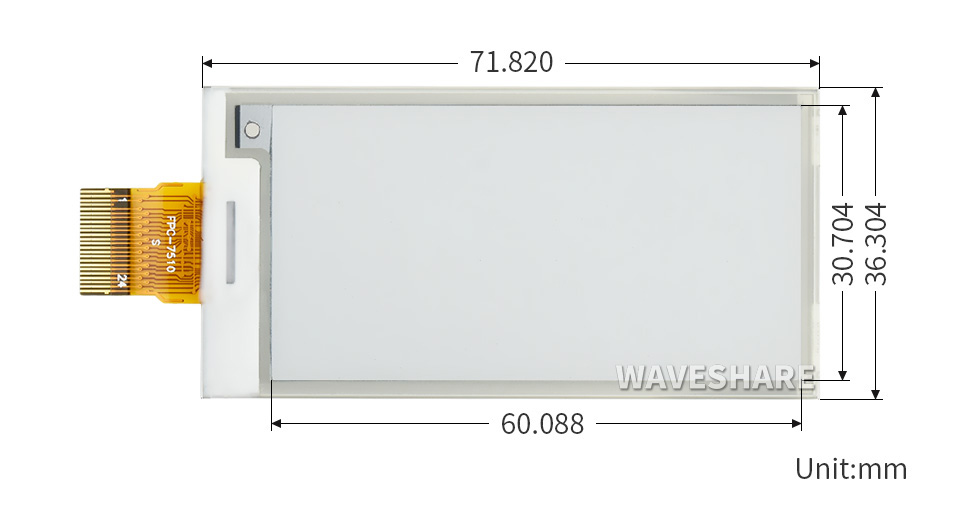

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Recommended

To fastly get started with this raw display, please consider the following driver boards:

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh Flexible Interface
1.02inch e-Paper black, white 2 128×80 21.76 × 14.00 32.57 × 18.60 × 0.98 2 √ SPI
1.54inch e-Paper black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 2 √ SPI
1.54inch e-Paper (B) red, black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 8 SPI
1.54inch e-Paper (C) yellow, black, white 2 152×152 27.51 × 27.51 37.30 × 31.80 × 0.98 27 SPI
2.13inch e-Paper black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 1.05 2 √ SPI
2.13inch e-Paper (B) red, black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.98 15 SPI
2.13inch e-Paper (C) yellow, black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.98 15 SPI
2.13inch e-Paper (D) black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.30 2 √ √ SPI
2.66inch e-Paper black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 6 √ SPI
2.66inch e-Paper (B) red, black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 15 SPI
2.7inch e-Paper black, white 4 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 6 SPI
2.7inch e-Paper (B) red, black, white 2 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 15 SPI
2.9inch e-Paper black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.05 2 √ SPI
2.9inch e-Paper (B) red, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15 SPI
2.9inch e-Paper (C) yellow, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15 SPI
2.9inch e-Paper (D) black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 0.34 2 √ √ SPI
3.7inch e-Paper black, white 4 480×280 47.32 × 81.12 54.90 × 93.30 × 0.78 3 √ SPI
4.01inch e-Paper (F) 7-Color 2 640×400 86.40 × 54.00 96.80 × 68.70 × 0.91 15 SPI
4.2inch e-Paper black, white 4 400×300 84.80 × 63.60 91.00 × 77.00 × 1.18 4 SPI
4.2inch e-Paper (B) red, black, white 2 400×300 84.80 × 63.60 90.10 × 77.00 × 1.18 15 SPI
4.2inch e-Paper (C) yellow, black, white 2 400×300 84.80 × 63.60 90.10 × 77.00 × 1.18 15 SPI
5.65inch e-Paper (F) 7-Color 2 600×448 114.9 × 85.8 125.4 × 99.5 × 0.91 <35 SPI
5.83inch e-Paper black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 5 SPI
5.83inch e-Paper (B) red, black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 20 SPI
5.83inch e-Paper (C) yellow, black, white 2 600×448 118.80 × 88.26 125.40 × 99.50 × 1.18 26 SPI
6inch HD e-Paper black, white 16 1448×1072 122.40 × 90.60 138.40 × 101.80 × 1.01 <1 √ Parallel port
7.5inch e-Paper black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 5 SPI
7.5inch HD e-Paper black, white 2 880×528 163.24 × 97.94 170.20 × 111.20 × 1.25 5 SPI
7.5inch e-Paper (B) red, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 16 SPI
7.5inch HD e-Paper (B) red, black, white 2 880×528 163.24 × 97.94 170.20 × 111.20 × 1.25 21 SPI
7.5inch e-Paper (C) yellow, black, white 2 640×384 163.20 × 97.92 170.20 × 111.20 × 1.18 16 SPI
7.8inch e-Paper black, white 16 1872×1404 158.18 × 118.64 173.80 × 127.60 × 0.78 <1 √ Parallel port
9.7inch e-Paper black, white 16 1200×825 202.8 × 139.43 218.80 × 156.425 × 1.15 <1 √ Parallel port
10.3inch e-Paper black, white 16 1872×1404 209.66 × 157.25 216.70 × 174.40 × 0.78 <1 √ Parallel port
10.3inch e-Paper (D) black, white 16 1872×1404 209.66 × 157.25 227.70 × 165.80 × 0.647 <1 √ √ Parallel port
12.48inch e-Paper black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <8 SPI
12.48inch e-Paper (B) red, black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <16 SPI
13.3inch e-Paper black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 × 0.78 <1 √ Parallel port
e-Paper raw panels comparing

Package Contents

This is a raw display, for easy testing and comparing, please consider the one with driver board: 2.66inch e-Paper Module
  1. 2.66inch e-Paper x1
1
Shipping weight: 0.01 Kg
