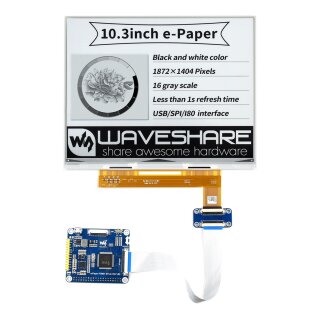

Waveshare 18434 10.3inch e-Paper HAT

Artno.: WS3-018434
10.3inch e-Paper E-Ink Display HAT for Raspberry Pi, 1872×1404 pixels, Black / White, 2-16 Grey Scales, USB/SPI/I80
229.00 € incl. 19% VAT
192.44 € excl. VAT

Free shipping

On stock

Shipping time: 1 - 3 business days

Description

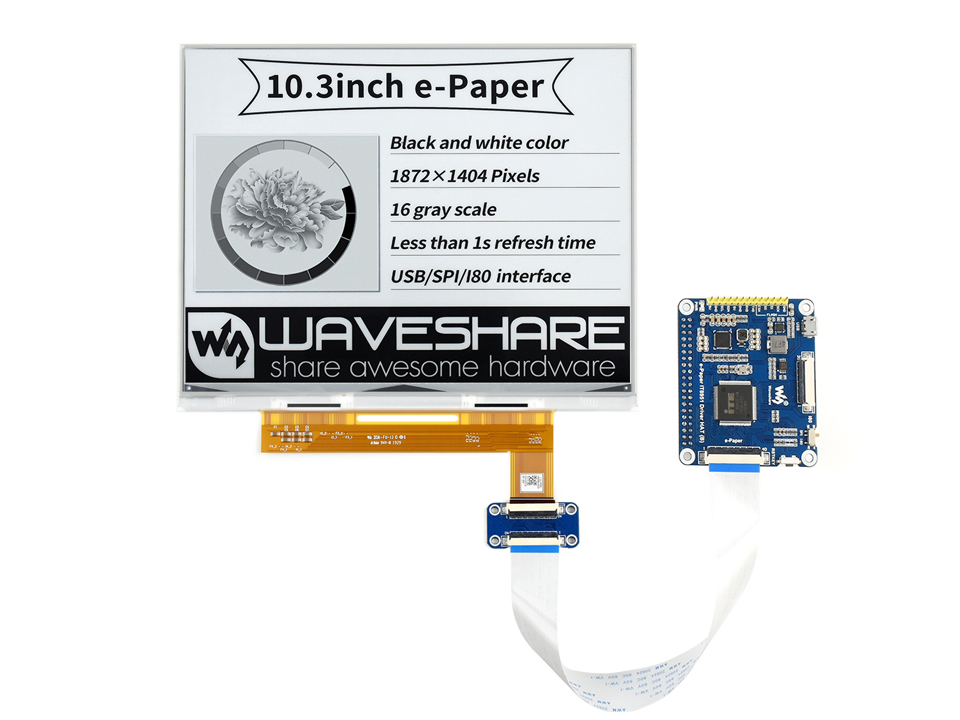

10.3" e-Paper HAT for Raspberry Pi

partial refresh support, low power, wide viewing angle, paper-like effect

Ideal for e-reader, eink monitor, industrial instruments...

  • Size10.3"
  • Resolution1872×1404
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2-16 (1-4 bit)
  • CommunicationUSB/SPI/I80
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support

Features at a glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

operating voltage 5V display color black, white
interface USB/SPI/I80 grey scale 2-16 (1-4 bit)
outline dimensions 216.70 × 174.40mm full refresh time <1s
display size 209.66 × 157.25mm refresh power 1.2W (typ.)
dot pitch 0.112 × 0.112mm standby current 0.1W (typ.)
resolution 1872 × 1404 pixels viewing angle >170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

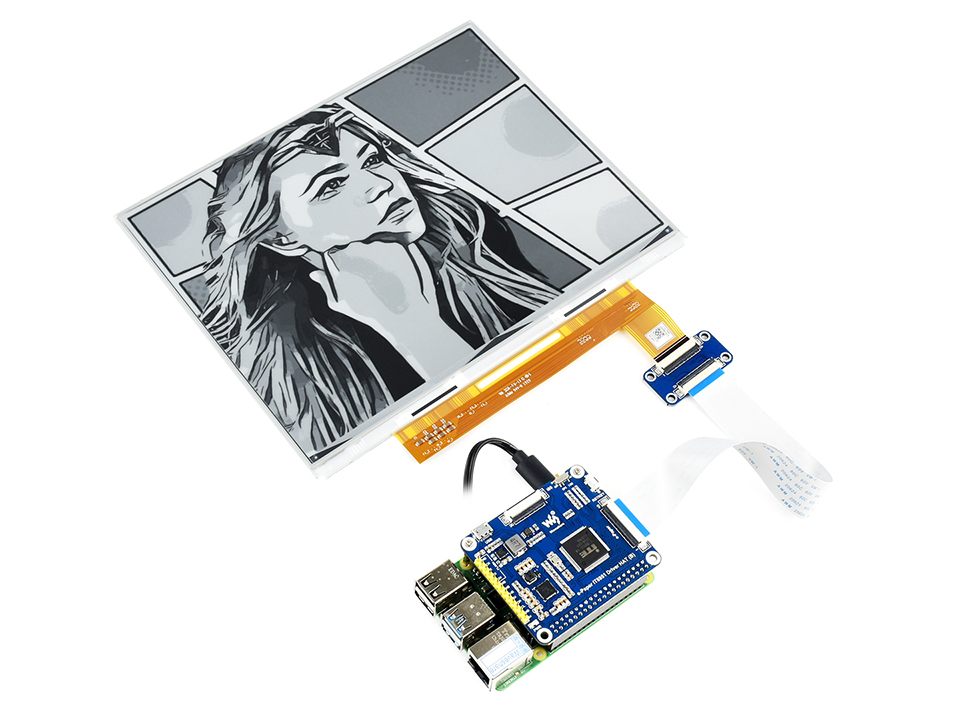

Standard Raspberry Pi 40PIN GPIO header

compatible with Raspberry Pi series boards

Raspberry Pi in the photo is NOT included.

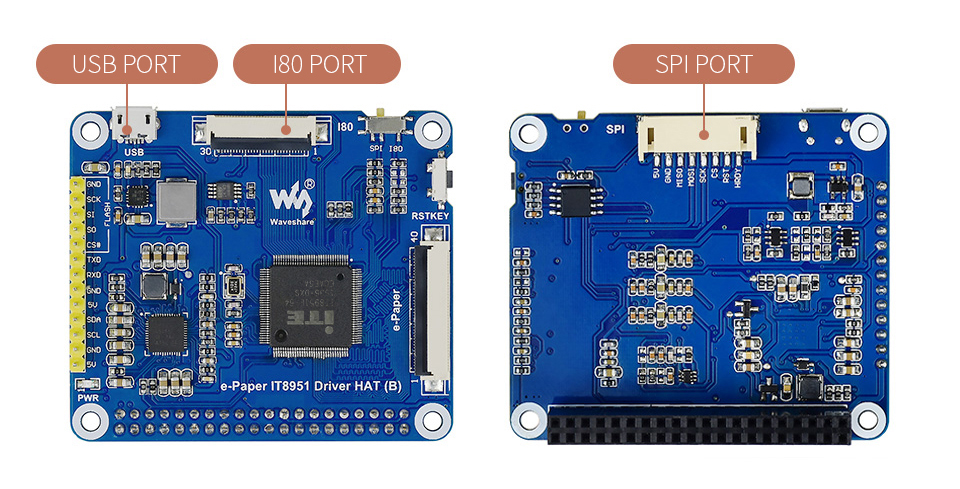

Onboard USB/SPI/I80 control interface

for use with controller boards like Raspberry Pi/STM32

SPI pinout
VCC Power, 5V input
GND Ground
MISO SPI MISO pin
MOSI SPI MOSI pin
SCK SPI SCK pin
CS SPI chip selection, low active
RST External reset, low active
HRDY Busy status output, low active

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

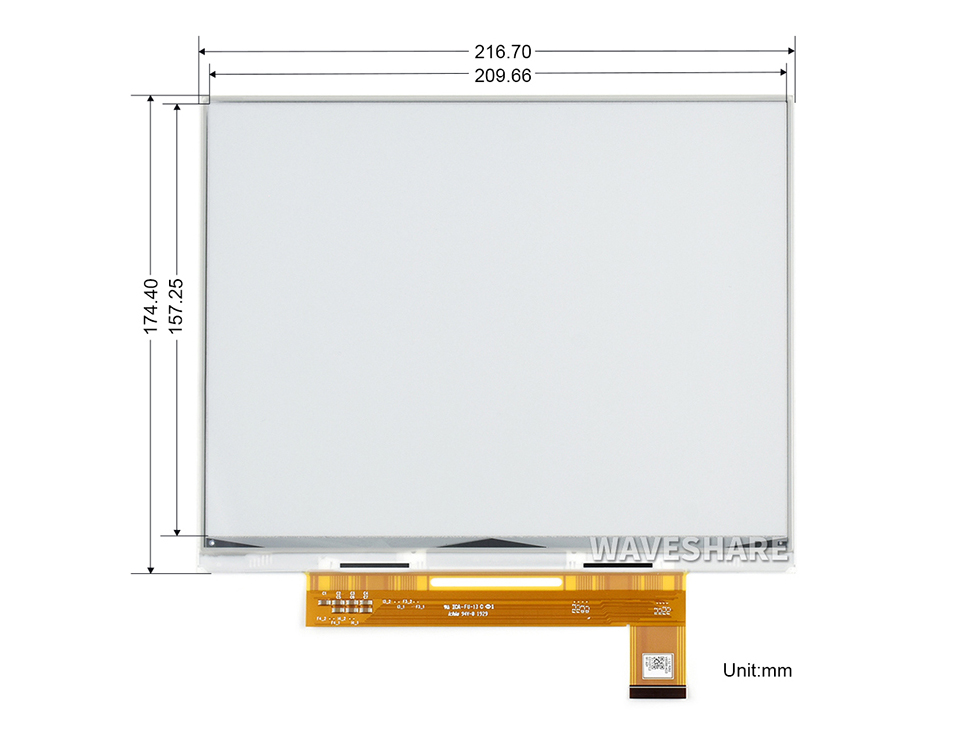

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh1 Pi Head-er2 Flexi-ble Interface
1.02inch e-Paper Module black, white 2 128×80 21.76 × 14.00 42.0 × 27.0 2 √ SPI
1.54inch e-Paper Module black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 2 √ SPI
1.54inch e-Paper Module (B) red, black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 8 SPI
1.54inch e-Paper Module (C) yellow, black, white 2 152×152 27.51 × 27.51 48.0 × 33.0 27 SPI
2.13inch e-Paper HAT black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 2 √ √ SPI
2.13inch e-Paper HAT (B) red, black, white 2 212×104 48.55 × 23.70 65.0 × 30.2 15 √ SPI
2.13inch e-Paper HAT (C) yellow, black, white 2 212×104 48.55 × 23.70 65.0 × 30.2 15 √ SPI
2.13inch e-Paper HAT (D) black, white 2 212×104 48.55 × 23.70 59.2 × 29.2 2 √ √ √ SPI
2.13inch Touch e-Paper HAT black, white 2 250×122 48.55 × 23.70 69.15 × 38.90 2 √ √ SPI
2.66inch e-Paper Module black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 6 √ SPI
2.66inch e-Paper Module (B) red, black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 15 SPI
2.7inch e-Paper HAT black, white 4 264×176 57.29 × 38.19 85.0 × 56.0 6 √ SPI
2.7inch e-Paper HAT (B) red, black, white 2 264×176 57.288 × 38.192 73.5 × 56.0 15 √ SPI
2.9inch e-Paper Module black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 2 √ SPI
2.9inch e-Paper Module (B) red, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 SPI
2.9inch e-Paper Module (C) yellow, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 SPI
2.9inch e-Paper HAT (D) black, white 2 296×128 66.90 × 29.06 79.0 × 36.7 2 √ √ √ SPI
2.9inch Touch e-Paper HAT black, white 2 296×128 66.89 × 29.05 89.10 × 42.70 2 √ √ SPI
3.7inch e-Paper HAT black, white 4 480×280 47.32 × 81.12 58.0 × 96.5 3 √ √ SPI
4.01inch e-Paper Module (F) 7-Color 2 640×400 86.40 × 54.00 98.5 × 70.0 15 √ SPI
4.2inch e-Paper Module black, white 4 400×300 84.80 × 63.60 103.0 × 78.5 4 SPI
4.2inch e-Paper Module (B) red, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 SPI
4.2inch e-Paper Module (C) yellow, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 SPI
4.3inch e-Paper UART Module black, white 4 800×600 88.00 × 66.00 118.0 × 75.0 1.5 UART
5.65inch e-Paper Module (F) 7-Color 2 600×448 114.9 × 85.8 138.5 × 100.5 <35 SPI
5.83inch e-Paper HAT black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 5 √ SPI
5.83inch e-Paper HAT (B) red, black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 20 √ SPI
5.83inch e-Paper HAT (C) yellow, black, white 2 600×448 118.8 × 88.26 125.4 × 99.5 26 √ SPI
6inch e-Paper HAT black, white 16 800×600 122.4 × 90.6 138.4 × 101.8 <1 √ √ USB/SPI/ I80
6inch HD e-Paper HAT black, white 16 1448×1072 122.4 × 90.6 138.4 × 101.8 <1 √ √ USB/SPI/ I80
7.5inch e-Paper HAT black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 5 √ SPI
7.5inch HD e-Paper HAT black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 5 √ SPI
7.5inch e-Paper HAT (B) red, black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 16 √ SPI
7.5inch HD e-Paper HAT (B) red, black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 21 √ SPI
7.5inch e-Paper HAT (C) yellow, black, white 2 640×384 163.20 × 97.92 170.2 × 111.2 16 √ SPI
7.8inch e-Paper HAT black, white 16 1872×1404 158.18 × 118.64 173.8 × 127.6 <1 √ √ USB/SPI/ I80
9.7inch e-Paper HAT black, white 16 1200×825 202.8 × 139.43 218.8×156.4 <1 √ √ USB/SPI/ I80
10.3inch e-Paper HAT black, white 16 1872×1404 209.66 × 157.25 216.7 × 174.4 <1 √ √ USB/SPI/ I80
10.3inch e-Paper HAT (D) black, white 16 1872×1404 209.66 × 157.25 227.7 × 165.8 <1 √ √ √ USB/SPI/ I80
12.48inch e-Paper Module black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <8 √ SPI
12.48inch e-Paper Module (B) red, black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <16 √ SPI
13.3inch e-Paper HAT black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 <1 √ √ USB/SPI/ I80
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

e-Paper raw panels comparing

Package Contents

Actual Weight: 0.145 kg

  1. 10.3inch e-Paper x1
  2. e-Paper IT8951 Driver HAT (B) x1
  3. 10.3inch e-Paper Adapter x1
  4. 40PIN FFC (same side contact) x1
  5. USB type A plug to micro B plug cable x1
  6. PH2.0 20cm 8Pin x1
  7. RPi screws pack (2pcs) x1
1
2+3+4
5
6
7
Shipping weight: 0.50 Kg
