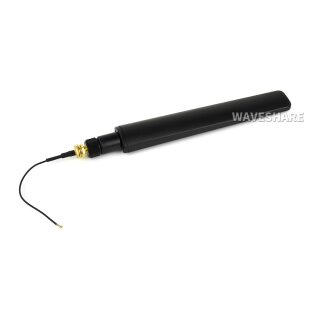

Waveshare 18574 5G/4G/3G/2G External Antenna
Description

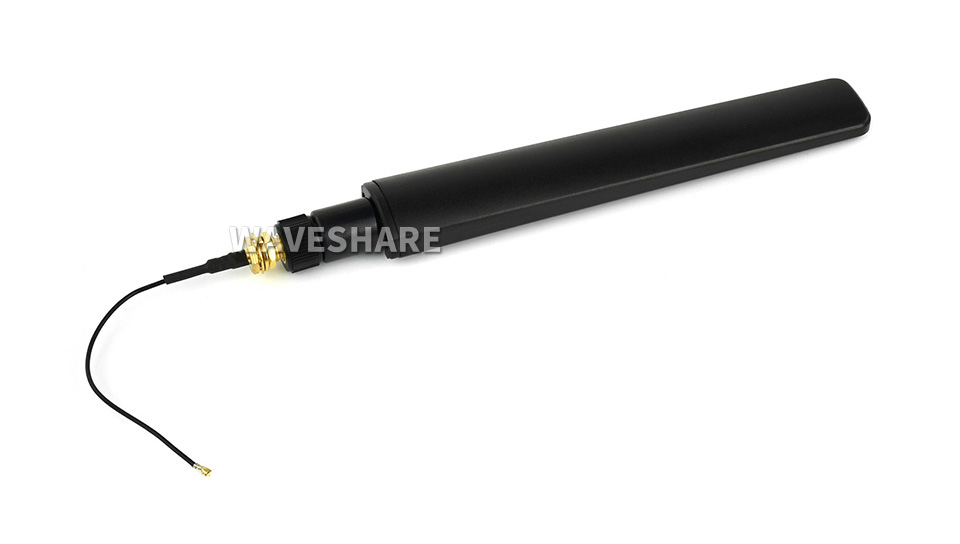

5G high gain omni antenna
5G/4G/3G/2G compatible, SMA to IPEX-4 connector
Specifications
| Network support | 5G/4G/3G/2G | Output resistance (O) | 50 |
|---|---|---|---|
| Frequency band (MHz) | 600~6000MHz | Input Power (W) | 25 |
| Peak gain (dBi) | -2.0?5.5dBi | Connector | SMA needle inside |
| Avg gain (dB) | -6.0?-0.7dB | Connection wire | SMA to IPEX-4 |
| SWR | < 3.5 | Dimensions (mm) | 152.4 × 21.79 × 14.49 |
| Return loss | < -5.0 | Material | ABS |
| Efficiency (%) | 25?85% | Operating temperature (°C) | -40°C?+ 85°C |
| Polarization | Linear | Storage temperature (°C) | -40°C?+ 85°C |
| Emitting direction | Omni-directional |
Connection example

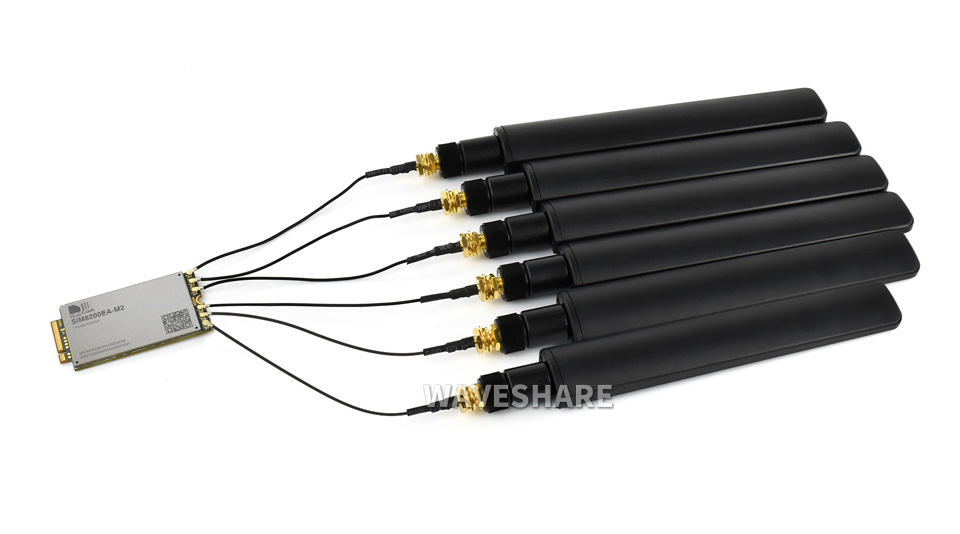

Connecting with 5G module SIM8200EA-M2
Connecting with Raspberry Pi 5G HAT SIM8200EA-M2 5G HAT

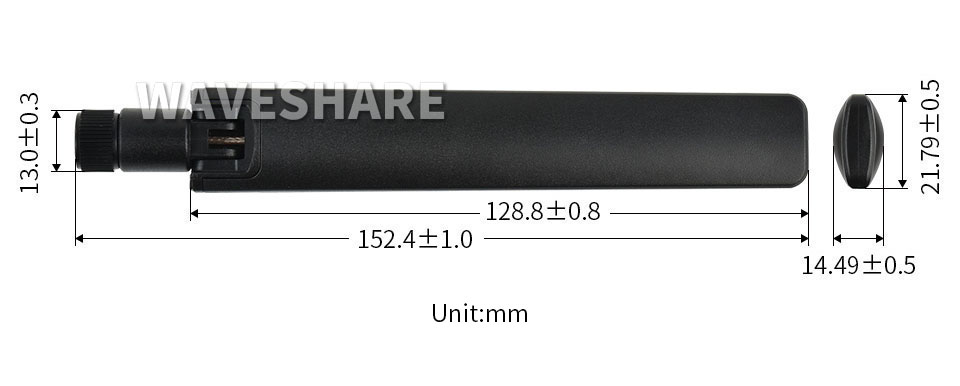

Outline Dimensions
Package Contents
- 5G/4G/3G/2G External Antenna x1
| Shipping weight: | 0.02 Kg |
