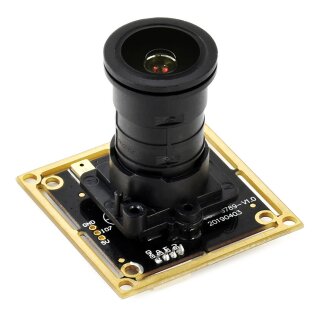

Waveshare 18584 IMX335 5MP USB Camera (A)
Description

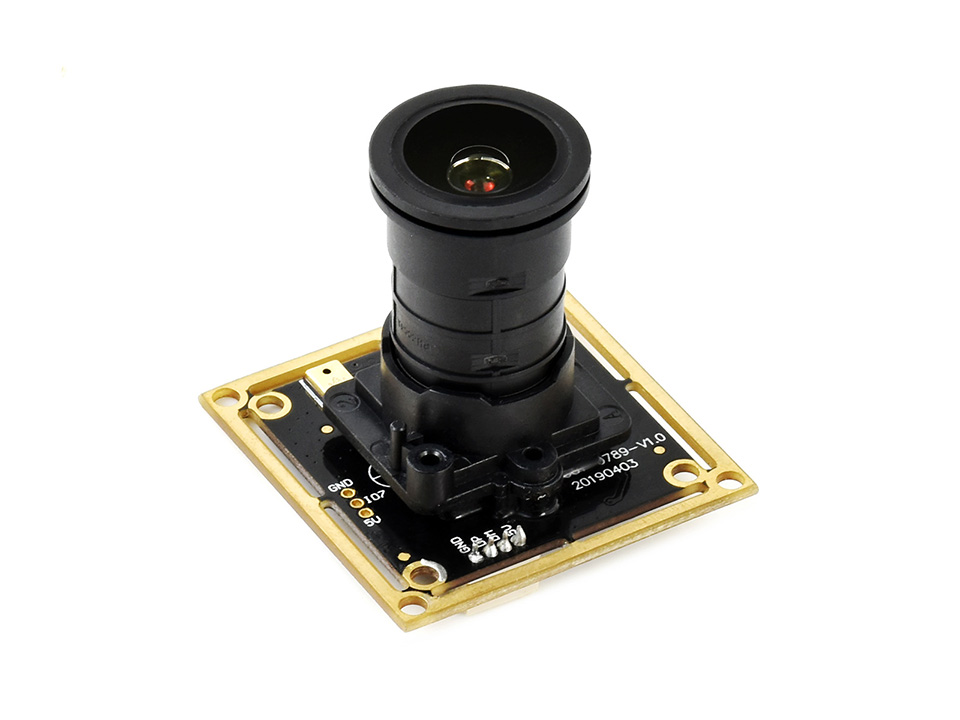

5MP M16 camera module
IMX335 sensor, USB port, manually focusing
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | IMX335 | |
| Interface | USB (UVC 1.0 compliant) | |
| Camera | Sensor size | 1/2.8 inch |
| Aperture (F) | 1.08 | |
| Focal length (EFL) | 3.91 mm | |
| Field of view (FOV) | 106°(D) 92.6°(H) 48.6°(V) | |
| Focusing | manually focusing | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 20 FPS 2592 × 1944 (Full Frame) 30 FPS 1920 × 1080 (Full HD) 30 FPS 1280 × 720 (720P) | |
| Operating voltage | 5V ± 5% | |
| Camera size | 23.50 × 19.50 × 36.94 mm | |
| Module size | 38.00 × 38.00 mm | |
| Supported OS | Windows, Linux, mac OS | |

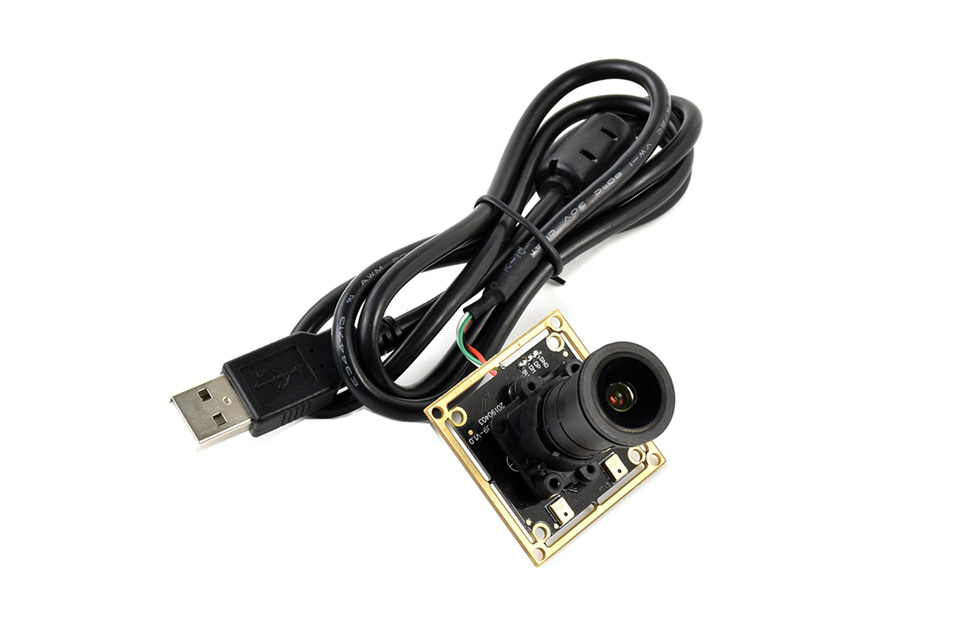

Connecting with USB cable

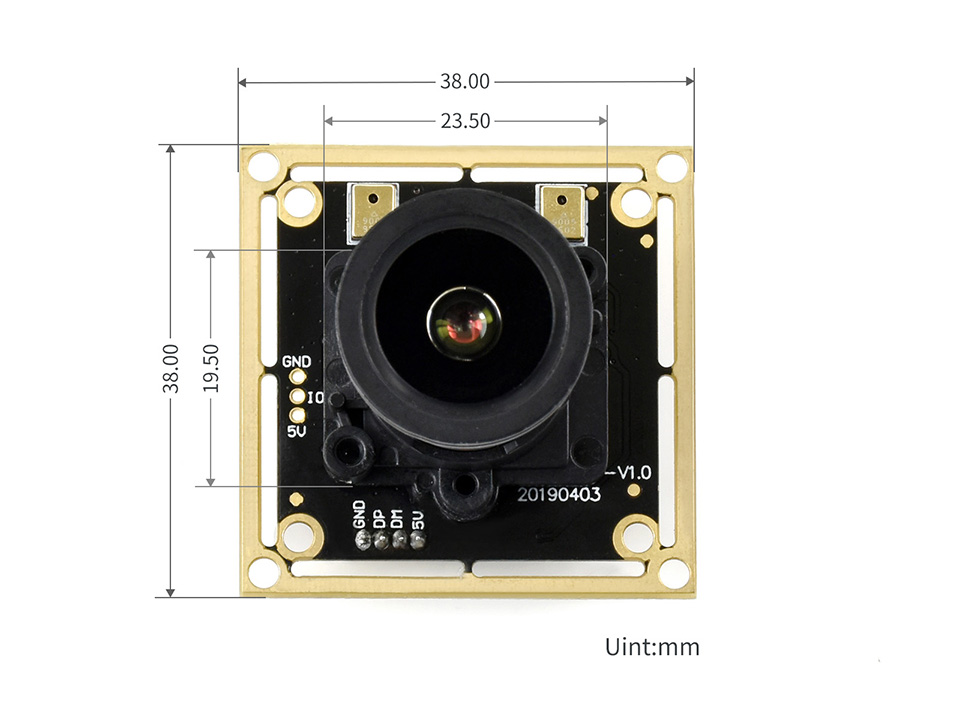

Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Feature |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38mmx38mm | 145° | Low-light sensitivity |
| OV5640 5MP USB Camera (A) | 5MP | OV5640 | 2592x1944 | 18×36mm | 135° | Auto focusing |
| OV5648 5MP USB Camera (A) | 5MP | OV5648 | 2592x1944 | 9mmx62mm | 70° | Small in size |
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106° | Manually focusing |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38mmx38mm | 145° | HD, Embedded digital mic |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4224×3192 | 38×35.8mm | 127° | HD, OIS |
Package Contents
- IMX335 5MP USB Camera (A) x1
| Shipping weight: | 0.08 Kg |
