Waveshare 18585 OV5640 5MP USB Camera (A)
Beschreibung

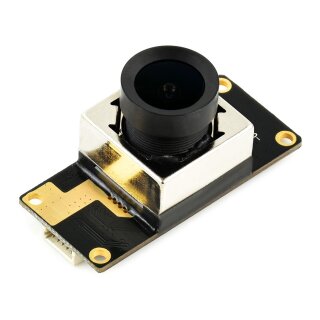

5MP M12 camera module
OV5640 sensor, USB port, auto focusing
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | OV5640 | |
| Interface | USB (UVC 1.0 compliant) | |
| Camera | Sensor size | 1/4 inch |
| Aperture (F) | 2.1 | |
| Focal length (EFL) | 2.5 mm | |
| Field of view (FOV) | 135°(D) 95°(H) 70°(V) | |
| Focusing | Auto focusing | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 5 FPS 2592 × 1944 (Full Frame) 15 FPS 1920 × 1080 (Full HD) 15 FPS 1280 × 720 (720P) | |
| Operating voltage | 5V ± 5% | |
| Camera size | 18.00 × 18.00 × 19.39 mm | |
| Module size | 18.00 × 36.00 mm | |
| Supported OS | Windows, Linux, mac OS | |

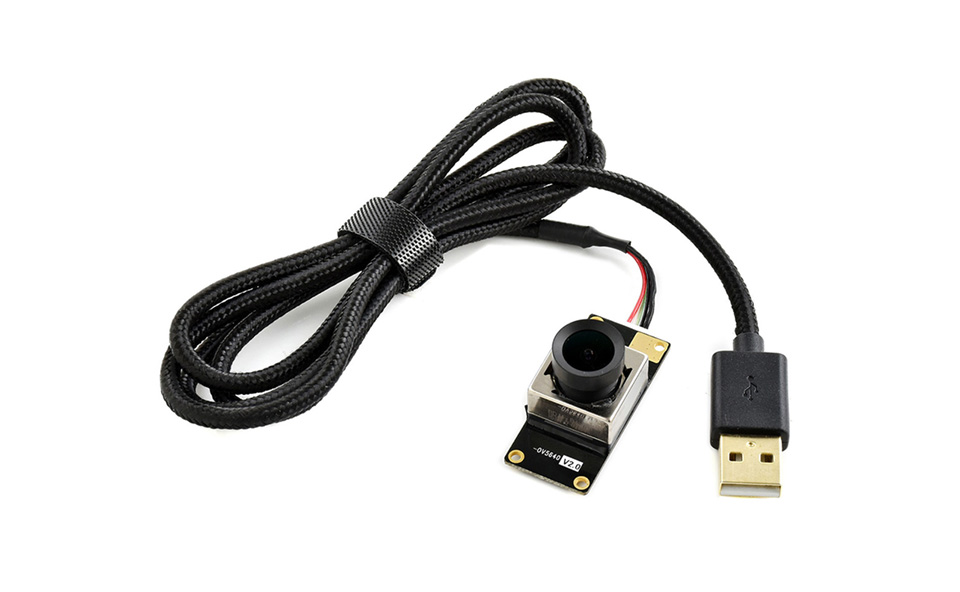

Connecting with USB cable

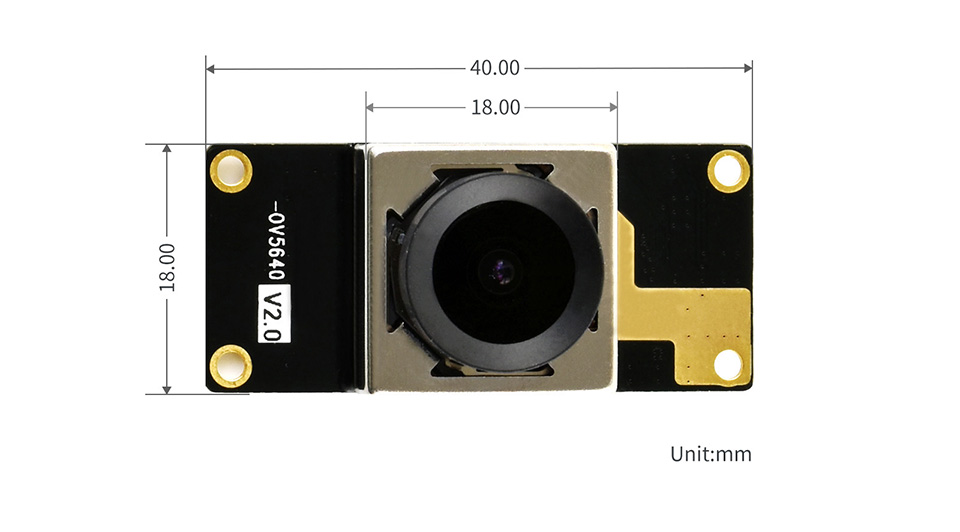

Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Feature |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38mmx38mm | 145° | Low-light sensitivity |
| OV5640 5MP USB Camera (A) | 5MP | OV5640 | 2592x1944 | 18×36mm | 135° | Auto focusing |
| OV5648 5MP USB Camera (A) | 5MP | OV5648 | 2592x1944 | 9mmx62mm | 70° | Small in size |
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106° | Manually focusing |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38mmx38mm | 145° | HD, Embedded digital mic |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4224×3192 | 38×35.8mm | 127° | HD, OIS |
Package Contents
- OV5640 5MP USB Camera (A) x1
| Versandgewicht: | 0,06 Kg |
